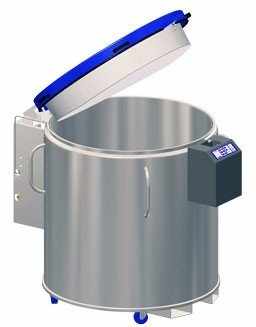

Statebourne Cryogenics 9916051 Biosystem Access 50, LN2 Capacity (litres) Vapour/Liquid 150/762, with Automatic Level Control and Temperature Monitoring

Wide-neck easy access and Bulk Biobanks with automatic level control and temperature data-logging.

The Biosystem 12, 24 and 50 models are designed to provide frequent-access users with rapid specimen storage and retrieval. Every Biosystem Access series container can be configured for either liquid (-196°C), or Vapour phase storage.


Specifications

LN2 Capacity (litres) Vapour/Liquid150/762
Internal usable height mm910
Internal usable diameter mm1130
Weight Empty (Kg)370
Weight Full (nitrogen) excluding ICS (kg)986
Overall height (lid closed) mm1320
Lid opening height mm2685
Overall width mm1250
Overall depth mm1645
Call 01463 830401 For Any Assistance

Biosystem Access Series

Full control and security backup is provided by a class-leading microprocessor controlled-system. Biosystem Access Series offer a unique combination of security and economy along with excellent isothermal properties.

Every Biosystem Access series container can be configured for either liquid (-196°C), or Vapour phase storage. In vapour-phase operation, our design flexibility is such that units can be configured to store at temperatures from – 150°C to as low as -190°C.

Every Biosystem Access Series unit is backed by our comprehensive 5 year vacuum Warranty and further compliance with the EC Medical Devices Directive 93/42/EC.

Features


  • Full width opening for easy, quick access to all samples
  • Vapour phase storage
  • Vapour guard option on Biosystem 24 and 50
  • Quick chill feature for fast temperature recovery
  • Superchill option for vapour phase storage -190º
  • Hot gas by-pass available on all models
  • All metal lid and top plate for greater durability
  • Protocol Testing
  • All units can be offered with IQP and OQP
  • Castor mounted for easy location and movement within laboratory
  • Key operated lockable lid for complete access security
  • Smooth surface high efficiency insulating neck plug for easy cleaning
  • Painted stainless steel top plate for strength and no corrosion
  • Coloured anodised storage racks available for easy identification
  • Full operation and insulation instructions provided
  • Installation, training, commissioning and on site maintenance are available worldwide
  • De-Fog and quick chill functions for good visibility on lid opening and accelerated – re-cooling after lid is shut. (Timings configurable through Microprocessor settings)
  • Control Systems can cope with LN2 pressure range from 20 to 40 psi




    • SKU
      9916051
  • Manufacturer
    Statebourne Cryogenics


Part NumberDescription


9701448   Fill Timer for   Biosystem
9701275Daisy-chaining Connection (Per unit)
3701113Insulated Flexible Hose 1.5 Metres 1/2" BSP
1701134Biosystem Solenoid valve
8601046Biosystem sensor array
1801110Biosystem external or internal relief valve
9702177Paper for Portable Printer
8601044Biosystem main processor Board
9701357Biosystem 80/100/100+ Lid Assembly
9701486Biosystem 20/24 Lid & Spring Hinge
9701354Biosystem 36/40 Lid Assembly
4701015Biosystem 10/12/20/24 replacement seal (Grey)
3001235Biosystem 12 inner lid assemlby including plug
3001236Biosystem 24 inner lid assemlby including plug
5701008Gas struts for Biosystem 20/10
4701021Lid seal for Biosystem(please specify tank) Black
9701298Biosystem 10/12 liquid Line assembly (includes new solenoid   valves)
9701299Biosystem 20/24 liquid Line assembly (includes new solenoid   valves)
9701461   Biosystem 36/55/80   Liquid Line assembly
860261872hr Battery Backup for Biosystem
4301054   Biosystem Lock
8602221Thermocouple Replacement Sensor
8602663Cryobank PC Software
8602662M309CE-RS485 Network Connector
