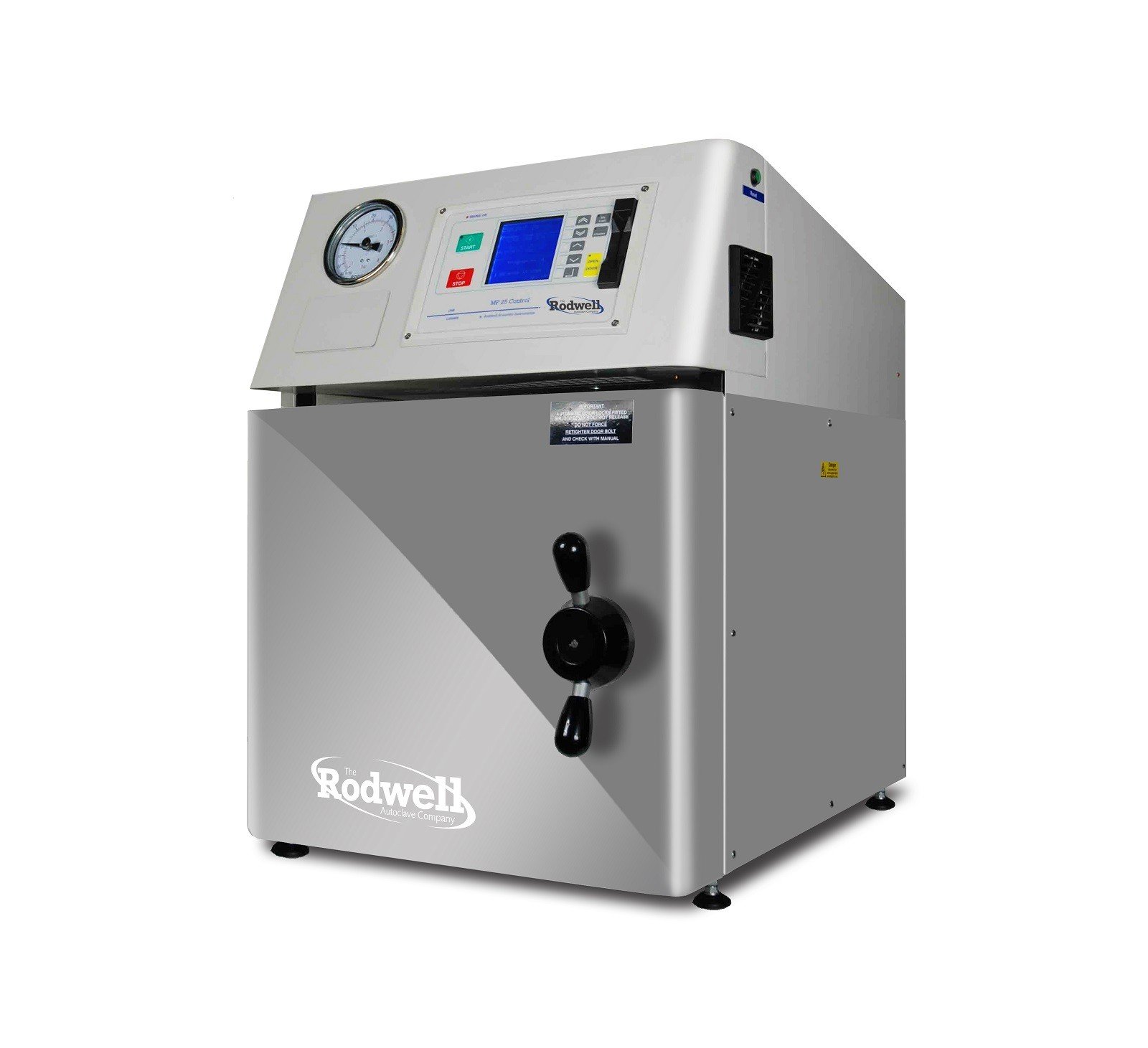

Rodwell Phoenix Compact Autoclave

Score: 5.00 (votes: 1)
No reviews.
SKU Chamber Dimensions (mm) Maximum Working Temperature Number of 1L Media Bottles Model Capacity (L) Weight (In Grams) Price (excluding VAT) Availability Qty To Purchase
Rodwell Phoenix Compact Autoclave PHX40 350 Ø x 460d 138°C 12 Phoenix 40E 40 108000 £9855.00 1 + -
Rodwell Phoenix Compact Autoclave PHX60 350 Ø x 600d 138°C 17 Phoenix 60E 60 115000 £10305.00 1 + -

The Phoenix is the ideal compact autoclave for any small scale operation that needs reliable functionality without losing valuable space.

Technical Specifications


Phoenix 40

Phoenix 60

Autoclave Weight



Export Case Size

720w x 860h x 860d

720w x 860h x 1030d

Overall Dimensions

550w x 790h x 710d

550w x 790h x 860d

Chamber Dimensions

350 Ø x 460d

350 Ø x 600d

Water Consumption (typical per cycle)



1L Media Bottles



2L Media Bottles



Basket Dimensions

H227 x W245 x L430

H227 x W245 x L578

Waste Discard Dimensions

H227 x W245 x L430

H227 x W245 x L578


H700 x W570 x L800

H700 x W570 x L800




Phase Requirement

1ph/N 50/60 Hz 1ph/N 50/60 Hz

Power Consumpation

3kw 3kw

Fuse Rating

13 amp 13 amp

Key Features & Options

  • 40 & 60 litre variants
  • MP 25 controller
  • Robust space-saving design
  • Single phase “Plug & Play”
  • Caacity of up to 13 x 1 litre bottles
  • Phoenix 40 fits on a standard bench
  • Integral drip tray
  • Grade 316 stainless steel chamber
  • Anti door bolt over tight mechanism
  • Complete versatility for almost any application
  • Option of integrated vacuum system

Option Requirements

  • The auto fill option requires the purchase of the mounting trolley
  • Drying option will require vacuum and auto water dump with a plumbed in drain service and the purchase of the mounting trolley.
  • Drain requirement of 150°C, 35Ømm copper pipe at floor level.

General Requirements

  • † Sodium Chloride must not exceed a level greater than 500 ppm.
  • † Use regular mains water only. DO NOT USE distilled or RO water.

Complying Standards

  • PED Cat 2 Module B+D Notified Body: British Engineering No. 0040
  • Harmonised Standards applied: EMC BS EN 61326
  • Community directives applied : Pressure Equipment Directive PED 2014/68/EU (formerly PED 97/23/EC)
  • Designed in accordance with PD5500 (formerly BS5500) & BS2646
  • Chamber and Door constructed of stainless steel BS-EN 10028-7:316
  • ISO 9001: 2008
  • CE Marked
    • Weight (In Grams)
      108000 g
    • SKU
    • Commodity Codes
  • Manufacturer
    Rodwell Autoclave Company
  • Country of Origin
    United Kingdom
  • Chamber Dimensions (mm)
    350 Ø x 460d, 350 Ø x 600d
  • Maximum Working Temperature
    138°C, Not Applicable
  • Number of 1L Media Bottles
    12, 17
  • Model
    Phoenix 40E, Phoenix 60E
  • Capacity (L)
    40, 60
