LEEC Drying Cabinets are made from rust-resistant steel which is finished in white polyester powder coat paint as standard. They have heatproof toughened glass doors to British Standards. The shelves are removable and can be adjusted in height every 25mm. Heating elements are waterproof and are located underneath a perforated floor, which is finished in unpainted, polished stainless steel. Temperature control is by Simmerstat giving any desired temperature up to a maximum of 50°C above ambient temperature.
Drying at a lower temperature than a laboratory oven, these units can be used in pharmaceutical/cosmetic manufacturing, the food testing industry, automotive and aerospace industries, and electronics (PCB) manufacturing, as well as science labs in schools, colleges and universities. They are also ideal for drying theatrical wigs and costumes and are popular with theatrical production companies, film/TV show producers. They are often referred to as "wig dryers" or a "wig dryer" and they can hold several head blocks.
The standard "natural convection" drying cabinets are supplied with a sliding stainless steel shutter on top for ventilation. LEEC drying cabinets are also available with a circulation fan or extract fan. A circulating fan gives a better drying performance. The air is drawn upwards through the body of the cabinet and returned via a full-width air duct to the heaters in the base. Where an extractor fan for exhausting moisture to outside the building is fitted, the fan will be located in a chimney which adds approximately 200mm to the overall cabinet height and terminates in a 100mm diameter spigot.
Note: The FCX1 model is a combined circulating / extractor system. A butterfly valve system adjusts the proportion of air circulated or exhausted by a single, more powerful fan unit.
Features:
- Dry glassware, surgical instruments, wigs / costumes, media, cycle gear, PCB's
- Two sizes with hinged glass doors
- Two sizes with sliding glass doors
- 5mm thick, clear, toughened glass doors (BS EN 12150)
- Fan models available
Technical Specifications
|

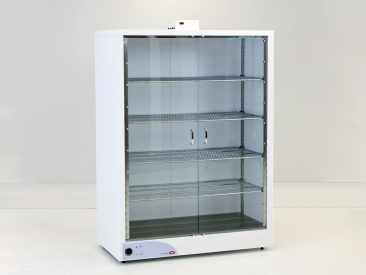

F1 |
FC1 |
FX1 |
FCX1 |
Fan System |
None (Natural Convection) |
Circulating |
Extract |
Circulating/Extract |
External Dimensions |
1626 x 1168 x 610 |
1726 x 1168 x 610 |
1826 x 1168 x 610 |
1800 x 1168 x 610 |
Internal Dimensions |
1430 x 1165 x 590 |
1430 x 1165 x 590 |
1430 x 1165 x 590 |
1430 x 1165 x 590 |
Capacity |
1000L |
1000L |
1000L |
1000L |
Weight |
125kg |
125kg |
125kg |
125kg |
Shelves |
4 |
4 |
4 |
4 |
Power Rating |
2500 watts |
2500 watts |
2500 watts |
2500 watts |
|

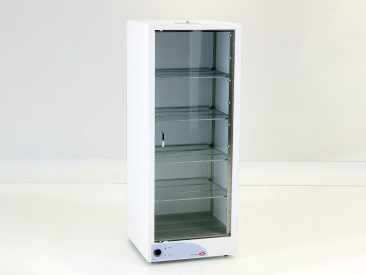

F2 |
FC2 |
FX2 |
Fan System |
None (Natural Convection) |
Circulating |
Extract |
External Dimensions |
1626 x 635 x 610 |
1726 x 635 x 610 |
1826 x 635 x 610 |
Internal Dimensions |
1430 x 630 x 590 |
1430 x 630 x 590 |
1430 x 630 x 590 |
Capacity |
540L |
540L |
540L |
Weight |
75kg |
75kg |
75kg |
Shelves |
4 |
4 |
4 |
Power Rating |
1500 watts |
1500 watts |
1500 watts |
|
B1 |
BC1 |
BX1 |
Fan System |
None (Natural Convection) |
Circulating |
Extract |
External Dimensions |
864 x 1168 x 610 |
964 x 1168 x 610 |
1064 x 1168 x 610 |
Internal Dimensions |
685 x 1165 x 610 |
685 x 1165 x 610 |
685 x 1165 x 610 |
Capacity |
480L |
480L |
480L |
Weight |
63kg |
63kg |
63kg |
Shelves |
1 |
1 |
1 |
Power Rating |
1500 watts |
1500 watts |
1500 watts |
|
B2 |
BC2 |
BX2 |
Fan System |
None (Natural Convection) |
Circulating |
Extract |
External Dimensions |
864 x 635 x 610 |
964 x 635 x 610 |
1064 x 635 x 610 |
Internal Dimensions |
685 x 630 x 590 |
685 x 630 x 590 |
685 x 630 x 590 |
Capacity |
255L |
255L |
255L |
Weight |
45kg |
45kg |
45kg |
Shelves |
1 |
1 |
1 |
Power Rating |
1000 watts |
1000 watts |
1000 watts |
|

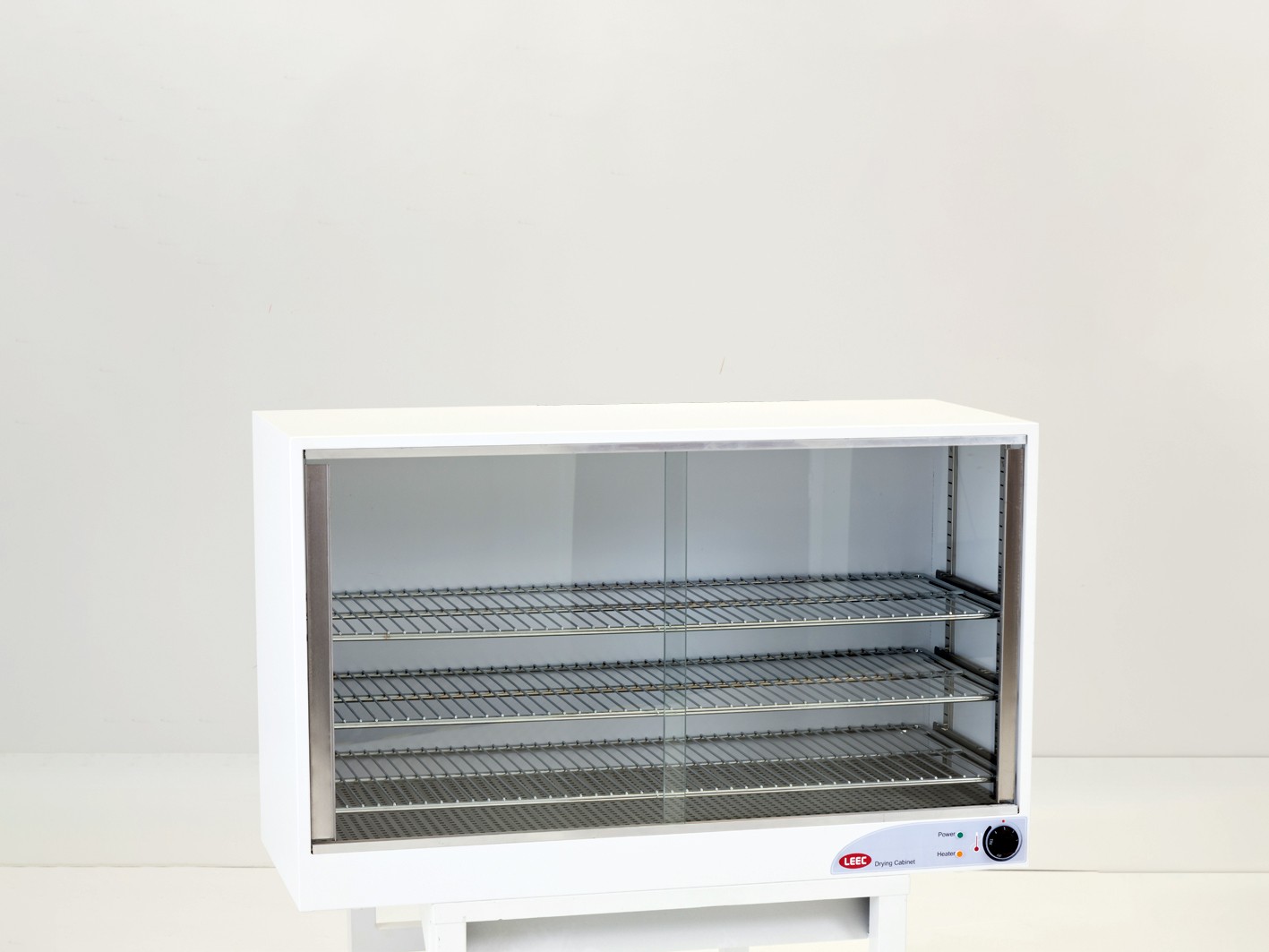

LS |
SS |
Fan System |
None (Natural Convection) |
None (Natural Convection) |
External Dimensions |
630 x 1000 x 410 |
530 x 760 x 360 |
Internal Dimensions |
530 x 990 x 390 |
430 x 750 x 340 |
Capacity |
226L |
113L |
Weight |
36kg |
22kg |
Shelves |
3 |
3 |
Power Rating |
750 watts |
500 watts |
Electrical supply: all models 220/240v, 50Hz.
Glass doors excluded from the guarantee.
-
ManufacturerLEEC Limited
-
Country of OriginUnited Kingdom
-
Fan SystemNone (Natural Convection), Circulating, Extract, Circulating/Extract
-
Internal Dimensions (H x W x D mm)1430 x 1165 x 590, 1430 x 630 x 590, 685 x 1165 x 610, 685 x 630 x 590, 530 x 990 x 390, 430 x 750 x 340
-
Capacity (L)1000, 540, 480, 255, 226, 113
-
Temperature RangeMaximum of 50°C Above Ambient, Not Applicable
