LEEC standard drying cabinets have been (and still are) one of the leading products in LEEC’s laboratory equipment range. Originally designed for drying laboratory glassware and stainless-steel instruments, they have proven to be extremely versatile. Manufactured in Nottingham and built to last, customers have relied on their trouble-free use in many different sectors and industries, year after year.
Still fit for purpose, but with environmental cost savings in mind, LEEC are proud to introduce a new range of energy-efficient drying Cabinets for 2021. LEEC Eco Drying Cabinets are designed to provide customers with the same versatility, whether they are used for drying laboratory glassware, production line components or theatrical wigs. The Eco range now has the added benefit of efficient thermal insulation, meaning that equipment is cooler to the touch and heat escape is restricted, promoting operational efficiencies and reduced running costs
Thermally Insulated Construction
Double skinned construction and thermal insulation retains heat inside the chamber for longer, reducing energy consumption, and helps minimise heat loss into the room, which ultimately saves energy and money.
Temperature Controller
A digital temperature controller accurately controls the chamber temperature and shows live readings on a tri-colour display. Precise temperature control minimises energy wastage and saves money.
Timer
The drying cabinet can dry constantly, or it can dry on a timed basis. An illuminated digital timer allows convenient programming of heating cycle times. It switches the heating elements off outside of the programmed drying times, which ultimately saves energy and money.
Over Temperature Device
An independent overtemperature safety cut out is fitted at the rear of the drying cabinet. It protects the drying cabinet from overheating.
Features:
- Dry glassware, surgical instruments, wigs / costumes, media, cycle gear, PCB's
- Energy saving thermal insulation to 5 sides
- Low power consumption
- Easy accessible control system
- Digital temperature controller
- Digital 7 day 24hr timer
- Economical to run / lower running costs
- Dual circulating fans and easy roll mounting wheels on floor standing units.
- Corrosion free stainless steel internal chamber
- Anti-microbial powder coat paint to external surfaces
- Temperature range of 30 to 80°C
- Double glazed glass doors

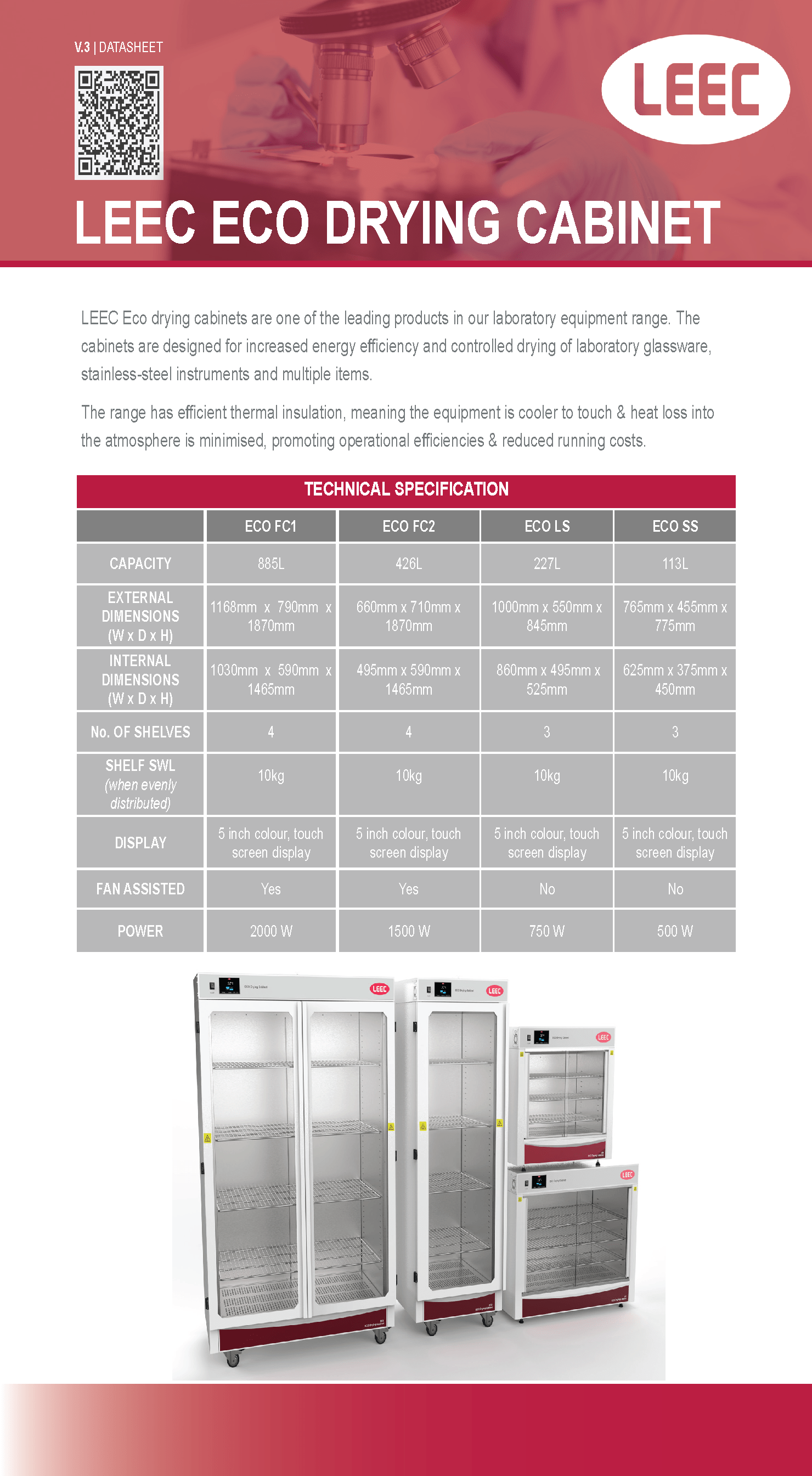

Technical Specifications
|
ECO FC1 |
ECO FC2 |
ECO LS |
ECO SS |
Fan Assisted |
Yes |
Yes |
No |
No |
External Dimensions |
1168 x 650 x 1870 |
635 x 650 x 1870 |
1000 x 550 x 807 |
765 x 450 x 732 |
Internal Dimensions |
1030 x 590 x 1470 |
495 x 590 x 1470 |
860 x 480 x 525 |
625 x 375 x 450 |
Capacity |
885L |
426L |
227L |
113L |
Shelves |
4 |
4 |
3 |
3 |
Power Rating |
2500 watts |
1500 watts |
750 watts |
500 watts |
