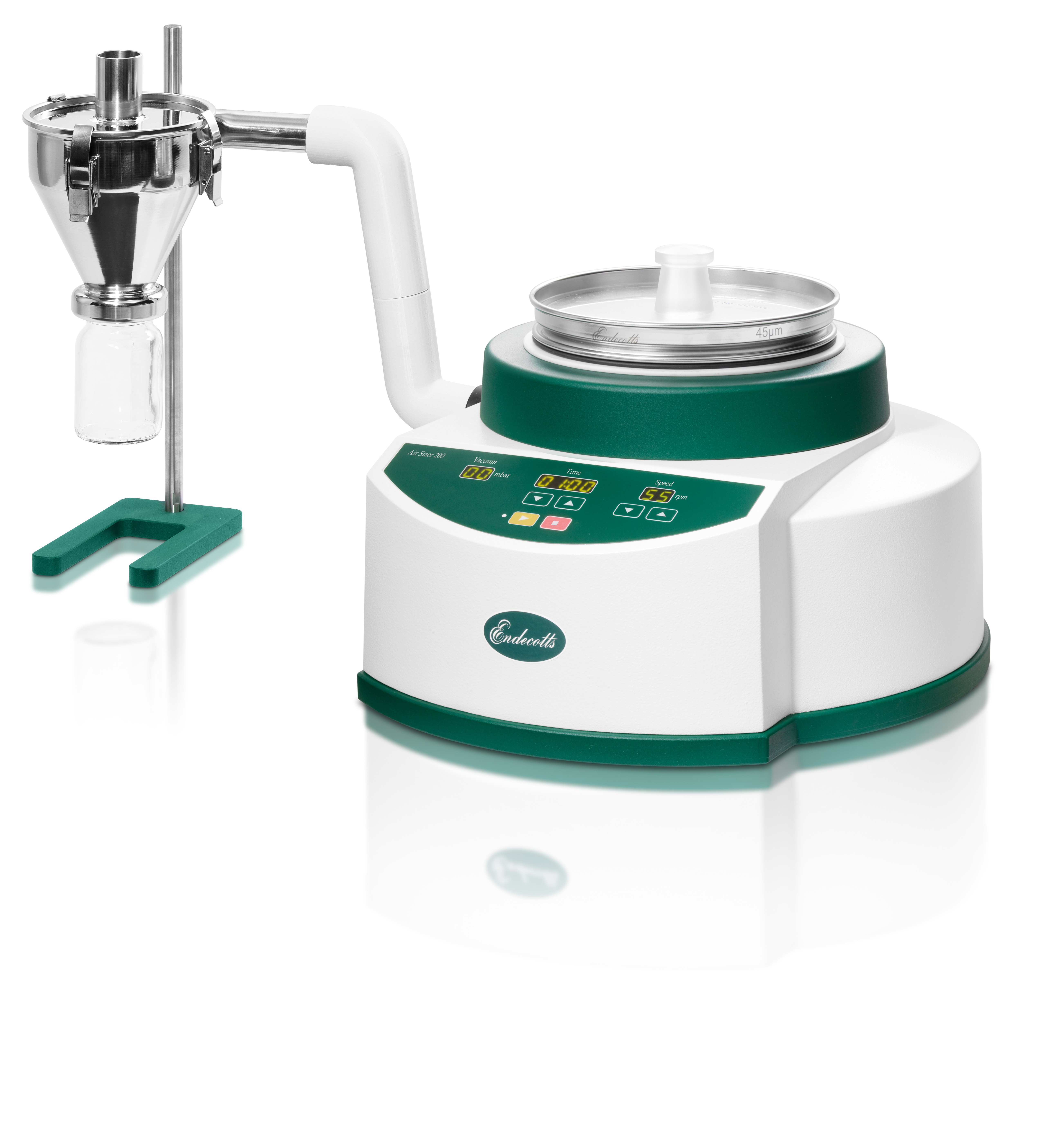

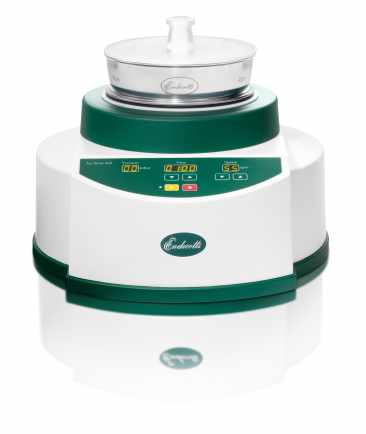

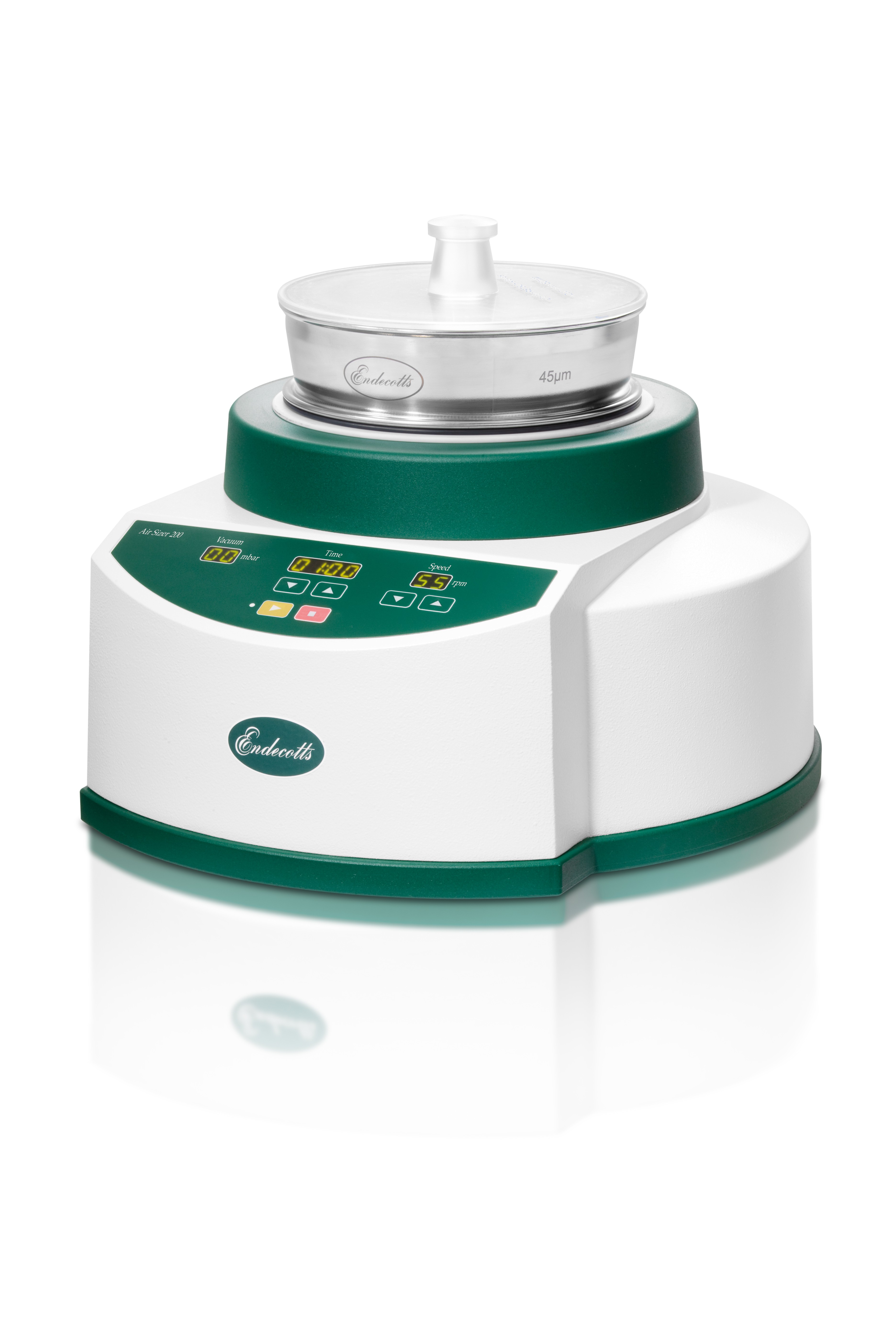

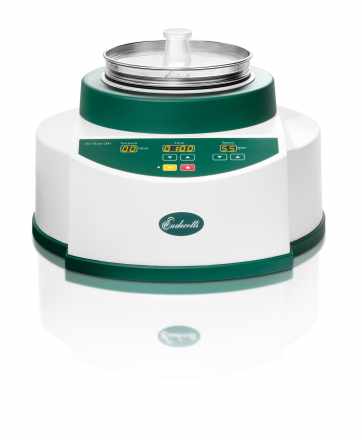

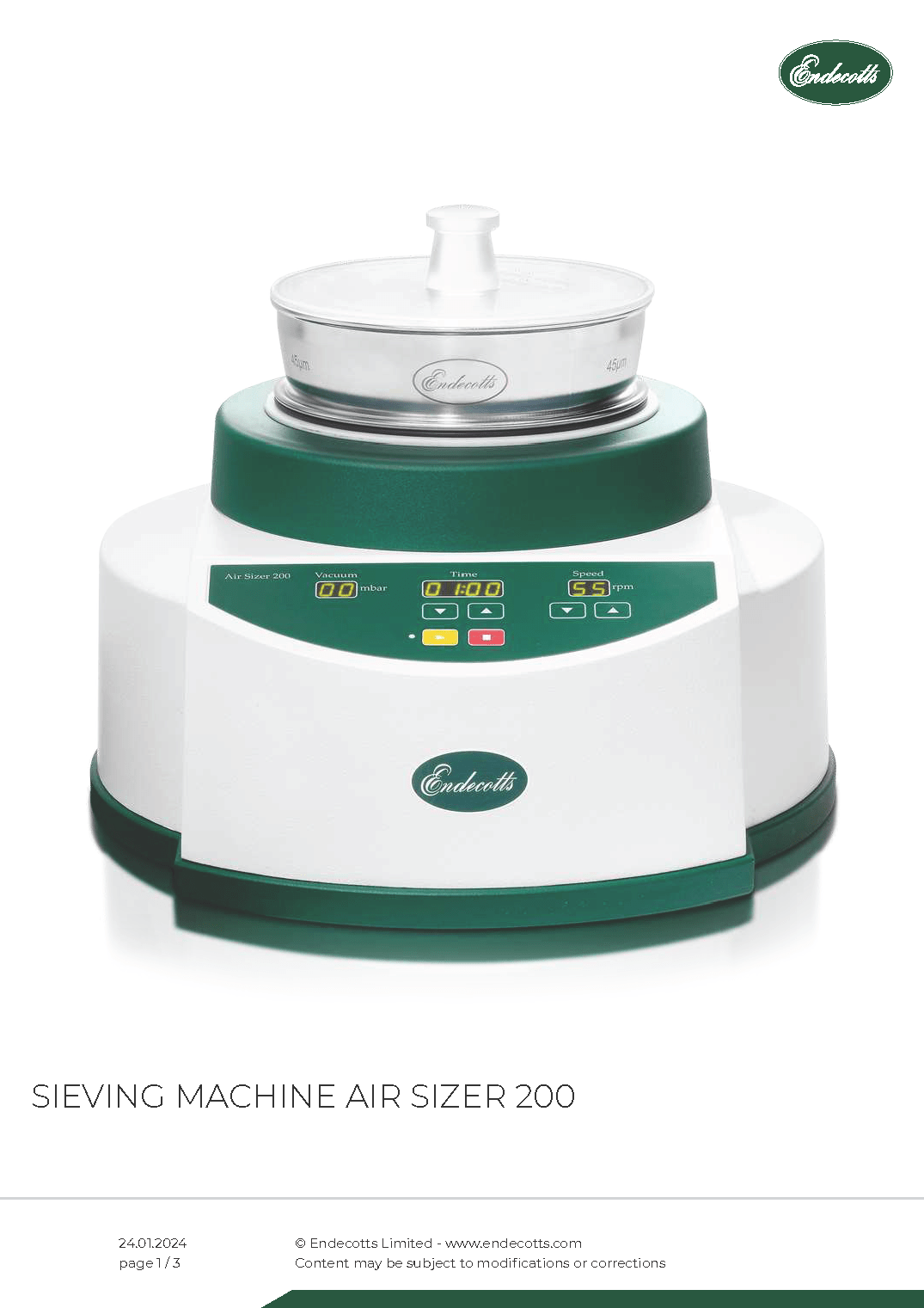

Endecotts Air Sizer 200 Sieving Machine
 |
 |
The Endecotts AIR SIZER 200 is an advanced sieving system designed for precise particle size analysis, combining traditional sieve analysis with air classification technology. This hybrid approach offers an enhanced method for determining the particle size distribution of fine powders, materials with a broad particle size range, and those that may be difficult to sieve using traditional methods.
The new Air Sizer 200 is ideal for sieving very fine dry particles, which require efficient dispersion and desagglomeration via air jet technology (e.g. electrostatic material).
It is also the perfect instrument to quickly provide a sieve cut of powdered materials.
Specifications
| Range | 20 µm - 4 mm |
| Drive / sieving motion | dispersion by air jet |
| Max. number of sieves | 1 |
| Max. mass of sieve stack | a premium air jet sieve |
| Speed | 5 - 55 rpm (nozzle speed) |
| Time display | digital, 0:10-99:50 min |
| Vacuum | 20 - 99 mbar |
| Suitable for dry sieving | yes |
| Suitable for wet sieving | - |
| Max. height of sieve stack | 1 sieve |
| Accessories | pre-filter unit / industrial vacuum |
| Model | benchtop |
| Protection code | IP 40 |
| Electrical supply | 100 - 240 V , 50/60Hz |
| Power connection | 1 - phase |
| W x H x D | 450 x 235 x 435 mm |
| Net weight | ~ 16 kg |
| Standards | CE |
Advantages
- Advanced air jet technology for fine particles, usable for dry material 20 µm upwards
- Adjustable nozzle speed, 5 - 55 rpm
- Extremely efficient & fast sieving times
- Sieving action keeps apertures clear
- Air flow fluidises and helps to separate sample
- Ideal for electrostatic materials
- Pre-filter unit & industrial vacuum available as accessories
- Maintenance-free
