Waysafe Weighing Balance Hood, Dual Purpose Extraction Hood Enclosure
ZoomCreated with Sketch.

Waysafe Weighing Balance Hood, Dual Purpose Extraction Hood Enclosure

Score: 5.00 (votes: 1)
No reviews.
Waysafe Fume Hoods & Enclosure
SKU Voltage and Power Lead Front Panel Type Model Air Speed Weight (In Grams) Price (excluding VAT) Availability Qty To Purchase
Waysafe Weighing Balance Hood, Dual Purpose Extraction Hood Enclosure 1100-BH550/A.00 UK - 230V AC 50/60Hz includes 2M Long 'Kettle' Lead with up Standard 3 Pin Plug. Analytical Front Panel. Clear Acrylic Lift Off Front Panel BH550 (A) Non-Turbulant Constant Flow Set at 20m3/h 8900 £980.96 11 + -
Waysafe Weighing Balance Hood, Dual Purpose Extraction Hood Enclosure 1100-BH550/T.OO UK - 230V AC 50/60Hz includes 2M Long 'Kettle' Lead with up Standard 3 Pin Plug. Top Pan Front Panel. Clear Acrylic Lift Off Front Panel BH550 (T) Non-Turbulant Constant Flow Set at 20m3/h 8900 £1022.99 13 + -

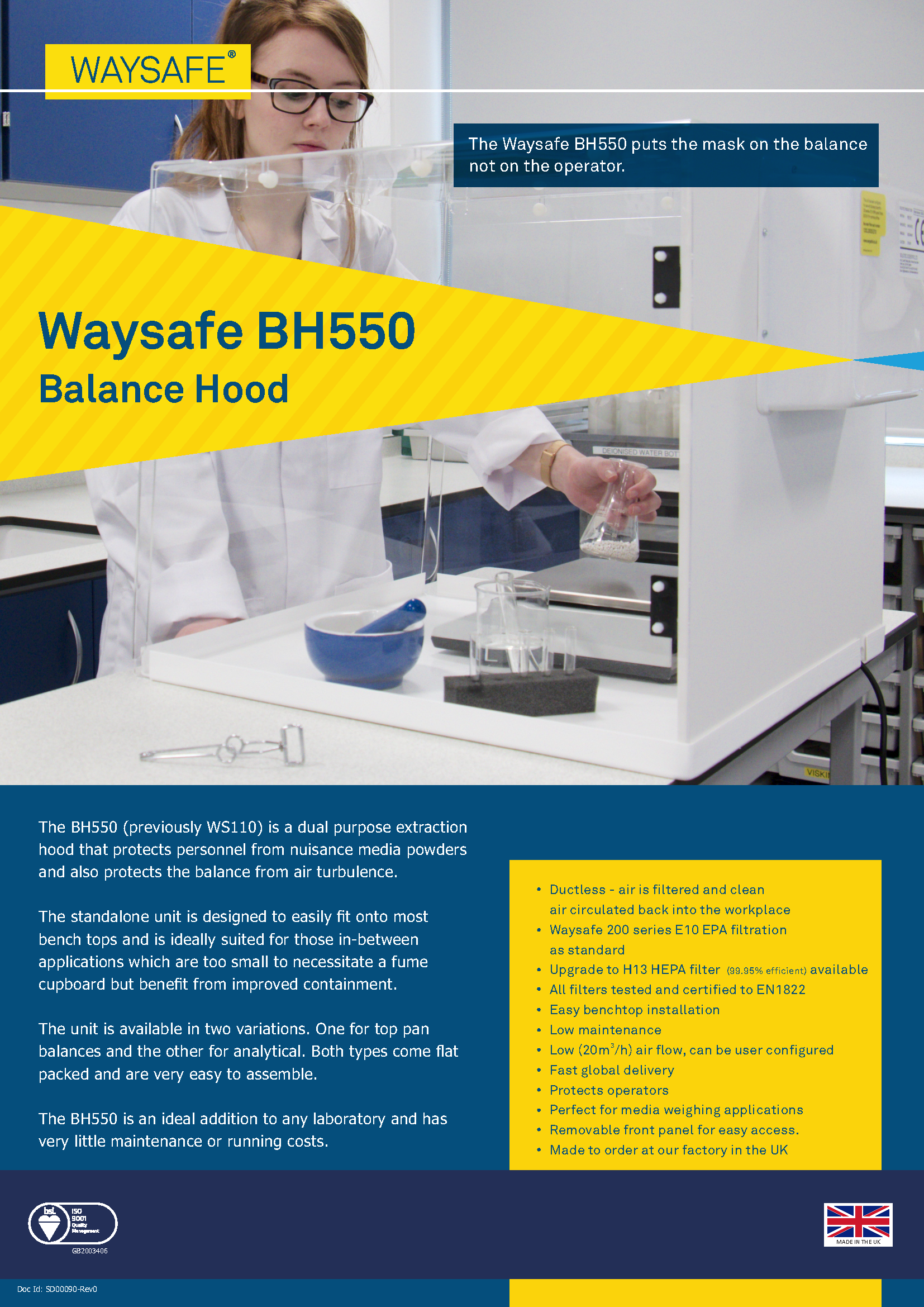

The BH550 (previously WS110) is a dual purpose extraction hood that protects personnel from nuisance media powders and also protects the balance from air turbulence.

The standalone unit is designed to easily fit onto most benchtops and is ideally suited for those in-between applications which are too small to necessitate a fume cupboard but benefit from improved containment.  It has very low air flow (20m3/h) and can be user configured.

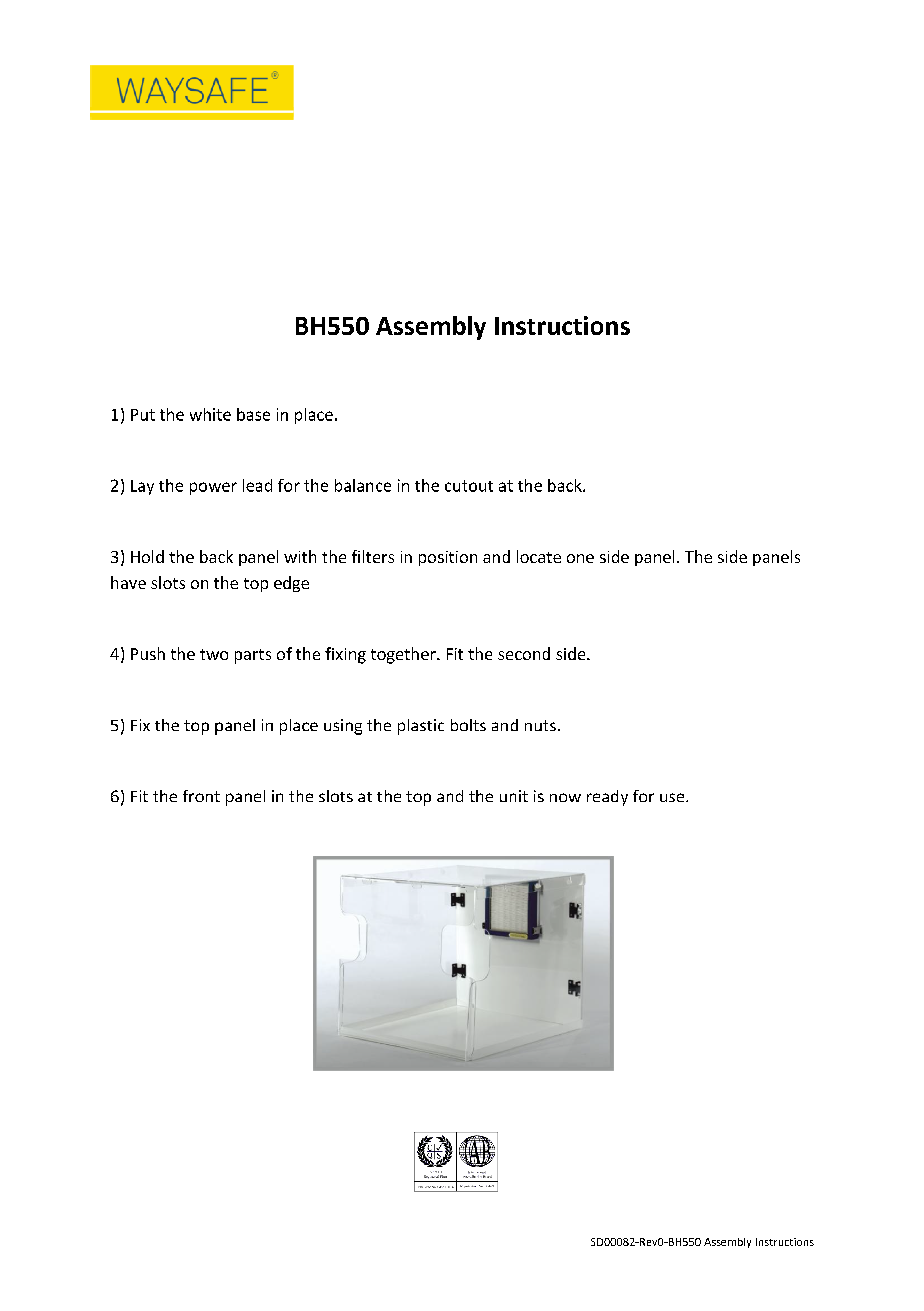

The unit comes flat packed and is very easy to assemble.

The Analytical front panel has a clear acrylic lift off front panel with arm access holes at the bottom. Usually chosen for use with analytical balances.

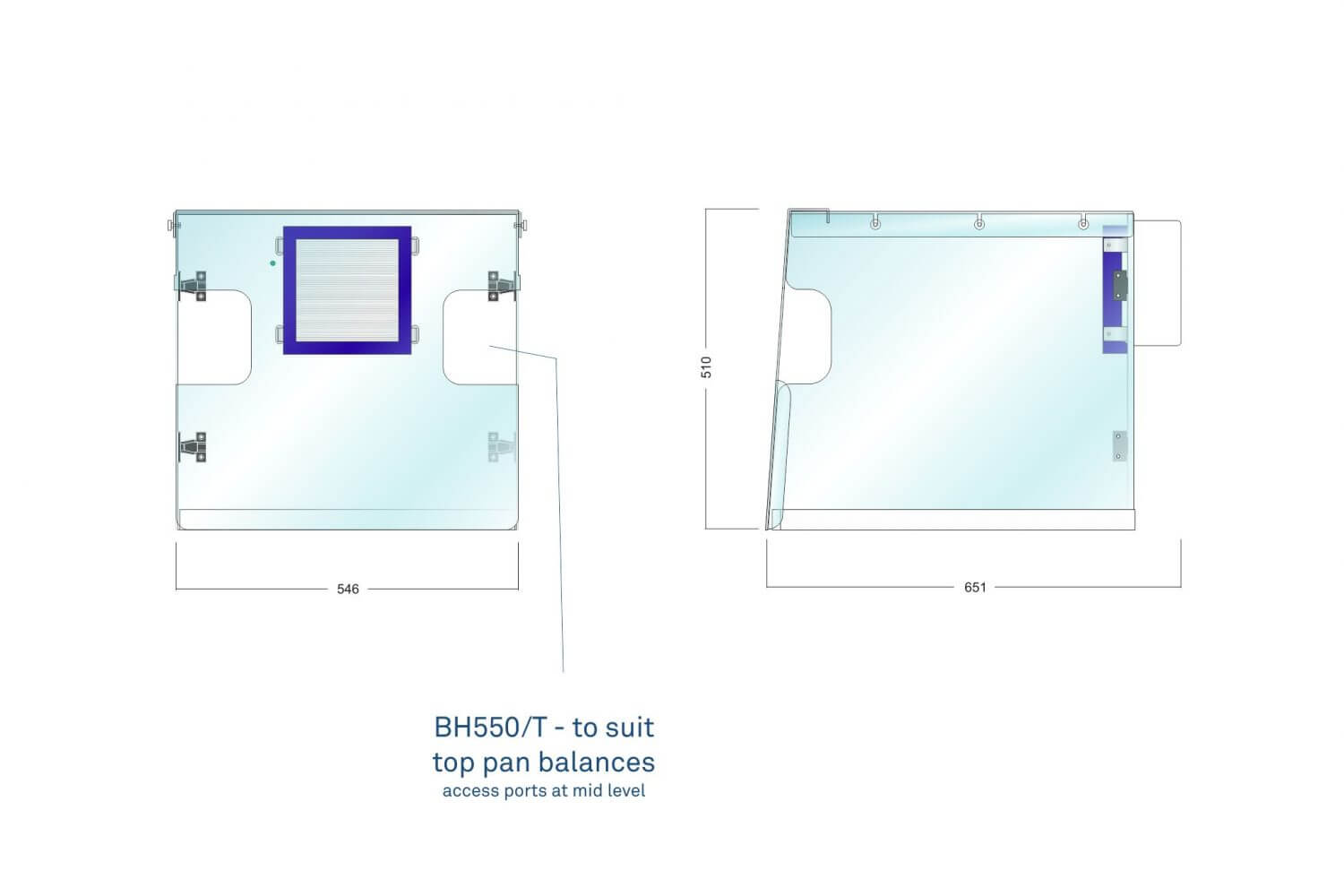

The Top Pan front panel has a clear acrylic lift off front panel with arm access holes halfway up the sides. Usually chosen for use with Top Pan balances.

The Waysafe BH550 puts the mask on the balance not on the operator.

  • Ductless – air is filtered and clean air circulated back into the workplace
  • Waysafe 200 series E10 EPA filtration as standard
  • Upgrade to H13 HEPA filter (99.95% efficient) available
  • All filters tested and certified to EN1822
  • Easy benchtop installation
  • Low maintenance
  • Low (20m3/h) air flow, can be user configured
  • Fast global delivery
  • Protects operators
  • Perfect for media weighing applications
  • Removable front panel for easy access
  • Made to order at our factory in the UK


Additional information

Weight 28 kg
Dimensions 67 × 69 × 30 mm
Electrical

230VAC 35w, meets LVD and is CE Marked (120VAC available)
Air Speed

Non-turbulent constant flow set at 20m3/h, but can be user configured to suit requirements
External Dimensions

Height 500mm, depth 651mm, width 550mm
Not your size? Ask about bespoke… If you can think it we can make it!
Filter

Waysafe '200 series' filter housing
Base Tray

White vacuum formed base tray



Description

Base High Impact Polystyrene
Glazing Cast Acrylic Glazing
Backpanel 10mm Food Grade PVC
Filter Frame Power Coated Aluminium Frame
Ancillaries Durable Polycarbonate Hinges



Dimensions











    • Weight (In Grams)
      8900 g
    • SKU
      1100-BH550/A.00
    • Commodity Codes
      84213925
  • Manufacturer
    Waysafe Fume Hoods & Enclosure
  • Voltage and Power Lead
    UK - 230V AC 50/60Hz includes 2M Long 'Kettle' Lead with up Standard 3 Pin Plug., Not Applicable
  • Front Panel Type
    Analytical Front Panel. Clear Acrylic Lift Off Front Panel, Top Pan Front Panel. Clear Acrylic Lift Off Front Panel
  • Model
    BH550 (A), BH550 (T)
  • Air Speed
    Non-Turbulant Constant Flow Set at 20m3/h, Not Applicable
