Waysafe General Purpose Enclosures

Score: 5.00 (votes: 1)
No reviews.
SKU Dimensions (Height x Depth x Width) (mm) Model Air Speed Weight (In Grams) Price (excluding VAT) Availability Qty To Purchase
Waysafe General Purpose Enclosures 1102-GP540.00-230V 500 x 605 x 540 GP540 Fully Variable Between 0.3m/s - 0.9m/s (Factory Settings) 12700 £1251.23 12 + -
Waysafe General Purpose Enclosures 1104-GP1200.00-230V 600 x 660 x 1200 GP1200 In The Region Of 0.3 M/S Depending On Face Panel Type 35000 £3422.33 11 + -
Waysafe General Purpose Enclosures 1104-GP1400.00-230V 600 x 660 x 1400 GP1400 In The Region Of 0.3 M/S Depending On Face Panel Type 35000 £3650.86 3 + -
Waysafe General Purpose Enclosures 1104-GP1600.01-230V 600 x 660 x 1600 GP1600 In The Region Of 0.3 M/S Depending On Face Panel Type 35000 £3879.40 9 + -

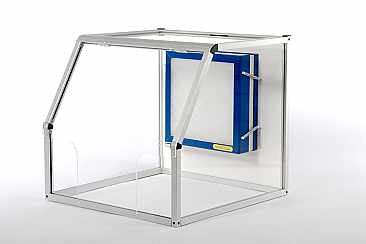

The GP540 (previously Waysafe® 3) is a general purpose hood which has many uses within the laboratory environment.

Our new, quieter, variable speed, EC fan draws air through our trusted 300 series H14 HEPA filter before returning it to the lab.

The front panel can be easily removed which provides open access to the interior. The base is open to allow easy positioning over fixed or heavy equipment.



GP Large General Purpose Enclosure (previously Mediaway)

Large General Purpose Enclosure.

Originally designed for media powder mixing and weighing, the GP Large General Purpose Enclosure solves the problem of personnel exposed to particles in or near the mixing room and simply, but effectively, removes the need for operators to wear face masks.

Now part of our ‘GP’ general purpose range, it has found numerous uses in laboratories and production environments around the world. Side entry doors and a removable front panel afford easy access for media or equipment loading and cleaning.

Operator access is through the front panel opening which we can modify to suit your application at no extra cost using the latest laser cutting technology.

One of our  new, quieter, variable speed, EC Waysafe® ‘600’ series HEPA filter/fan units provide background airflow that ensures operator protection without affecting sensitive instruments or operations.

Various options available including a range of filters, 120VAC option and an integral composite aluminium base in a range of colours.

  • Ductless – Air is filtered and clean air is circulated back into the workplace
  • H14 HEPA filtration (99.999% efficient) as standard with other options available
  • Easy benchtop installation
  • Low maintenance
  • Variable fan control as standard
  • Lift off front for ease of access
  • Fast global delivery
  • Protects operators
  • Can be used for all types of sample analysis including Asbestos
  • Can also be used for other processes media weighing etc.
  • Made to order at our factory in the UK.


Various options are available including a range of filters for both particulates and odours, 240VAC or 120VAC operation, and base panels in a range of colours.

  • Ductless – Air is filtered and clean air circulated back into the workplace
  • H14 HEPA filtration (99.999% efficient)
  • Easy benchtop installation
  • Also available in 1200mm and 1600mm wide
  • Low maintenance
  • Variable speed fan as standard
  • Lift off front and side doors for ease of access
  • Fast global delivery
  • Protects operators
  • Ideally suited for media weighing and laboratory prepartion
  • Made to order at our factory in the UK
  • Great for applications that don’t justify a full fume cabinet installation

Additional Information

Weight 12.7 kg
Electrical

230VAC 50w, meets LVD and is CE marked (120VAC available)

Air Speed

Fully variable between 0.3 m/s – 0.9m/s face velocity (factory settings)

External Dimensions

Height 500mm, Depth 605mm, width 540mm
Not your size? Ask about bespoke… If you can think it we can make it!

Filter

Waysafe '300 series' H14 HEPA filter, 99.999% efficiency @ 0.3 micron

Pre filter

Fitted as standard (simple low cost G4 grade filter pad protects the HEPA filter from large particles to extend service life)

Base Tray

Not fitted as standard



Additional Information

Weight 35 kg
Electrical

230VAC 100w, meets LVD and is CE marked (120VAC available)

Air Speed

In the region of 0.3 m/s depending on face panel type

External Dimensions

Height 600mm, depth 660mm, width GP1400 – 1400mm, GP1200 – 1200mm, GP1600 – 1600mm
Not your size? Ask about bespoke… If you can think it we can make it!

Filters

Twin Waysafe '300 series' H14 HEPA filters, 99.999% efficiency @ 0.3 micron

Pre filters

Fitted as standard (simple low cost G4 grade filter pads protects the HEPA filters from large particles to extend service life)

Base tray

Integral white laminated base (see options)

Description

Base Not fitted as standard
Glazing Cast Acrylic Glazing
Frame Durable Anodised Aluminium
Filter Frame Powder Coated Aluminium Frame
Ancillaries Rubber seals, Durable Hinges


Description

Base Aluminium Composite Basepanel
Glazing Cast Acrylic Glazing
Frame Durable Anodised Aluminium
Filter Frame Powder Coated Aluminium Frame
Ancillaries Rubber Seals, Durable Hinges


Dimensions





    • Weight (In Grams)
      12700 g
    • SKU
      1102-GP540.00-230V
    • Commodity Codes
      84213925
  • Manufacturer
    Waysafe Fume Hoods & Enclosure
  • Country of Origin
    United Kingdom
  • Dimensions (Height x Depth x Width) (mm)
    500 x 605 x 540, 600 x 660 x 1200, 600 x 660 x 1400, 600 x 660 x 1600
  • Model
    GP540, GP1200, GP1400, GP1600
  • Air Speed
    Fully Variable Between 0.3m/s - 0.9m/s (Factory Settings), In The Region Of 0.3 M/S Depending On Face Panel Type
