Statebourne Cryogenics Biostor Mini and Maxi Open Stainless Steel Dewars
Biostor Mini open dewars are suitable for laboratory applications. The range comprises 5 products from 0.6 to 5.5 litres capacity.
(The O.5 Mini is not supplied with a lid or handle.)

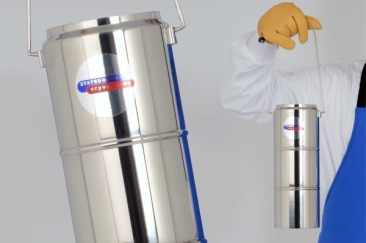

Biostor Mini Open Dewars
A Mini range of stainless steel Open Dewars for laboratory process, bench top and industrial freezing applications provides capacities from 0.6 litres to 5.5 litres. Of exceptionally strong stainless steel construction, these dewars are ideal for use as cold traps, for immersion or simply for temporary liquid storage.

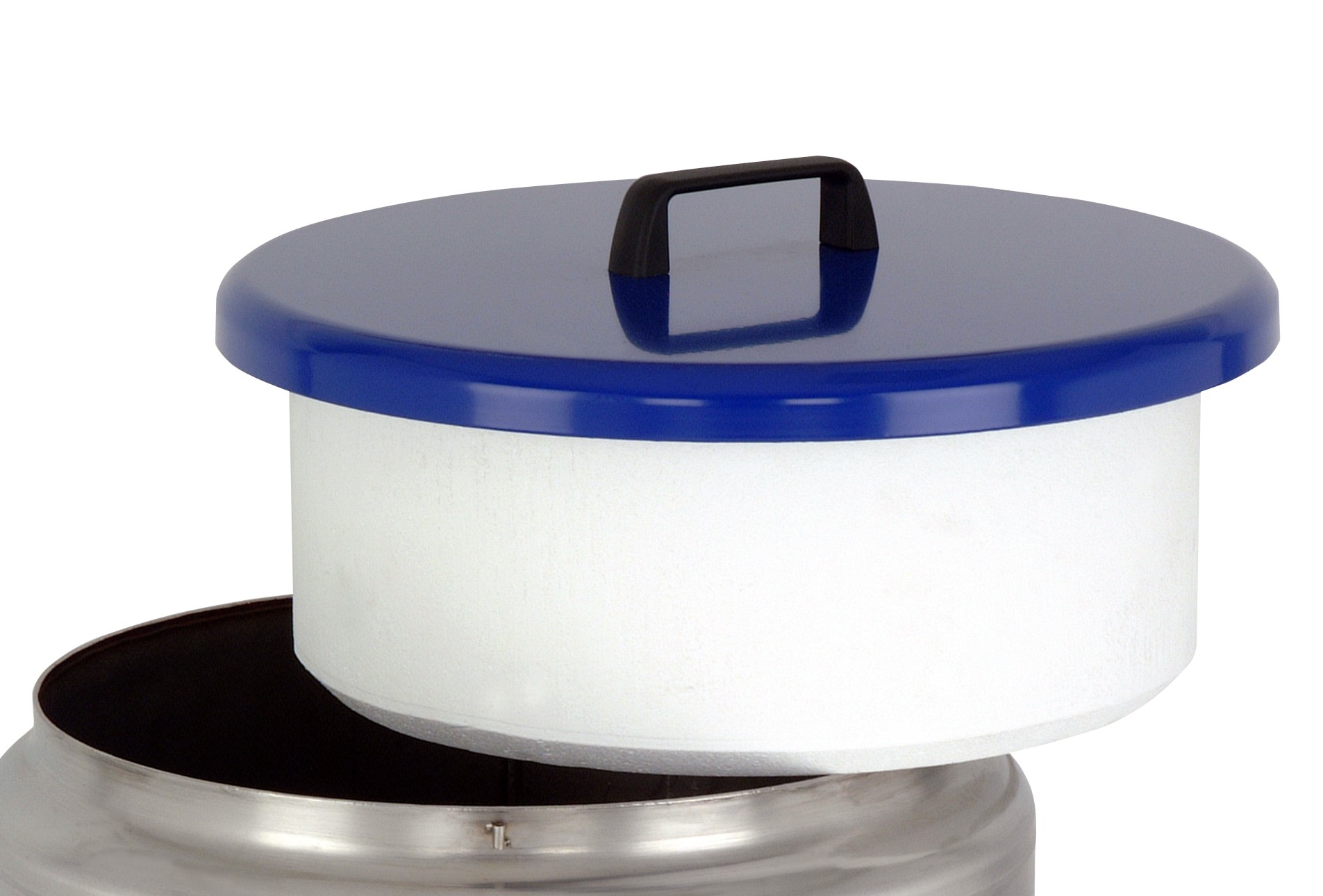

All models (Except 0.5 litre model) are supplied with insulating lids and either swivel or fixed carry handles.
Features
- Biostor Mini 5 models, from 0.6 litres to 5.5 litres capacity
- Low Cost
- High thermal efficiency
- VACUUM WARRANTY
Technical Data
| Model | OD Mini 0.5 | OD Mini 1 | OD Mini 2 | OD Mini 3 | OD Mini 6 |
| Part Number | 9915010 | 9910520 | 9915030 | 9915040 | 9915050 |
| Volume Litres | 0.6 | 0.9 | 1.8 | 2.6 | 5.5 |
| Int Diameter (mm) | 65 | 85 | 100 | 185 | 185 |
| External Diameter (mm) | 87 | 107 | 122 | 200 | 200 |
| Internal Height (mm) | 180 | 206 | 285 | 160 | 270 |
| External Height (mm) | 204 | 232 | 312 | 190 | 300 |
| Wt Kg Empty | 0.5 | 0.9 | 1.3 | 1.8 | 2.4 |
| Wt Kg Full | 1.0 | 1.6 | 2.8 | 3.9 | 6.8 |
A Maxi range of stainless steel Open Dewars for laboratory process, bench top and industrial freezing applications provides capacities from 15 litres to 80 litres. Of exceptionally strong stainless steel construction, these dewars are ideal for use as cold traps,for immersion or simply for temporary liquid storage.
All models are supplied with insulating lids and either swivel or fixed carry handles.
Roller base available for Maxi 15, 25, 80
Technical Data
|
Model |
OD Maxi 15 |
OD Maxi 25 |
OD Maxi 80 |
|
Part Number |
9915080 |
9915090 |
9915115 |
|
Volume Litres |
18 |
31 |
66 |
|
Internal Diameter mm |
260 |
327 |
406 |
|
External Diameter mm |
333 |
385 |
460 |
|
Internal Height mm |
370 |
400 |
513 |
|
External Height mm |
565 |
595 |
777 |
|
Wt Kg Empty |
13 |
15.0 |
28.0 |
|
Wt Kg Full |
27.5 |
40.0 |
81.0 |
|
Roller Base Part Number |
9915082 |
9915092 |
9915125 |
|
Perforated Basket |
9915086 |
9915096 |
9915117 |
|
|
|||
|
|
|||
-
ManufacturerStatebourne Cryogenics
-
Country of OriginUnited Kingdom
-
Capacity Volume (L)0.6, 0.9, 1.8, 2.6, 5.5, 18, 31, 66
-
ModelOD Mini 0.5, OD Mini 1, OD Mini 2, OD Mini 3, OD Mini 6, OD Maxi 15, OD Maxi 25, OD Maxi 80
-
External Diameter x Height (mm)87 x 204, 107 x 232, 122 x 312, 200 x 190, 200 x 300, 333 x 565, 385 x 595, 460 x 777
