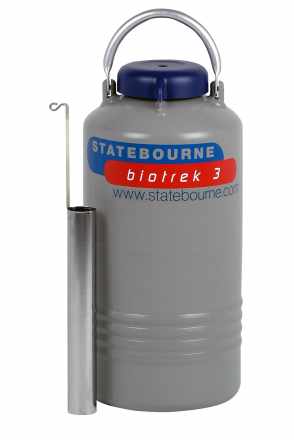

Statebourne Cryogenics 9903030 Biotrek 3 Portable Dry Shipping Container (includes single canister)
The Biotrek 3 and 10 Dewars are for shipping samples in ultra cold conditions without the dangers of releasing liquid nitrogen during transit. Internally both Biotreks contain a special cryo-absorbant material which locks in liquid nitrogen to ensure that although any samples held are not immersed in liquid nitrogen they are close as possible to liquid nitrogen storage temperatures.
Specifications
No. of Canisters 1
Liquid Volume (litres) 4.2
Static Evaporation Rate (l/day) 0.15
Static holding time (days) 30
Field Working Time (days) 18
Neck Diameter (mm) 51
Overall Height (mm) 455
Overall Diameter (mm) 216
Weight Full (kg) 8.5
Weight Empty (Kg) 5.1
Vial Capacity (canisters) 30
Biotrek Series
The Biotrek 10 will hold up to 5 x 100 cell cryoboxes in a specially designed rack.
A temperature Logger Alarm can be fitted to travel with the Biotrek 3 or 10 unit to provide a continuous record of transit temperature.
A wide range of Biological specimens may be held in the Biotrek 3 while the Biotrek 10 can also accommodate blood stem cell bags because of the extra wide neck and internal configuration.
The cryo-absorbant will hold the liquid nitrogen within the vessel no matter what orientation the Biotrek may be during shipping.
A carrying bag for the Biotrek 3 is available for easy transport.
A shipping case is available for both the Biotrek 3 and the Biotrek 10
Features
- Vapour phase cryogenic storage
- Faster LN2 fill times
- All welded aluminium construction
- Rugged and durable construction
- Lockable lids on both units
- No LN2 spillage
- Conforms to IATA shipping regulation 202
- MDD approved 93/42/EC
- Straw and cryovial storage options
- Dataloggers available for tracking
| Part Number | Description |
| 9701497 | Alarm plug for Biotrek 3 |
| 9701550 | Alarm plug for Biotrek 10 |
| 9702056 | Single Large Basket for Biotrek 10 |
| 5801160 | Canister System (4) for Biotrek 10 |
| 5801272 | Cryobox rack system, Biotrek 10 ( 5 x 100 cell cryoboxes NOT INCLUDED ) |
| 5801103 | 10 X 10 Cryoboxes |
| 9903031 | Neck Plug, Biotrek 3 |
| 5801062 | Canister, Biotrek 3 |
| 9701179 | Shipping Case for Biotrek 10 |
| 9701178 | Shipping Case for Biotrek 3 |
| 9701011 | Biotrek 3 Back Pack with handle |
| 3001195 | Biotrek 10 Neck plug. Assembly |
| 9915505 | Neck Plug, Biotrek 10 - Manufactured before September 2005 |
