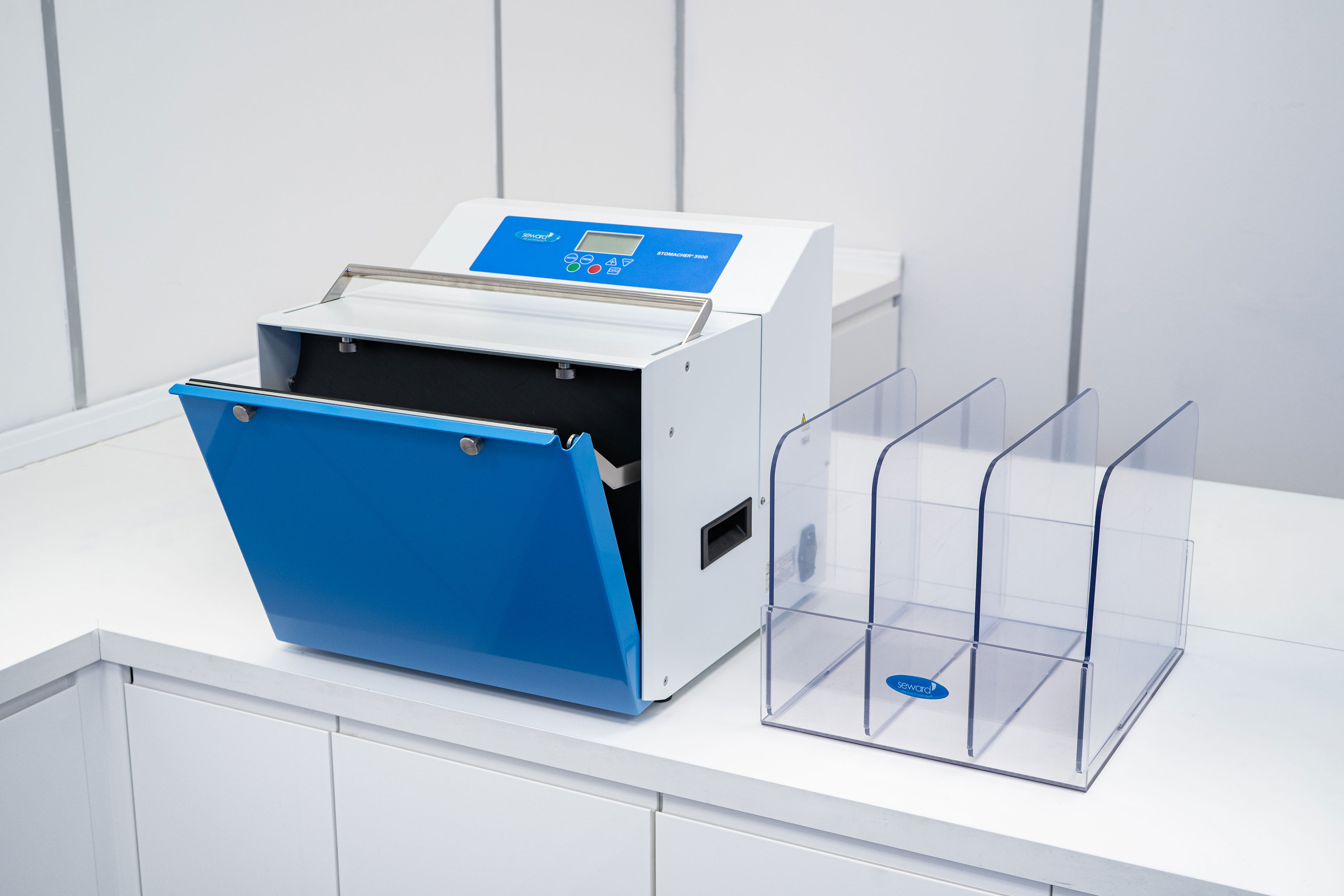

The Stomacher® 3500 Thermo Bioreactor is used within the pork industry to prepare samples for detection of Trichinella. Our heavy-duty machine is manufactured with a heater element inside the door to support this testing method.
- Volume sample sizes 400 – 3500ml
- Designed for Trichinella testing
- Integrated heating element
- Durable and reliable
- Easy to use and clean
Applications
The Stomacher® 3500 Thermo Bioreactor is used in the pork industry to prepare samples for the detection of Trichinella.
The machine has a heater element inside the door and the samples of pork meat are digested inside the Stomacher® bag with enzyme and HCI acid. The resultant slurry is sieved and examined under microscopy for the presence of the Trichinella parasite.
The Stomacher® 3500 Thermo Bioreactor is compatible with a range of Stomacher® bags. The BA6042 Standard 3500 bag (60 microns), suits standard operations. The BA6042/HD Heavy Duty bag is designed to serve resilient applications with a greater bag thickness of 80 microns. As well as the latest in innovation, the new Autoclavable Stomacher® 3500 bag is the first paddle blender bag designed to be autoclavable for sterility methods post-testing.
Seward is at the forefront of the microbiology industry, providing laboratories with the products necessary for sample preparation.
Home of the Stomacher®, it is the most highly referenced brand name in food safety and life science sample preparation in scientific publications.
Focusing on transparency, accuracy and traceability, the Seward range helps to produce accurate, repeatable and robust results.
Technical Specifications
Sample Size |
400ml – 3500ml |
---|
Product codes | 3500/002/EU 030010451 |
3500/002/AJ 030010400 |
Supply voltage: | 220-250V | 110-120V |
Mains Inlet Fuses: | T800mA 250V 5x20mm breaking capacity: 35A @ 250V |
T2.0A 250V 5x20mm breaking capacity: 100A @ 250V |
Supply Frequency: 50-60Hz | 50-60Hz |
Plug Top Fuse: | F5A (UK cord set only) |
Transformer Fuse: | T250mA 250V 5x20mm, breaking capacity: 35A @ 250V |
PCB Fuse: | F2.5A 250V 5x20mm, breaking capacity: 100A @ 250V |
Insulation: | Class 1 (Earthed) |
Installation: | Over Voltage Category II |
Pollution: | Pollution Degree 2 |
Duty Cycle: | Continuous |
Rated Load: | 120W |
Adjustable paddles: | Patented |
Warranty: | 3 years |
Service and support: | 10 years |
Dimensions: | 480mm(w) x 480mm(d) x 445mm(h) |
Dimensions (Packed): | 580mm(w) x 570mm(d) x 560mm(h) |
Weight: | 36kg |
Weight (Packed): | 45.3kg |
Compliant with: | EMC Directive 2014/30/EU Low Voltage Directive 2014/35/EU Machinery Directive 2006/42/CE IEC61010-1 1990 Safety Requirement for Electrical Equipment for Measurement, Control and Laboratory Use UL 3101-1 1993 Electrical Equipment for Laboratory Use General Requirements |
Delivered with: | Power Cable / Quick Start Guide Sachet of BA6042 Standard Stomacher bags |
Bag sizes: | 508mm(l) x 380mm(w) |
Available in: | Standard / Closure / Autoclavable |
Minimum recommended capacity: | 1000ml |
Maximum recommended capacity: | 3500ml |
Maximum Recommended Sample Temp: | 60°C |
Recommended Operating Ambient Temperature Range: | 10-35°C |
Recommended Operating Relative Humidity Range: | 10-89% |
Fixed Timer settings: | 30 secs (+/-5%) 60 secs (+/-5%) 120 sec (+/-5%) Continuous |
No load paddle speeds: (@nominal 20°C) |
125rpm (±5%)LOW 150rpm (±5%) NORM 175rpm (±5%) HIGH |
Paddle Clearance: | 0-20mm |
