Ohaus Scout™ STX Portable Electronic Balances
ZoomCreated with Sketch.

Ohaus Scout™ STX Portable Electronic Balances

Score: 5.00 (votes: 1)
No reviews.
Ohaus Corporation
SKU Maximum Capacity Readability Pan Size Model Weight (In Grams) Price (excluding VAT) Availability Qty To Purchase
Ohaus Scout™ STX Portable Electronic Balances 30253058 120g 0.001 g 93 mm STX123 1660 £593.04 10 + -
Ohaus Scout™ STX Portable Electronic Balances 30253059 220g 0.001 g 93 mm STX223 1660 £683.76 12 + -
Ohaus Scout™ STX Portable Electronic Balances 30253060 220g 0.01 g 120 mm STX222 1660 £446.04 8 + -
Ohaus Scout™ STX Portable Electronic Balances 30253061 420g 0.01 g 120 mm STX422 1660 £507.20 7 + -
Ohaus Scout™ STX Portable Electronic Balances 30253062 620g 0.01 g 120 mm STX622 1660 £540.00 10 + -
Ohaus Scout™ STX Portable Electronic Balances 30253063 1200g 0.01 g 120 mm STX1202 1660 £610.40 9 + -
Ohaus Scout™ STX Portable Electronic Balances 30253064 2200g 0.01 g 140 mm x 170 mm STX2202 1660 £635.20 3 + -
Ohaus Scout™ STX Portable Electronic Balances 30253065 420g 0.1 g 120 mm STX421 1660 £239.20 8 + -
Ohaus Scout™ STX Portable Electronic Balances 30253066 620g 0.1 g 140 mm x 170 mm STX621 1660 £276.80 32 + -
Ohaus Scout™ STX Portable Electronic Balances 30253067 2200g 0.1 g 140 mm x 170 mm STX2201 1660 £416.80 1 + -
Ohaus Scout™ STX Portable Electronic Balances 30253068 6200g 0.1 g 140 mm x 170 mm STX6201 1660 £536.00 1 + -
Ohaus Scout™ STX Portable Electronic Balances 30253069 8200g 1.0g 140 mm x 170 mm STX8200 1660 £408.00 3 + -
High-Performance Portable Balances with Intuitive Touchscreens for High Accuracy and Productivity

Ideal for laboratory & industrial applications, the OHAUS Scout features an easy-to-navigate color touchscreen display & a slim design which allows stackable storage. Geared for superior performance with fast stabilization time and high-resolution weighing results, these portable balances set a new standard for a broad range of weighing applications. Features also include superior overload protection and expanded connectivity options.

Applications

Weighing, Parts Counting, Percent Weighing, Check Weighing, Animal/Dynamic Weighing, Totalization, Density Determination, Display Hold, Mole Weighing

Display

4.3" (109mm) full-color VGA graphic touchscreen display with user-controlled brightness

Operation

AC Adapter (Included) or 4 AA Batteries (Not included)

Communication

RS232, USB Host, USB Device, Ethernet, or Bluetooth™ (available as an accessory)

Construction

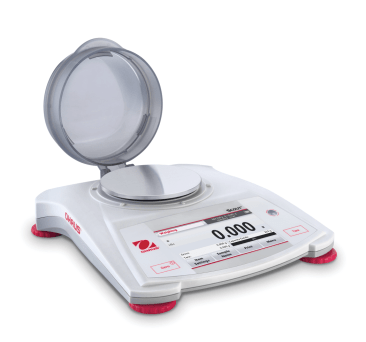

ABS housing, stainless steel pan, ABS draft shield (1mg models only), weigh below hook, transportation lock, manual calibration lock switch, security slot, adjustable leveling feet, illuminated up-front level indicator

Design Features

Stability indicator, stackable design with included storage cover (excluding 1mg models), mechanical and software overload/underload protection, low battery indicator, auto shut-off, auto tare, span calibration mass included on models up to 620g capacity
A large, intuitive, color touchscreen display allows for easy operation - guiding the user through every step of the weighing application.
Advanced weighing technology allows for a one-second stabilization time for increased productivity.
An integrated overload protection system rated at ten times the capacity protects the balance in demanding environments.

Technical Specifications


Model

STX123

STX223

STX222

STX422

STX622

STX1202

STX2202

STX421

STX621

STX2201

STX6201

STX8200

Capacity (g)

120

220

420

620

1200

2200

420

620

2200

6200

8200

Readability (g)

0.001

0.01

0.1

1

Repeatability (Std. Dev.) (g)

0.002

0.01

0.02

0.1

1

Linearity (g)

0.003

0.01

0.02

0.03

0.1

0.2

1

Span Calibration Mass1

100 g

200 g

300 g

1 kg

2 kg

200 g

300 g

2 kg

5 kg

8 kg

Linearity Calibration Mass

50, 100 g

100, 200 g

200, 400 g

300, 600 g

500 g, 1 kg

1 kg, 2 kg

200, 400 g

300, 600 g

1 kg, 2 kg

3 kg, 6 kg

4 kg, 8 kg

Stabilization Time (s)

1.5

1

1.5

1

Construction

ABS housing & stainless steel pan

Draftshield

Yes

No

Calibration

User-selectable external span or linearity calibration/Digital with external weight

Tare Range

Full capacity by subtraction

Weighing Units2

mg, g, kg, ct, N, oz, ozt, dwt, lb, lb:oz, grn, hkt, sgt, twt, tical, tola, custom unit 1

Application Modes

Weighing, Parts Counting, Percent Weighing, Check Weighing, Animal/Dynamic Weighing, Totalization, Density Determination, Display Hold, Mole Weighing

Power Requirement

AC adapter (included) or 4 AA batteries (not included)

Typical Battery Life

6 hours

Communication

RS232, USB Host, USB Device, Ethernet or Bluetooth® (available as an accessory, compatible only with Android OS device)

Display Type

109 mm full-color VGA graphic touchscreen display with user-controlled brightness

Display Size

109 mm (diagonal)

Overload Capacity

10 times the rated capacity

Operating Temperature Range

10°C to 40°C at 10% to 80% relative humidity, non-condensing

Storage Conditions

-20°C to 55°C at 10% to 90% relative humidity, non-condensing

Pan Size (W × D)

Ø 93 mm

Ø 120 mm

170 × 140 mm

Ø 120 mm

170 × 140 mm

Balance Dimensions (W × D × H)

202 × 222 × 103 mm

202 × 224 × 54 mm

Shipping Dimensions (W × D × H)

300 × 250 × 129 mm

Net Weight

1 kg

Shipping Weight

1.6 kg
    • Weight (In Grams)
      1660 g
    • SKU
      30253058
    • UPC/ISBN
      6971629530015
    • Commodity Codes
      84238110000
  • Manufacturer
    Ohaus Corporation
  • Country of Origin
    China
  • Maximum Capacity
    120g, 220g, 420g, 620g, 1200g, 2200g, 6200g, 8200g
  • Readability
    0.001 g, 0.01 g, 0.1 g, 1.0g
  • Pan Size
    93 mm, 120 mm, 140 mm x 170 mm
  • Model
    STX123, STX223, STX222, STX422, STX622, STX1202, STX2202, STX421, STX621, STX2201, STX6201, STX8200
