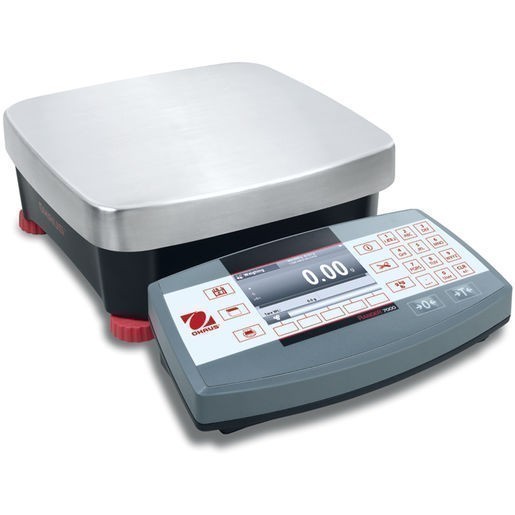

Ohaus Ranger 7000 Bench Compact Scales
ZoomCreated with Sketch.

Ohaus Ranger 7000 Bench Compact Scales

Score: 5.00 (votes: 1)
No reviews.
Ohaus Corporation
SKU Maximum Capacity (kg) Readability Pan Size (mm) Verified Calibration Models Weight (In Grams) Price (excluding VAT) Availability Qty To Purchase
Ohaus Ranger 7000 Bench Compact Scales 30088848 3 0.05g 280 × 280 × 31 No Span or Linear R71MD3 8820 £829.50 4 + -
Ohaus Ranger 7000 Bench Compact Scales 30088849 6 0.1g 280 × 280 × 31 No Span or Linear R71MD6 0 £1150.00 27 + -
Ohaus Ranger 7000 Bench Compact Scales 30088850 15 0.2g 377 × 311 × 48 No Span or Linear R71MD15 0 £1280.00 Usually Shipped in 67 days Contact Us for Exact Information
Ohaus Ranger 7000 Bench Compact Scales 30088851 35 0.5g 377 × 311 × 48 No Span or Linear R71MD35 0 £1280.00 4 + -
Ohaus Ranger 7000 Bench Compact Scales 30212875 60 0.1g 377 × 311 × 48 No Span or Linear R71MD60 0 £1345.00 7 + -
Ohaus Ranger 7000 Bench Compact Scales 30088836 3 0.01g 210 x 210 x 12 No AutoCal™, Span or Linear R71MHD3 0 £3260.00 3 + -
Ohaus Ranger 7000 Bench Compact Scales 30088837 6 0.02g 210 x 210 x 12 No AutoCal™, Span or Linear R71MHD6 0 £3260.00 2 + -
Ohaus Ranger 7000 Bench Compact Scales 30088838 15 0.1g 377 × 311 × 48 No AutoCal™, Span or Linear R71MHD15 0 £3905.00 2 + -
Ohaus Ranger 7000 Bench Compact Scales 30088839 35 0.1g 377 × 311 × 48 No AutoCal™, Span or Linear R71MHD35 0 £4140.00 5 + -
Ohaus Ranger 7000 Bench Compact Scales 30104943 3 0.1g 210 x 210 x 12 Yes AutoCal™, Span or Linear R71MHD3-M 0 £3360.00 Usually Shipped in 4 days Contact Us for Exact Information
Ohaus Ranger 7000 Bench Compact Scales 30104944 6 0.2g 210 x 210 x 12 Yes AutoCal™, Span or Linear R71MHD6-M 0 £3360.00 Usually Shipped in 4 days Contact Us for Exact Information
Ohaus Ranger 7000 Bench Compact Scales 30104945 15 1g 377 × 311 × 48 Yes AutoCal™, Span or Linear R71MHD15-M 0 £3995.00 Usually Shipped in 4 days Contact Us for Exact Information
Ohaus Ranger 7000 Bench Compact Scales 30104946 35 0.5g 377 × 311 × 48 Yes AutoCal™, Span or Linear R71MHD35-M 0 £4215.00 Usually Shipped in 4 days Contact Us for Exact Information
Ohaus Ranger 7000 Bench Compact Scales 30104925 3 0.5g 280 × 280 × 31 Yes Span or Linear R71MD3-M 0 £1235.00 Usually Shipped in 4 days Contact Us for Exact Information
Ohaus Ranger 7000 Bench Compact Scales 30104926 6 1g 280 × 280 × 31 Yes Span or Linear R71MD6-M 0 £1235.00 Usually Shipped in 4 days Contact Us for Exact Information
Ohaus Ranger 7000 Bench Compact Scales 30104927 15 2g 377 × 311 × 48 Yes Span or Linear R71MD15-M 0 £1370.00 Usually Shipped in 4 days Contact Us for Exact Information
Ohaus Ranger 7000 Bench Compact Scales 30104928 35 5g 377 × 311 × 48 Yes Span or Linear R71MD35-M 0 £1370.00 Usually Shipped in 4 days Contact Us for Exact Information
Ohaus Ranger 7000 Bench Compact Scales 30238584 60 10g 377 × 311 × 48 Yes Span or Linear R71MD60-M 0 £1415.00 Usually Shipped in 4 days Contact Us for Exact Information

Top-of-the-Line Compact Scales for Even the Most Complex Industrial Applications

For Ranger 7000, there is one resounding theme: it offers the best of every ingenious feature that make OHAUS industrial products the right tools for your toughest weighing jobs. Ranger 7000 boasts the highest resolution, largest display, most application modes and connectivity options, as well as the largest memory library of any industrial bench scale in the OHAUS portfolio.

Applications

Weighing, Parts Counting with Auto Optimization, Percent Weighing, Advanced Checkweighing, Animal/Dynamic Weighing, Display Hold, Filling, Formulation, Differential Weighing, Density Determination

Display

4.3" (109 mm) Full-color WQVGA graphic display with user-controlled brightness

Operation

AC power (included) or rechargeable battery (accessory sold separately)

Communication

Easy access communication port including standard USB and RS232 (included) and an optional third port of RS232 or Ethernet (accessories sold separately). GLP/GMP Data Output with Real Time Clock. Data Transfer Function.

Construction

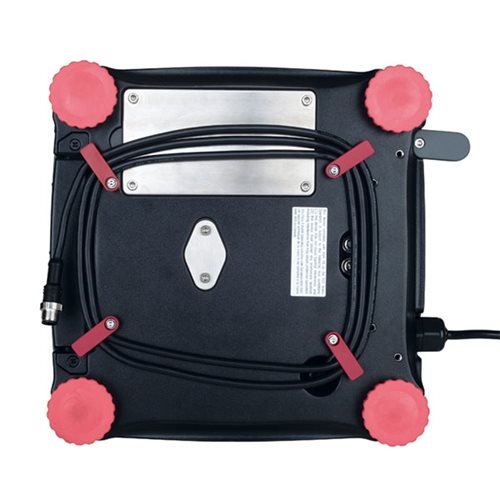

Modular design, die-cast housing, removable stainless steel platform, integral weigh below hook, menu lock switch, level indicator

Design Features

Checkweighing lights with selectable operation and audible signal settings, several selectable operating languages, selectable environmental and autoprint settings, stability indicator, overload/underload indicators, selectable brightness settings, auto-dim, auto-sleep, auto tare, chain tare



Simplify complex applications and minimize the need for manual calculations with 10 advanced application modes, peripheral device control and an optional kit for a second scale platform.
The most precise scale in its class with one-second stabilization time, up to 75,000d or 350,000d display resolution and legal-for-trade certifications.
Extremely durable scale designed to thrive in rugged industrial environments. Features IP54-rated metal housing and sealed metal

Technical Specifications


Models

R71MD3

R71MD6

R71MD15

R71MD35

R71MD60

Capacity × Readability

3 kg × 0.00005 kg

3,000 g × 0.05 g

6 kg × 0.0001 kg

6,000 g × 0.1 g

15 kg × 0.0002 kg 15,000g × 0.2 g

35 kg × 0.0005 kg

35,000 g × 0.5 g

60 kg × 0.001 kg

60,000 g × 1 g

Minimum Recommended APW

0.0025 g

0.005 g

0.01 g

0.025 g

0.05 g

Minimum Recommended Sample Weight

1 g

2 g

4 g

10 g

20 g

Maximum Displayed Resolution

1:60,000

1:60,000

1:75,000

1:70,000

1:60,000

Internal Counting Resolution

1:1,200,000

1:1,500,000

1:1,500,000

1:1,400,000

1:1,500,000

Certified Models

R71MD3-M

R71MD6-M

R71MD15-M

R71MD35-M

R71MD60-M



Certified Capacity × Readability

3 kg × 0.0005 kg

3,000 g × 0.5 g

6 kg × 0.001 kg

6,000 g × 1 g

15 kg × 0.002 kg 15,000g × 2 g

35 kg × 0.005 kg

35,000 g × 5 g

60 kg × 0.01 kg

60,000 g × 10 g

Certified Minimum APW

0.025 g

0.05 g

0.1 g

0.25 g

0.5 g

Certified Minimum Sample Weight

10 g

20 g

40 g

100 g

200 g

Certified/Approved Resolution

1:6,000

1:7,500

1:7,000

1:6,000

Linearity/Repeatability

±2d

Calibration

Span or Linear

Battery Life

12 hours continuous use (Optional)

Platform Dimensions (W × D × H)

280 × 280 × 31 mm

377 × 311 × 48mm

Base Housing Dimensions (W × D × minH)

280 × 280 × 114 mm

377 × 311 × 128 mm

Shipping Dimensions (W × L × H)

605 × 405 × 244 mm

665 × 525 × 330 mm

Net Weight

6.8 kg

9.9 kg

Shipping Weight

8.5 kg

13.4 kg



Models

R71MHD3

R71MHD6

R71MHD15

R71MHD35



Capacity x Readability

3 kg × 0.00001 kg

3,000 g × 0.01 g

6 kg × 0.00002 kg

6,000 g × 0.02 g

15 kg × 0.0001 kg

15,000 g × 0.1 g

35 kg × 0.0001 kg

35,000 g × 0.1 g

Min. Recommended APW

0.0005 g

0.001 g

0.005 g

Min. Recommended Sample Weight

0.2 g

0.4 g

2 g

Maximum Displayed Resolution

1:300,000

1:300,000

1:150,000

1:350,000

Internal Counting Resolution

1:6,000,000

1:6,000,000

1:3,000,000

1:7,000,000

Certified Models

R71MHD3-M

R71MHD6-M

R71MHD15-M

R71MHD35-M

Certified Capacity x Readability

3 kg × 0.0001 kg

3,000 g × 0.1 g

6 kg × 0.0002 kg

6,000 g × 0.2 g

15 kg × 0.001 kg

15,000 g × 1 g

35 kg × 0.001 kg

35,000 g × 1 g

Certified Minimum APW

0.005 g

0.01 g

0.05 g

Certified Minimum Sample Weight

2 g

4 g

20 g

Certified/Approved Resolution

1:30,000

1:30,000

1:15,000

1:35,000

Linearity/Repeatability

± 2d

Calibration

AutoCal™, Span or Linear

Battery Life

9 hours continuous use (Optional)

Platform Dimensions (W × D × H)

210 × 210 × 12 mm

377 × 311 × 48mm

Base Housing Dimensions

(W × D × minH)

280 × 280 × 114 mm

377 × 311 × 128 mm

Display Dimensions (W × D × H)

267 × 118 × 72 mm

Shipping Dimensions

605 × 405 × 244 mm

665 × 525 × 330 mm

Net Weight

7.2 kg

10.9 kg

Shipping Weight

9.2 kg

14.4 kg
    • Weight (In Grams)
      8820 g
    • SKU
      30088848
    • Commodity Codes
      8423812900
  • Manufacturer
    Ohaus Corporation
  • Country of Origin
    China
  • Maximum Capacity (kg)
    3, 6, 15, 35, 60
  • Readability
    0.05g, 0.1g, 0.2g, 0.5g, 1g, 0.01g, 0.02g, 2g, 5g, 10g
  • Pan Size (mm)
    280 × 280 × 31, 377 × 311 × 48, 210 x 210 x 12
  • Calibration
    AutoCal™, Span or Linear, Span or Linear
  • Models
    R71MD3, R71MD6, R71MD15, R71MD35, R71MD60, R71MHD3, R71MHD6, R71MHD15, R71MHD35, R71MHD3-M, R71MHD6-M, R71MHD15-M, R71MHD35-M, R71MD3-M, R71MD6-M, R71MD15-M, R71MD35-M, R71MD60-M
