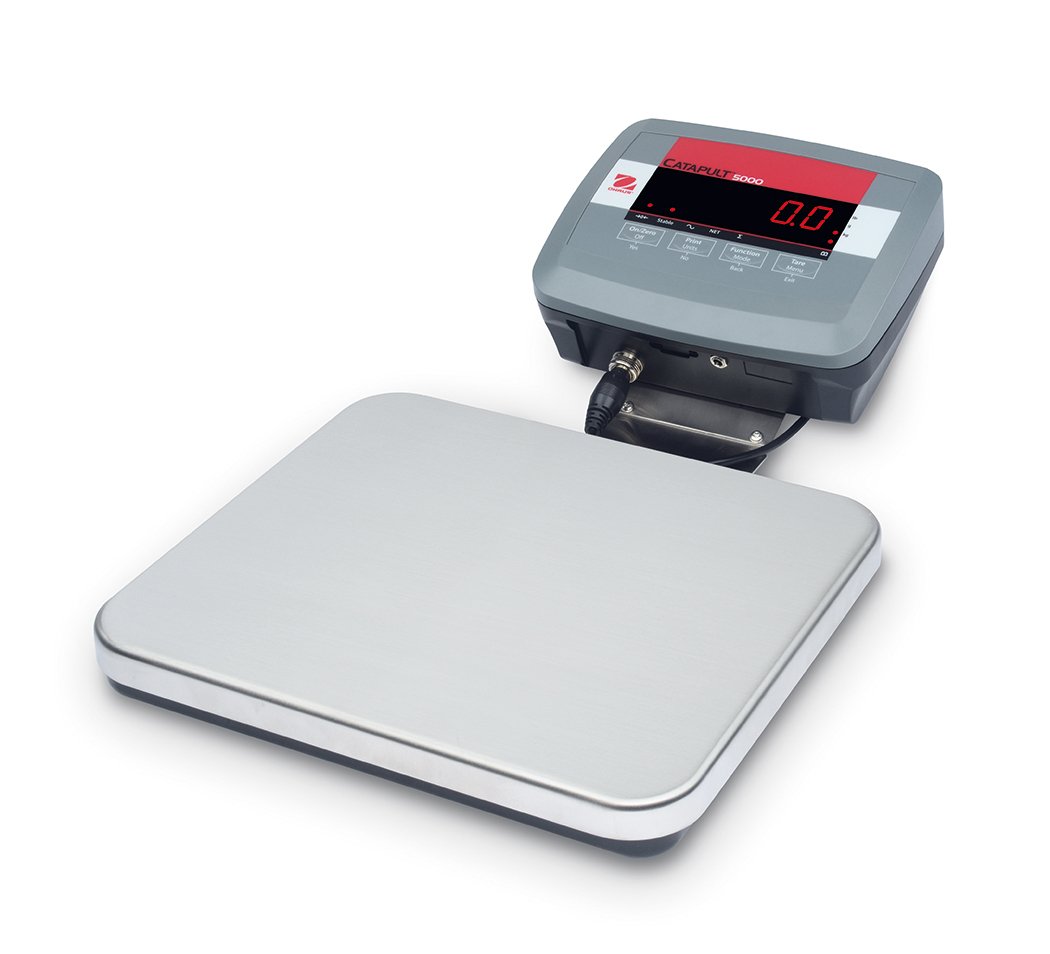

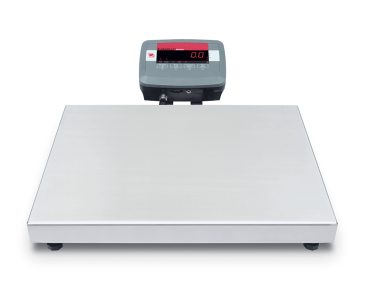

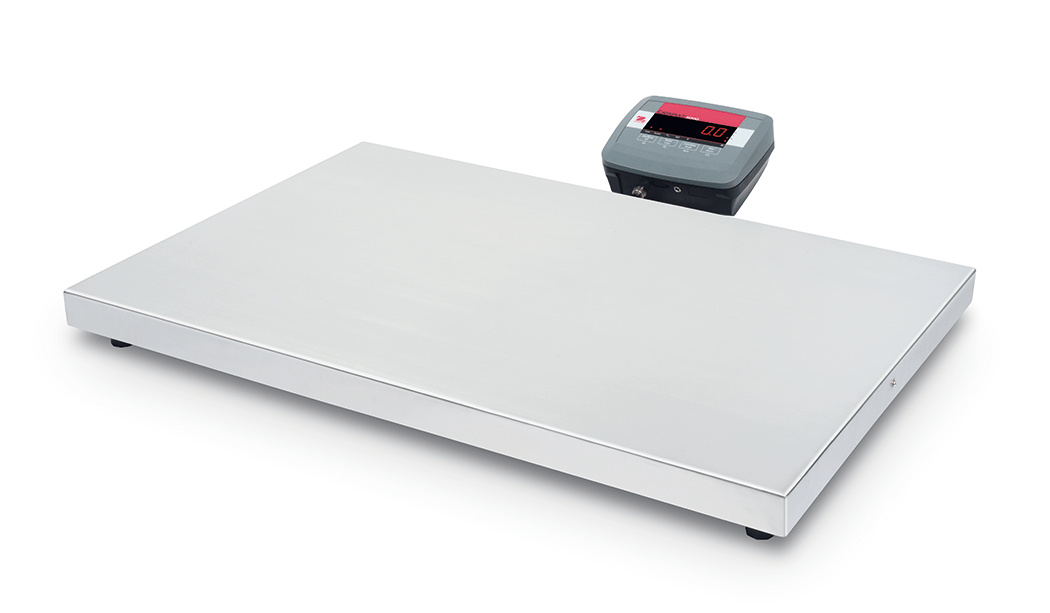

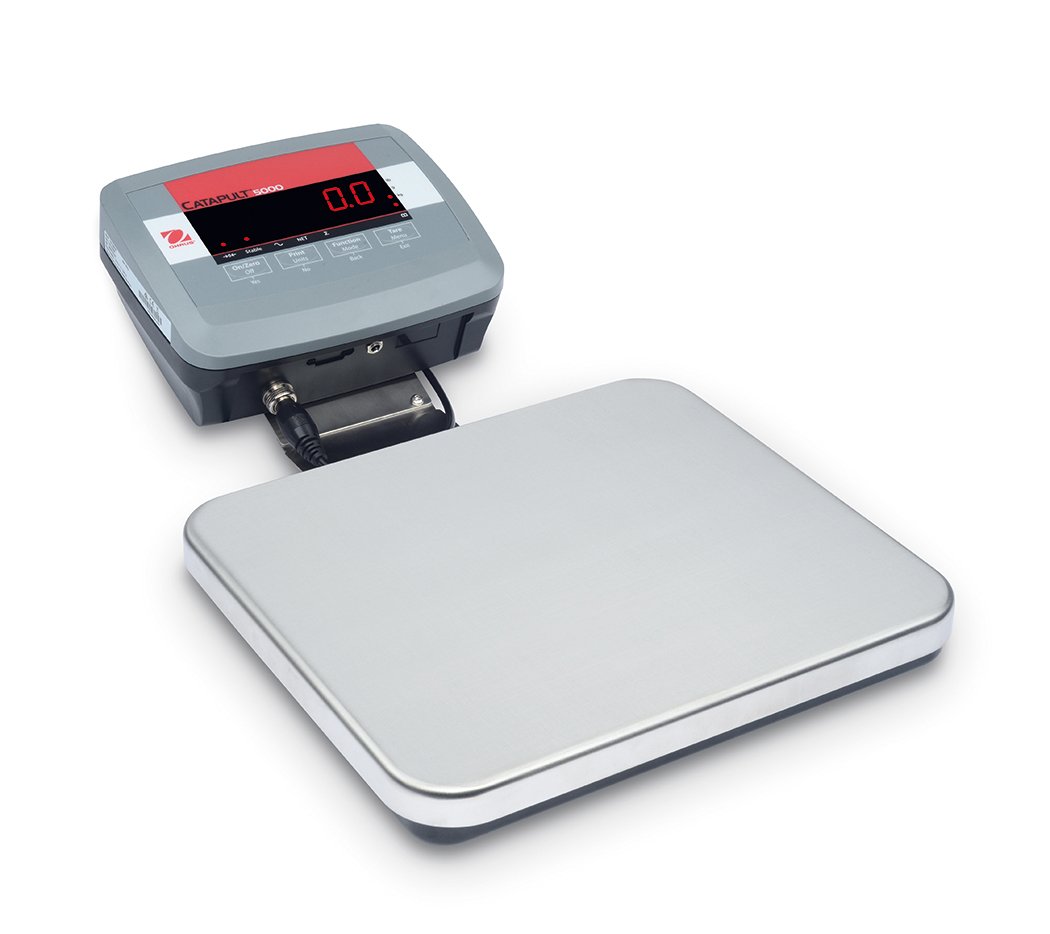

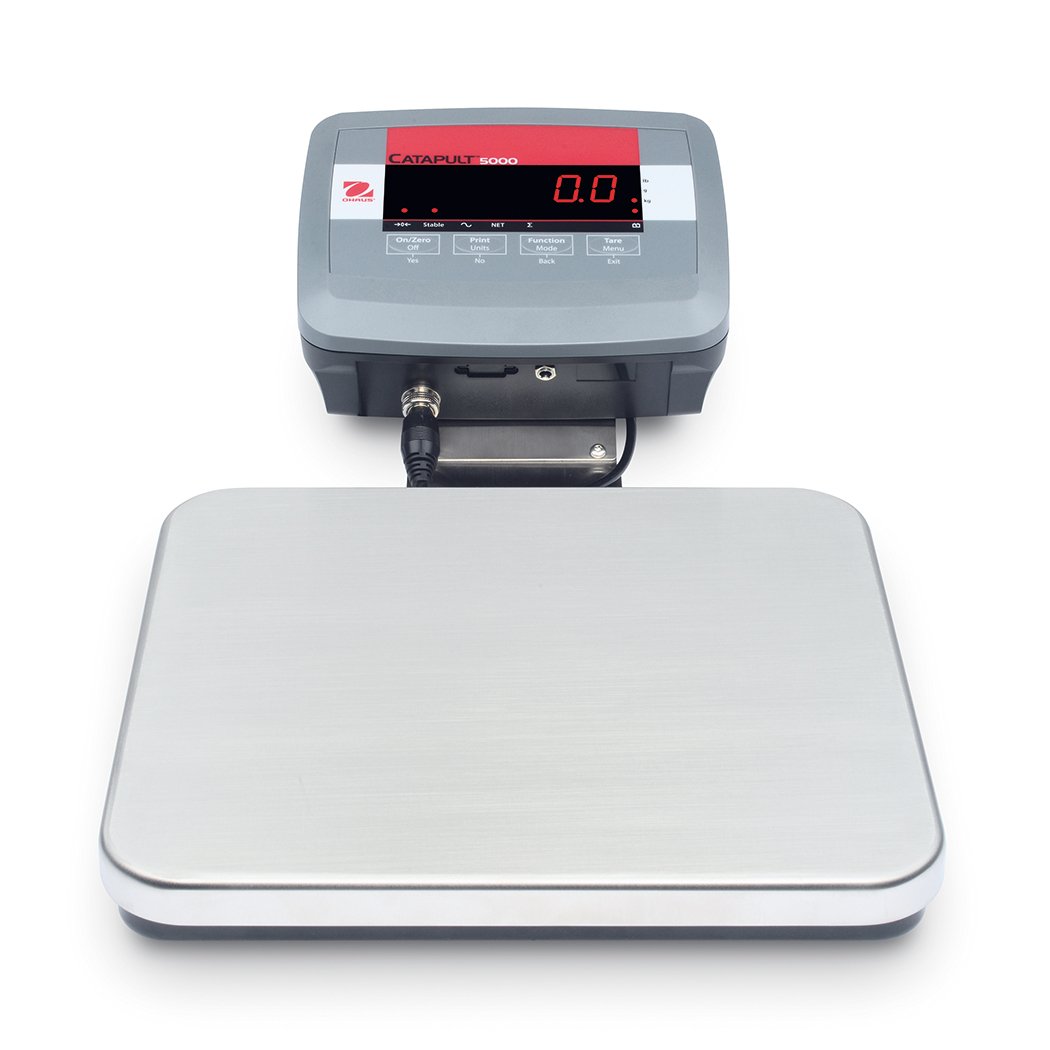

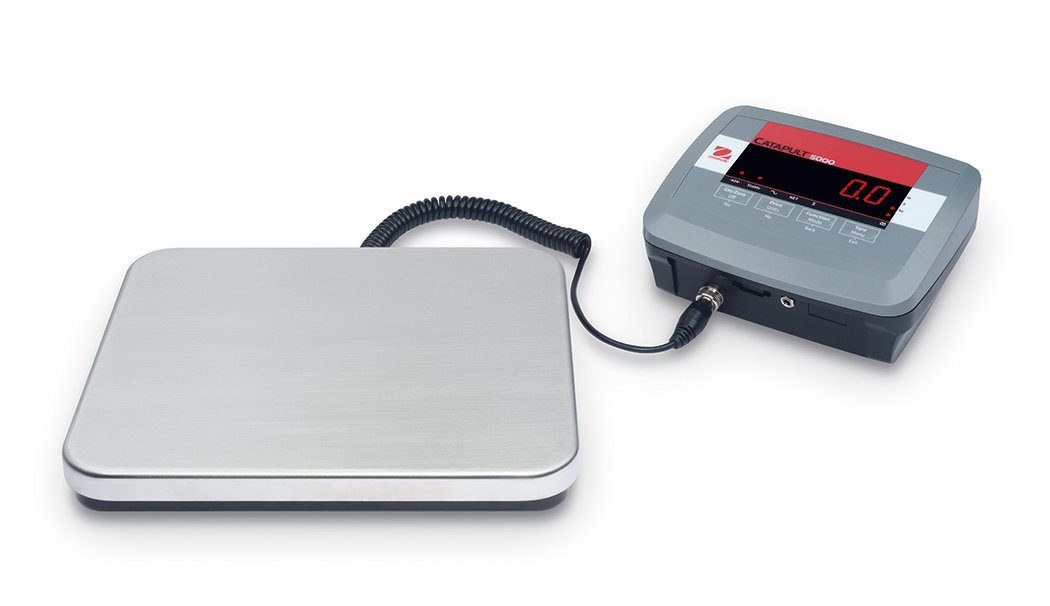

Ohaus Catapult® 5000 Heavy-Duty Shipping Scales
 |
 |
The low-profile Catapult 5000 is an economical shipping scale that's ideal for your shipping and receiving needs, as well as other general weighing applications. A sturdy stainless steel platform that can withstand heavy loads, an easy-to-read LED screen and an optional rechargeable battery make Catapult 5000 a great scale for small businesses, mail rooms, warehouses and even industrial environments.
Applications
Weighing, Dynamic/Display Hold, Accumulation
Display
Light Emitting Diode (LED) Display
Operation
AC adapter (included) and rechargeable battery (not included)
Communication
RS232 (available as an accessory)
Construction
ABS housing, stainless steel platform, mounting bracket, painted steel frame
Design Features
Low-profile design, hardware configuration lockout switch, user-selectable span calibration points, averaging level, auto zero-tracking, auto shut-off
Built-to-last with a large stainless steel platform, the Catapult 5000 is ideal for weighing heavy loads and packages of varying sizes - and can even be used in industrial environments.
The Catapult 5000 is equipped with a LED display, and its brightness can be adjusted to show results clearly - even in less than optimal lighting conditions.
The user experience is enhanced with a RS232 interface which enables easy data transfer, and a rechargeable battery which guarantees hours of uninterrupted operation and portability (both optional).
Technical Specifications
|
Model |
C51XE6R |
C51XE30R |
C51XE50R |
C51XE200R |
C51XE30L |
C51XE50L |
C51XE100L |
C51XE200L |
C51XE30X |
C51XE50X |
C51XE100X |
C51XE200X |
|
Capacity × Readability (d) kg |
6 × 0.002 |
30 × 0.01 |
50 × 0.02 |
200 × 0.1 |
30 × 0.01 |
50 × 0.02 |
100 × 0.05 |
200 × 0.1 |
30 × 0.01 |
50 × 0.02 |
100 × 0.05 |
200 × 0.1 |
|
Recommended Display Resolution |
1:3000 |
1:3000 |
1:2500 |
1:2000 |
1:3000 |
1:2500 |
1:2000 |
1:2000 |
1:3000 |
1:2500 |
1:2000 |
1:2000 |
|
Weighing Units |
kg, g, lb |
|||||||||||
|
Display |
6-digit, 7-segment red LED, 20 mm high digits |
|||||||||||
|
Indicator Construction |
ABS housing |
|||||||||||
|
Keyboard |
Four tactile mechanical keys |
|||||||||||
|
Zero Range |
2% or 100% of full scale capacity |
|||||||||||
|
Tare Range |
Full capacity by subtraction |
|||||||||||
|
Application Modes |
Weighing, Dynamic/Display Hold, Accumulation |
|||||||||||
|
Stabilization Time |
1 second |
|||||||||||
|
Auto-Zero Tracking |
Off, 0.5, 1 or 3 divisions |
|||||||||||
|
Overload Capacity |
125% of rated capacity |
|||||||||||
|
Power |
AC adapter (included) or rechargeable lead acid battery (not included) |
|||||||||||
|
Battery Life |
72 hours of continuous use with a 12-hour recharge time |
|||||||||||
|
Calibration |
User-selectable digital external span calibration (5 kg to 100% capacity) |
|||||||||||
|
Communication |
RS232 (available as an accessory) |
|||||||||||
|
Operating Temperature Range |
-10 °C to 40 °C |
|||||||||||
|
Base Construction |
Stainless steel platform, painted carbon steel frame |
|||||||||||
|
Base Dimensions (W × L × H) |
310 × 270 × 40 mm |
520 × 400 × 75 mm |
900 × 600 × 80 mm |
|||||||||
|
Column Construction |
Stainless steel |
|||||||||||
|
Net Weight |
4 kg |
13.5 kg |
28 kg |
|||||||||
|
Shipping Weight |
5 kg |
15 kg |
32 kg |
|||||||||
|
Shipping Dimensions |
400 × 365 × 210 mm |
600 × 480 × 220 mm |
1022 × 687 × 247 mm |
|||||||||
-
ManufacturerOhaus Corporation
-
Country of OriginChina
-
Maximum Capacity6, 30, 50, 200, 100
-
Readability0.002kg, 0.01kg, 0.02kg, 0.1kg, 0.02g, 0.05kg
-
Dimensions (mm)310 x 270 x 40, 520 x 400 x 75, 900 x 600 x 80
-
ModelC51XE6R, C51XE30R, C51XE50R, C51XE200R, C51XE30L, C51XE50L, C51XE100L, C51XE200L, C51XE30X, C51XE50X, C51XE100X, C51XE200X
