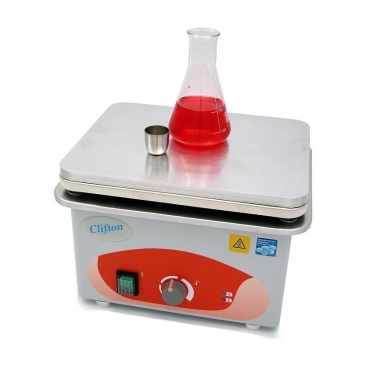

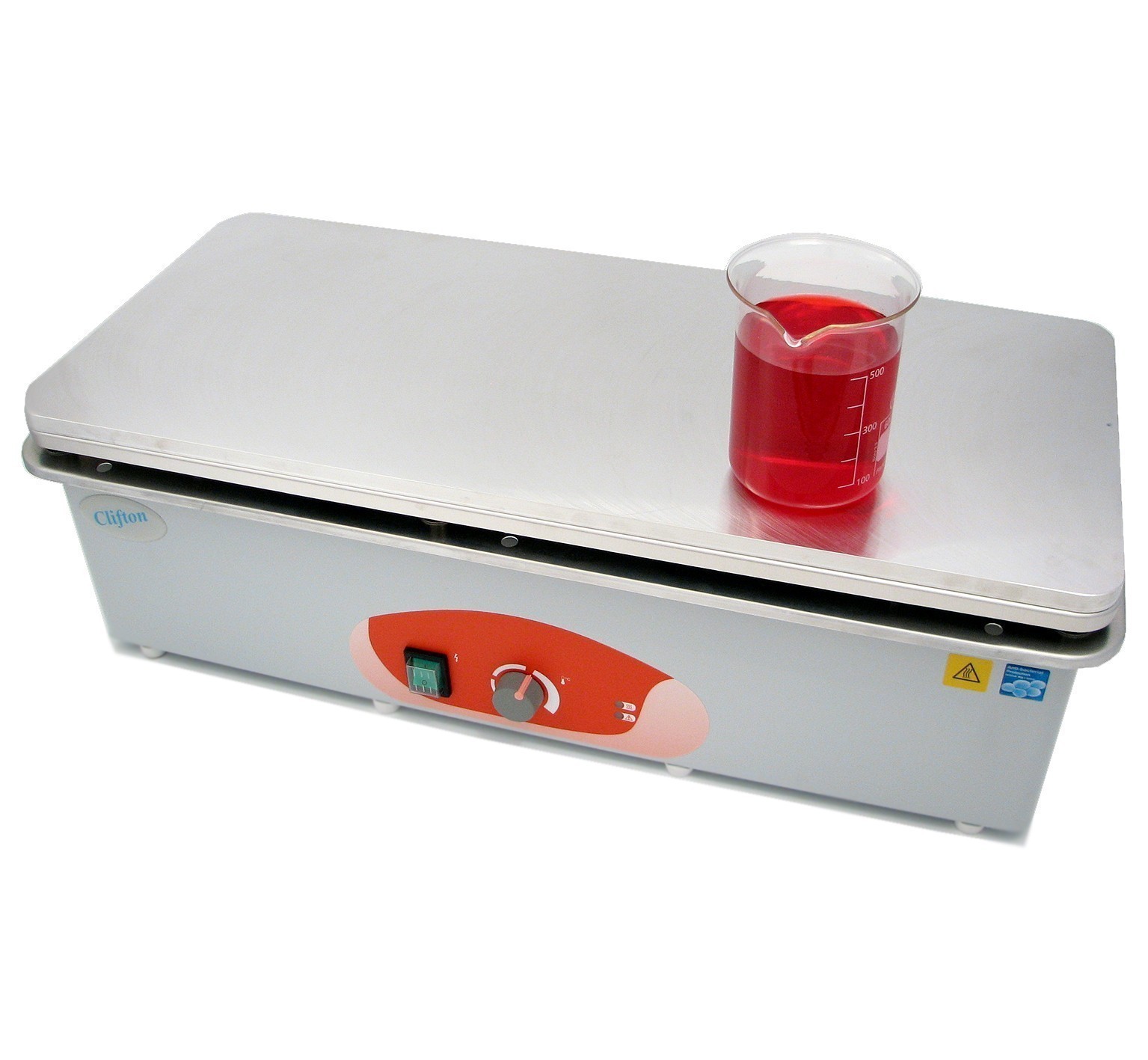

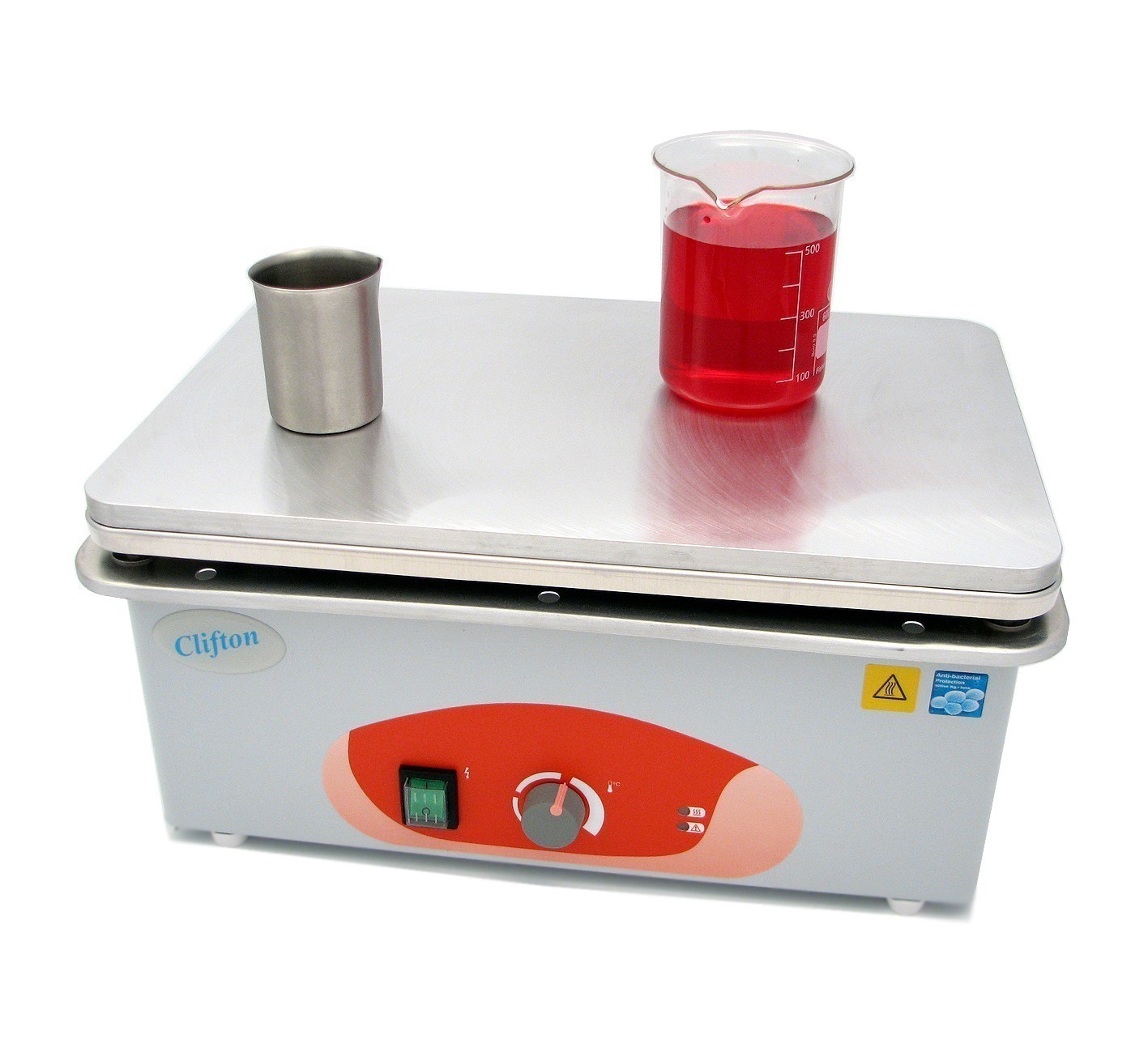

Analogue hotplates feature a generous working area, thermostatically controlled, with an illuminated on/off switch, heater and hot warning indicator. Featuring a hob surface, which overlaps the body to ensure that no spillages enter the controls. The hob is solid aluminium, 12mm thick for excellent thermal properties and uniform heat distribution over its working area. Painted surfaces and the control panel have an antibacterial protection and are also all chemical resistant wipe clean surfaces. Hob temperature can be adjusted using the control dial.
Technical Specifications
Models |
HP1-1 HP1-2 HP1-3 |
||
Temperature Range |
Ambient + 10°C - 320°C |
||
Temperature Setting |
Analogue Dial |
||
Sensitivity/Uniformity |
±10°C @ 150°C |
||
Hob Maximum Load |
8kg @ maximum 300°C (mass evenly spread across hob) |
||
Retort Points |
Single M10 fixing point |
Double M10 fixing point, rear hotplate |
|
Heater Power (220-240V) |
1000W |
2000W |
2400W |
Voltage |
230V |
||
Dimensions |
|
||
External (mm) |
325w x 260d x 200h |
477w x 325d x 200h |
706w x 325d x 200h |
Hob Dimensions |
305w x 240d |
457w x 305d |
686w x 305d |
