Ultrasonic sonotrodes are also known as ultrasonic tip, probe, horn or finger. Hielscher offers ultrasonic probes made from titanium, glass and ceramics and with many sizes (diameters) to match your process condition (e.g. process intensity, high temperatures, pharmaceutical grade etc.) optimally.

Choose the right sonotrode size: The diameter of a sonotrode is related to the liquid volume and the processing intensity. By the use of a sonotrode with a smaller surface area (smaller diameter), the ultrasound power is delivered more focussed and thereby more intense resulting in a high amplitude, whilst at sonotrodes with a larger surface the ultrasonic energy is transmitted over a larger area at a lower amplitude. Larger sonotrode diameters are used to process larger volumes, but offer a lower intensity.

The intensity of ultrasonication is a function of the energy input and the sonotrode surface area. For a given energy input applies: the larger the surface area of the sonotrode, the lower the intensity of ultrasound.

With additionally available boosters, the ultrasonic output at bench-top and industrial sonotrodes can be either increased or decreased. Hielscher offers various booster sizes which allow for enlarged setting options of your ultrasonic processor.

• For the easy positioning of samples under the ultrasonic probes to control immersion depth
• Stainless steel
• Footprint 100 x 100 mm
• Adjustable height: 50 to 125 mm

• sound protection box, acryl glass, with divisible rod Ø16mm, vertically adjustable table, anti-slip mat, dimensions (LxWxH): 29x20x35cm, weight: 13kg, sound insulation: 22dB (A) open air measurement

• Made of stainless steel
• Base Length 300mm
• Base Width 150mm
• Pole Diameter Ø 16 mm
• Height 600 mm

• Clamp for holding diameter upto 63mm
• Made of Aluminium
• Base Length 300mm
• Base Width 150mm
• Pole Diameter Ø 16 mm
• Height 600 mm

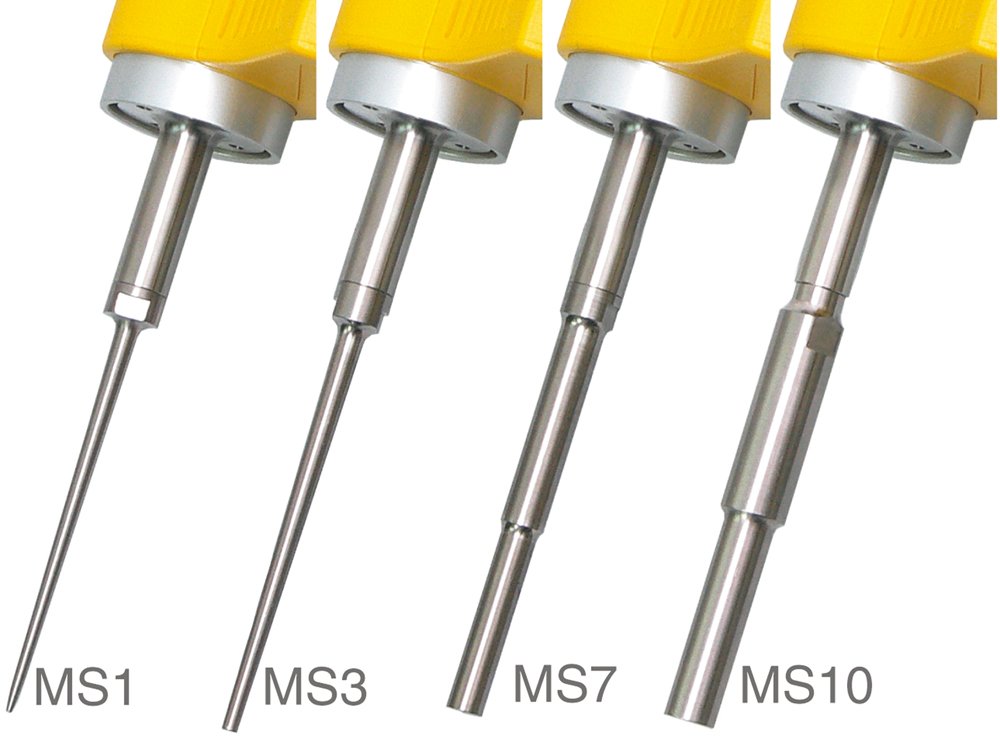

MS 1

• for samples from approx. 0.1 ml up to 5 ml
• Ø 1 mm
• approx. 0.8 mm²
• approx. length 80 mm
• amplitude approx. 140 µm (Peak-through-value)
  • male thread M6x0.75




MS 3

• for samples from approx. 5 ml up to 100 ml
• Ø 3 mm
• approx. 7.1 mm²
• approx. length 80 mm
• amplitude approx. 180 µm (Peak-through-value)
• male thread M6x0.75
