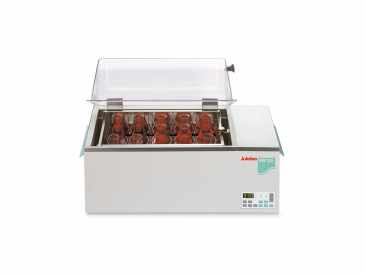

Julabo SW Shaking Water Baths
2 models with shaking function and up to 20 litres filling volume
JULABO Shaking Water Baths provide numerous state-of-the-art features for common day-to-day laboratory tasks. For example sloped edges keep water in the stainless steel bath tank even when the bath lid is open.
Technical Data
| SW22 | SW23 | ||
| Order No. | 9 550 322 | 9 550 323 | |
| Working Temperature Range | +20 ... +99.9 °C | +20 ... +99.9 °C | |
| Temperature Stability | ±0.2 °C | ±0.02 °C | |
| Heating Capacity | 2 kW | 2 kW | |
| Usable Bath Opening (W x L / D) | 50 x 30 / 18 cm | 50 x 30 / 18 cm | |
| Filling Volume | 8 ... 20 l | 8 ... 20 l | |
| Dimensions (W × L × H) | 70 x 35 x 26 cm | 70 x 35 x 26 cm | |
| Bath Tank | Stainless Steel | Stainless Steel | |
| Temperature Control | PID1 | PID1 | |
| Temperature Display | LED | LED | |
| Temperature Setting | Keypad | Keypad | |
Product Features
- Working temperature range from +20 to+99.9 °C
- User-friendly operation via keypad
- Bright LED-Display
- Splash-proof design
- Power switch integrated in keypad (patented)
- High-temperature stability of ±0.2 °C or ±0.02 °C
- Dry-running protection with audible and optical alarm
- Warning and cut-off protection for high/low temperature
- Adjustable shaking frequencies from 20 to 200 RPM‘s in SW models
- Convenient bath drains
- Removable bottom plate and shaking insert
- Lift-up bath cover (optional)
- Wide selection of accessories for temperature control of samples
- All wetted parts are made of stainless steel or high-grade plastics
Applications
Biochemical research, material testing, enzyme and tissue studies, homogenization, routine laboratory tasks, corrosion tests, fermentation, incubation, blood plasma thawing, temperature tests of food and beverages
Benefits
 |
 |
 |
 |
Precise
PID Temperature control with set control parameters, temperature stability ±0.02...±0.2 °C |
Automatic control of operating time
Electronic countdown-timer function for timer-programmed unit shut-down, standby mode after programmed time expires |
JULABO. Quality.
Highest standards of quality for a long product life. |
Green technology.
Development consistently applied environmentally friendly materials and technologies. |
|
|
|
|
|
Satisfied customers.
11 subsidiaries and more than 100 partners worldwide guarantee fast and qualified JULABO support. |
100% Checked.
100% testing. 100% quality. Each JULABO Circulator undergoes thorough quality testing before leaving the factory. |
Quick start.
Individual JULABO consultation and comprehensive manuals at your disposal. |
