Open heating bath circulators are designed for internal applications in the circulator bath. The models on this page are equipped with bath tanks made of Polycarbonat or stainless steel. Available accessories include a variety of test tube racks, immersion-height adjustable platforms and cooling coils. The circulator can be removed for easy cleaning of the bath tanks.
The Open Heating Bath Circulators of the CORIO series feature durable, high-quality transparent bath tanks.
- For internal applications
- Bright, white, easy-to-read display
- Whisper quiet
- To adapt the CORIO Open Heating Bath Circulator to your individual application we offer a comprehensive range of accessories (racks, bath lids, and more).
Clever.
A clean solution. The cleverly integrated drip off design (B and BT baths).
Product Features
- Bright, white, easy to read display
- Very quiet
- For internal applications
- Easy operation
- Integrated drain screw (except B5)
Applications
Temperature control of samples, preparation of samples for serology and clinical chemistry, analysis, material testing, and more
Specifications

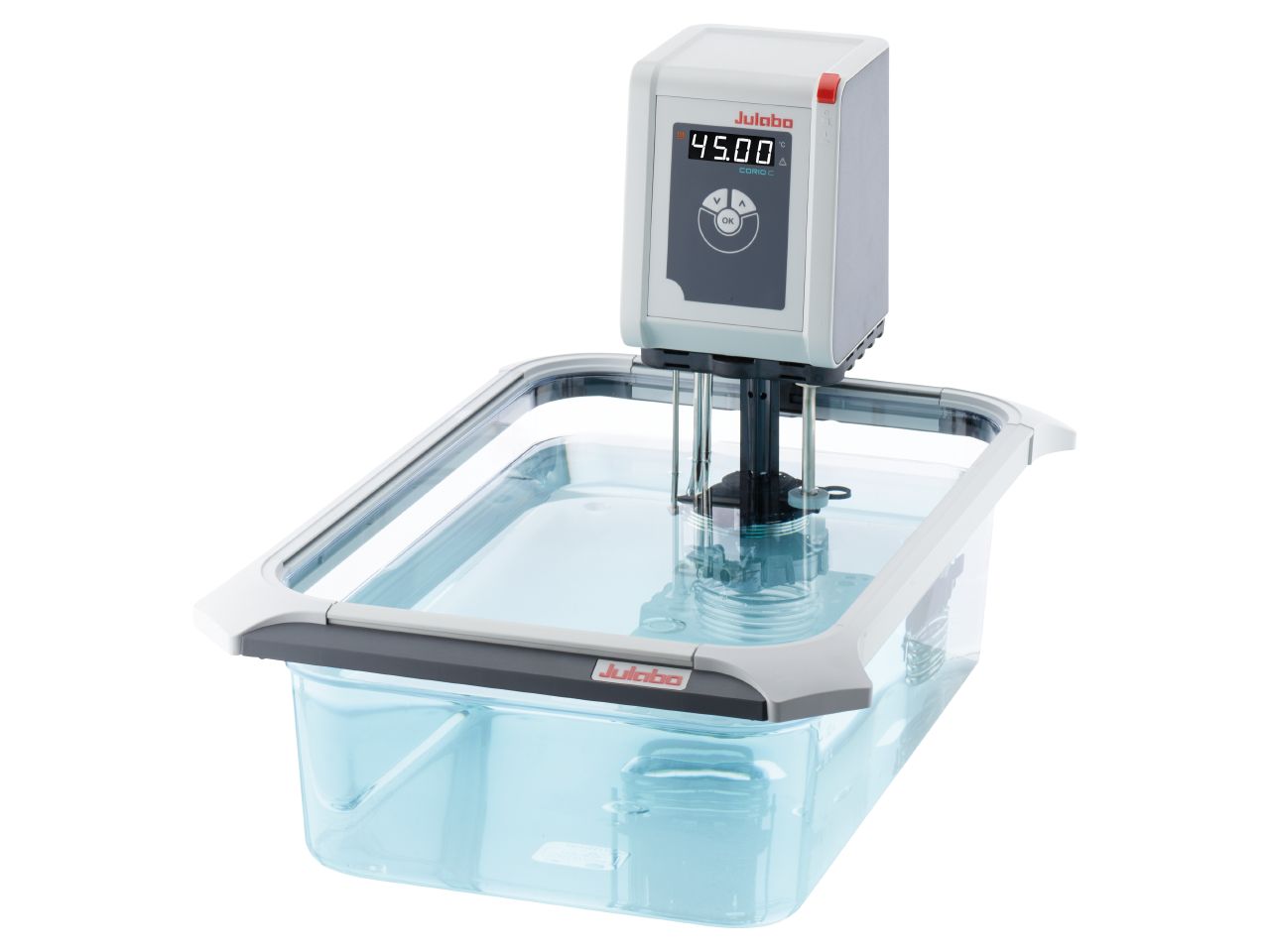

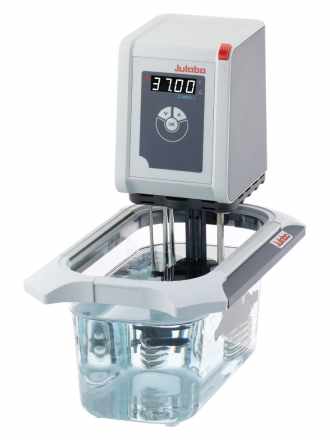

The open heating bath circulators of the new CORIO series feature high-quality transparent bath tanks
Model | CORIO C-BT5 | CORIO C-BT9 | CORIO C-BT19 | CORIO C-BT27 |
---|---|---|---|---|
Working temperature range (°C) | +20 ... +100 | +20 ... +100 | +20 ... +100 | +20 ... +100 |
Temperature stability (°C) | ±0.03 | ±0.03 | ±0.03 | ±0.03 |
Heating capacity (kW) | 2 | 2 | 2 | 2 |
Circulation capacity flow rate (l/min) | 6 | 6 | 6 | 6 |
Circulation capacity pressure (bar) | 0.1 | 0.1 | 0.1 | 0.1 |

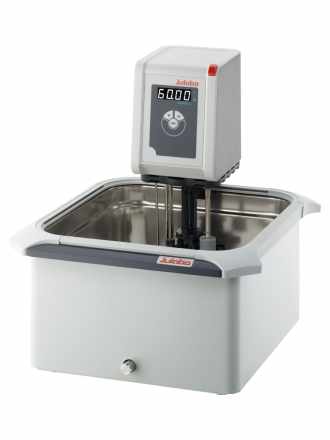

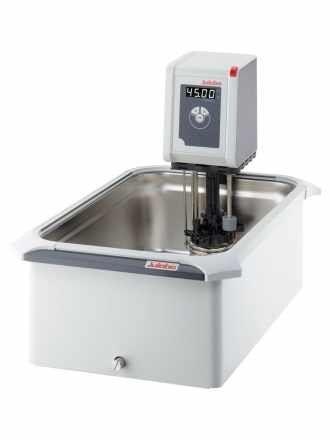

The open heating bath circulators of the new CORIO series feature high-quality bath tanks made of stainless steel.
Model | CORIO C-B5 | CORIO C-B13 | CORIO C-B17 | CORIO C-B19 |
---|---|---|---|---|
Working temperature range (°C) | +20 ... +100 | +20 ... +100 | +20 ... +100 | +20 ... +100 |
Temperature stability (°C) | ±0.03 | ±0.03 | ±0.03 | ±0.03 |
Heating capacity (kW) | 2 | 2 | 2 | 2 |
Circulation capacity flow rate (l/min) | 6 | 6 | 6 | 6 |
Circulation capacity pressure (bar) | 0.1 | 0.1 | 0.1 | 0.1 |

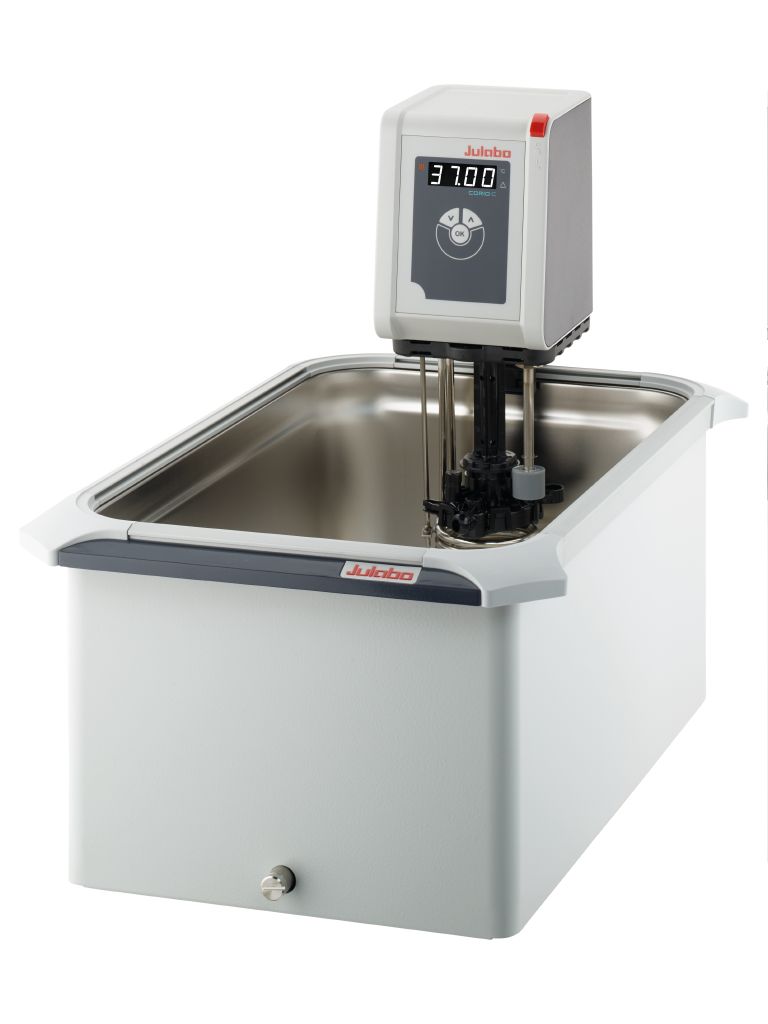

Model | CORIO C-B27 |
---|---|
Working temperature range (°C) | +20 ... +100 |
Temperature stability (°C) | ±0.03 |
Heating capacity (kW) | 2 |
Circulation capacity flow rate (l/min) | 6 |
Circulation capacity pressure (bar) | 0.1 |
-
ManufacturerJulabo GmbH
-
Country of OriginGermany
-
Working Temperature Range+20 °C To +100 °C
-
Bath Opening Dimensions (mm)150 x 150 x 150, 230 x 150 x 150, 300 x 350 x 150, 300 x 350 x 200, 300 x 180 x 150, 300 x 180 x 200
-
Filling Volume (Litres)3.5 To 5, 6 To 9, 14 To 19, 20 To 27, 9 To 13, 13 To 17, 17 To 27
-
ModelCORIO C-BT5, CORIO C-BT9, CORIO C-BT19, CORIO C-BT27, CORIO C-B5, CORIO C-B13, CORIO C-B17, CORIO C-B19, CORIO C-B27
-
Bath Tank MaterialTransparent, Stainless Steel
-
Pump Capacity l/min6, 15
-
Flow Rate / Pressure (bar)0.1, 0.35
