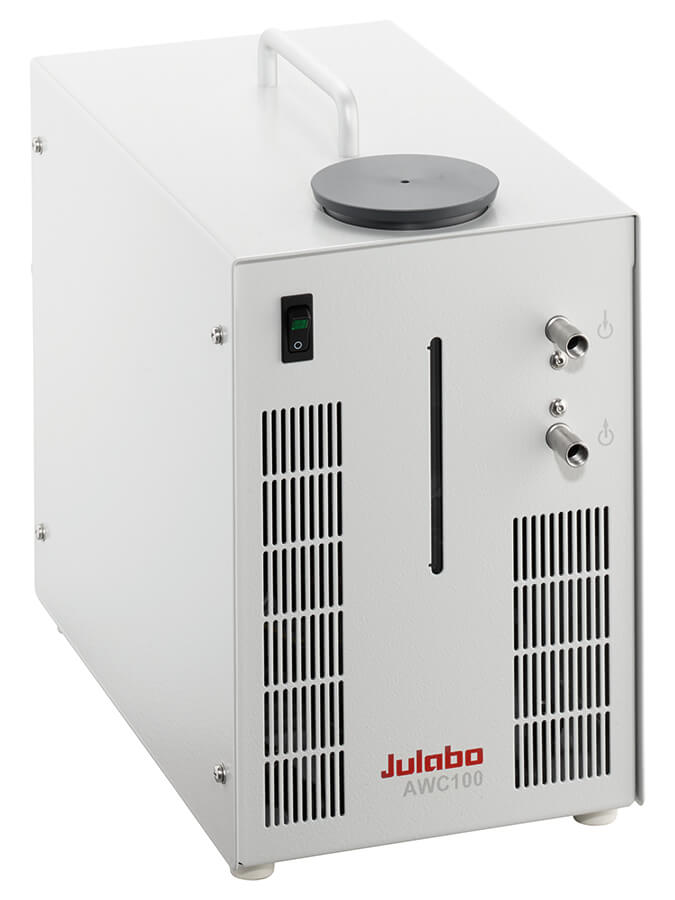

AWC100 Air-to-water recirculating cooler
for working near ambient temperature extremely compact recirculating cooler to remove small heat loads.
JULABO's Air to water recirculating cooler AWC100 is an extremely compact solution, designed to remove small heat loads from external systems such as from Peltier-elements. The highly competitively priced AWC100 features a compact footprint and is designed specifically for applications where cooling water can be above ambient and where temperature control is secondary.
- Connect, switch on and get started
- Very quiet
- Hassle-free operation
- Small footprint
The ventilator speed can be increased by changing the switch for booster cooling on the rear of the unit. Stage 0: normal cooling capacity, virtually noiseless. Stage 1: higher cooling capacity, higher ventilator speed.
|Working temperature range (°C)||+20 ... +40|
|Cooling capacity (kW)||0.4|
|Pump capacity flow rate (l/min)||3.5|
|Pump capacity flow pressure (bar)||0.49|
Country of OriginGermany
Filling Volume (L)0.9, 5
Working Temperature Range+20°C To +40°C
Pump Capacity l/min2.9
Flow Rate/Pressure (bar)0.2
