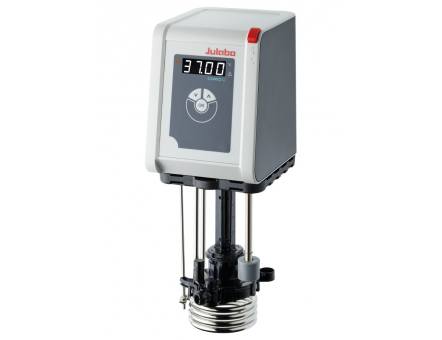

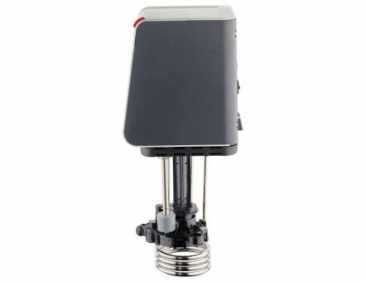

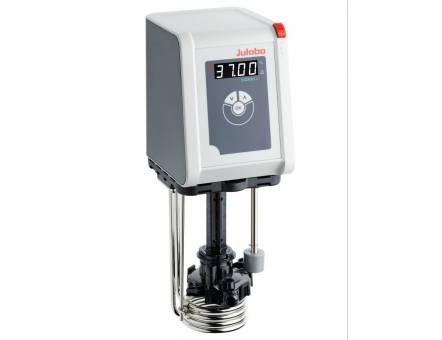

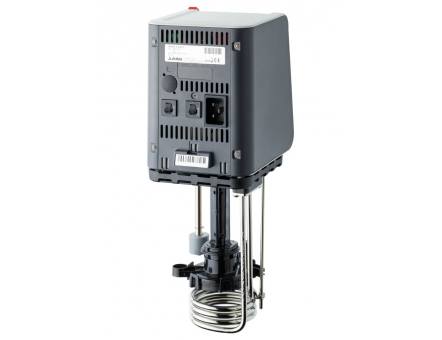

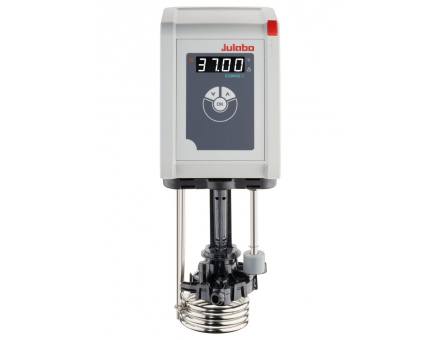

Julabo 9011000 CORIO C Heating Immersion Circulator, +20 ... +100 °C , 6 Circulation Capacity Flow Rate (l/min)
Specifications
| Dimensions (W × L × H) |
13.2 x 16 x 36.2 cm |
|---|---|
| Usable immersion depth | 16.6 cm |
| Weight | 1.9 kg |
| Working temperature range | +20 ... +100 °C |
|---|---|
| Temperature stability | ±0.03 °C |
| Setting the resolution of the temperature display | 0.1 °C |
| Temperature display resolution | 0.01 ... 0.1 °C |
| Ambient temperature | +5 ... +40 °C |
| Heating capacity | 2 kW |
|---|---|
| Viscosity max. | 1 cST |
| Circulation capacity flow rate | 6 l/min |
| Cooling coil | accessory |
|---|
| Classification according to DIN12876-1 |
Classification I (NFL) |
|---|---|
| IP Code according to IEC 60529 |
IP 21 |
| Pump type | Immersion Pump |
| Temperature control | PID1 |
|---|---|
| Absolute temperature calibration | 1 Point Calibration |
| Temperature display | LED |
| Temperature setting | Keypad |
Open heating bath circulators for internal temperature applications
Open heating bath circulators are designed for internal applications in the circulator bath. The models on this page are equipped with bath tanks made of Polycarbonate or stainless steel. Available accessories include a variety of test tube racks, immersion-height adjustable platforms and cooling coils. The circulator can be removed for easy cleaning of the bath tanks.
Benefits
-
100% Checked.
100% testing. 100% quality. Each JULABO Circulator undergoes thorough quality testing before leaving the factory. -
Green technology.
Development consistently applied environmentally friendly materials and technologies. -
JULABO. Quality.
Highest standards of quality for a long product life. -
Modern. Reliable.
High-grade components in every JULABO Circulator – platinum sensors, proven motor technology, CAN-Bus communication and much more.
-
Satisfied customers.
11 subsidiaries and more than 100 partners worldwide guarantee fast and qualified JULABO support. -
Services 24/7.
Around the clock availability. You can find suitable accessories, data sheets, manuals, case studies, and more at www.julabo.com. -
Stable.
Rubber feet allow for a secured footing of your CORIO to prevent damage to your laboratory equipment. -
Quick start.
Individual JULABO consultation and comprehensive manuals at your disposal. -
Brilliant.
Very bright display makes it easy to read even from a distance. -
Connection. Easy.
Inclined pump connections (M16×1) facilitate the connection of applications. Each unit includes 2 barbed fittings of 8/12 mm diameter each. -
Everything at the front.
All operating controls and safety functions are accessed easily and comfortably from the front. -
Exact.
You can rely on it. PID1 control and 'Active Cooling Control' make the new CORIO precise and perfect. -
Locked in.
The lockable power plug guarantees safe connection. More process safety. -
Switch on. And off you go.
Intelligent operating concept. Ready for operation with just a few quick and easy steps. -
Timer. Integrated.
CORIO circulators include an integrated timer function. When the set time has elapsed, a signal sounds and the device switches off. Setting range: 0 ... 999 minutes. -
Early warning system for low liquid level
Maximum safety for applications, optical and audible alarm, allows user to refill bath fluid before the unit shuts down
