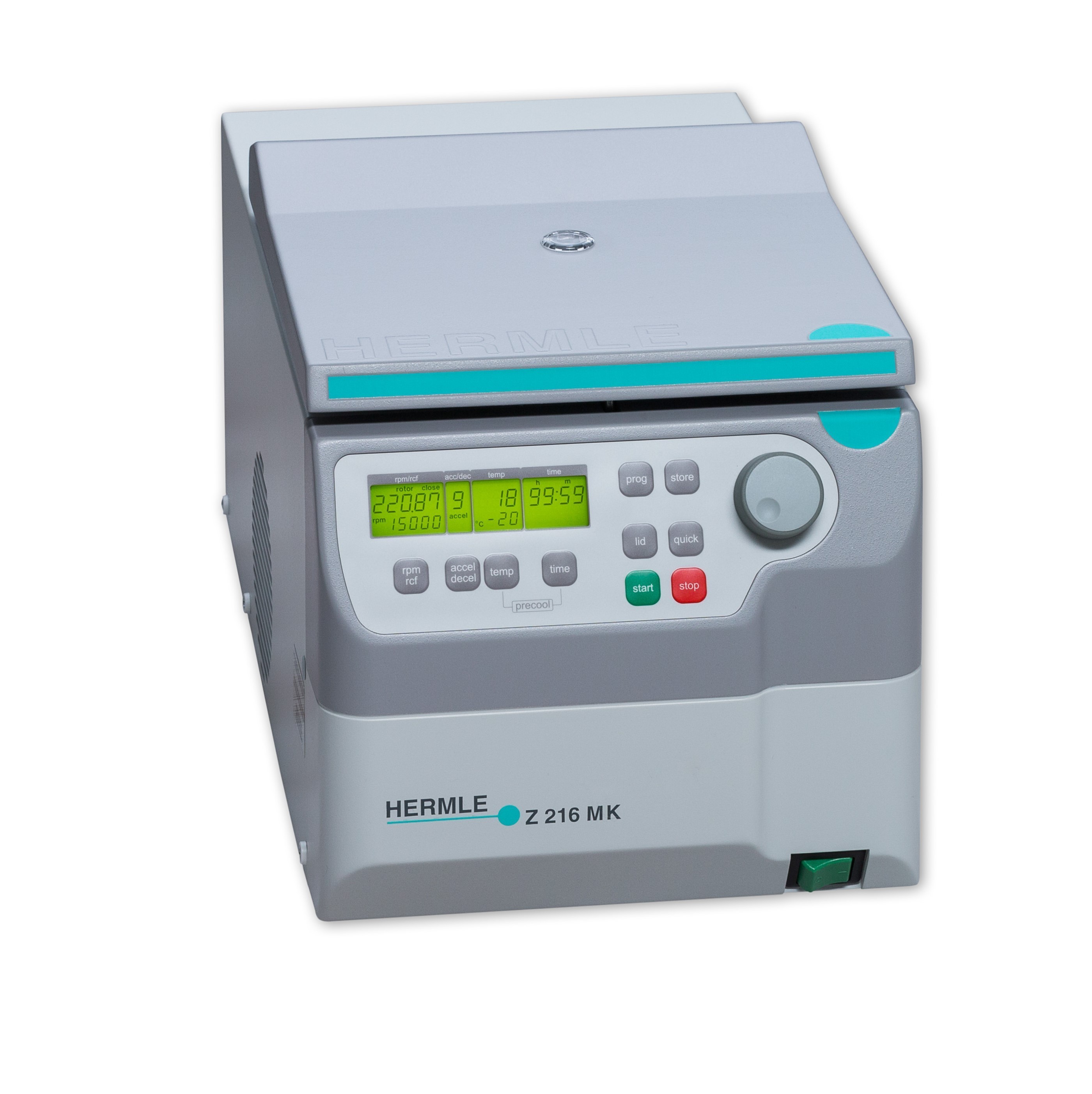

The Z 216 M and Z 216 MK are setting new standards in this centrifuge class. Capable of centrifuging up to 44 x 1,5 / 2,0 ml at each run. Due to their compact design and quiet running properties they are fi tting perfectly in their working area. The powerful refrigeration system of Z 216 MK keeps samples at temperatures as low as 4°C during a continuous run at 20000 xg.
Features and functions
- Maintenance-free induction drive
- Microprocessor with large LCD display
- Motor driven lid lock
- Active imbalance identification and cut off
- Standstill cooling
- CFC-free refrigeration system
- Rapid acceleration and deceleration (see rotor data)
- Lowest sample temperature 4°C at 20000 xg
- Noise level < 60 dBA at 21379 xg
- Extremely compact with a space saving footprint
- Quick acces to samples with a snap on lid
- Manufactured according to international safety regulations, i. e. IEC 61010
Display functions
- Simple one handed operation
- Easy to program with gloves on
- Foil keyboard
- Permanent indication of preset and actual values
- Selection of speed in both rpm and g-force, with increments of 10
- Quick-key for short runs
- 10 acceleration and deceleration rates, possibility of unbraked deceleration
- Storage of up to 99 runs including rotor
- Temperature range from -20°C to +40°C
- Input and indication of temperature either in °C or °F
- Pre-cooling program (Pre-cooling time from room temperature to +4°C < 10 min)
- Pre-selection of the running time from 10 s to 99 h 59 min or continuous
Technical Specifications
Temperature Range | -20°C to 40°C (only applicable to Z 216 MK) |
---|---|
Maximum Speed: | 15000 rpm |
Maximum RCF: | 21,379 xg |
Maximum Volume: | 44 x 1.5/2.0ml |
Speed Range | 200 - 15,000 rpm |
Running time: | 59 min 50 s / 10 s increments 99 h 59 min / 1 min increments |
Dimensions (WxHxD): | 28 cm x 29 cm x 39 cm Z 216 M 28 cm x 29 cm x 55 cm Z 216 MK |
Weight: | 17 kg Z 216 M 35 kg Z 216 MK |
