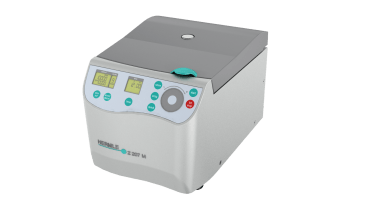

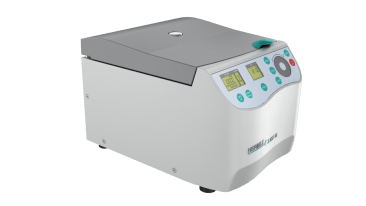

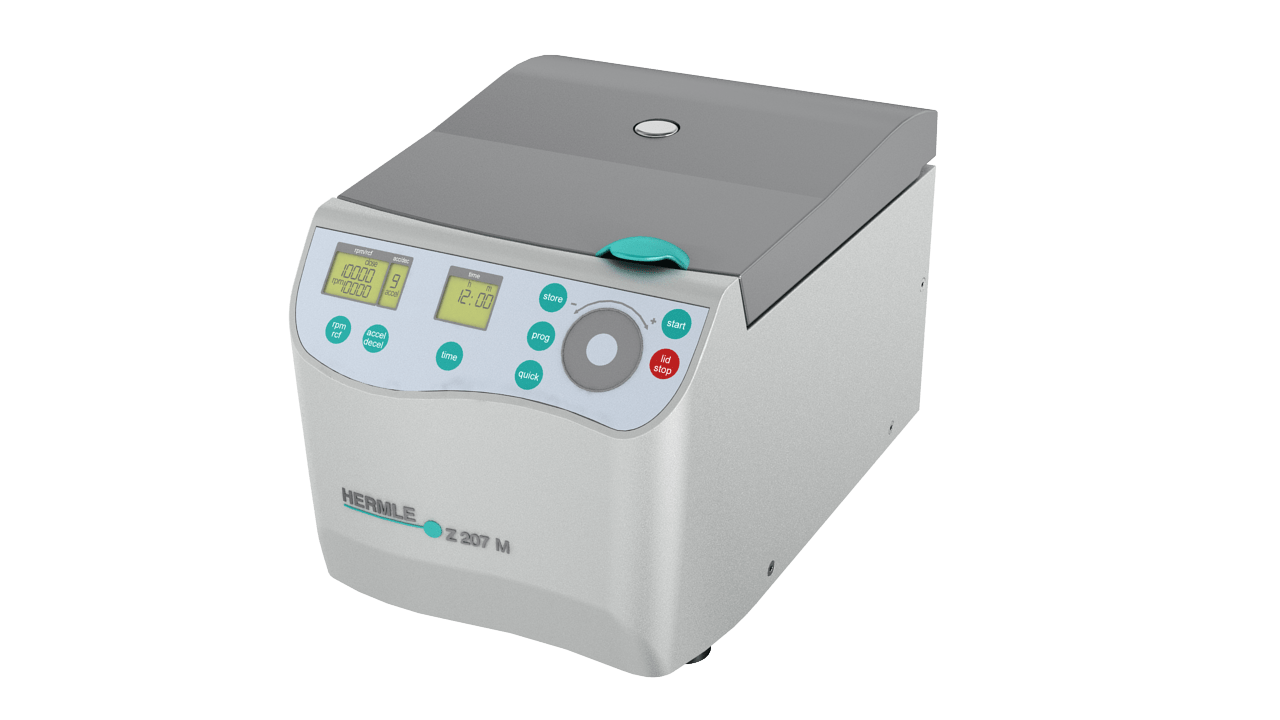

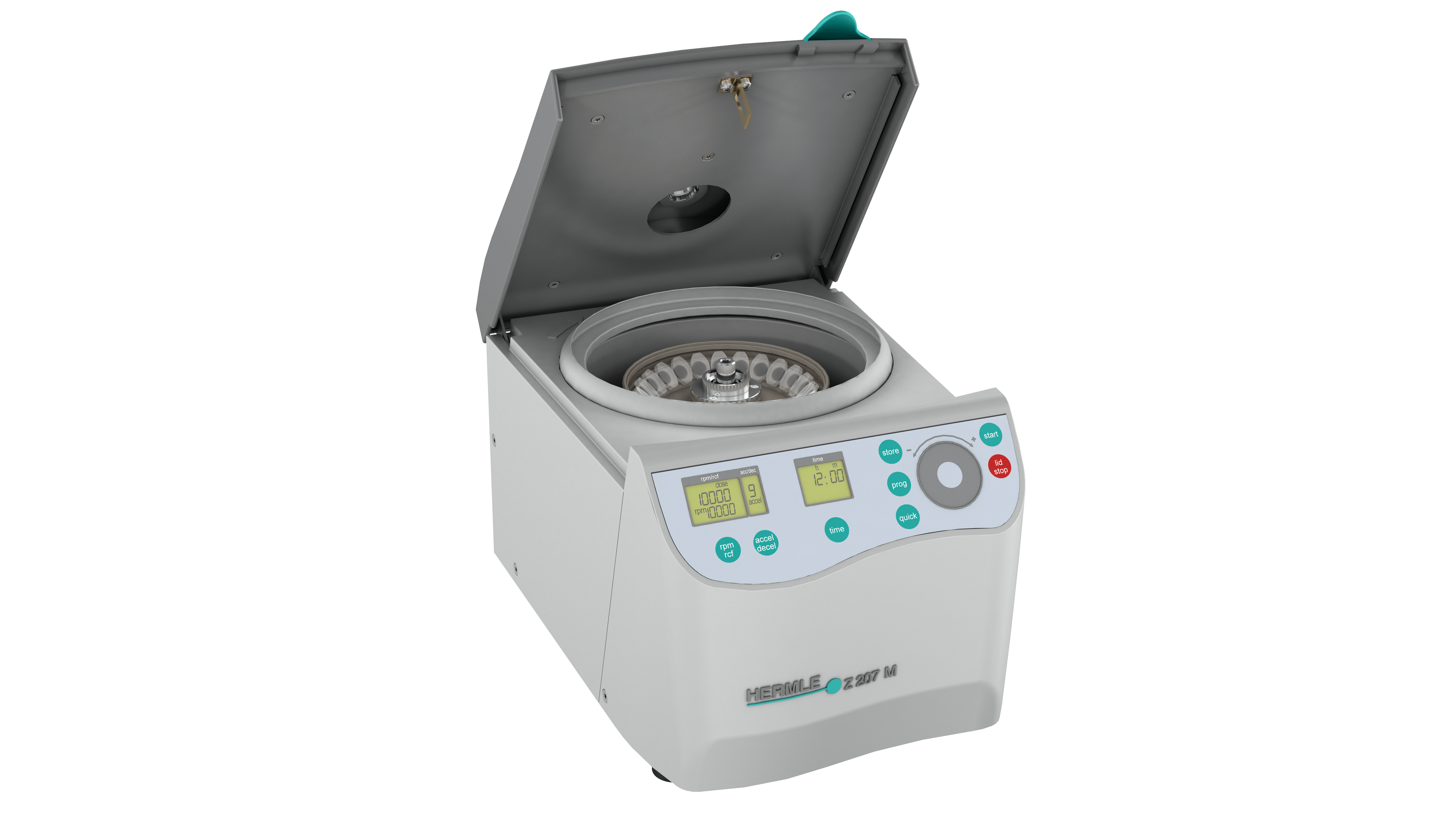

The Microlitre Centrifuge, Z 207 M was designed specifically for small, compact spaces, suitable in any laboratory setting. The rapid acceleration allows short running time, with a max. speed of 13,500 rpm. Even with the high speed, this centrifuge is pleasantly quite.
With this centrifuge, there is the option for a 24 x place mircolitre rotor, optional with hermetically sealed lid, and a rotor for Spin Column Kits.
The highlight feature of the Z 207 M is, the "Touch Operation" function, of the control panel. Easy to operate, no need to remove gloves! A crucial detail is the Air Cooling System, which is designed to keep your samples cool, even at maximum speed.
Features And Functions
- Microprocessor with large LCD display
- Electrical lid lock

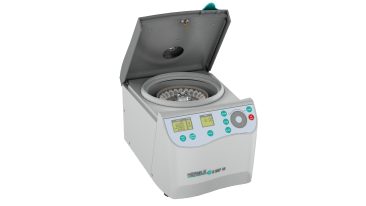

- Quick access to samples
- Active imbalance identification and cut-off
- Air Cooling System
- Quick Acceleration and Deceleration
- Noise level < 60 dBA, at max. speed
- Easy removal of rotor
- Manufactured in accordance to International
- Safety Regulations, i.e. IEC 61010

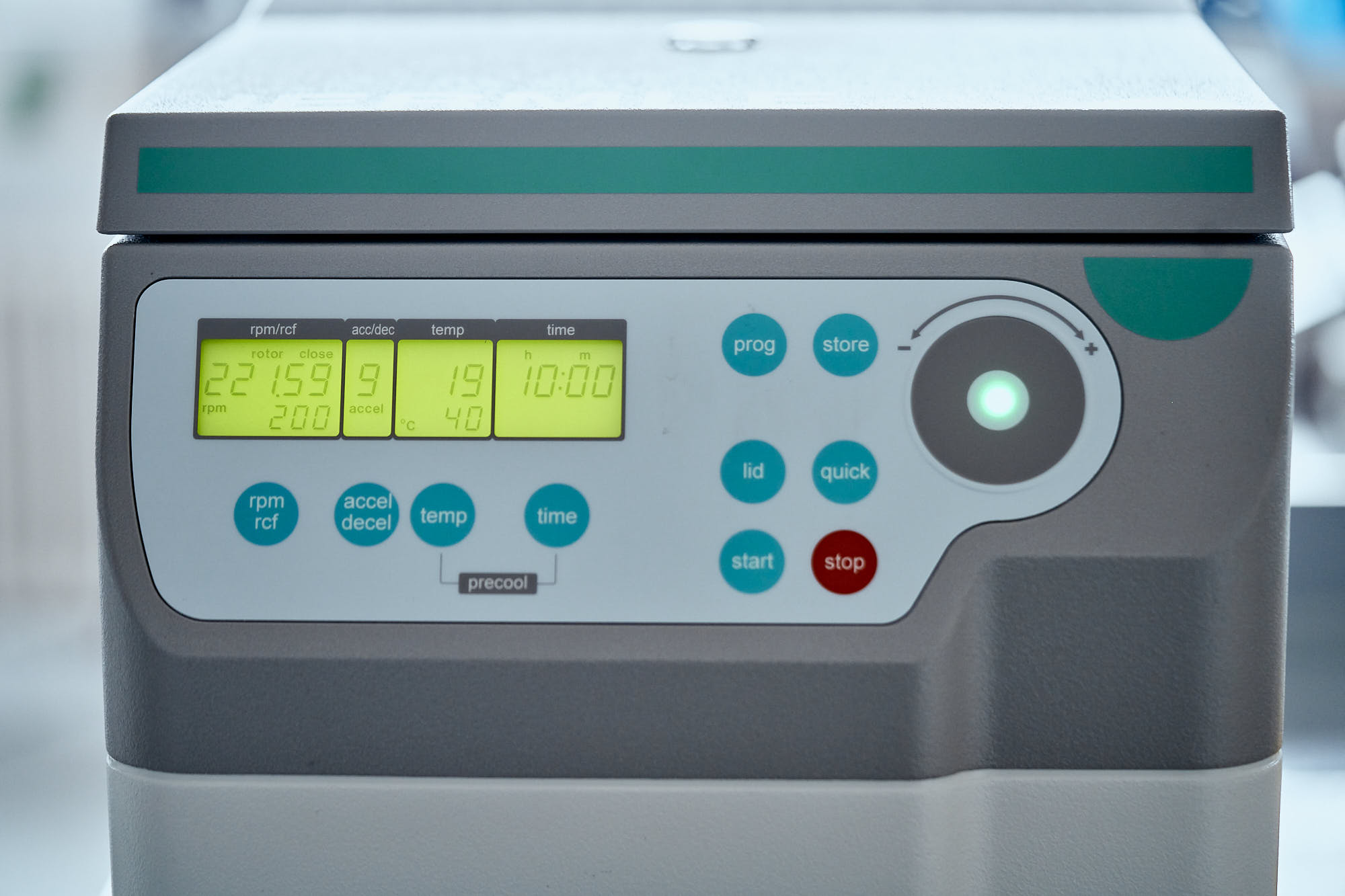

Distinct Control Panel
- Control panel with Touch-Operation
- Simple one-handed operation
- Splash-proof foil keyboard
- Permanent indication of pre-set and actual values
- Selection of speed in both rpm and g-force, in increments of 10
- 10 acceleration and deceleration rates, possibility of unbraked deceleration
- Pre-selection of the running time, from 10 s to 99 h 59 min or continuous
- Storage of up to 99 runs
- Quick-key for short runs
Technical Specifications
Model |
Z 207 M |

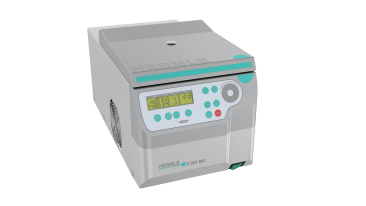

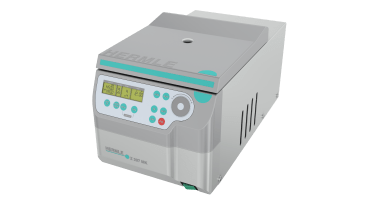

Z 207 MK |
Maximum Speed |
13,500 |
14,500 |
Maximum RCF |
17,317 xg |
17x157xg |
Maximum Volume |
24 x 1,5/2,0 ml |
24 x 1,5/2,0 ml |
Speed Range |
200 - 13.500 min-1 |
14.500 min-1 |
Temperature Range |
Not Applicable | -20°C To 40°C |
Running Time |
59 min 50 s / 10 s increments | 59 min 50 s / 10 s increments |
Dimensions (WxDxH) |
28 cm x 23 cm x 35 cm | 28 cm x 29 cm x 55 cm |
Weight |
14kg | 33kg |
