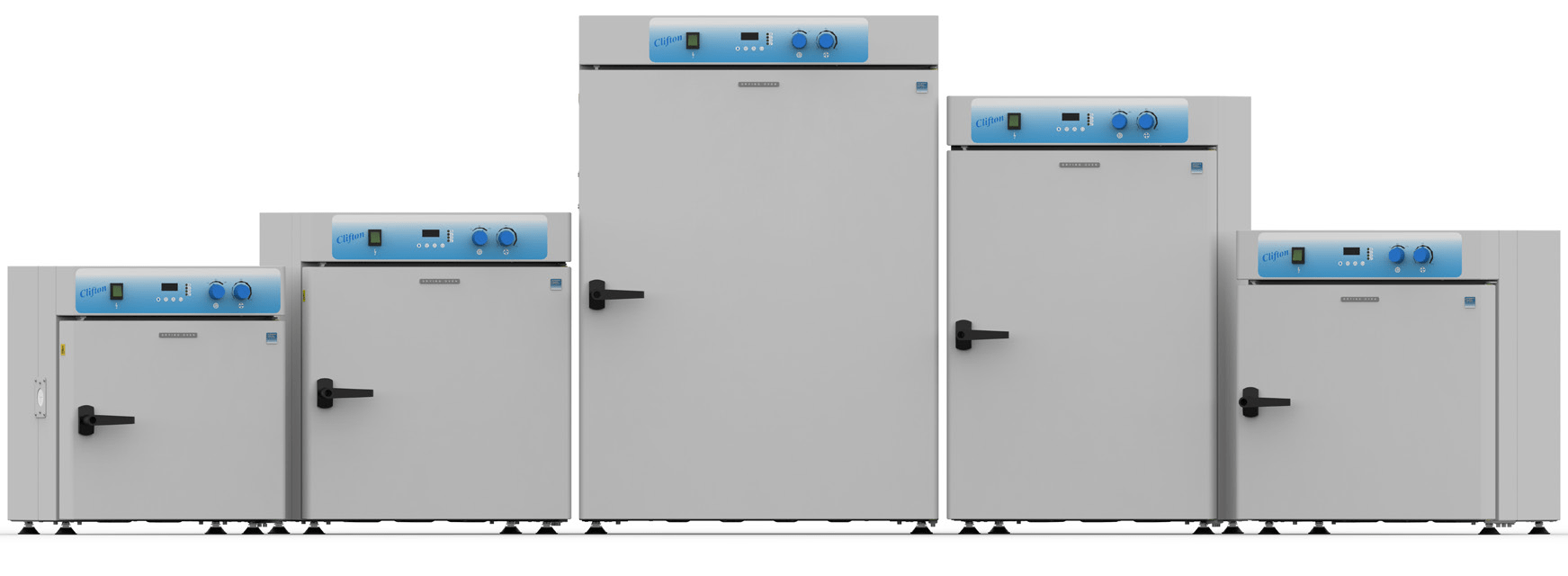

Nickel Electro Clifton NE9 Series Drying Ovens with Gravity and Fan Assist Circulation
The NE9 series Drying Oven, with gravity convection and variable fan speed for forced air circulation with a stainless steel chamber. Dial controls for Air Flap and Fan Speed settings, bold illuminated LED temperature display offering precise time and temperature control from ambient +5°C to 300°C. Run back timer and delay start feature. With energy efficiency in mind, particular attention is paid to providing a good tight door closure and hinge design to maintain a sealed chamber in use. As the unit has a sealed chamber, less energy is used to hold set temperature and the smart controller will pulse energy to main-tain set point throughout operation.
Controls
- Featuring bold illuminated LED display of measured temperatures in real-time, in increments of ±0.1°C with intuitive to use controls, utilising touch sensitive keypads. Indicators for heating, timers and alarm.
- On/off power switch.
- Exhaust air flap is dial adjustable from 0 to 100% for chamber venting.
- Fan chamber convection variable from 0% to 100%. Fan convection improves temperature uniformity and heating recovery time.
- Door, lockable with 2 point door engagement for an even seal.
- On left hand side the Oven features a 35mm diameter Access port, with perforated flap cover, to reduce heat losses when used with external probes.
Safety Features
- Switching on, the controls undergo an automatic diagnostic check.
- Features a temperature sensor fail alarm with error reporting on LED screen.
- Over temperature alarm is automatically set 5°C above set point.
- Door open heating is interrupted, after a short delay a door sounder chimes until door closed, heating resumes.
- Fitted with Class 1 over temperature thermostat for overall unit protection.

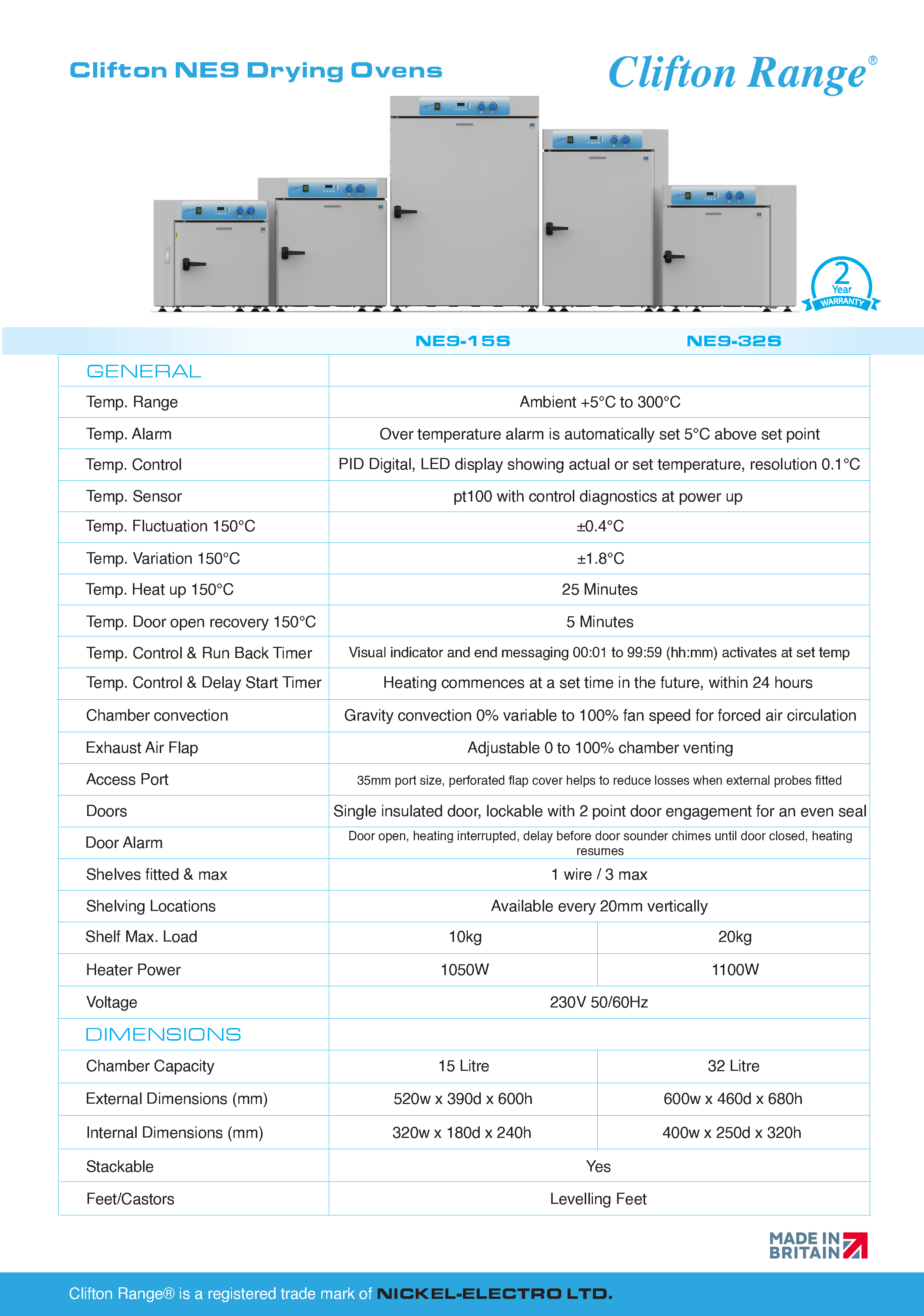

Technical Specifications
|
Model |
NE9-15S |
NE9-32S |
|
Temperature Range |
Ambient +5°C to 300°C |
|
|
Temperature Alarm |
Over temperature alarm is automatically set 5°C above set point |
|
|
Temperature Control |
PID Digital, LED display showing actual or set temperature, resolution 0.1°C |
|
|
Temperature Sensor |
pt100 with control diagnostics at power up |
|
|
Temperature Fluctuation 150°C |
±0.4°C |
|
|
Temperature Variation 150°C |
±1.8°C |
|
|
Temperature Heat up 150°C |
25 Minutes |
|
|
Temperature Door open recovery 150°C |
5 Minutes |
|
|
Temperature Control & Run Back Timer |
Visual indicator and end messaging 00:01 to 99:59 (hh:mm) activates at set temp |
|
|
Temperature Control & Delay Start Timer |
Heating commences at a set time in the future, within 24 hours |
|
|
Chamber convection |
Gravity convection 0% variable to 100% fan speed for forced air circulation |
|
|
Exhaust Air Flap |
Adjustable 0 to 100% chamber venting |
|
|
Access Port |
35mm port size, perforated flap cover helps to reduce losses when external probes fitted |
|
|
Doors |
Single insulated door, lockable with 2 point door engagement for an even seal |
|
|
Door Alarm |
Door open, heating interrupted, delay before door sounder chimes until door closed, heating resumes |
|
|
Shelves fitted & max |
1 wire / 3 max |
|
|
Shelving Locations |
Available every 20mm vertically |
|
|
Shelf Max. Load |
10kg |
20kg |
|
Heater Power |
1050W |
1100W |
|
Voltage |
230V 50/60Hz |
|
|
Dimensions |
|
|
|
Chamber Capacity |
15 Litre |
32 Litre |
|
External Dimensions (mm) |
520w x 390d x 600h |
600w x 460d x 680h |
|
Internal Dimensions (mm) |
320w x 180d x 240h |
400w x 250d x 320h |
|
Stackable |
Yes |
|
|
Feet/Castors |
Levelling Feet |
|
|
Model |
NE9-56S |
NE9-112S |
NE9-240S |
|
Temperature Range |
Ambient +5°C to 300°C |
||
|
Temperature Alarm |
Over temperature alarm is automatically set 5°C above set point |
||
|
Temperature Control |
PID Digital, LED display showing actual or set temperature, resolution 0.1°C |
||
|
Temperature Sensor |
pt100 with control diagnostics at power up |
||
|
Temperature Fluctuation 150°C |
±0.4°C |
||
|
Temperature Variation 150°C |
±1.8°C |
||
|
Temperature Heat up 150°C |
25 Minutes |
||
|
Temperature Door open recovery 150°C |
5 Minutes |
||
|
Temperature Control & Run Back Timer |
Visual indicator and end messaging 00:01 to 99:59 (hh:mm) activates at set temp |
||
|
Temperature Control & Delay Start Timer |
Heating commences at a set time in the future, within 24 hours |
||
|
Chamber convection |
Gravity convection 0% variable to 100% fan speed for forced air circulation |
||
|
Exhaust Air Flap |
Adjustable 0 to 100% chamber venting |
||
|
Access Port |
35mm port size, perforated flap cover helps to reduce losses when external probes fitted |
||
|
Doors |
Single insulated door, lockable with 2 point door engagement for an even seal |
||
|
Door Alarm |
Door open, heating interrupted, delay before door sounder chimes until door closed, heating resumes |
||
|
Shelves fitted & max |
2 wire / 5 max |
2 wire / 8 max |
3 wire / 10 max |
|
Shelving Locations |
Available every 20mm vertically |
||
|
Shelf Max. Load |
20kg |
||
|
Heater Power |
2150W |
3200W |
|
|
Voltage |
230V 50/60Hz |
230V 50/60Hz Blue Power plug 2P+E |
|
|
Dimensions |
|
||
|
Chamber Capacity |
56 Litre |
112 Litre |
240 Litre |
|
External Dimensions (mm) |
600w x 605d x 720h |
600w x 660d x 980h |
800w x 720d x 1160h |
|
Internal Dimensions (mm) |
400w x 400d x 360h |
400w x 450d x 620h |
600w x 510d x 800h |
|
Stackable |
Yes |
No |
|
|
Feet/Castors |
Levelling Feet |
||
-
ManufacturerNickel-Electro : Manufacturers of the Clifton Range
-
Country of OriginUnited Kingdom
-
Temperature RangeAmbient +5°C to 300°C
-
Chamber Capacity (L)15, 32, 56, 112, 240, 400, 750
-
Internal Dimensions (mm)320 x 180 x 240, 400 x 250 x 320, 400 x 400 x 360, 400 x 450 x 620, 600 x 510 x 800, 800 x 510 x 1040, 1040 x 600 x 1200
