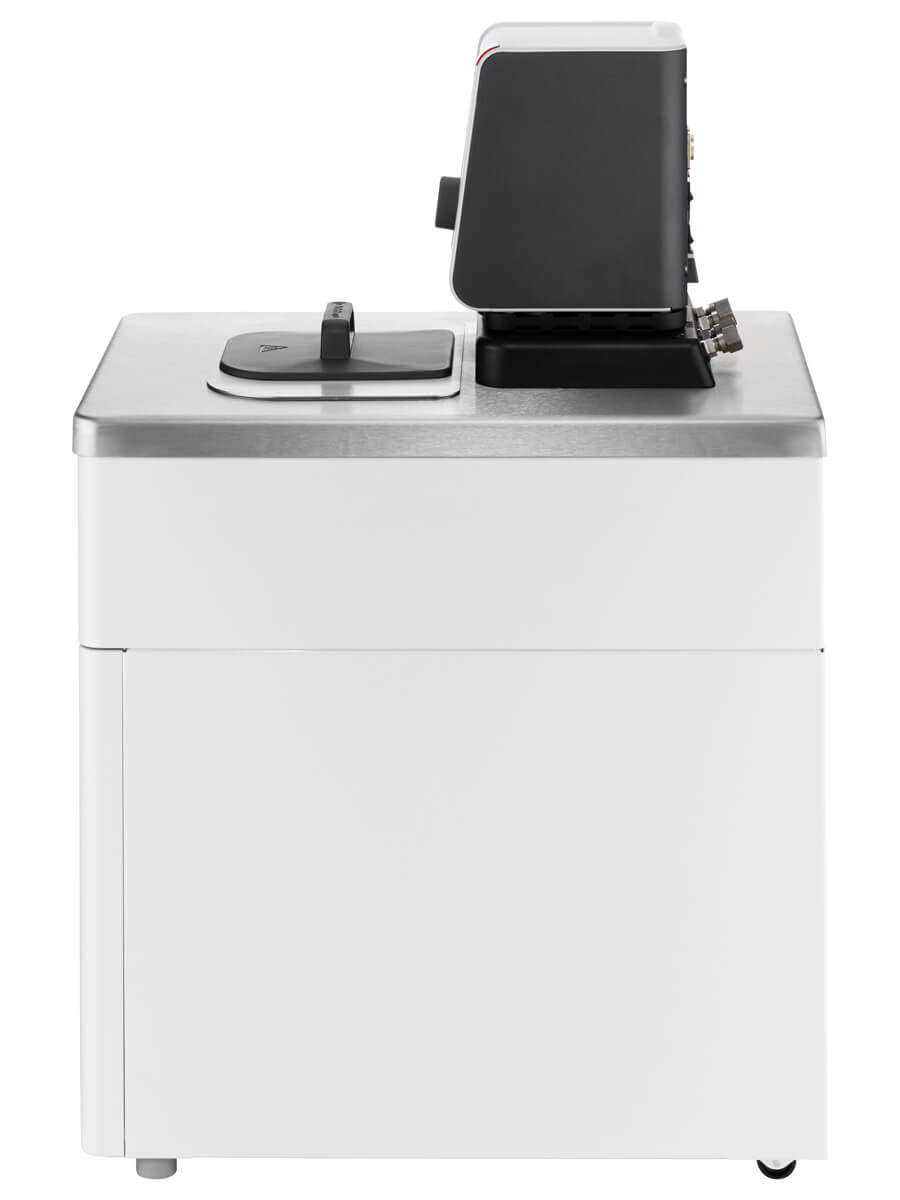

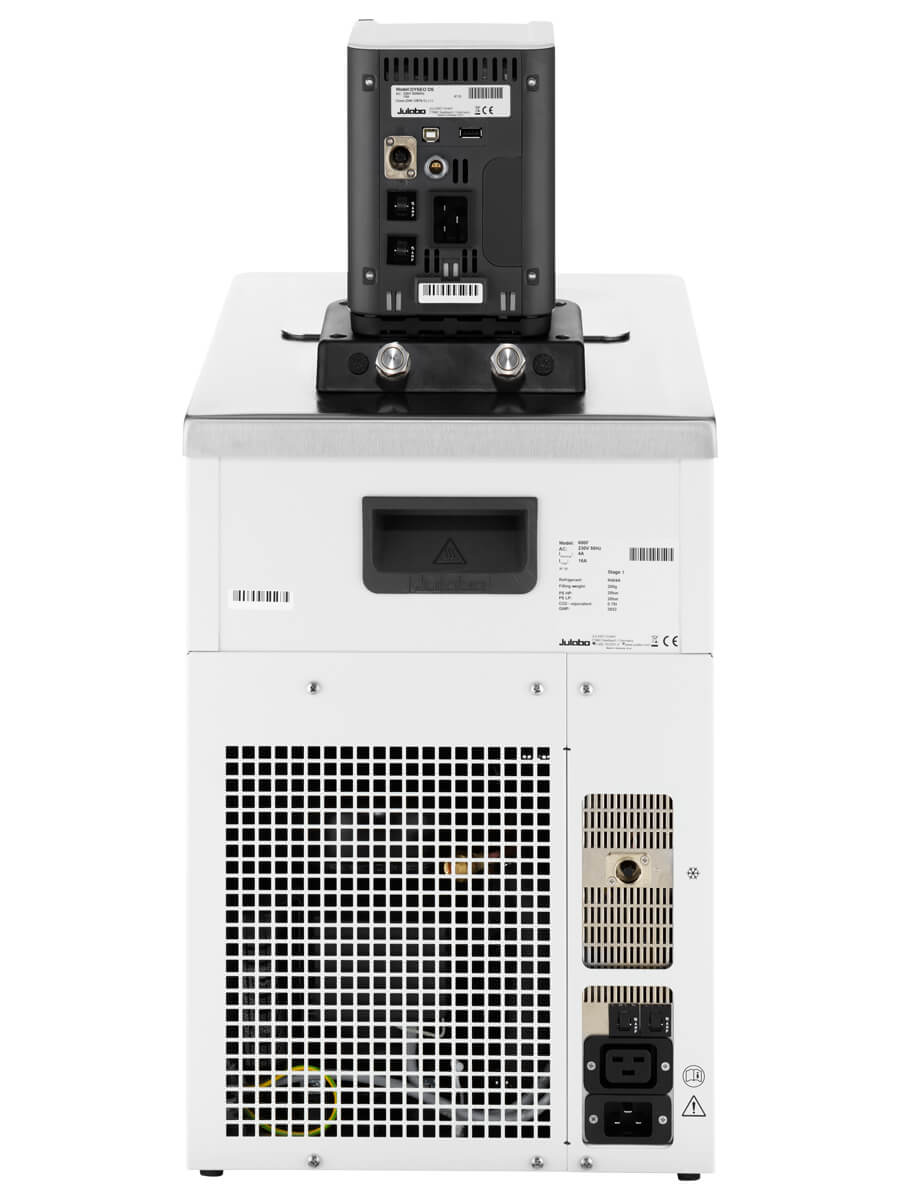

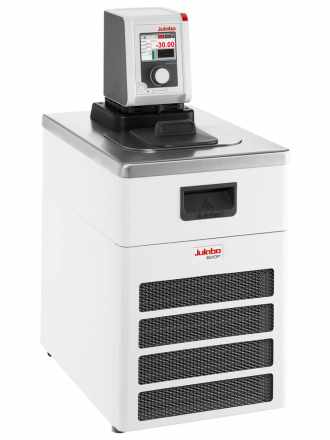

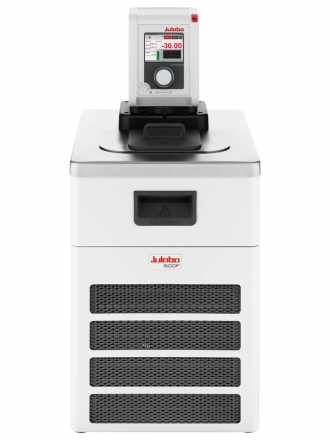

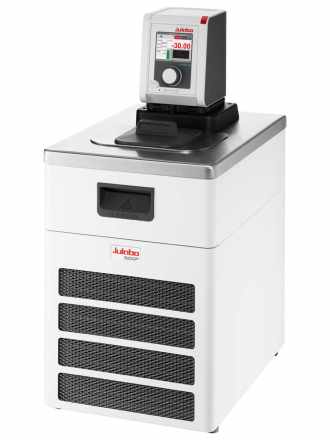

Julabo 9021704.A DYNEO DD-600F Refrigerated/Heating Circulator, Working Temperature Range -35 ... +200 °C, 5..7.5 Filling Volume Litres, with Analogue Option
Technical Data
Order No. | 9021704 | ||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Order No. with RS232 Option | 9021704.D | ||||||||||||||||
Order No. with analog Option | 9021704.A | ||||||||||||||||
Model series | DYNEO | ||||||||||||||||
Category | Refrigerated - Heating Circulators | ||||||||||||||||
Working temperature range (°C) | -35 ... +200 | ||||||||||||||||
Temperature control | PID | ||||||||||||||||
Temperature stability (°C) | ±0.01 | ||||||||||||||||
Setting / display resolution | 0.01 °C | ||||||||||||||||
Temperature Display | 3.5" TFT Display | ||||||||||||||||
Heating capacity (kW) | 2 | ||||||||||||||||
Cooling capacity (Medium Ethanol) |
| ||||||||||||||||
Pump capacity flow rate (l/min) | 8 ... 23 | ||||||||||||||||
Pump capacity flow pressure (bar) | 0.1 ... 0.6 | ||||||||||||||||
Viscosity max. (cSt) | 50 | ||||||||||||||||
Bath opening / bath depth (W x L / D cm) | 22 x 15 / 15 | ||||||||||||||||
Pump connections | M16x1 | ||||||||||||||||
Barbed fittings diameter (inner dia. / mm) | 8 / 12 | ||||||||||||||||
Filling volume (liters) | 5 ... 7.5 | ||||||||||||||||
Refrigerant stage 1 | R452A | ||||||||||||||||
Filling volume refrigerant stage 1 (g) | 150 | ||||||||||||||||
Global Warming Potential for R452A | 2140 | ||||||||||||||||
Carbon dioxide equivalent stage 1 (t) | 0.321 | ||||||||||||||||
Digital interfaces | USB | ||||||||||||||||
Analog connection input / output | Optional | ||||||||||||||||
Ambient temperature | 5...40 °C | ||||||||||||||||
Dimensions W x L x H (cm) | 33 x 47 x 69 | ||||||||||||||||
Weight (kg) | 35.7 | ||||||||||||||||
Included with each unit | 2 each barbed fitting for tubing 8 and 12 mm inner dia. (pump connections M16x1 male) | ||||||||||||||||
Bath tank | Stainless steel | ||||||||||||||||
Bath cover | integrated | ||||||||||||||||
Cooling of compressor | Air |
JULABO Refrigerated and Heating Circulators are suitable for temperature application to external systems with simultaneous operation in the bath tank. Models in different performance classes are available. The units provide high heating/cooling capacities to ensure rapid heat-up and cool-down times. With ‚Active Cooling Control' to +200 °C. ‚FP‘ models offer proportional cooling control to ensure energy-saving performance and to reduce heat generation to the environment. Convenient cleaning of dust by removable venting grid. Some models have a handle or castors to allow easy transport. All models provide a drain port on the front for conveniently draining the bath fluid. Typical applications: Temperature applications to external, closed systems, such as for example photometers, refractometers, viscometers, etc. For simultaneous application to small objects in the circulator bath
DYNEO DD refrigerated circulators have a wide working temperature range. Refrigerated circulators are suitable for both internal and external applications. The multilingual 3.5-inch color display and unique rotary knob provide for straightforward and intuitive operation. Pump capacity is 22 l/min with pressure of 0.6 bar. The cooling machines operate precisely and reliably even at elevated ambient temperatures up to +40 °C.
Your advantages
- Powerful cooling machines
- Suitable for internal and external applications
- Optimized cooling coil design saves space in the bath tank
- Powerful and infinitely adjustable pressure pump
- Flow rate 22 l/min, pressure 0.6 bar
- Easy switching between internal and external circulation
- Large color TFT display, multilingual interface
- Central rotary knob (controller) simplifies operation
- Integrated programmer for 8 x 60 program steps
- Integrated external Pt100 connection
- USB port
- RS232 interface or analog interfaces (optional)
- Bath cover included with delivery
- Integrated drain makes emptying liquid easy and safe
100 % Cooling capacity.
'Active Cooling Control' for cooling available throughout the entire working temperature range, fast cool-down even at higher temperatures.
Analog I/O.
Analog interfaces for integration into process control systems.
ATC3 Calibration.
‘Absolute Temperature Calibration’ for compensating a physically caused temperature difference, 3-point calibration.
Brilliance. In color.
Large color display with vivid luminance is easy to read, even from a large distance.
Condensation protection.
Superb design solution. Integrated ventilation directs air over the bath lid and minimizes condensation.
Connection. Easy.
Inclined pump connections (M16x1) facilitate the connection of applications. Each unit includes 2 barbed fittings of 8/12 mm diameter each.
Everything at the front.
All operating controls and safety functions are accessed easily and comfortably from the front.
Fill level. Monitored.
Fill level indicator on the display for heat-transfer liquid.
Highly precise.
PID Temperature control with drift compensation and adjustable control parameters, temperature stability ±0.01 ... ±0.02 °C.
Information. Everything clear.
Information in plain text on a large color screen.
Multi-lingual.
Operation in multiple languages.
Powerful. Adjustable.
Strong pressure pump, continuously adjustable.
Process stability.
Early warning - visual and acoustic - of critical states increases process stability.
Process. Under control.
Full control of the dynamic, access to all important control parameters for individual process optimisation.
Programmer. Integrated.
The integrated internal programmer makes it possible to automatically run temperature time profiles.
RS232.
Standard connection using the serial RS232 interface.
Stable. Mobile.
Rubber feet keep JULABO Circulators standing firm. Larger and more powerful units also have integrated rollers for easy handling.
Temperature. Under control.
External Pt100 sensor connection for precise measurement and control directly in the external application.
Turn. Push. Go.
Easy operation of all parameters using the central controller.
USB.
Remote control made easy using the integrated USB interface.
Technical changes without prior notification.
Images may deviate from the original.
