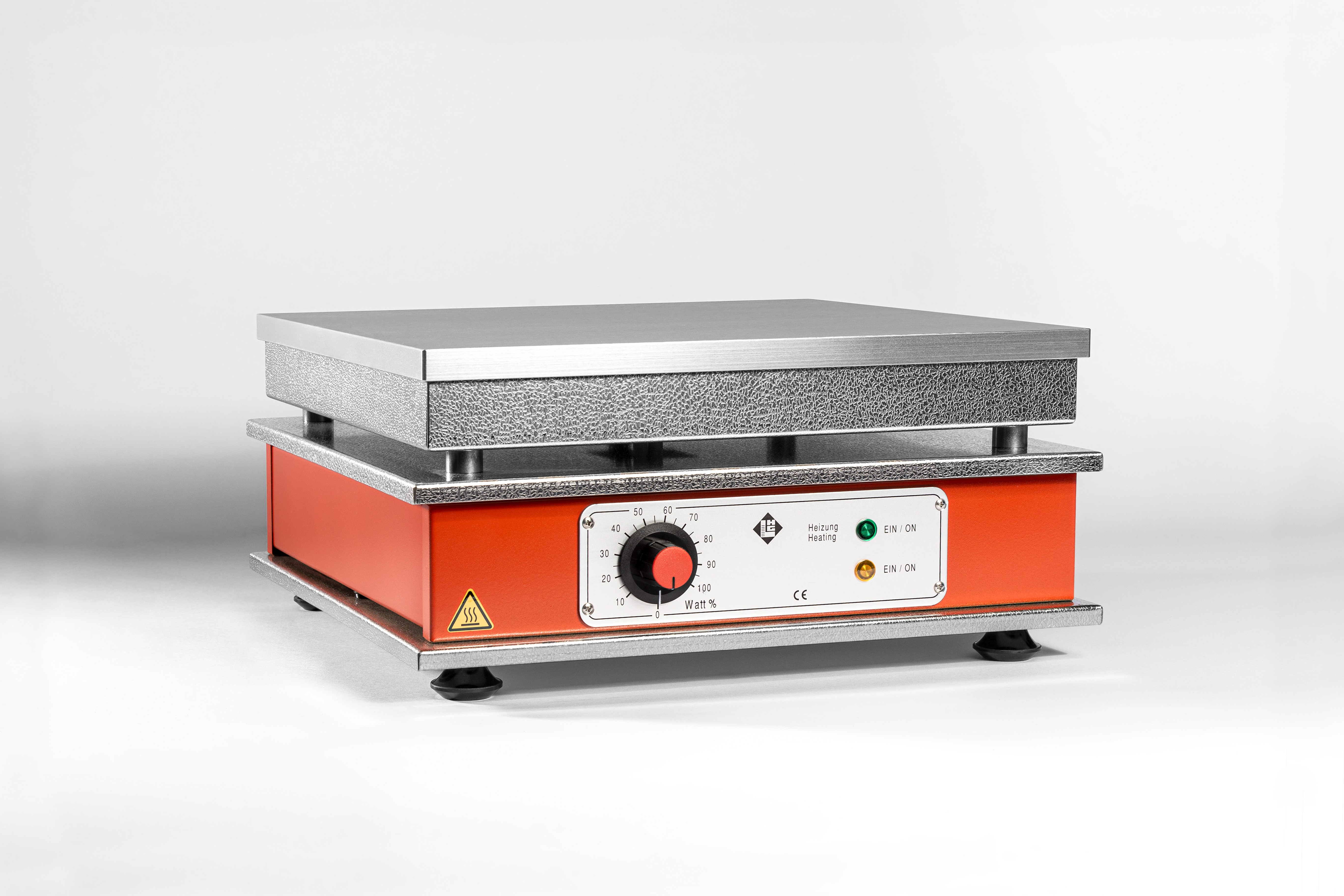

Electrical hotplates with variable temperature control, with or without a thermostatic controller. Robust construction for continuous performance. Aluminium alloy hotplate. Because of the asymmetrical, long-term heating system (hotplate corners and edges are subjected to more heat) an even temperature is guaranteed over the entire heating surface.
Asbest-free insulation. The housing is constructed from high-grade, stainless steel No. 1.4301, whereby the central section has been additionally sprayed in orange. Four adjustable feet ensure extra stability. Connecting cable approx. 1,7 m. long, 230 Volt/ 3200 Watt with Schuko plug
Hotplates with Performance Control | ||||||||
Type | Watt | Volt | Temperature | A mm |
B mm |
C mm |
D mm |
Weight kg |
HD 0 | 1800 | 230 | max. 370°C | 300 | 300 | 312 | 312 | 10 |
HD 1 | 2200 | 230 | max. 370°C | 350 | 350 | 358 | 358 | 12 |
HE 1 | 2400 | 230 | max. 370°C | 290 | 440 | 308 | 458 | 13 |
HD 2 | 2850 | 230 | max. 370°C | 350 | 500 | 364 | 514 | 18 |
HD 3-230 | 4000 | 230 | max. 370°C | 430 | 580 | 442 | 592 | 25 |
HD 3-400 | 4000 | 3x400,N+PE |
-
Temperature Range °C370
-
Power (W)1800
-
Plate Dimensions (mm)300 x 300 x 312
-
ManufacturerHarry Gestigkeit GmbH
-
Country of OriginGermany
-
Temperature Rangeup to 370 °C.
-
Plate Size (mm)300 x 300, 350 x 350, 440 x 290, 500 x 350, 580 x 430
-
Voltage230 V, 50-60 Hz, 3x400 V, N+PE, 50-60 Hz
-
Watt1800, 2200, 2400, 2850, 4000
