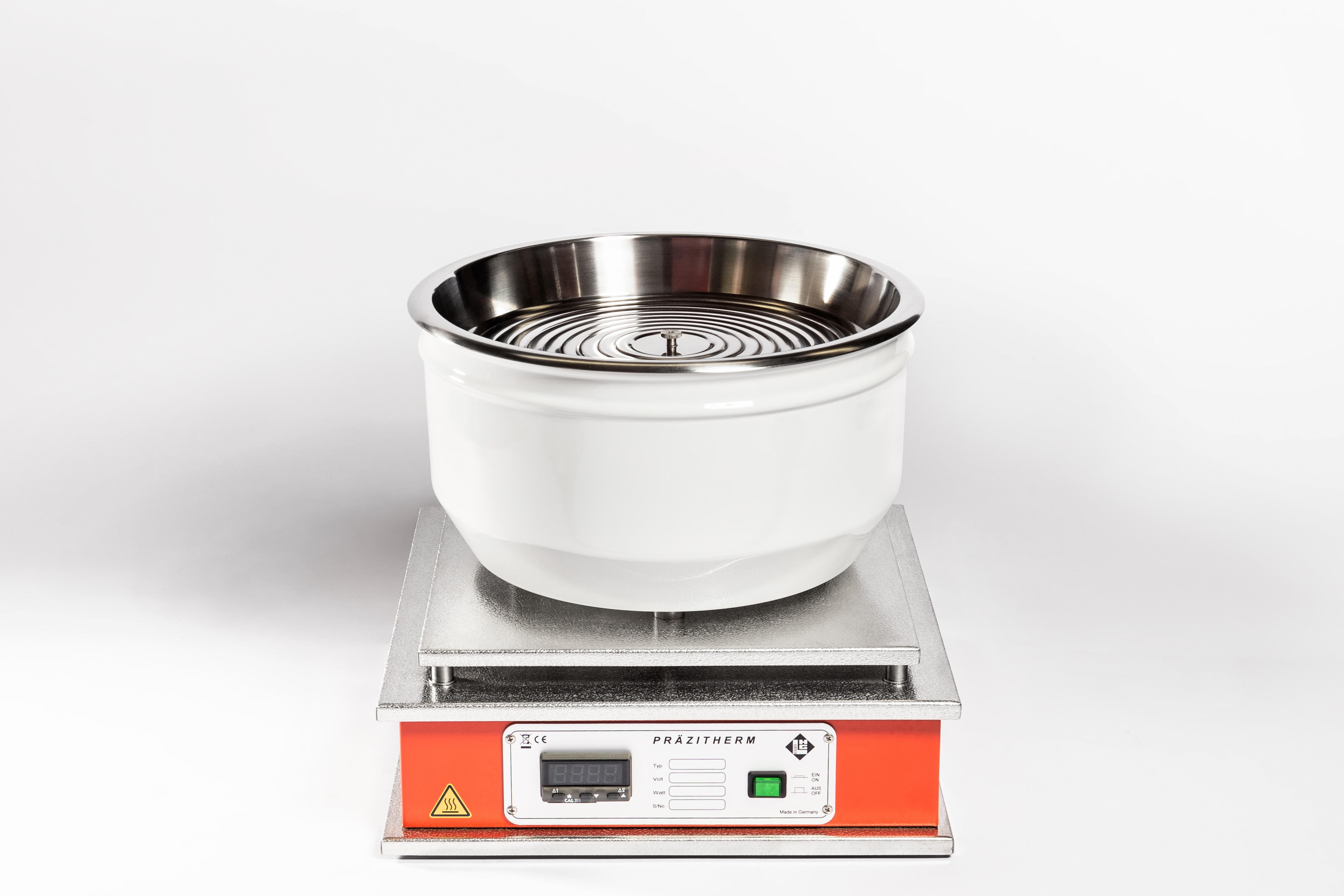

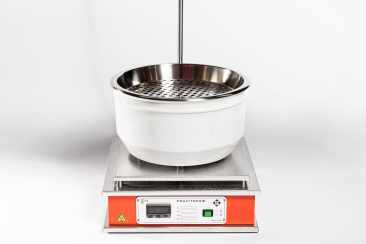

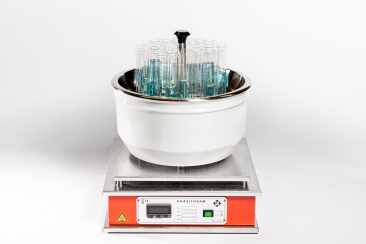

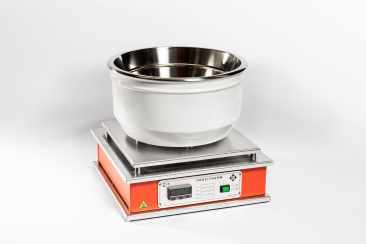

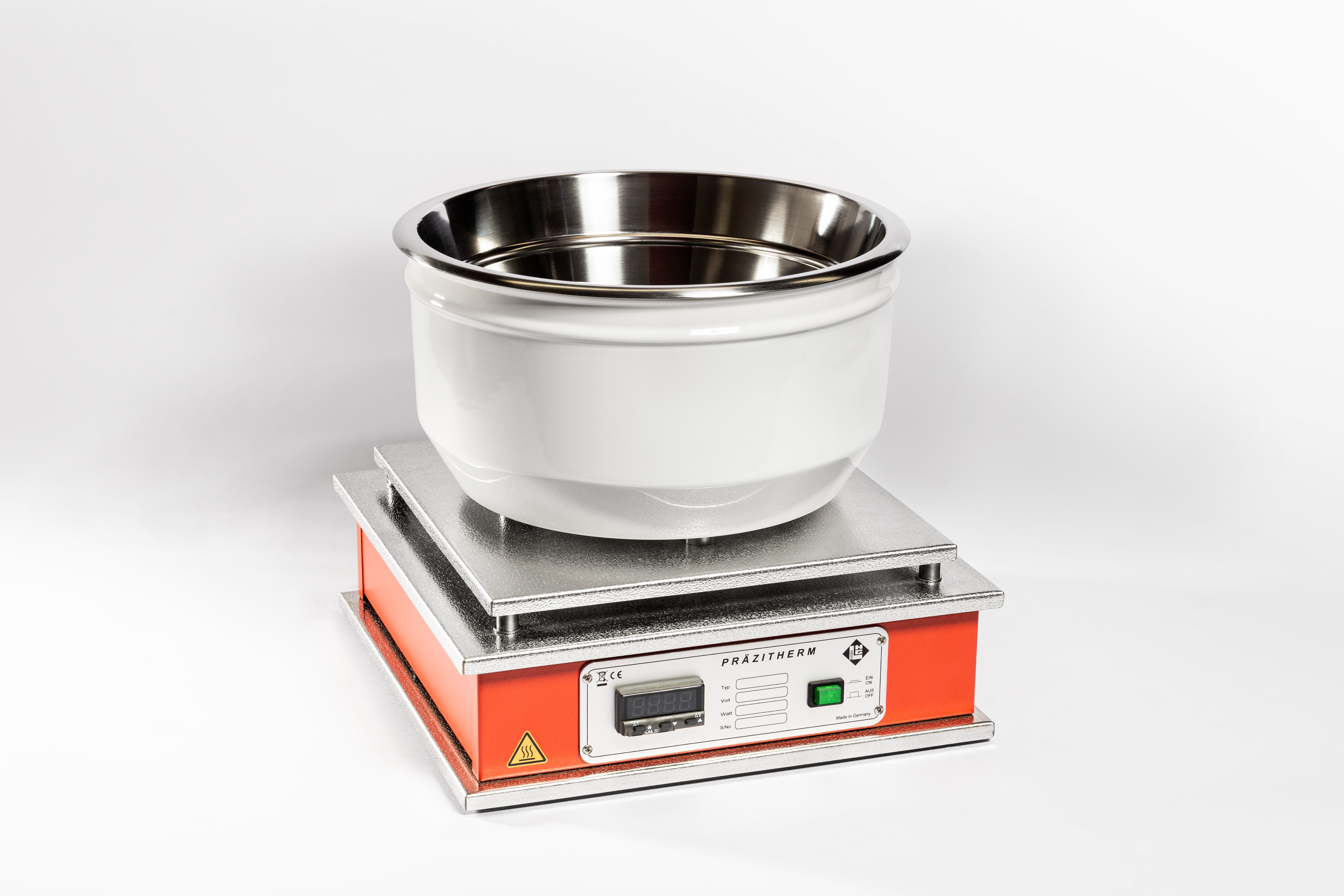

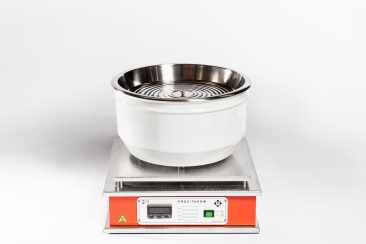

PZ 26-4 is suitable for use as either a Fluid, Air or Sand bath using temperatures of up to 400°C. As bath fillings is is possible to use Oils, Water, Sand or any other filling which will not attack the surface of the bath, which is made out of high-grade, stainless steel W-No.1.4301.
PZ 26-7 designed for temperatures up to 700°C, offers similar application methods, but solely as a Dry, Air or Sand bath. Both baths are also well-suited for use as rotary evaporators, heating is provided by a tubular radiator.
The appliances are controlled by means of a microprocessor PID-Controller in connection with a low-mass sensor. The actual-value temperature is always on view. The preset temperature can be seen by pushing a button and can also be adjusted with the up/down key.
The housings are composed of stainless steel with spray-painted base. All appliances are constructed for continuous operation.
can be used as fluid-, oil-, air- or sandbath for continuous operation
Type | PZ 26-4 | PZ 26-7 | |
Preselected temperatures | °C | 20..400 | 20..700 |
Display | digital | ||
Power | W | 1200 | |
Voltage | V | 230 | |
External dimensions | mm | 310 x 310 | |
Height | mm | 280 | |
Weight | kg | 6,8 |
