- The FTA connects to a standard PC and the software runs on Windows 98/NT4/ME/2000/XP.
- The test results can be processed as follow:
- Save the results to disk (or network) in ASCII format.
- Capture the test results with your own software directly from the FTA using the control functions (supplied with the system in a DLL).
- The FTA can directly be accessed from Excel, Word or Access. Click here to see how it works from Excel. Samples are included on CD.
- Installation only takes a few minutes.
- The FTA requires minimum maintenance - only cleaning to remove juice.
- The FTA can also be controlled from:
- ART-Soft database which forms part of the ART System (Apples Ripening Test). The software can be purchased directly from UP GmbH, Germany.
- FQMS database (Fruit Quality Management System). Contact GÜSS or Hortec for further information on this software.
|
|
|
Also measure size and weight |

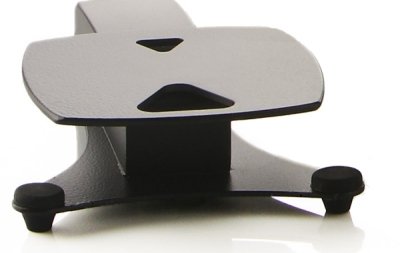

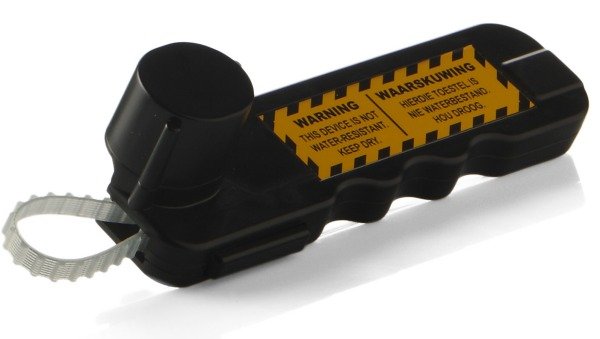

The EFM (Electronic Fruit Size Measure) can be connected to the FTA to measure fruit diameter electronically. Each measured size will be immediately available on the computer. Fruit diameter from 12 mm to 100 mm can be measured. Note: the EFM is an optional attachment. | | A Scale attachment can also be connected to the FTA to measure fruit weight electronically. The Scale is available in capacities ranging from 3 kg to 35 kg. Note: the Scale is an optional attachment. | |
|
With the LCD/Keypad attached the FTA can be operated without a connection to a PC. All the relevant measurements - firmness, size, minimum, maximum, average etc., will be displayed on the LCD. Note: the LCD/Keypad is an optional attachment |
|
|
- The FTA can be controlled with your own software . The control functions can be accessed through a DLL file. Integrating the FTA with existing QA software systems should not take longer than two hours of programming. Download SDK
| - Software can be configured to allow for customised output data and enables the FTA data to be incorporated into existing quality control systems.
| - The electronic measure system ensures accurate, reliable firmness readings .
| - All operating parameters can be regulated via the control PC (probe speed, calibration, threshold load, depth).
| - The motorized system eliminates operator discrepancies and ensures accurate test distance (depth).
| - Low maintenance - NO lubrication or adjustments are required.
| - Electronic speed control ensures accurate probe speed and also ensures that tests are carried out under standard conditions.
| - Software to generate reports from the recorded data is included in the package .
| - Built-in safety features protect against overload.
| - Measuring units:
- Firmness: kg, pounds, Newton.
Depth: millimeter, inch.
|
|
To run the control software, you need a computer with at least: - Windows XP,7 or 8.1
- USB or Serial Port (DB9 connector)
- CD-ROM drive
The firmness data can easily be copied to Excel to create graphs for reports or presentation |
