Grant Instruments CGR Refrigerated Immersion Coolers

Score: 5.00 (votes: 1)
No reviews.
Grant Instruments (Cambridge) Ltd
Authorised Distributor Frequently Asked Questions



Grant Instruments CGR Refrigerated Immersion Coolers

are specialized cooling units designed to provide precise temperature control for applications that require cooling of liquids, typically used in conjunction with heating circulators or water baths.

SKU Temperature Range Dimensions (mm) Coil Ø/l (mm) For Models Refrigeration Gas Flexible Pipe Length (mm) Weight (In Grams) Price (excluding VAT) Availability Qty To Purchase

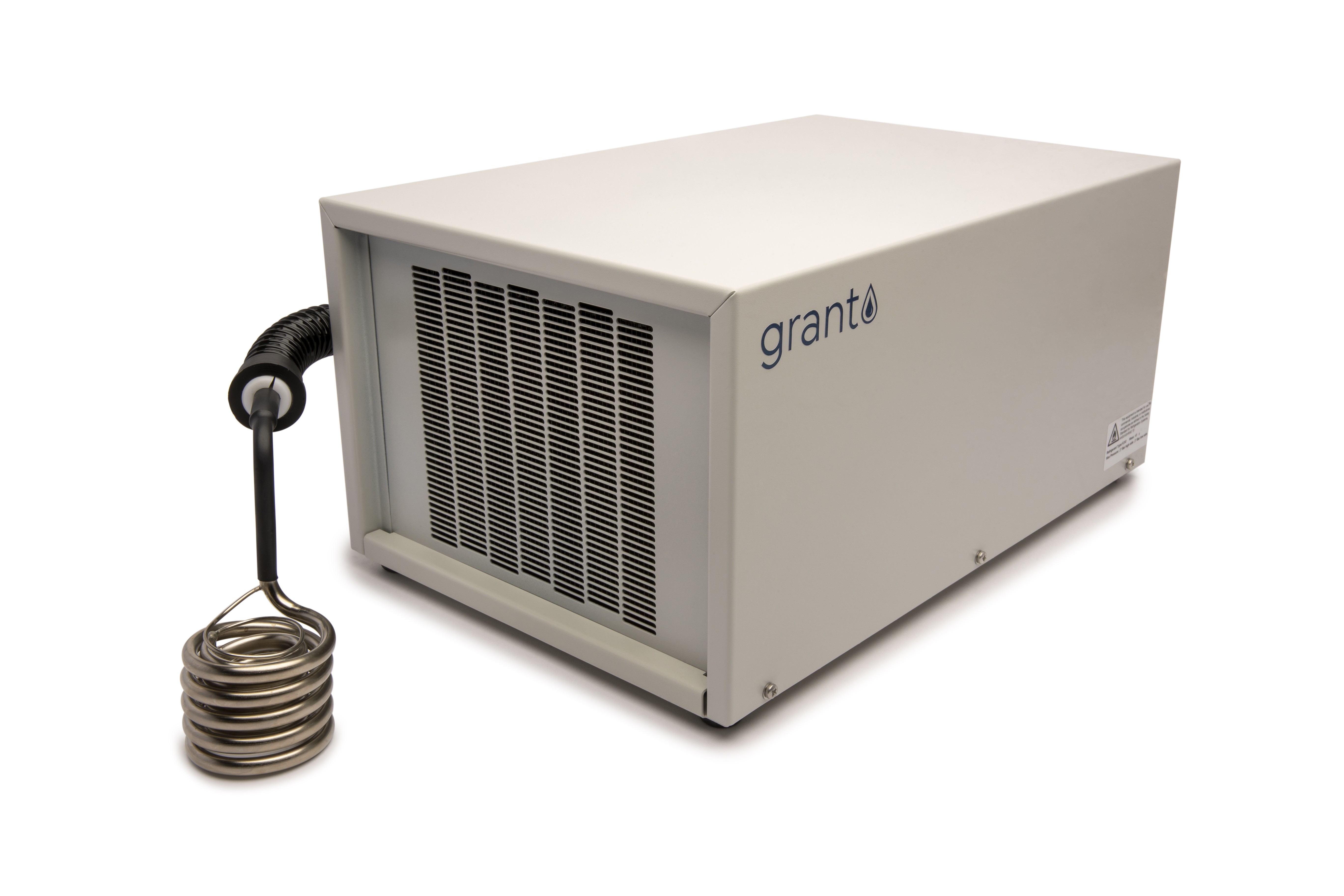

C1GR C1GR 0°C to 40°C 460 x 305 x 225 77/55 Grant ST Series UnStirred Water Bath R290 925 17000
£2211.00
£1824.08
9 + -

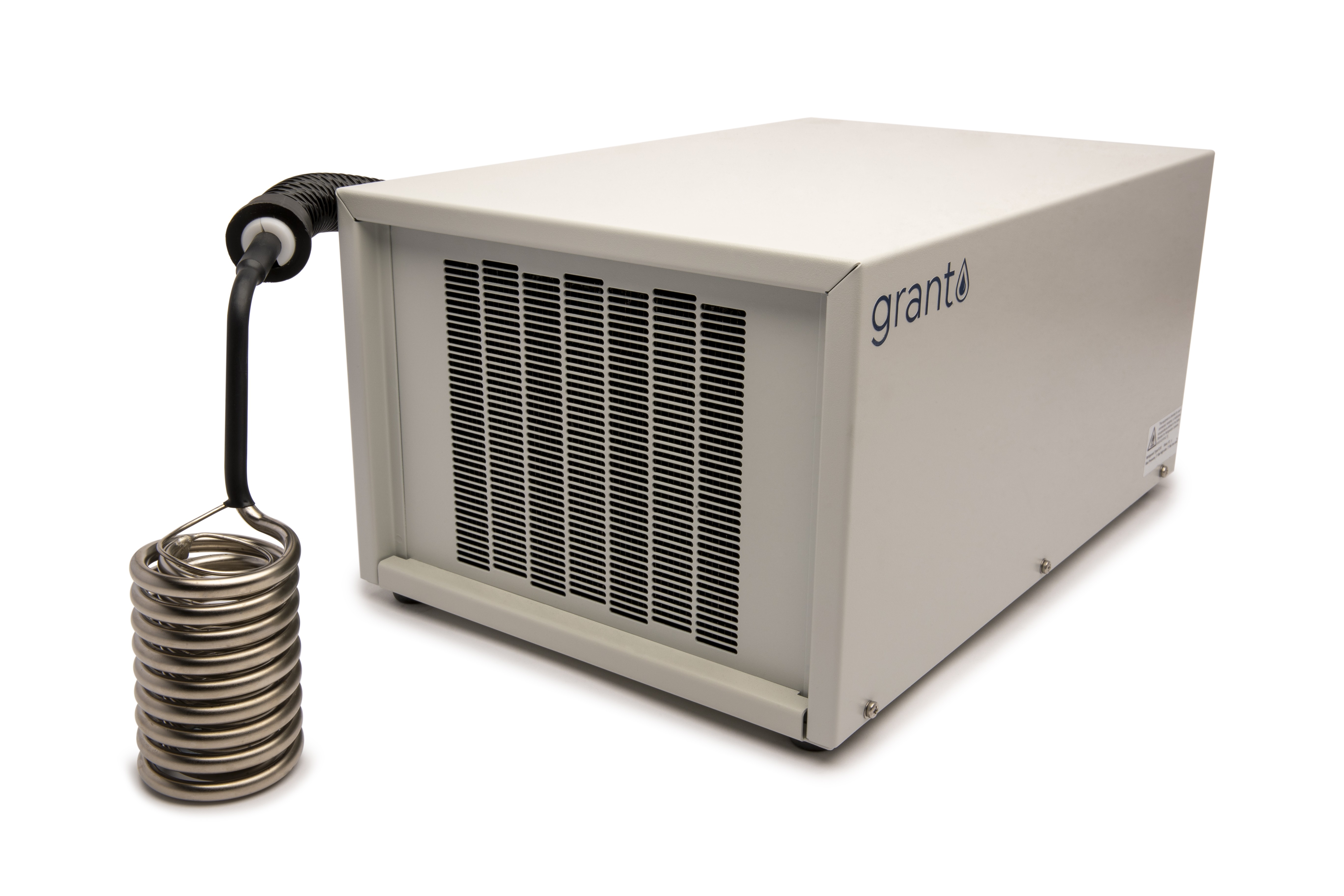

C2GR C2GR -15° to 40°C 460 x 305 x 225 77/55 Grant ST Series UnStirred Water Bath R290 925 21000
£2416.00
£1993.20
2 + -

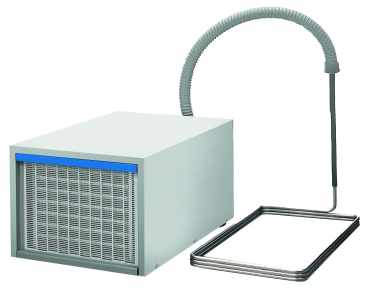

CC26R CC26R -15° to 40°C 460 x 305 x 225 460 x 190 Grant OLS26 Shaking Water Bath R290 925 21000
£2378.00
£1961.85
1 + -

These immersion coolers are ideal for situations where cooling to low temperatures is essential for processes such as chemical reactions, biological assays, temperature-sensitive experiments, and thermal regulation in laboratories.

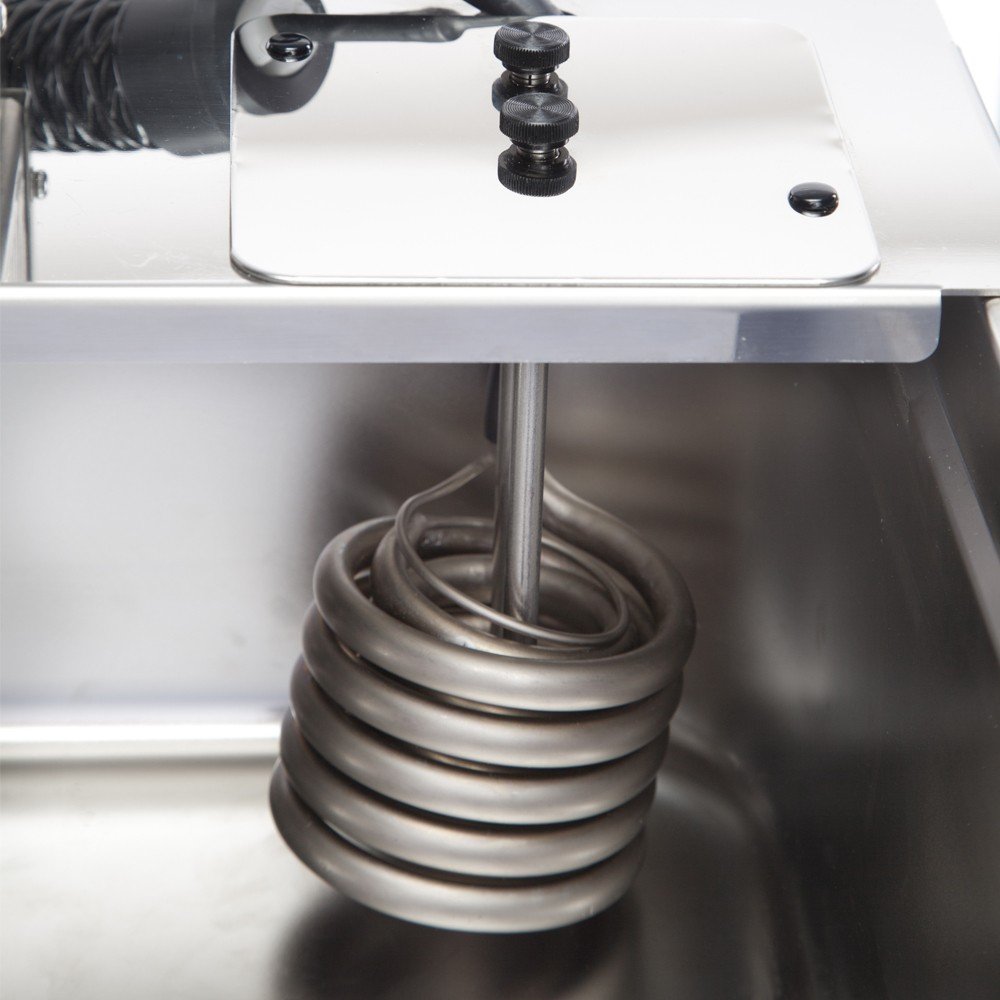

The refrigerated immersion coolers consist of a cooling coil connected to a refrigeration unit by a flexible pipe. Both units offer a continuous heat extraction, with the bath control unit controlling the temperature. Compatible with all four Optima thermostatic controllers: T100 TC120, TX150 TXF200.

The cooling coil can be continuously immersed in liquids up to 100°C with the cooler switched off and may be used to cool down from 100°C but it is not designed for continuous operation above 40°C.

  • (C1GR) 0°C to 40°C
  • (C2GR) -15° to 40°C


Specifications



C1GR

C2GR

CC26R
Cooling power @ 20°C 350W 450W  350W
Cooling power @ 00°C 150W 350W 250W
Cooling power @ -10°C 60W 200W -
Overall consumption 300VA 500VA
Dimensions (d x w x h) 460mm x 305mm x 225mm 460mm x 305mm x 225mm 460mm x 305mm x 225mm
Weight 17kg 21kg 21kg
Flexible pipe 925mm 925mm 925mm
Coil Ø/l 77/55mm 77/55mm  460mm L x
190mm W
Electrical supply 120 (60 Hz) or 230 (50Hz) 120 (60 Hz) or 230 (50Hz) 120 (60 Hz) or 230 (50Hz)
    • Weight (In Grams)
      17000 g
    • SKU
      C1GR
    • Commodity Codes
      84198998
  • Working Temperature Range
    0°C to 40°C
  • Manufacturer
    Grant Instruments (Cambridge) Ltd
  • Country of Origin
    United Kingdom
  • Temperature Range
    0°C to 40°C, -15° to 40°C
  • Dimensions (mm)
    460 x 305 x 225, Not Applicable
  • Coil Ø/l (mm)
    77/55, 460 x 190
  • For Models
    Grant ST Series UnStirred Water Bath, Grant OLS26 Shaking Water Bath
  • Refrigeration Gas
    R290, Not Applicable
  • Flexible Pipe Length (mm)
    925, Not Applicable
