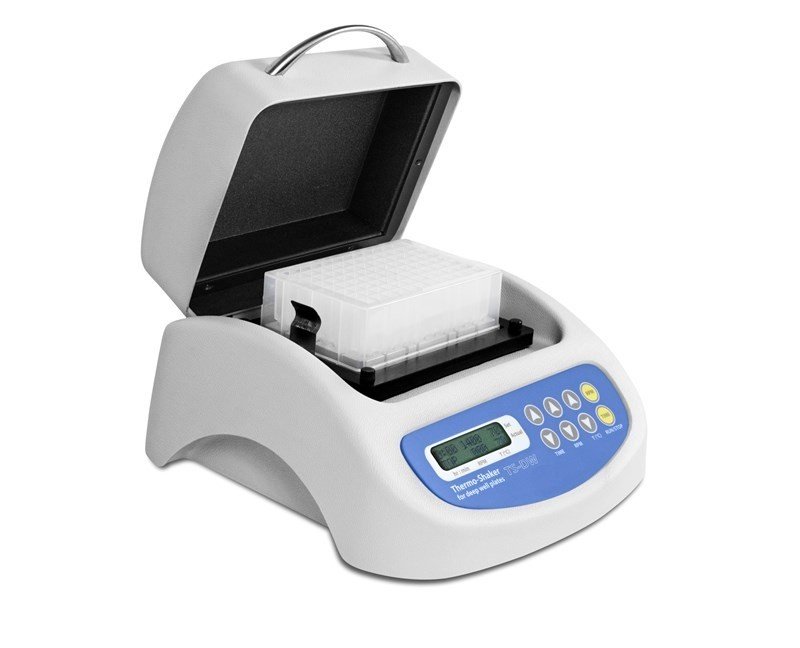

Grant Bio TS-DW Deep Well Plate Thermoshaker
 |
 |
The Grant Bio TS-DW Deep Well Plate Thermoshaker is a laboratory instrument designed for mixing and heating applications, specifically for deep well plates. It's commonly used in molecular biology, biochemistry, and other life sciences research where deep well plates are often utilized for high-throughput screening, sample preparation, or culturing cells.
A thermoshaker designed for shaking and heating of deep well plates. A multisystem principle, used in design of the thermoshaker allows it to operate as 3 independent devices:
- Incubator
- Plate shaker
- Thermoshaker
Applications
Life science applications, molecular biology, cell biology lab, cell lysis, DNA isolation and purification, sample preparation for PCR, pellet re-suspension, or any other method where you have many samples that need mixing in deep well plates.
Specifications
| Deep well plate thermoshaker | TS-DW | |
| Mixing speed control range | rpm | 250 to 1400 |
| Temperature control range | ºC | Ambient +5 to 100 |
| Temperature setting range | ºC | +25 to 100 |
| Orbit (diameter) | mm | 2 |
| Temperature uniformity | +/ ºC | 0.1 |
| Temperature accuracy | +/-ºC | 0.5 |
| Timer with sound alarm | 1 min to 96 hrs | |
| Heated lid | Yes | |
| Capacity | 1 deep well plate, Eppendorf®, Sarstedt®, Axygen®, Starlab®, custom* | |
| External power supply | Input AC, 120-230V, 50-60Hz Output DC 12V | |
| Input voltage | V dc | 12 |
| Power consumption | W | 58 (4.8A) |
* must be ordered separately, custom fit may be possible with sample
