RTS-1 is personal bioreactor which utilize patented Reverse-Spin® technology that applies non-invasive, mechanically driven, low energy consumption, innovative type of agitation where cell suspension is mixed by the singleuse falcon bioreactor tube rotation around its axis with a change of direction of rotation motion resulting in highly efficient mixing and oxygenation for aerobic cultivation. Combined with a near-infrared optical system it is possible to register cell growth kinetics non-invasively in real time.
Software features:
Typical applications:
|

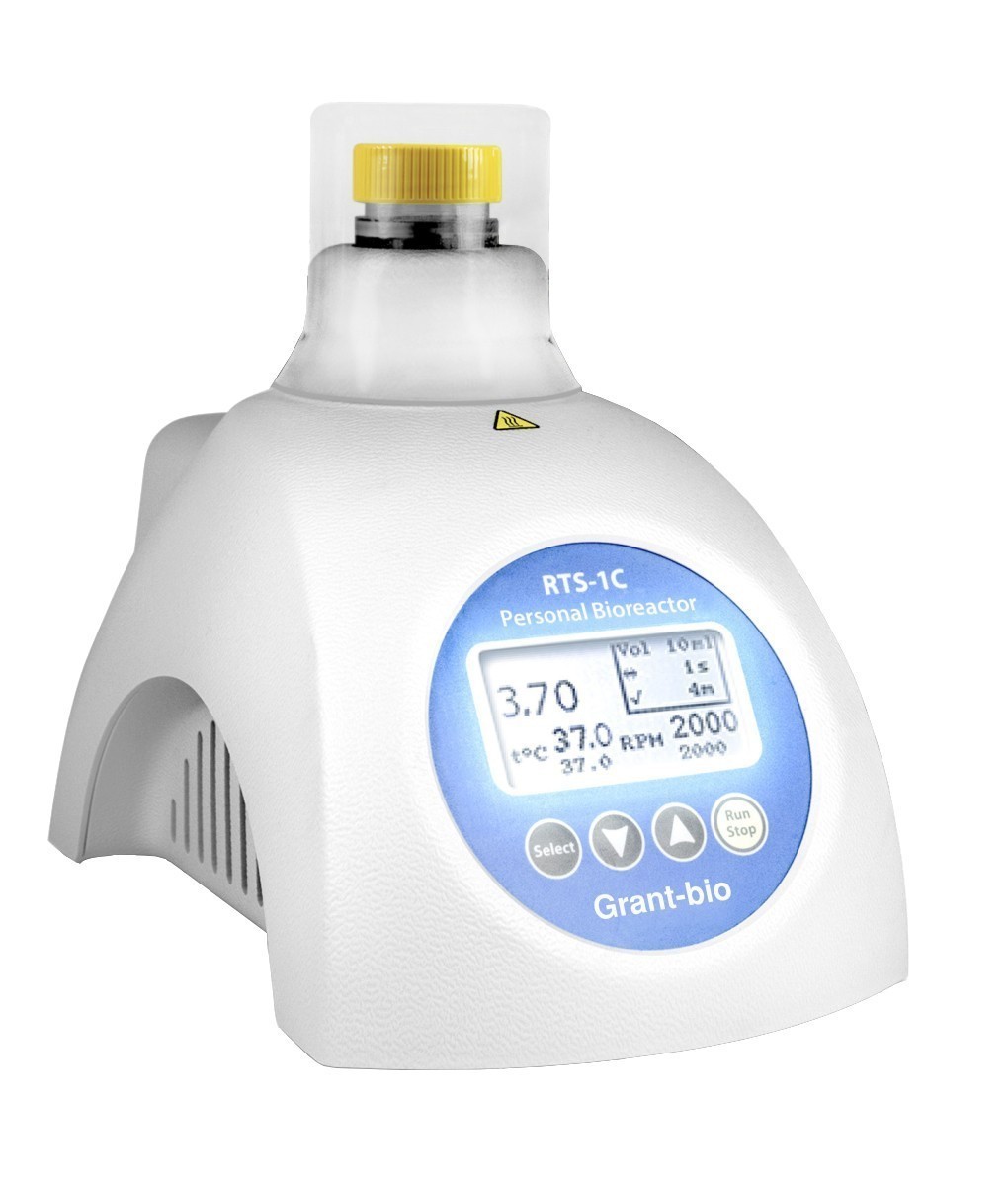

RTS-1C is personal bioreactor which utilize patented Reverse-Spin® technology that applies non-invasive, mechanically driven, low energy consumption, innovative type of agitation where cell suspension is mixed by the singleuse falcon bioreactor tube rotation around its axis with a change of direction of rotation motion resulting in highly efficient mixing and oxygenation for aerobic cultivation. Combined with a near-infrared optical system it is possible to register cell growth kinetics non-invasively in real time.
Software features:
Typical applications:
|
Model | RTS-1C |
---|---|
Measurement range | 0–10 OD at 10–20ml volume (0–19 OD λ600 nm equivalent) 0–8 OD at 20–30ml volume (0–15.2 OD λ600 nm equivalent) |
Measurement precision | ±0.3 OD |
Light source | NIR Light diode |
Measurement wavelength (λ) | 850 nm |
Measurement periodicity per hour | 1–60 |
Cultural media volume | 10–30 ml |
Temperature setting range | +4°C ... +70°C |
Temperature control range | 15°C below ambient ... +70°C |
Temperature stability | ±0.1°C |
Display | LCD |
Speed control range | 50–2,000 rpm |
Max. number of units connected to the software | 10 |
Type of tube for aerobic cultivation | 50 ml tube with membrane filter (TubeSpin® Bioreactor 50, TPP®)* |
Type of tube for anaerobic cultivation | 50 ml tube with membrane filter (TubeSpin® Bioreactor 50, TPP®)* * — it is also possible to use other manufacturer tubes of the same type, e.g. Corning® 50ml Mini Bioreactor, but the device rotor must be modified. It is possible to request this modif. |
Minimum PC requirements | Intel/AMD Processor, 1 GB RAM Windows Vista/7/8/8.1/10/11, USB 2.0 port |
Optimal PC requirements | Intel/AMD Processor, 3 GB RAM Windows Vista/7/8/8.1/10/11, USB 2.0 port |
Overall dimensions (W×D×H) | 130 × 212 × 200 mm |
Weight | 2.2 kg |
Input current/power consumption | 12 V DC, 5 A / 60 W |
External power supply | Input AC 100–240 V 50/60 Hz, Output DC 12 V |
Model | RTS-1 |
---|---|
Measurement range | 0–10 OD at 10–20ml volume (0–19 OD λ600 nm equivalent) 0–8 OD at 20–30ml volume (0–15.2 OD λ600 nm equivalent) |
Measurement precision | ±0.3 OD |
Light source | NIR Light diode |
Measurement wavelength (λ) | 850 nm |
Measurement periodicity per hour | 1–60 |
Cultural media volume | 10–30 ml |
Temperature setting range | +25°C ... +70°C |
Temperature control range | 5°C above ambient ... +70°C |
Temperature stability | ±0.1°C |
Display | LCD |
Speed control range | 50–2,000 rpm |
Max. number of units connected to the software | 10 |
Type of tube for aerobic cultivation | 50 ml tube with membrane filter (TubeSpin® Bioreactor 50, TPP®)* |
Type of tube for anaerobic cultivation | 50 ml tube with membrane filter (TubeSpin® Bioreactor 50, TPP®)* * — it is also possible to use other manufacturer tubes of the same type, e.g. Corning® 50ml Mini Bioreactor, but the device rotor must be modified. It is possible to request this modif. |
Minimum PC requirements | Intel/AMD Processor, 1 GB RAM Windows Vista/7/8/8.1/10/11, USB 2.0 port |
Optimal PC requirements | Intel/AMD Processor, 3 GB RAM Windows Vista/7/8/8.1/10/11, USB 2.0 port |
Overall dimensions (W×D×H) | 130 × 212 × 200 mm |
Weight | 1.7 kg |
Input current/power consumption | 12 V DC, 3.3 A / 40 W |
External power supply | Input AC 100–240 V 50/60 Hz, Output DC 12 V |
