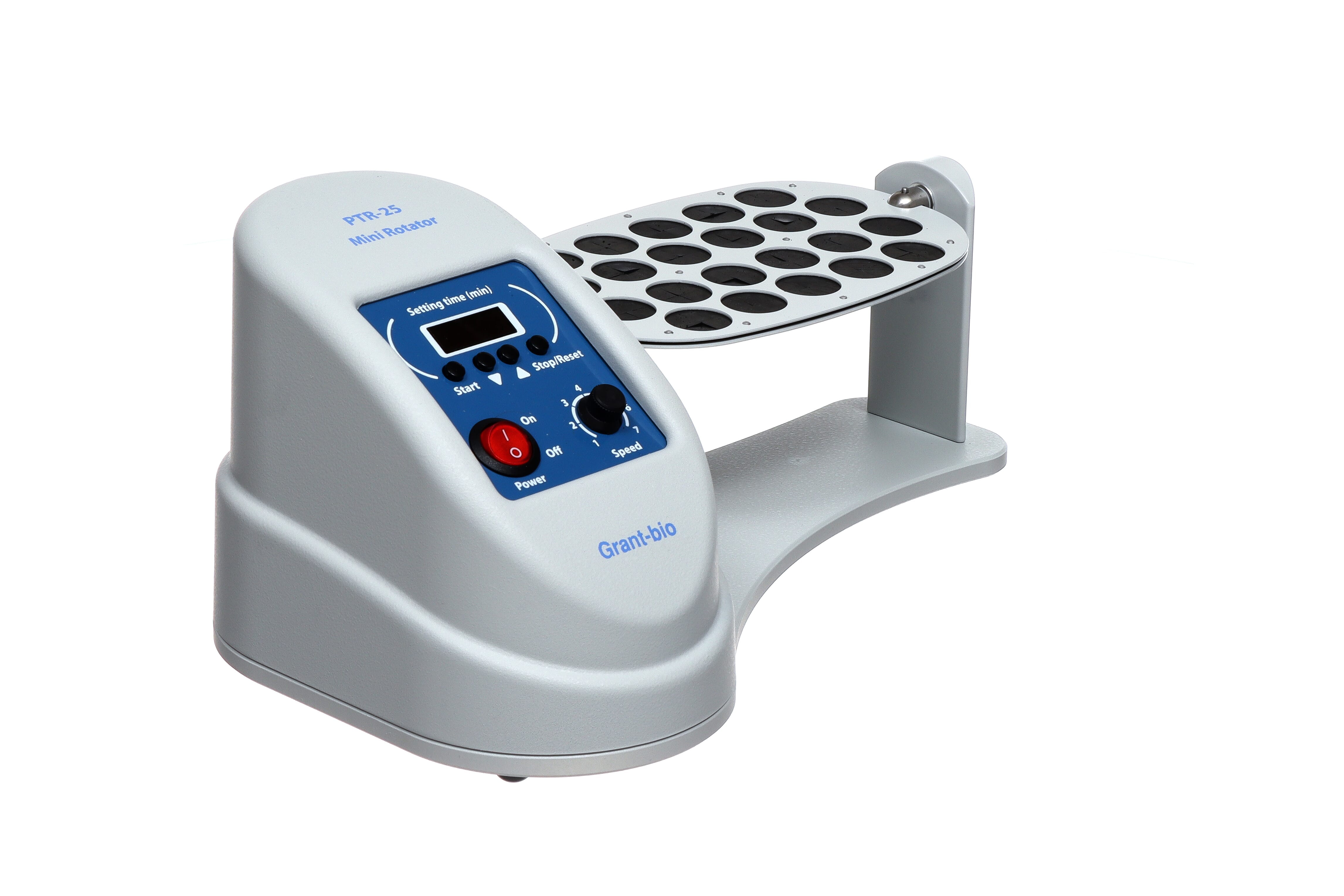

Mini-rotator provides vertical rotation of the platform.

It is an ideal instrument for preventing blood coagulations, for extraction, diffusion and dialyzing biological liquids in test tubes. PTR-25 is a compact device suitable for convenient use in small laboratories.

The PTR Series are compact variable-speed, variable-angle vertical rotators providing vertical rotation, reciprocation and vibration.

• 360° vertical rotation – creates long wave motion for mixing large particles
• Reciprocation – creates long and medium wave motion for medium and large particles
• Vibration – creates short wave motion for mixing for small particles
• Pause

All actions may be set for continuous or timed operation, and individual phases may be linked together for absolute flexibility.

• 360° vertical rotation, reciprocation and vibration can be set for continuous or timed operation, or linked together in different combinations to ensure optimum mixing conditions for your application

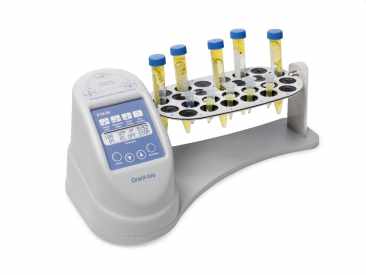

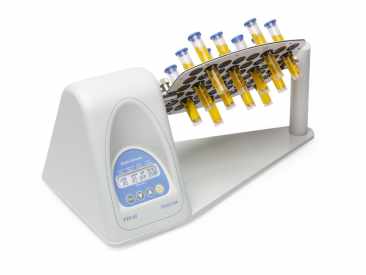

• Choice of two models – PTR-35 or PTR-60 – with different speeds and microtube capacities
• Vertical rotation speed: 1 to 100 rpm
• Reciprocal rotation: 1 to 90° turning angle
• Vibration: programmable in a burst of 1 to 5 seconds
• Very easy to operate, with simple set-up of multi-segment programs via push buttons and the 2-line LCD status display, fully programmable sequence of functions, including pause
• Capacity of up to 26 (PTR-35), 48 (PTR-60) microtubes and a maximum rotating speed of up to 100 rpm.
• Optional accessory platform for accommodating tubes of different diameters
• Reliable and extremely quiet motor produces regulated and reproducible rotation throughout the speed range
• Compact with a low profile and small footprint – fits neatly into the workspace
• Suitable to be used in cold rooms and incubators

Applications

Suitable for 360° vertical mixing applications including immuno precipitations and other affinity matrix applications, prevention of blood coagulation, latex diagnostics. Used in a variety of applications, from hybridisation reactions, cell growth, soft extraction and homogenisation of biological components in solution as well as reactions for binding and washing magnetic particles.

PTR-25

PTR-35

PTR-60

360º vertical rotators

360º vertical multi-function rotators

Dimensions                 h x d x w mm

155 x 190 x 325

155 x 195 x 365

230 x 230 x 430

Operating temperature range            ºC

+4 to 40

Maximum load                              kg

0.5

0.8

Speed                                oscil/min

5 to 30

1 to 100 (increment 1rpm)

Tilt angle (reciprocation mode)

-

1 to 90º

Turning angle (reciprocation mode)

-

0 to 5º

Display

LED

2 x 16 character LCD

Timer, with automatic switch-off

1 minute to 24 hours

Timer setting range                        sec

-

0 to 250

Timer (vibration mode)                     sec

-

0 to 5

Pause                                       sec

-

0 to 5

External power supply

Input AC 100-240V, 50/60Hz

Output DC 12V

Input AC 100-240V, 50/60Hz

Output DC 24V

Power consumption                       W

1.3 (0.11A)

8 (0.66A)

18 (0.75A)

Input voltage                             V dc

12

24

Weight                                       kg

1.4

1.7

3.8
