Grant Bio PHMP Series Thermoshakers for Microplates

Score: 5.00 (votes: 1)
No reviews.
5.00



SKU Temperature Range Number of Plates Price Buy
PHMP ambient +5°C to +60°C 2
£1432.00
£1145.60
+ -
PHMP-100 ambient +5°C to +100°C 2
£1740.00
£1392.00
+ -
PHMP-4 ambient +5°C to +60°C 4
£1840.00
£1472.00
+ -

Excellent temperatures uniformity across the platform/microplate (patented bi-directional heating of microplates) combined with variable speed and variable temperature produces the ideal thermoshaker for microplate incubations.

Can be used with all types of standard depth microplates and offers three devices in one for maximum versatility and efficiency.

  • A microplate thermoshaker
  • A compact benchtop incubator without shaking
  • A microplate shaker in cold or ambient temperatures

Features

  • Temperature setting range: + 25°C to 100°C
  • Temperature stability ± 0.1°C, temperature uniformity ± 0.2°C due to the bi-directional heating system (platform and lid)
  • Shaking speed: 250 to 1200rpm
  • Rapid heat-up
  • Continuous or timed operation, with alarm buzzer and automatic switch-off facility

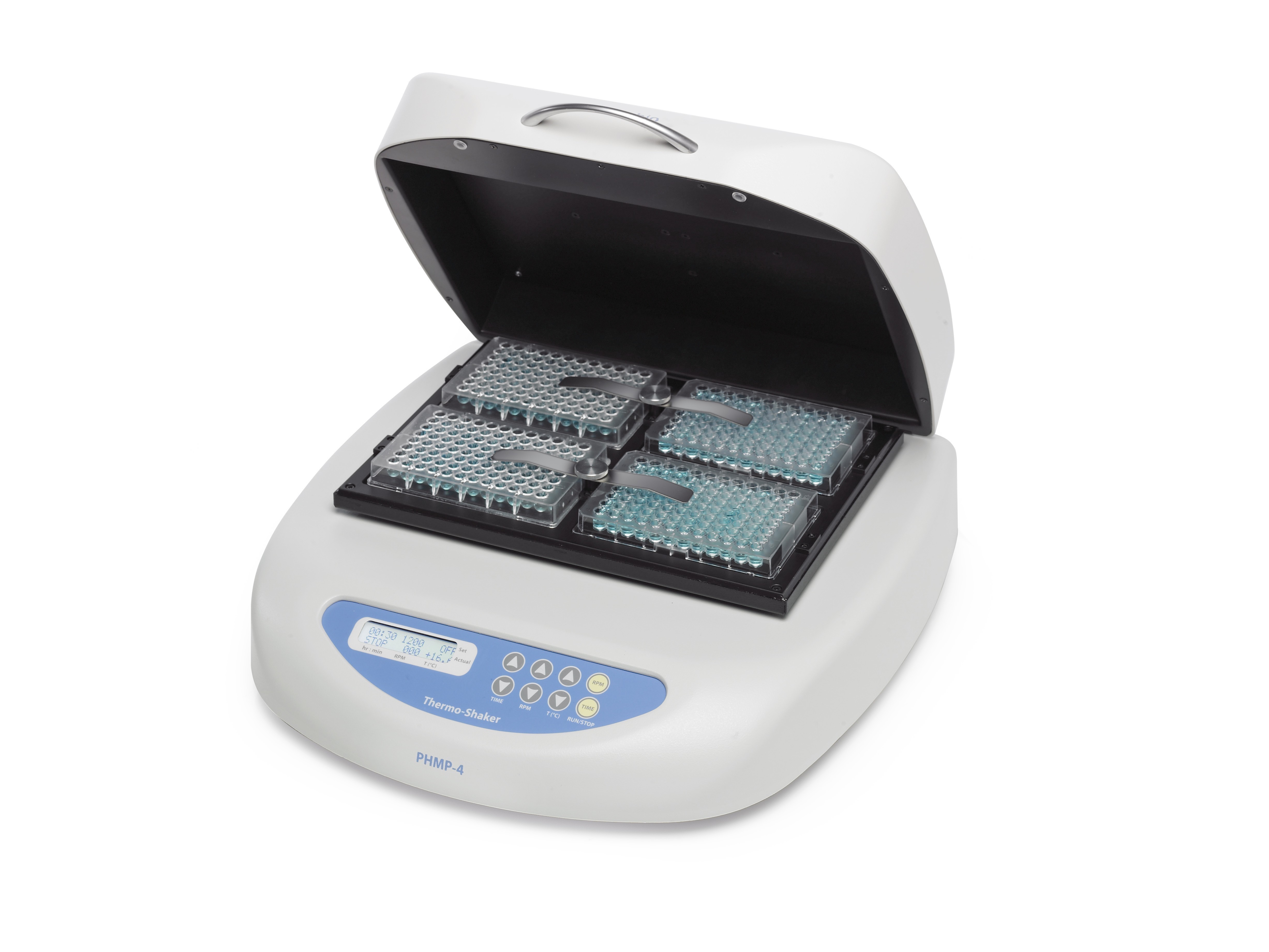

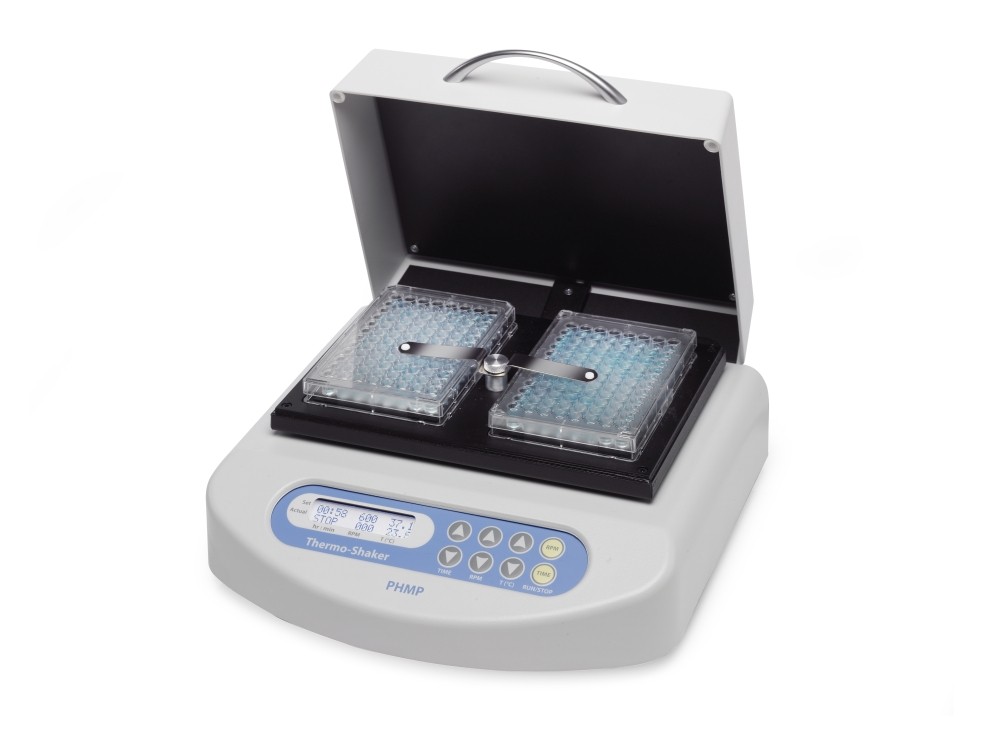

  • Choice of two models with capacity for two (PHMP) or four (PHMP-4) 96- or 384-well microplates
  • The heated lid completely covers the flat heating plate to provide bi-directional heating and excellent temperature stability and uniformity, whilst preventing condensation
  • Combination of bi-directional heating and powerful orbital shaking capability produces the maximum yield from incubations
  • Very easy to operate, with simple set-up of temperature, shaking speed and time via push buttons and the 2-line LCD status display

Applications

  • Cytochemistry – for in situ reactions
  • Biochemistry – for enzyme and protein analysis, incubation for biomarker and protein binding assays
  • Immunochemistry – for immunofermentative reaction, ELISA incubation
  • Molecular biology (for microbial cell cultivation and DNA analysis)

Specifications

  PHMP PHMP-100 PHMP-4
Dimensions (h x d x w) 125 x 250 x 265mm 125 x 260 x 270mm 140 x 390 x 380mm
Temperature range +25 to 60°C +25 to 100°C +25 to 60°C
Temperature control range Ambient +5 to 60°C Ambient +5 to 100°C Ambient +5 to 60°C
Stability 0.1°C 0.1°C 0.1°C
Uniformity 0.25°C 0.25°C 0.25°C
Display 2 line x 16 character LCD 2 line x 16 character LCD 2 line x 16 character LCD
Shaking speed 250 to 1200rmp 250 to 1200rmp 250 to 1200rmp
Speed setting resolution Increment 10rpm Increment 10rpm Increment 10rpm
Average heat up speed 12 minutes from 25 to 37,35 minutes from 25 to 60 60 minutes from 25 to 100 (PHMP-100 ONLY) 12 minutes from 25 to 37,35 minutes from 25 to 60
Maximum height of microplates 18mm 18mm 18mm
Capacity 2 microplates 2 microplates 4 microplates
Orbit diameter 2mm 2mm 2mm
Timer (with auto-off and audible alarm) 1 minute to 96 hours (1 minute increment) 1 minute to 96 hours (1 minute increment) 1 minute to 96 hours (1 minute increment)
External power supply Input AC 120-230V, 50/60Hz Output DC 12V Input AC 120-230V, 50/60Hz Output DC 12V Input AC 120-230V, 50/60Hz Output DC 12V
Power consumption 40W (3.3A) 60W (5A) 50W (4.15A)
Input voltage 12V dc 12V dc 12V dc
Weight 6.1kg 5.9kg 8.8kg
    • SKU
      PHMP
    • Commodity Codes
      84798200
  • Manufacturer
    Grant Instruments (Cambridge) Ltd
  • Country of Origin
    Latvia
  • Temperature Range
    ambient +5°C to +60°C, ambient +5°C to +100°C
  • Number of Plates
    2, 4
