Grant Bio Orbital Platform Shakers
ZoomCreated with Sketch.

Grant Bio Orbital Platform Shakers

Score: 5.00 (votes: 1)
No reviews.
Grant Instruments (Cambridge) Ltd
authoriseddistributor.png ezgif-2-bbd2100077_e4ca16fae1ae75348ca4916c5e80a7b7.png



Grant Bio Orbital Platform Shakers are laboratory devices designed to provide precise and consistent shaking or agitation for a variety of applications in research, diagnostics, and routine laboratory procedures. These shakers offer a range of capabilities, making them ideal for applications involving cell culture, sample mixing, protein analysis, and more.

SKU Maximum Load (kg) Orbit ø mm Speed (load dependent) rpm Weight (In Grams) Price (excluding VAT) Availability Qty To Purchase
Grant Bio Orbital Platform Shakers PSU-10i 3 10 50 To 450 3400
£933.00
£793.05
6 + -
Grant Bio Orbital Platform Shakers PSU-20i 8 20 20 To 250 11700
£1787.00
£1465.34
2 + -

Please note the orbital shakers are not supplied with any accessories, these need to be ordered separately

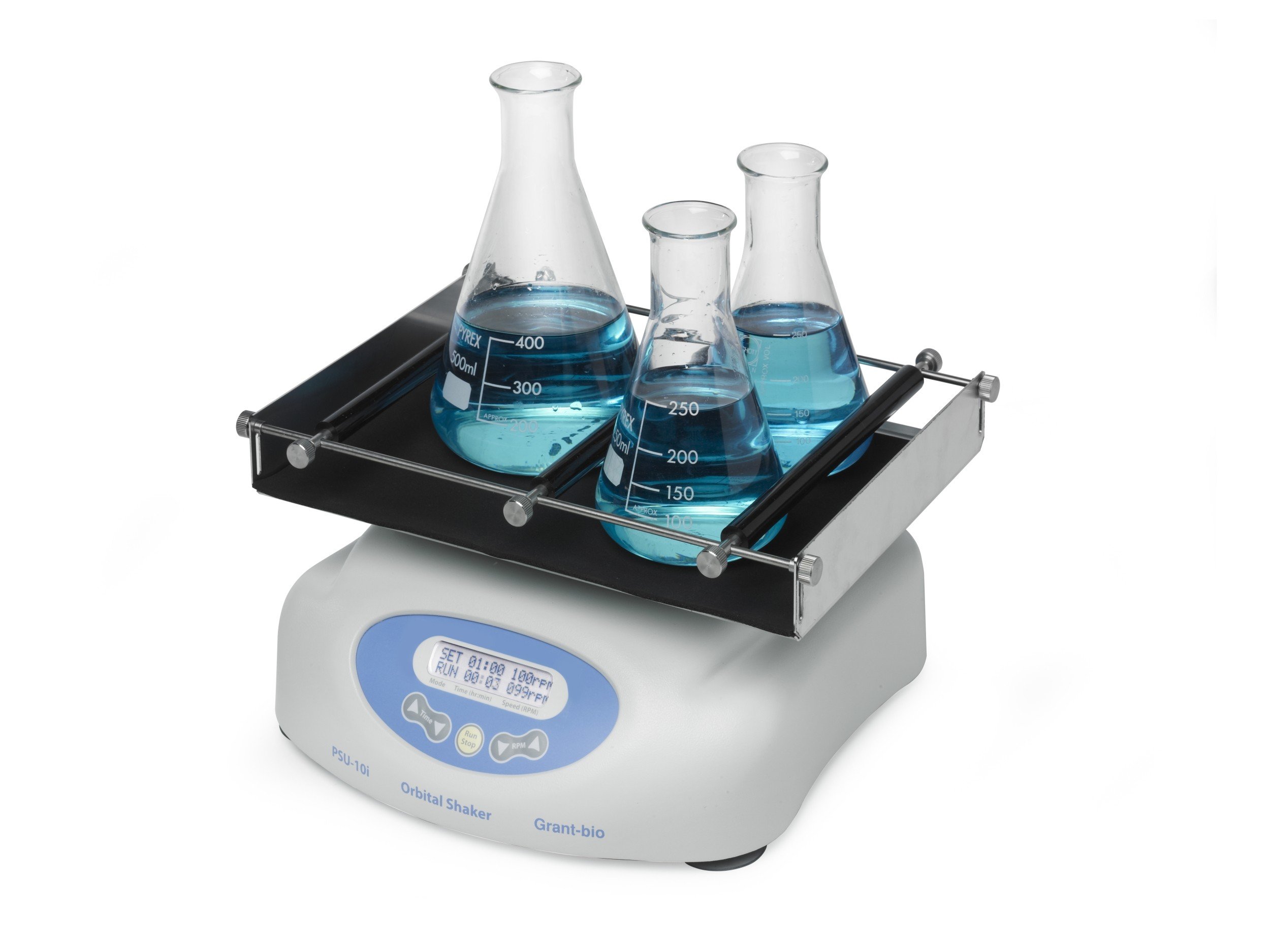

Orbital platform shaker PSU-10i is a benchtop multifunctional shaking unit.

Microprocessor controlled shaking platform providing smooth and quiet horizontal orbital motion for mixing in bottles, flasks and beakers.

  • Variable shaking speed: 50 to 450 rpm
  • Interchangeable platforms for use with a variety of vessels
  • Loads up to 3 kg
  • Continuous or timed operation with automatic switch-off
  • Reliable direct drive system
  • Automatic load balancing system
  • Soft start feature ensures a smooth ramp-up – avoids potential damage to vessel content
  • Exceptionally quiet motor – consistent even shaking
  • 2-line LCD display clearly indicates both set and actual shaking speed, plus set and elapsed time. Works in combination with simple push buttons for easy set-up
  • Choice of 4 interchangeable platforms to suit different types of vessels – maximum flexibility
  • Low voltage power supply provides for safe cold room operation and low energy consumption
  • Ambient operating temperature range of 4 to 40ºC allows use in cold room or incubator
  • Integral electronic timer with audible alarm and automatic switch-off – accurate repeatability of time sensitive incubations

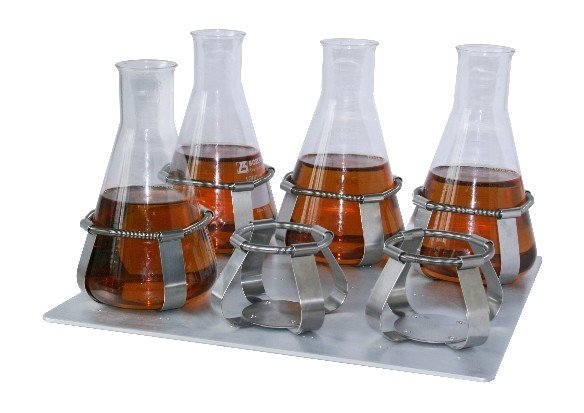

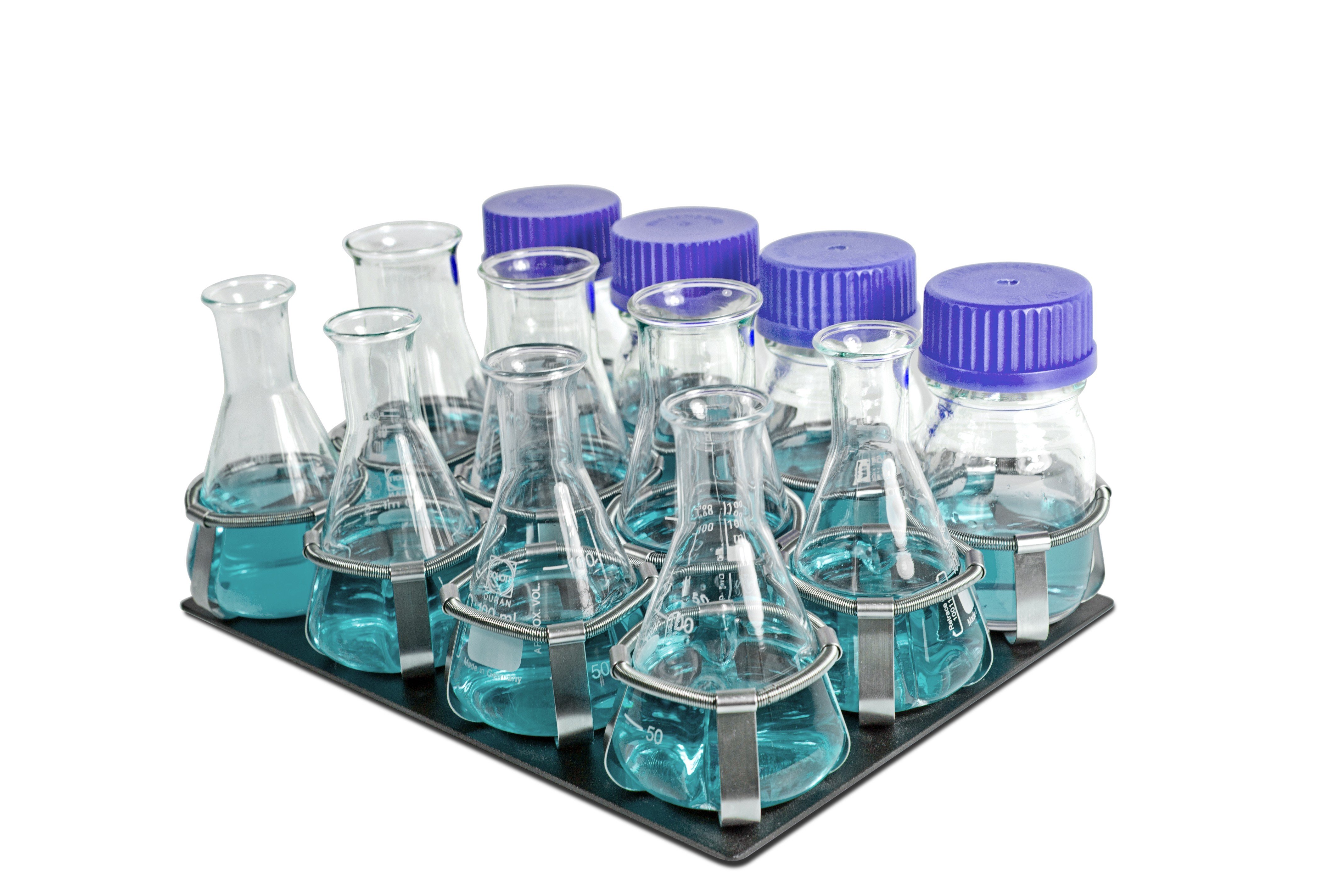

The four interchangeable accessory platforms enable a wide choice of vessels to be used, including bottles, flasks and beakers, dishes, boxes and petri-dishes.



Applications

Suitable for use in different laboratories in microbiology, chemistry, immunology, biochemistry and molecular biology.

Please note the orbital shakers are not supplied with any accessories, these need to be ordered separately

Orbital platform shaker PSU-20i is a benchtop multifunctional shaking unit.

The Grant bio PSU-20i is a powerful and efficient microprocessor controlled multi-functional orbital shaker providing all that is required – rotation, reciprocation and vibration – for thorough mixing in flasks, beakers, Petri dishes and other laboratory vessels.

  • Orbital motion, reciprocation and vibration functions all in one product
  • Reliable direct drive system
  • Fully programmable sequence of functions
  • Simple to set up and easy to operate
  • Interchangeable platforms, including multi-level platform option
  • Loads up to 8 kg
  • Orbital and reciprocating speed: 20 to 250 rpm
  • Reciprocal rotation: 30 to 360º turning angle
  • Vibration: 0 to 5º turning angle, programmable in a burst of 0 to 5 seconds
  • All mixing functions – orbital motion, reciprocation and vibration – can be set for continuous or timed operation, or be linked together in different combinations to ensure optimum and accurately repeatable mixing conditions for your application
  • Direct drive system
  • Brushless motor for longetivity
  • Powerful, reliable and exceptionally quiet motor –  combines 8 kg loading capacity with consistent even motion and quiet operation
  • Very easy to operate, with simple set-up of multi-segment programs via push buttons and the 2-line LCD status display. Microprocessor controls for making corrections without stopping the program.
  • Universal detachable platform can accommodate vessels of different shapes and sizes for maximum flexibility.
  • Optional flat platform PP-20 with non-slip mat accommodates low profile containers. Can be extended to create up to four levels to maximise the throughput per cycle.


Applications

Suitable for use in different laboratories in microbiology, chemistry, immunology, biochemistry and molecular biology.

Specifications







PSU-10i

PSU-20i

Platform shaker

Multi-platform shaker

Dimensions

h x d x w

mm

90 x 205 x 220

130 x 410 x 410

Operating temperature

ºC

4 to 40

Maximum load

kg

3

8

Orbit ø

mm

10

20

Speed

(load dependent)

rpm

50 to 450

20 to 250

Angle (reciprocal mode)

-

0 to 360º

Angle (vibration mode)

-

0 to 5º

Display

2-line 16 character LCD

Timer, with automatic switch-off

1 minute to 96 hours

Motion timer (orbital/reciprocal modes)



sec

-

0 to 250

Motion timer (vibration mode)

sec

-

0 to 5

External power supply

Input AC 100-240V, 50/60Hz

Output DC 12V

Power consumption

W

9.6 (0.8A)

40 (3.2A)

Input voltage

V dc

12

Weight

kg

3.4

11.7



    • Weight (In Grams)
      3400 g
    • SKU
      PSU-10i
    • Commodity Codes
      84798200
  • Manufacturer
    Grant Instruments (Cambridge) Ltd
  • Country of Origin
    Latvia
  • Maximum Load (kg)
    3, 8
  • Orbit ø mm
    10, 20
  • Speed (load dependent) rpm
    50 To 450, 20 To 250
