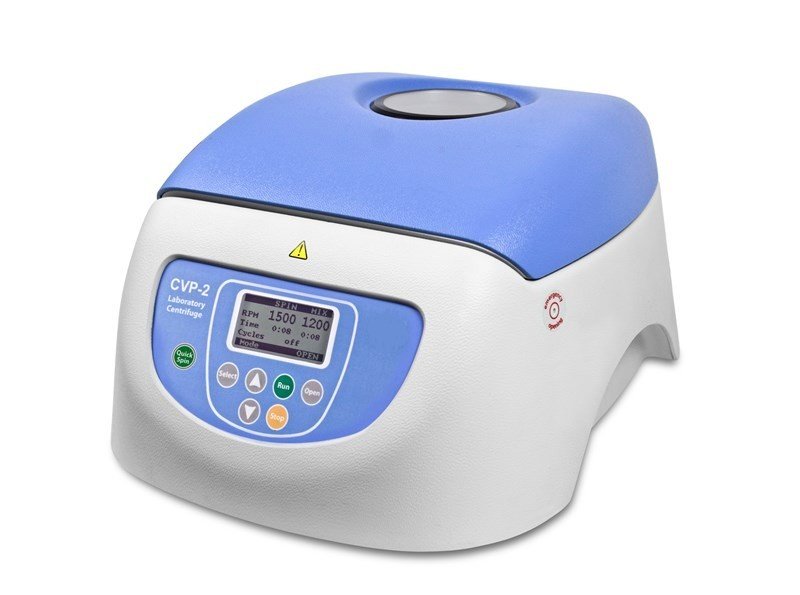

Grant Bio CVP-2 All-in-one PCR Plate Centrifuge/Vortex Mixer
 |
 |
The Grant Bio CVP-2 All-in-One PCR Plate Centrifuge/Vortex Mixer is a versatile laboratory device designed to combine the functionality of both a PCR plate centrifuge and a vortex mixer into one compact unit. This all-in-one solution streamlines workflows in molecular biology, PCR, and other biological applications, saving both space and time. It provides efficient sample preparation by offering rapid centrifugation for PCR plates and vortex mixing for thorough sample homogenization.
All-in-one PCR plate centrifuge / vortex mixer that allows for the simultaneous sample preparation of multiple samples at one time. Versatile through being able to hold un, semi and fully skirted PCR plates with no additional accessories required.
The CVP-2 offers 3 devices in one:
- Centrifuge with vortex mixing
- PCR plate centrifuge
- PCR plate mixer
CVP-2 – Key features
- Centrifuge and vortex mixer combined for significant time saving
- Centrifugation mixing speed: 300 to 1500 rpm
- Independent vortex and centrifuge timers with up to 999 cycles
- Adjustable rpm or 4 programmable presets
- Consistently prepare up to 192 samples continuously
Applications
Life science applications, molecular biology, cell biology lab, cell lysis, DNA isolation and purification, sample preparation for PCR, pellet re-suspension, mixing viscous liquids, or any other method where you need tube vortexing and centrifugation and have many samples, particularly in very small volumes.
Technical Specifications
| Dimensions (h x d x w) | 190 x 350 x 285MM |
| Centrifuge mixing speed control range | 300 to 1500rpm |
| Vortex mixing speed control range | 300 to 1200rpm |
| Speed control increment | 100RPM |
| G-force/RCF | 245 |
| Centrifuge timer with sound alarm | 0 to 30 minutes |
| Vortex timer with sound alarm | 0 to 60 seconds |
| Centrifuge/vortex cycles | 1 to 999 |
| Capacity | 2 un-, semi or fully skirted microplates |
| External Power supply | Input AC 120-230V, 50/60Hz Output DC 12V |
| Power consumption – 230V | 24W (1A) |
| Input voltage | 24V dc |
| Weight | 6.15KG |
