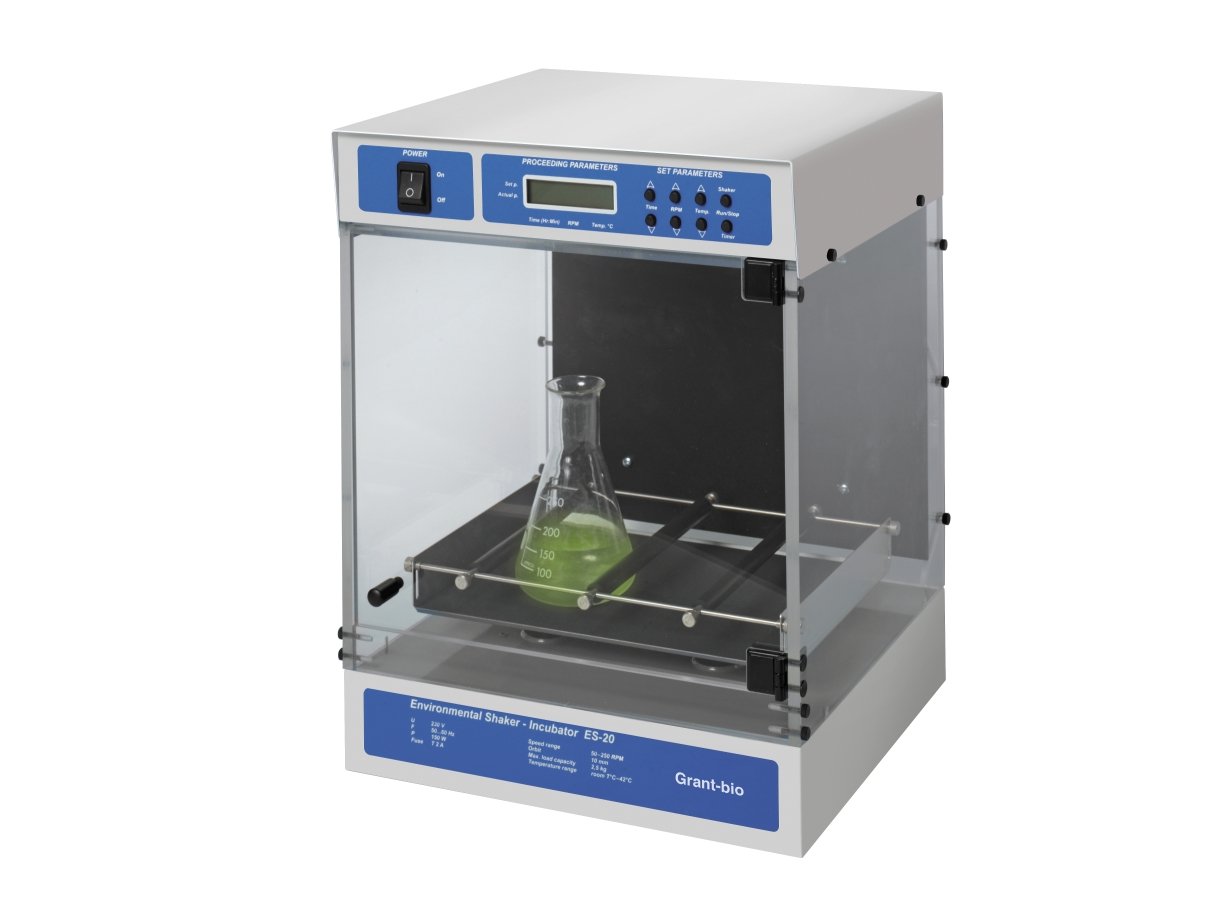

The Grant bio ES20 is a versatile programmable bench-top shaker-incubator for mixing and incubating biological fluids, samples, cell cultures and tissues.

• Digital control of time, temperature and shaking speed for accuracy and repeatability
• Variable speed: 50 to 250 rpm
• Temperature setting range: 25 to 42°C
• Load up to 2.5 kg
• Interchangeable platforms for shaking/incubating different vessels
• Temperature control by microprocessor plus forced heated air circulation ensure a constant and even temperature within the chamber
• Equipped with direct drive shaking system for reliable, long-term operation
• Simple to programme time, temperature and shaking speed using clear 2-line 16 character LCD
• Option of four easily interchangeable platforms for a wide range of different
• Robust, compact construction with clear 7mm thick Plexiglass panels for easy visibility of chamber contents
• Designed for easy assembly / disassembly – easy to move from one location to another

Applications

The ES-20 is a versatile shaker-incubator ideal for growing cell cultures in flasks and other vessels and for other general sample preparation applications.

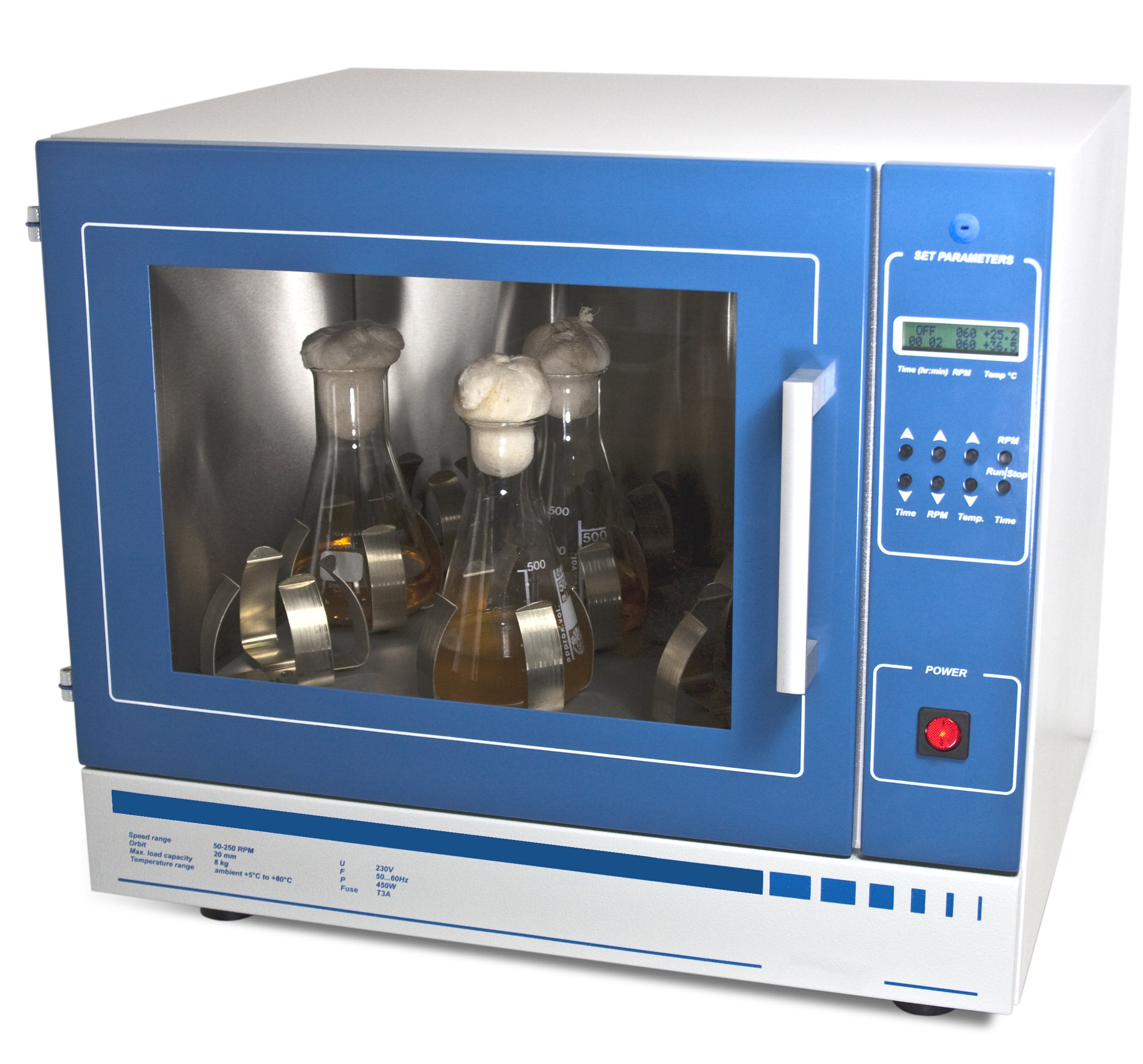

Stable and reliable orbital shaker-incubator for vigorous or even mixing and incubation of samples in a variety of flasks and vessels.

• Digital control of time, temperature and shaking speed for accuracy and repeatability
• Variable speed: 50 to 250 rpm
• Temperature range: 25 to 80°C
• Load up to 8 kg
• Interchangeable platforms for shaking/incubating different vessels
• Temperature control by microprocessor plus forced heated air circulation ensure a constant and even temperature within the chamber
• Robust, compact construction with stainless steel inside the chamber
• Equipped with direct drive shaking system for reliable, long-term operation
• Simple to program time, – 1 minute to 96 hours or non-stop
• State-of the art motor, thermal insulation materials and temperature PID-control decreses the energy consumption

Applications

Life sciences — suitable for growing cell cultures in flasks, extracting tissue samples at physiological, temperatures, and sample preparation processes, mixing of biological liquids as well as the incubation and cultivation of biological liquids, growing e-coli, and bioluminescence preparation

Dimensions                       h x d x w mm

ES-20

ES-80

Compact Shaker-Incubator

Shaker-Incubator

435 x 340 x 340

510 x 525 x 590

Weight                                      kg

13.2

41.1

Temperature range                     ºC

+25 to 42

+25 to 80

Temperature control range            ºC

0.1

Stability                                   ±ºC

0.5

Temperature accuracy at 37ºC    ±ºC

0.5

Mixing speed control range         rpm

50-250 rpm

Load capacity                            kg

2.5

8

Display

2-line, 16 character LCD

Orbit diameter                          mm

10

20

Internal working dimensions

(with installed platform)          mm (d x w x h)

260 x 305 x 250

450 x 390 x 300

Timer

1 minute to 96 hours / non-stop

Power consumption             230V W

170 (1.6A)

450 (2A)

120V W

160(0.7A)

-

Nominal operating voltage            V

120 or 230 (50/60Hz)

230 (50-60Hz)

Data Transfer

-

Stacking

-
