Edwards Vacuum XDS46 Small Dry Scroll Pumps
Scroll pumps are an excellent alternative to rotary vane pumps where oil free pumping is desirable. The XDS pumps in particular use an innovative bearing shield to isolate the vacuum environment from all forms of lubricant not only making them totally dry, but also protecting the bearing from any process gases. Vapour handling is enabled by an adjustable gas ballast; this allows the range of pumps to satisfy many applications that were previously off limits to other scroll pumps.

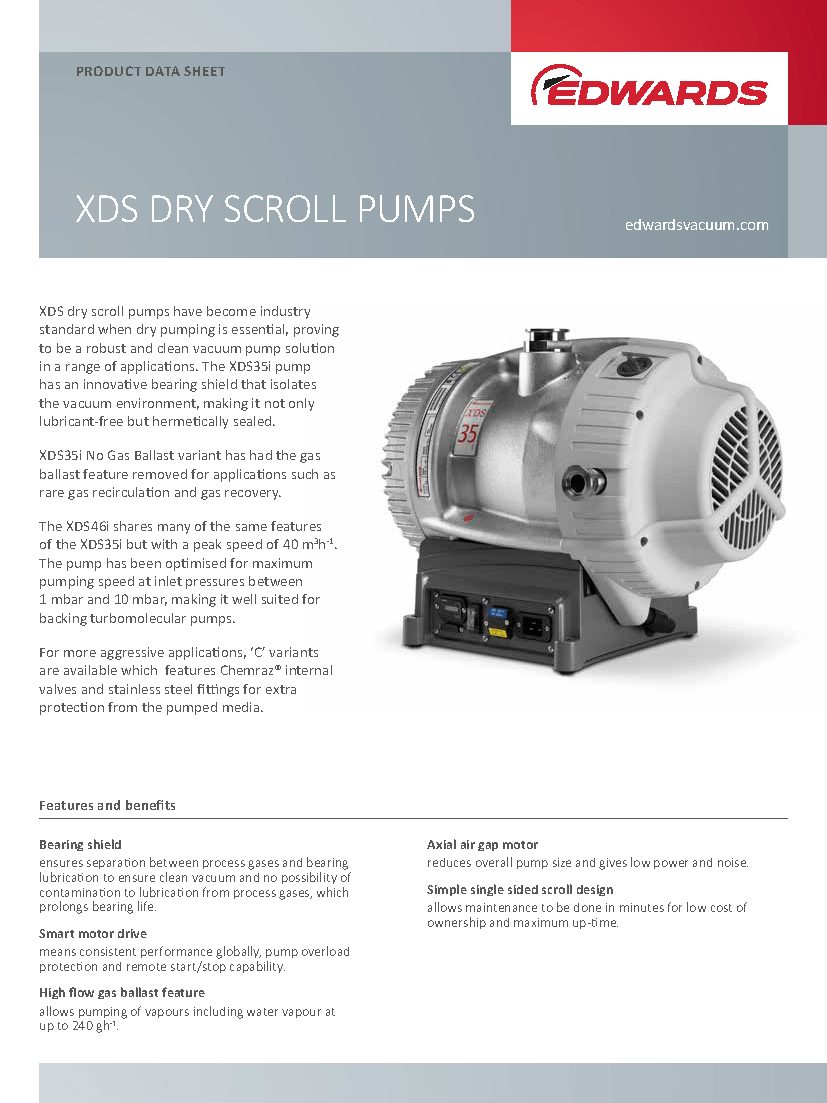

XDS scroll pumps have become industry standard when dry pumping is essential, proving to be a robust and clean vacuum pump solution in a range of applications and processes.
The XDS35i pump has an innovative bearing shield that isolates the vacuum environment from all forms of lubricant, making it not only lubricant-free but hermetically sealed. XDS35iNGB variant has had the gas ballast feature removed for applications such as rare gas recirculation and gas recovery.

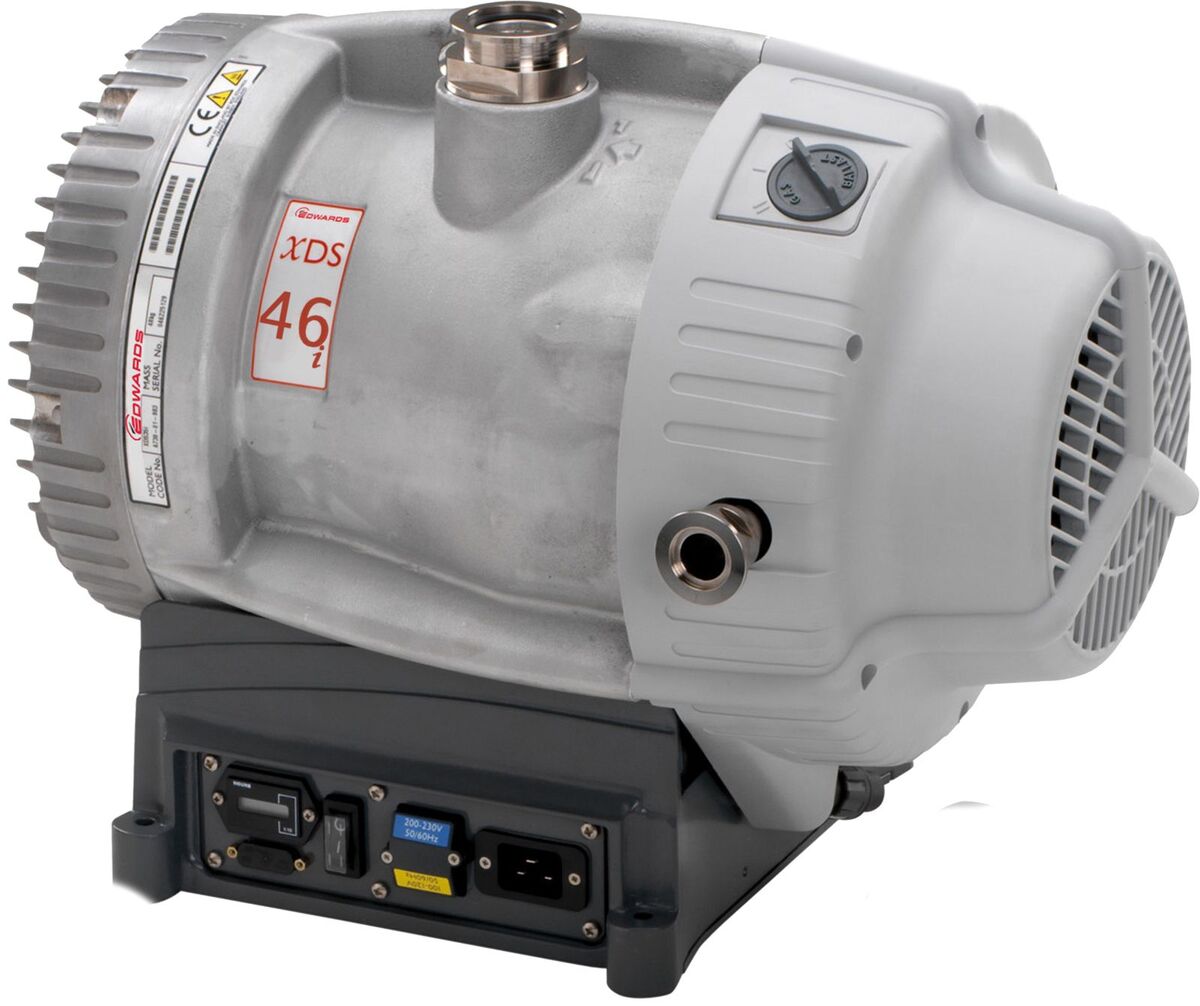

The XDS46i shares many of the same features of the XDS35i but with a peak speed of 40 m3h-1. The pump has been optimised for maximum pumping speed at inlet pressures between 1 mbar and 10 mbar, making it ideally suited for LCMS and ICPMS applications requiring higher pumping speeds.
The C variant has been modified so that it is more suitable for use on vapour handling processes and may be used in some applications using corrosive substances. The C version is fitted with Chemraz® internal valve pads and stainless steel exhaust port.
Chemraz® is a registered trademark of Greene Tweed
The XDS35i pump has an innovative bearing shield that isolates the vacuum environment from all forms of lubricant, making it not only lubricant-free but hermetically sealed. XDS35iNGB variant has had the gas ballast feature removed for applications such as rare gas recirculation and gas recovery.
The XDS46i shares many of the same features of the XDS35i but with a peak speed of 40 m3h-1. The pump has been optimised for maximum pumping speed at inlet pressures between 1 mbar and 10 mbar, making it ideally suited for LCMS and ICPMS applications requiring higher pumping speeds.
The C variant has been modified so that it is more suitable for use on vapour handling processes and may be used in some applications using corrosive substances. The C version is fitted with Chemraz® internal valve pads and stainless steel exhaust port.
Chemraz® is a registered trademark of Greene Tweed
Technology
Scroll pumps use intermeshing fixed and orbital scrolls to form non-contacting, crescent shaped gas pockets that are continuously compressed by the orbiting action. This means that, unlike oil-sealed rotary pumps, there is no sealant or lubricant required in the swept volume of the pump.
Applications
- Automotive; brake line and air conditioning evacuation
- Backing turbomolecular pumps
- Chemical applications including gel dryers and solvent recovery
- Coating systems
- High energy physics
- Mass spectrometry
General Product Information
| Dimension Length | 0.400 |
| Connection Vacuum Inlet Flange | DN 40 ISO-KF (NW40) |
| Noise Level | 55.40 db(A) |
| Supply Frequency | 50 Hz 60 Hz |
| Weight | 48.00 |
| Power Supply Phase | 1-Ph |
| Dimension Height | 0.476 |
| Cooling Method | Air Cooling (forced - fan) |
| Connection vacuum outlet flange | DN 25 ISO-KF (NW25) |
| Dimension Width | 0.290 |
| Supply Voltage | 1Ph 100-120/200-230V 50/60Hz |
| IP Rating | IP44 |
| Connection Power | IEC EN60320 C20 - Male (for C19 plug on mains cable) |
| Leak Rate | 1.000 × 10⁻⁷ |
| Vibration Level Velocity (rms) | 4.500 × 10⁻³ m/s |
| dimensionsCombinedLengthWidthHeight | 0.400 0.400 0.400 |
Performance Data
| Power Total Rated | 520.00 |
| Pumping Speed | 0.012 |
| Pressure Ultimate | 5.00 |
| Power at Ultimate (Quiescent) | 440.00 |
| Rotational Speed Nominal | 29.16 |
| Pressure Water Vapour Max. | 4000.00 |
| Power at Atmosphere Short Term Max | 2300.00 |
| pressureUltimateWithGasBallast | 1000.00 |
Operation Conditions - Limitations
| Pressure Inlet Continous Max. | 4000.00 |
| Pressure Outlet Continous Max. | 1.200 × 10⁵ |
| Altitude Max. | 2000.00 |
Environmental Conditions
| Temperature Ambient Operation Max. | 40.00 |
| Temperature Ambient Operation Min. | 10.00 |
| Temperature Ambient Storage Min. | -30.00 |
| Temperature Ambient Storage Max. | 70.00 |
Classification
| Product Pressure Range | Medium Vacuum - 1 mbar - 1*10-3 mbar |
| High / Medium / Rough Vacuum Classification | Medium Rough Vacuum Pump |
| Dry or Wet Pump | Dry pump |
| Vacuum Pump Technology | Dry Scroll Pump |
Connectivity - Communication Interface
| Communication Interfaces Customer | Parallel I/O Display local (hours counter) |
| Connection electrical comms interface connector | DSUB 15-PIN - Female |
Variants
| Variant Atex Category | Ex II 3 G Ex h IIB T4 Gc - internal atmospheres only |
| Variant Scroll Pumps | C - Corrosion resistant variant |
