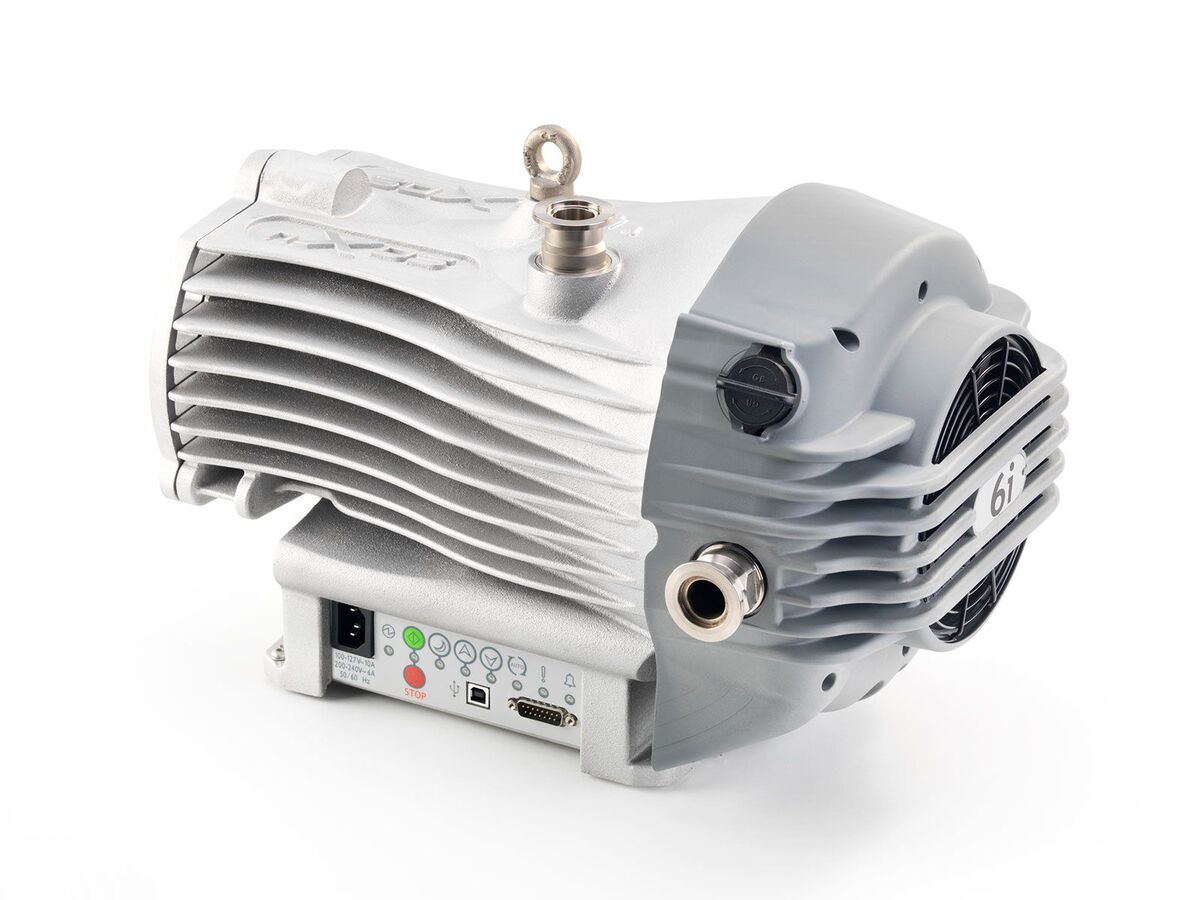

Edwards Vacuum nXDS6 Scroll Pumps
Features and Benefits
Advanced scroll-form and tip-seal technologies deliver best‑in-class vacuum performance and unrivalled ultimate vacuum levels.
Unique tip seal design significantly reduces wear to minimise maintenance and extend service life.
Quiet operation with typical noise during operation < 52 dB(A) for minimal environmental impact.
Advanced interface providing a variety of traditional and analogue and digital control methods enabling remote control/monitoring via RS232 or RS485.
Integrated inverter drive with auto sensing input delivers optimised pumping performance globally.
Pump range includes 6, 10, 15 and 20 m3h-1
With exceptional pumping capability, ultimate vacuum performance and state-of-the-art design features Edwards nXDS is the best performing pump in its class.
nXDS improves on legacy XDS pumps by offering increased pumping speeds, combined with lower ultimate pressures, lower power consumption and lower noise - up to 20 times quieter than other pumps. Gas ballast allows for pumping of condensable vapours including, water, solvents, dilute acids and bases. nXDS pumps also feature the latest in tip seal technology giving significantly longer life between tip seal changes. Integrated inverter drive with auto sensing voltage input delivers optimised pumping performance globally.
nXDS pumps are designed to be completely field serviceable. Its intelligent control functions and up to five year service interval offer low cost of ownership, making it the small dry pump of choice for today’s most advanced technologies.
- Better Work Environment & Low Environmental Impact: Quiet Operation
- Simple Operation: Intelligent & Easy to Use Controls
- No Contamination & No Oil to Dispose Of: Hermetically Sealed for a Lubricant-Free Vacuum Environment
- Low Cost of Ownership: Long Service Interval & Low Power Consumption
- Quicker Process: Superior Vapour Handling
Applications
- Backing turbomolecular pumps
- Chamber evacuation
- Chemical applications including gel dryers and solvent recovery
- Electron microscopy
- High energy physics
- Mass spectrometry
General Product Information
| Dimension Length | 0.432 |
| Connection Vacuum Inlet Flange | DN 25 ISO-KF (NW25) |
| Noise Level | 52.00 db(A) |
| Supply Frequency | 50 Hz 60 Hz |
| Weight | 26.20 |
| Power Supply Phase | 1-Ph |
| Dimension Height | 0.302 |
| Cooling Method | Air Cooling (forced - fan) |
| Connection vacuum outlet flange | DN 25 ISO-KF (NW25) |
| Dimension Width | 0.282 |
| Supply Voltage | 1Ph 100-127/200-240V 50/60Hz |
| IP Rating | IP20 |
| Connection Power | IEC EN60320 C14 - Male (for C13 plug on mains cable) |
| Leak Rate | 1.000 × 10⁻⁷ |
| Vibration Level Velocity (rms) | 4.500 × 10⁻³ m/s |
| dimensionsCombinedLengthWidthHeight | 0.432 0.432 0.432 |
Performance Data
| Pumping Speed | 1.722 × 10⁻³ |
| Pressure Ultimate | 2.00 |
| Power at Ultimate (Quiescent) | |
| Rotational Speed Nominal | 30.00 |
| Pressure Water Vapour Max. | 3500.00 |
| Power at Atmosphere | 270.00 |
| Capacity Water Vapour | 3.055 × 10⁻⁵ |
| pressureUltimateWithGasBallast | 5.00 |
| Power Standby Mode | 170.00 |
Operation Conditions - Limitations
| Pressure Inlet Continous Max. | 20000.00 |
| Pressure Outlet Continous Max. | 1.000 × 10⁵ |
| Altitude Max. | 2000.00 |
Environmental Conditions
| Temperature Ambient Operation Max. | 40.00 |
| Temperature Ambient Operation Min. | 5.00 |
| Temperature Ambient Storage Min. | -30.00 |
| Temperature Ambient Storage Max. | 70.00 |
Classification
| Product Pressure Range | Medium Vacuum - 1 mbar - 1*10-3 mbar |
| High / Medium / Rough Vacuum Classification | Medium Rough Vacuum Pump |
| Dry or Wet Pump | Dry pump |
| Vacuum Pump Technology | Dry Scroll Pump |
Connectivity - Communication Interface
| Communication Interfaces Customer | RS232 (serial) RS485 (serial) Parallel I/O USB 0-10 V (analog - input speed control) Start Stop Standby push button control |
| Connection electrical comms interface connector | DSUB 15-PIN - Male USB type B - Female |
| Communication Interface Protocol | DX protocol |
Variants
| Variant Atex Category | Ex II 3 G Ex h IIB T4 Gc - internal atmospheres only |
| Variant Scroll Pumps | R - Variants without gas ballast |
