Eagle Eye SG-Ultra Max Portable Digital Hydrometer / Density Meter
ZoomCreated with Sketch.

Eagle Eye SG-Ultra Max Portable Digital Hydrometer / Density Meter

Score: 5.00 (votes: 1)
No reviews.
Eagle Eye Power Solutions, LLC
  • £5142.00
In Stock:

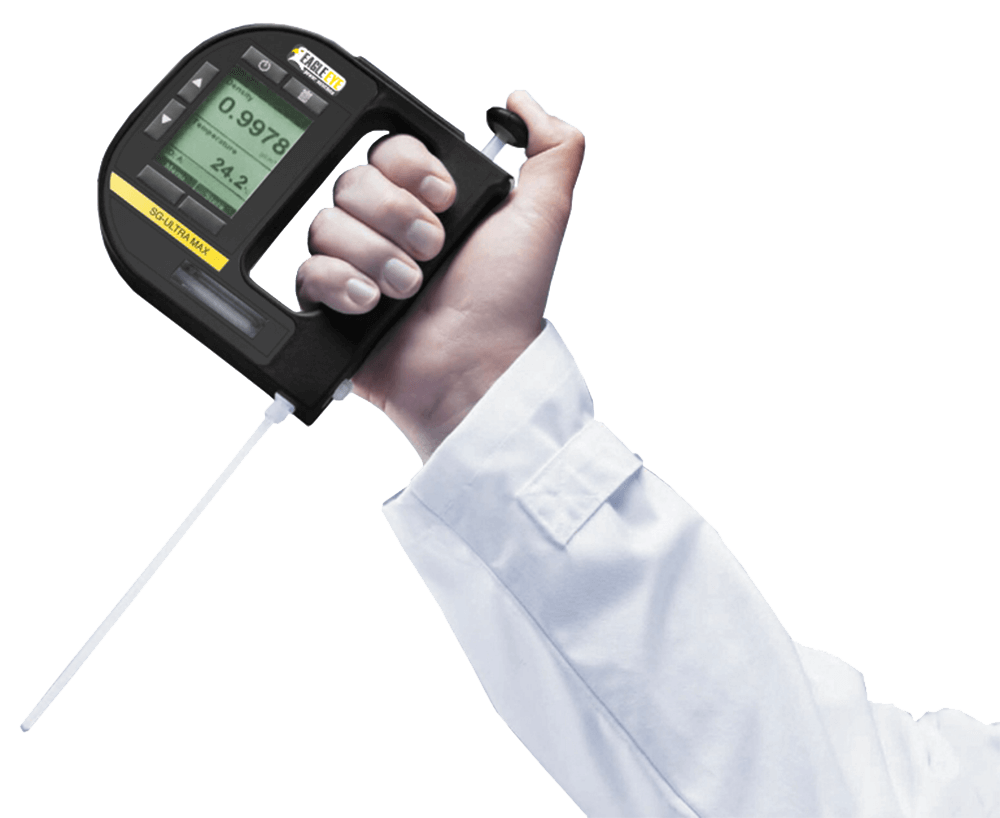

The Eagle Eye SG-Ultra Max is the premier portable digital hydrometer/density meter in the SG-Series hydrometer line. The SG-Ultra Max measures the density and density-related values of your sample within seconds. Results appear on the large LCD screen with backlight and are ready for storage, printout or export to a PC. The lightweight and robust design enable on-site operation in a wide range of environments. Pump spills do not enter the instrument. The SG-Ultra Max digital hydrometer features leakproof housing for operation in industrial and field applications including battery testing solutions for utilities and telecoms, food & beverage testing, quality control, biotechnology and many more. Proper care and cleaning procedures will ensure the extended life of the SG-Ultra Max.

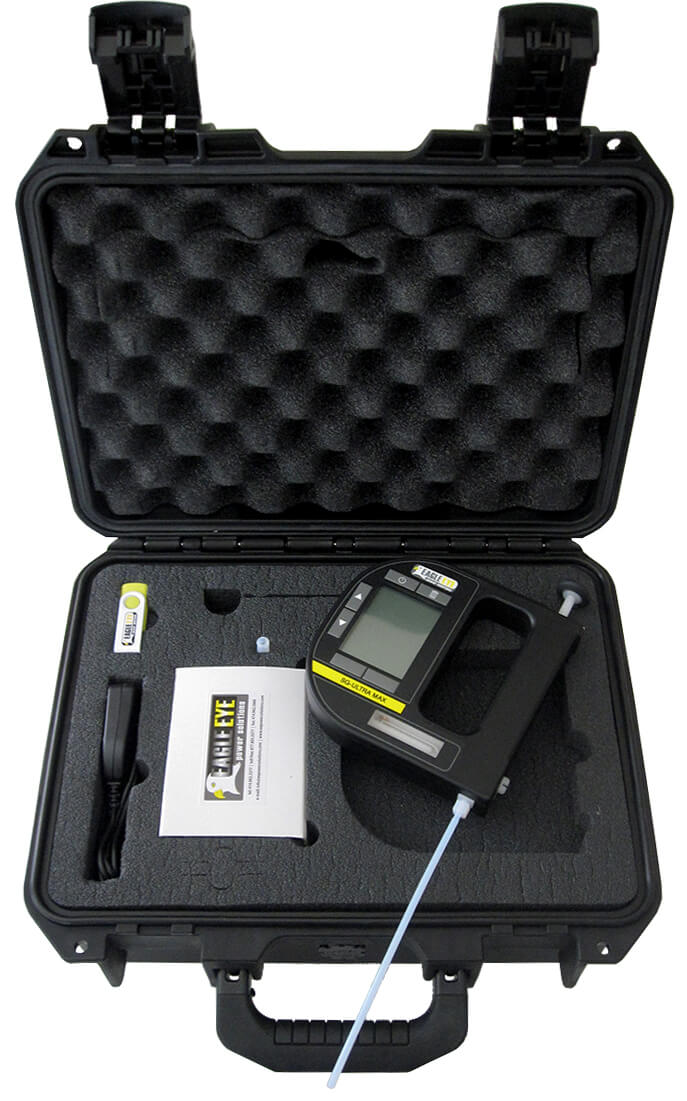

The SG-Ultra Max Kit Includes:

  • SG-Ultra Max Body
  • (1) 180 mm Sample Tube
  • 2 mL Plastic Syringes
  • Luer Adapter 1/4" UNF (for syringe filling)
  • IrDA Adapters
  • Interface for Exporting Data to PC
  • Carrying Case
  • User Manual

Benefits

  • Accurate 99.999% Accurate
  • User-Friendly Compact, lightweight, and allows for one-hand measurement. Large LCD display screen with backlight.
  • Robust Rugged, comes with protective carrying case. Sustains tough field environments with leakproof housing
  • Wireless Communication Infared data interface for data exchange with a PC and data export to a printer (data transfer accessories included).
  • Efficient Storage of up to 100 sample IDs for easy identification. Storage of up to 20 measuring methods. Stores up to 1,024 total measurement results including timestamp and sample ID.
  • Reliable CE Compliant and One Year Warranty

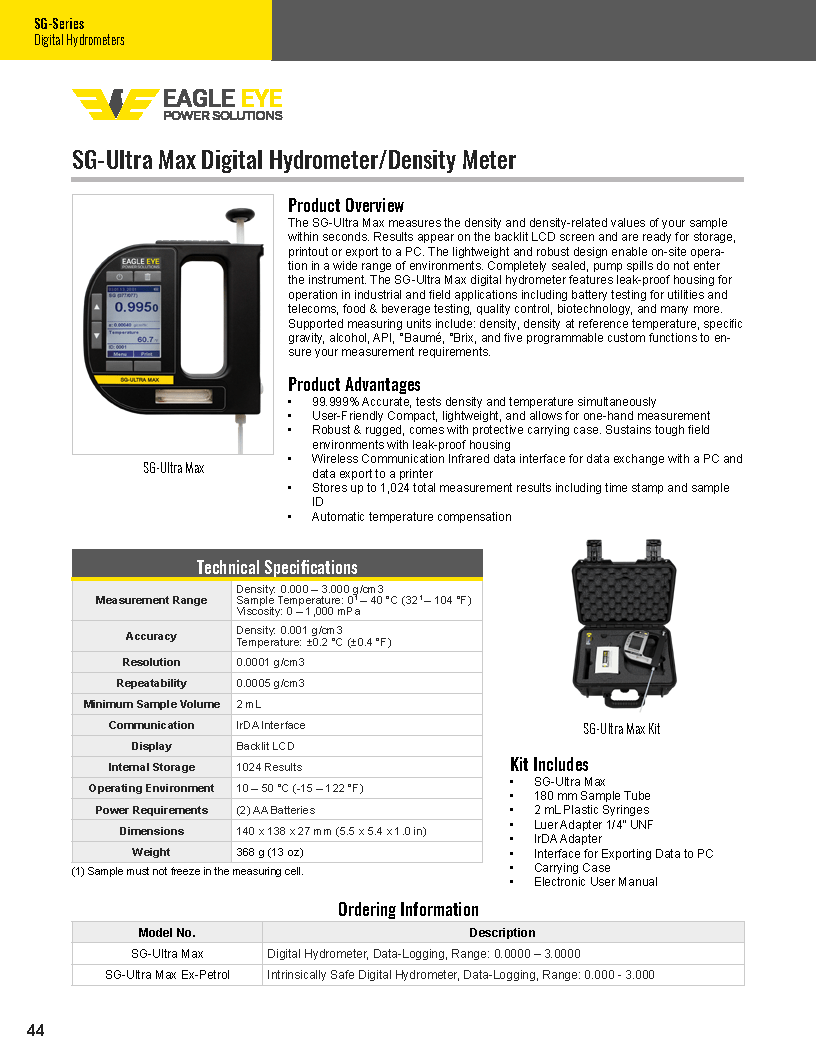

Technical Specification

Measurement Range Density: 0.000 – 3.000 g/cm3
Sample Temperature: 0° – 40°C (32° – 104°F)
Viscosity: 0 – 1,000 mPa
Accuracy Density: 0.001 g/cm3
Temperature: ±0.2 °C (±0.4 °F)
Resolution 0.0001 g/cm3
Repeatability 0.0005 g/cm3
Minimum Sample Volume 2 mL
Communication IrDA Interface
Display Backlit LCD
Internal Storage 1024 Results
Operating Environment 10 – 50 °C (-15 – 122 °F)
Power Requirements (2) AAA Batteries
Dimensions 140 x 138 x 27 mm (5.5 x 5.4 x 1.0 in)
Weight 368 g (13 oz)



    • SKU
      SG-ULTRA-MAX
    • Commodity Codes
      9027808090
  • Manufacturer
    Eagle Eye Power Solutions, LLC
  • Measurement Range
    Density: 0.000 – 3.000 g/cm3 Sample Temperature: 01 – 40 °C (321 – 104 °F) Viscosity: 0 – 1,000 mPa
  • Accuracy
    Density: 0.001 g/cm3 Temperature: ±0.2 °C (±0.4 °F)
  • Resolution
    0.0001 g/cm3

What is the measurement range of the SG-Ultra Max Digital Hydrometer / Density Meter?
The density range is 0.000-3.000 g/cm3

Does the SG-Ultra Max work with my solution?
The SG-Ultra Max works with a vast range of solutions across many unique industries. The best method to verify if the unit will work with your solution is to compare the Ultra Max wetted parts list with a chemical compatibility chart of your solution (parts list found below):

SG Ultra Max Wetted Parts List:

  • Borosilicate glass Measuring cell, pump cylinder
  • Kalrez O-ring for SG-Ultra Max Ex Petrol
  • POM (Polyoxymethylene) Faradex Housing for SG-Ultra Max Ex Petrol
  • PP (Polypropylene) Faradex MS002 Housing for SG-Ultra Max
  • PVDF (Polyvinylidene fluoride) Connection block, bolt
  • Viton O-ring for SG-Ultra Max

How accurate is the SG-Ultra Max?
The SG-Ultra Max is accurate to 0.001g/cm3 with repeatability of 0.0005

How does the SG-Ultra Max communicate?
The Ultra Max uses infrared data association communication (IrDA)

What is the measurement range of the SG-Ultra Max?
The density range is 0.000-3.000 g/cm3

How long does the SG-Ultra Max take to display measurement results?
Measurement times vary depending on unit and sample temperature. The sample will have to equilibrate inside the measuring cell. This process generally takes only a few seconds but in some situations may take up to a minute

How many measurements does they SG-Ultra Max Density Meter store?
The maximum stored results are 1,024

What file format is the data imported to the PC as?
Data is exported from the SG-Ultra Max as either a CSV or TXT file. This can be viewed using Microsoft Excel or Exmons Ultra Plus software

What is the maintenance for the SG-Ultra Max digital hydrometer?
Precise measurements demand a well-functioning precision tool. The device should be cleaned after each use. The consumable parts of the Ultra Max should be monitored closely and replaced regularly as needed

How often should I calibrate my SG-Ultra Max digital hydrometer?
It is recommended to have the unit calibrated annually
