• Temperature resolution ±1ºC
• Accommodates 3 melting point capillaries of up to 2mm outside diameter
• Tube guide removal forcleaning and use of cold finger
• 32-bit processor
• 4 x 1 melt memory capacity
• 3-key membrane keypad

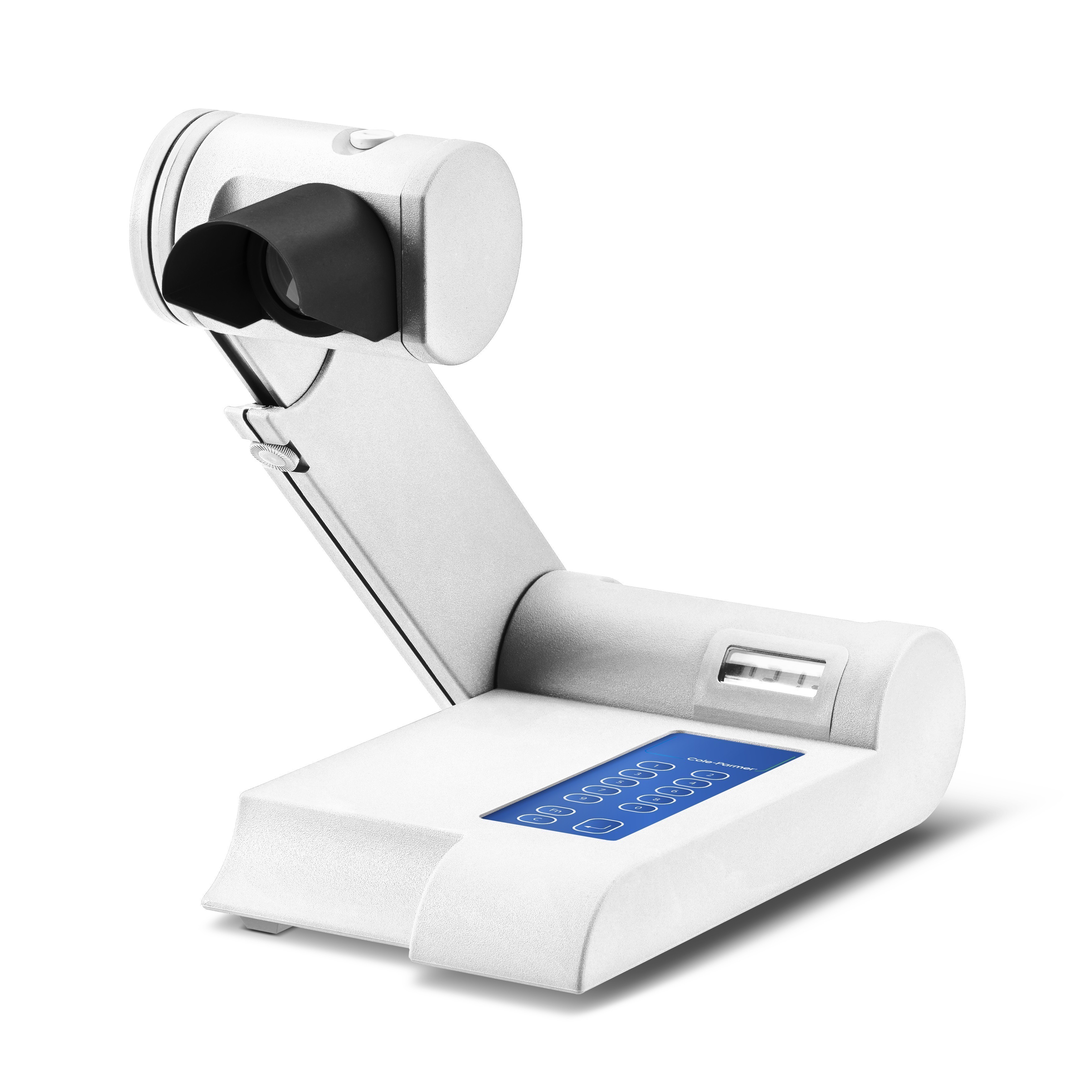

The Cole-Parmer® updated and improved MP-250D series digital melting point apparatus offers an easy way to measure the melting points of samples without sacrificing accuracy; the temperature resolution is within 0.1°C. It is ideal for multiple users, being ergonomically designed to ensure comfortable viewing for everyone, with a height-adjustable extension arm and a viewing head that may be rotated to suit each user. As a visual aid, the viewing head holds a viewing magnifier that offers 8X magnification. The melting point apparatus has a membrane keypad with easy-to-use menus.

As a further convenience, the extension arm is completely collapsible and can be neatly folded away into the unit, so that the unit can be stored flat to save space. The MP-250D-P and MP-250D-PR melting point apparatus models offer the option of storing 500 to 1000 melting point determinations and can be connected to a printer. Each MP-250D series model comes supplied with a pack of 100 capillary tubes.

Performance

• Membrane keypad with simple menus for intuitive use
• Push button controls are conveniently located to ensure that temperatures can be recorded without looking away from the sample
• Digital microprocessor with ±0.1°C resolution provides fast warm-up and accurate temperature control
• Samples in 3 capillary tubes may be viewed



Safety and convenience

• 3 Audible beeps indicate that the oven temperature is stable and ready for sample
• Adjustable arm with viewing magnifier can be folded away into the unit
• Adjustable object lens for sharp focus
• Rotating viewing head and safety eye piece to protect against glare and hot zone
• Integral light and wide angle 8X viewing magnifier enhance sample observation, so that all 3 samples can be viewed without eye strain
• Units can be calibrated by the user on their site or by the manufacturer/ service If calibrated by the user, a calibration kit is required
• Improved calibration procedure using a calibration key

Technical Specification
