Carbolite Peak Range PF Series Fan Assisted Convection Laboratory Oven

Score: 5.00 (votes: 1)
No reviews.


SKU Capacity (L) Dimensions: Internal H x W x D (mm) Volts Weight (In Grams) Price (excluding VAT) Availability Qty To Purchase
Carbolite Peak Range PF Series Fan Assisted Convection Laboratory Oven PF030-208SN 28 300 x 290 x 320 200 - 210 V single phase 0 £2145.00 Usually Shipped in 7-8 Weeks Contact Us for Exact Information
Carbolite Peak Range PF Series Fan Assisted Convection Laboratory Oven PF030-230SN 28 300 x 290 x 320 220 - 240 V single phase 0 £2145.00 Usually Shipped in 7-8 Weeks Contact Us for Exact Information
Carbolite Peak Range PF Series Fan Assisted Convection Laboratory Oven PF060-208SN 66 400 x 390 x 420 200 - 210 V single phase 0 £2335.00 Usually Shipped in 7-8 Weeks Contact Us for Exact Information
Carbolite Peak Range PF Series Fan Assisted Convection Laboratory Oven PF060-230SN 66 400 x 390 x 420 220 - 240 V single phase 0 £2335.00 Usually Shipped in 7-8 Weeks Contact Us for Exact Information
Carbolite Peak Range PF Series Fan Assisted Convection Laboratory Oven PF120-208SN 127 500 x 490 x 520 200 - 210 V single phase 0 £2585.00 Usually Shipped in 7-8 Weeks Contact Us for Exact Information
Carbolite Peak Range PF Series Fan Assisted Convection Laboratory Oven PF120-230SN 127 500 x 490 x 520 220 - 240 V single phase 0 £2585.00 Usually Shipped in 7-8 Weeks Contact Us for Exact Information
Carbolite Peak Range PF Series Fan Assisted Convection Laboratory Oven PF200-120SN 230 750 x 590 x 520 110 - 120 V single phase 0 £3305.00 Usually Shipped in 7-8 Weeks Contact Us for Exact Information
Carbolite Peak Range PF Series Fan Assisted Convection Laboratory Oven PF200-208SN 230 750 x 590 x 520 200 - 210 V single phase 0 £3305.00 Usually Shipped in 7-8 Weeks Contact Us for Exact Information
Carbolite Peak Range PF Series Fan Assisted Convection Laboratory Oven PF200-230SN 230 750 x 590 x 520 220 - 240 V single phase 0 £3305.00 Usually Shipped in 7-8 Weeks Contact Us for Exact Information
Carbolite Peak Range PF Series Fan Assisted Convection Laboratory Oven PF400-208SN 460 1500 x 605 x 510 200 - 210 V single phase 0 £11070.00 Usually Shipped in 7-8 Weeks Contact Us for Exact Information
Carbolite Peak Range PF Series Fan Assisted Convection Laboratory Oven PF400-230SN 460 1500 x 605 x 510 220 - 240 V single phase 0 £11070.00 Usually Shipped in 7-8 Weeks Contact Us for Exact Information
Carbolite Peak Range PF Series Fan Assisted Convection Laboratory Oven PF400-400TN 460 1500 x 605 x 510 380 - 415 V three phase + N 0 £11070.00 Usually Shipped in 7-8 Weeks Contact Us for Exact Information
Carbolite Peak Range PF Series Fan Assisted Convection Laboratory Oven PF800-230SN 910 1500 x 1200 x 510 220 - 240 V single phase 0 £14355.00 Usually Shipped in 7-8 Weeks Contact Us for Exact Information
Carbolite Peak Range PF Series Fan Assisted Convection Laboratory Oven PF800-230TX 910 1500 x 1200 x 510 220 - 240 V three phase no N 0 £14355.00 Usually Shipped in 7-8 Weeks Contact Us for Exact Information
Carbolite Peak Range PF Series Fan Assisted Convection Laboratory Oven PF800-400TN 910 1500 x 1200 x 510 380 - 415 V three phase + N 0 £14355.00 Usually Shipped in 7-8 Weeks Contact Us for Exact Information
  • 400TN Models - Uses 2 phases of a 3 phase and neutral power supply



Carbolite Gero manufactures a range of laboratory ovens for routine lab applications. The laboratory oven models are ideal for general laboratory work and routine heat applications. They all provide excellent temperature uniformity and comply with safety standard BS EN 61010-2-010:2003.

Each laboratory oven may be equipped with a number of options to meet customer requirements. This includes, for example, over-temperature protection, individual shelves and runners for different lab applications, digital timers or more advanced laboratory oven temperature control and programmer systems.

Laboratory ovens of the Peak series 300°C are available as both PF fan convection and PN natural convection models.

Fan convection provides greater temperature uniformity and faster recovery rates than natural convection.

STANDARD FEATURES

  • 300°C (PF 30 to PF 200) or 250°C (PF 400, PF 800) maximum operating temperatures
  • 28 to 910 litre chamber volumes
  • Equipped with the R38 digital PID temperature controller (PF 30 to PF 200)
  • Carbolite Gero 301 controller, with single ramp to set-point & process timer (PF 400 & PF 800)
  • Fan convection for rapid heating & recovery & excellent uniformity
  • Chemically resistant stainless steel liner
  • Two nickel-chrome plated wire shelves (The PF 400 is supplied with 3 wire shelves, the PF 800 with 3 perforated stainless steel shelves)
  • Lever latch door & airtight silicone seal
  • Compliant with safety standard BS EN 61010-2-010:2003

OPTIONS (SPECIFY THESE AT TIME OF ORDER)

  • A range of sophisticated digital controllers, multisegment programmers and data loggers with digital communication options is available
  • Over-temperature protection (recommended to protect valuable contents & for unattended operation)
  • Access port for independent thermocouple
  • Accessory shelves & runners
  • Heavy duty reinforced base and shelves
  • Cable entry ports
  • Variable speed fan control
  • Stoving & curing options for extraction of small volumes of volatile solvents (not compatible with viewing window option)
  • Viewing window (not compatible with stoving & curing option)
  • Interior light (not compatible with stoving & curing option)

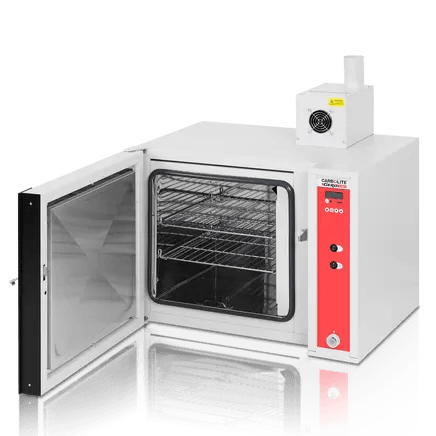

  • Air exhaust fan
  • Moisture extraction option (comprising sealed seams and air exhaust fan)
  • Stacking frame to enable units to be stacked one upon another
  • Lockable door
  • Door switch to isolate elements and fan
  • Fixed or castor mounted floor stands
  • Low voltage options for use below 220 V
  • Routine spares kit



LABORATORY OVEN APPLICATIONS

Convection based laboratory ovens are extremely versatile pieces of equipment which can be used for a wide range of different functions.

The most basic use of a laboratory oven is for drying and sterilising equipment, often glassware. Laboratory ovens can also be used for heating, dehydrating, or softening samples, as well as numerous other laboratory applications across various industries. Industries in which laboratory ovens are invaluable pieces of equipment include civil engineering, the technology industry, and healthcare.

Laboratory ovens use thermal convection to deliver heat to the chamber, which allows them to maintain uniform temperatures. Natural convection ovens are the most economical option and are well suited for applications where the increased airflow of a fan assisted convection oven would be problematic. By comparison, fan assisted convection ovens are able to achieve greater temperature uniformity and offer faster recovery rates.


Technical Data

Model

Max. temp. [°C]

Temp. stability [°C]

Temperature uniformity [°C]

Heat-up time [mins]

Recovery time [mins]

Dimensions: Internal

H x W x D

[mm]

Dimensions: External

H x W x D

[mm]


 Shelves fitted / accepted   Shelf loading each / total [kg]

Volume

[litres]


 Air Changes/hr    Max. power [W] Holding power [W]

Weight

[kg]

PF 30

300

± 0.2

± 5.0 @

300 °C

40

4

300 x 290 x 320

470 x 665 x 470

(Bench-top)

2 / 3

10 / 20

28

50 /

312*

1000

560

37

PF 60

300

± 0.2

± 5.0 @

300 °C

36

4

400 x 390 x 420

570 x 765 x 570

(Bench-top)

2 / 5

10 / 30

66

21 /

137*

1500

775

55

PF 120

300

± 0.2

± 5.0 @

300 °C

35

4

500 x 490 x 520

670 x 865 x 670

(Bench-top)

2 / 9

10 / 40

127

11 / 72*

2000

900

74

PF 200

300

± 0.2

± 5.0 @

300 °C

42

5

750 x 590 x 520

920 x 965 x 670

(Bench-top)

2 / 15

10 / 50

230

6 / 40*

2700

1180

96

PF 400

250

± 0.2

± 5.0 @
250 °C

85

25

1500 x 605 x 510

1835 x 1025 x 1100
(Floor-standing)

3/14

10/75

460

66*

6000

2200

200

PF800

250

± 0.2

± 5.0 @
250 °C

100

30

1500 x 1200
x 510

1835 x 1615 x 1100
(Floor-standing)

3/7

10/100

910

33*

9000

3500

280



    • SKU
      PF030-208SN
    • Commodity Codes
      85141980
  • Manufacturer
    Carbolite Gero Limited
  • Country of Origin
    United Kingdom
  • Temperature Range
    Ambient +30°C to 300°C
  • Capacity (L)
    28, 66, 127, 230, 460, 910
  • Dimensions: Internal H x W x D (mm)
    300 x 290 x 320, 400 x 390 x 420, 500 x 490 x 520, 750 x 590 x 520, 1500 x 605 x 510, 1500 x 1200 x 510
  • Volts
    110 - 120 V single phase, 200 - 210 V single phase, 220 - 240 V single phase, 220 - 240 V three phase no N, 380 - 415 V three phase + N
  • Temperature Controller Included
    R38 PID Controller
  • Air Convection
    Fan Assisted Convection

WHAT IS A LABORATORY OVEN?

A laboratory oven is a heating device that meets the precise temperature control and temperature uniformity requirements of laboratory work. It is a standard piece of equipment in many labs, used for a wide range of applications such as drying, evaporating, or curing. Depending on the requirements, laboratory ovens vary in size and volume as well the maximum temperature they can reach.

WHAT IS THE TYPICAL OPERATING TEMPERATURE OF A LABORATORY OVEN?

The typical operating temperature of a laboratory oven is entirely dependent on the application requirements. Carbolite Gero supplies ovens with maximum temperatures ranging up to 300°C for applications such as drying and moisture extraction, and ovens for applications such as annealing and sintering that can require temperatures up to 600 or 700°C.

WHAT IS THE TYPICAL SIZE OF A LABORATORY OVEN?

Carbolite Gero laboratory ovens range in size from 30 litres up to 910 litres. Ovens with capacities up to 200 litres are usually mounted directly onto work benches, whereas larger ovens are typically floor standing.

IS A LABORATORY OVEN SUITABLE FOR DRYING MATERIAL?

A laboratory oven is suitable for drying materials so long as the oven chamber is ventilated. Standard ovens usually have vents that can be opened. Additional ventilation can often be provided by using a moisture extraction fan. You should also consider the material being dried. For lightweight materials and powders the best choice may be a natural convection oven with a vent to avoid blowing material around the chamber.

WHAT SHOULD I CONSIDER WHEN BUYING A LABORATORY OVEN?

When buying a laboratory oven, you should consider the required volume, the maximum temperature, and the temperature uniformity required. It is important to consider the application. If the main purpose is the drying of samples, it may be beneficial to consider modifications specifically designed for moisture extraction. Similarly, if the samples contain low levels of solvents, explosion relief panels and other options designed to relieve pressure and reduce the risk of explosions are required.

WHAT IS THE DIFFERENCE BETWEEN A DOMESTIC AND A LABORATORY OVEN?

A laboratory oven generally has a higher build standard than a domestic oven. Laboratory ovens typically have stainless steel liners designed to withstand the harsher processes, and continuous use, common within commerical laboratories.

IS IT POSSIBLE TO PLACE SAMPLES WITH SOLVENT INSIDE A LABORATORY OVEN?

It is possible to place samples with solvents inside a laboratory oven, provided that the oven is designed to withstand the explosive vapours produced by such processes. Ovens intended for stoving and curing processes should adhere to the safety standard EN1539. Such ovens should include safety features such as explosion relief panels, and airflow levels appropriate for the calculated solvent level of sample materials.






Natural or fan convection?

Simple ovens do not have a fan fitted, but have elements mounted in the chamber base. Air circulates by convection; the warmed air at the base initially rises then falls as it cools. The resulting slow airflow is preferable, for example, for processes involving powders which may be disturbed by fan convection or where there is a risk of cross contamination between samples.

In fan convection ovens the elements are located on the side of the oven and on smaller ovens the fan blows air through an air-guide, over the heating elements and around the chamber. On larger ovens, where there is room for a more complex air guide, the fan pulls air over the elements. The fan action thoroughly mixes the heated air, equalising its temperature before blowing it around the chamber and over the sample. This provides a uniform volume within the oven chamber for applications that require a specific temperature uniformity

Advantages of fan convection

  • Ovens heat up and recover the temperature more quickly
  • The higher airflow improves the contact between the sample/load and as a result the sample/load also heats up faster
  • The airflow conveys the heat to the temperature sensor more quickly, resulting in improved control stability
  • The temperature uniformity is improved
  • The fan promotes higher airflow in and out of the chamber and speeds up drying by faster removal of vapour (water or solvents – see additional note regarding the use of solvents in ovens) • Variable speed fans are also offered which can be a solution to the problem of disturbing the samples/cross contamination
