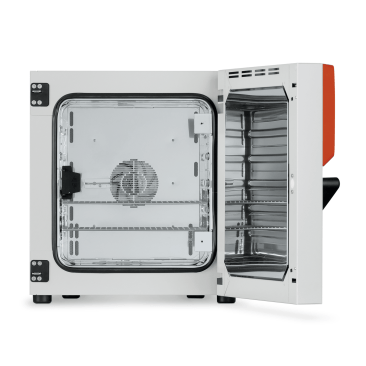

Binder Series BF Avantgarde.Line | Standard Incubators with Forced Convection
The completely redesigned Avantgarde.Line incubators with gravity convection or forced convection are now the perfect solution when it comes to meeting growth and incubation requirements. With their exceptional efficiency and perfect temperature accuracy thanks to the very latest APT.line™ technology, this new generation of incubators has real appeal.
Series BF Avantgarde.Line | Standard-Incubators with forced convection
The BINDER incubator of the BF Avantgarde.Line series with forced convection is suitable for all gentle incubation applications, particularly under a full load and large batch throughputs. This incubator is extremely homogeneous and has quick recovery times.
Incubators with forced convection for challenging incubation tasks
BINDER offers incubators to suit different laboratory requirements. Alongside incubators with mechanical adjustment, the Classic.Line also includes incubators with natural convection and, in the BF series, incubators with forced convection, which guarantee quick temperature equalization through forced convection after the chamber door has been opened.
Operating within a temperature range of between 5 °C and 100 °C, these incubators with forced convection all have an adjustable exhaust air flap and the fan speed can be adjusted on an individual basis. The proven APT.line™ preheating chamber technology and the cooling system guarantee maximum precision and results that are reproducible in every laboratory test.
Incubators with forced convection for precision, functionality, and usability
The BINDER BF series incubators with forced convection are also ideal for challenging incubation tasks, with safety and precision guaranteed even when fully loaded and under high batch throughputs. Operation with forced convection is unbelievably homogeneous, while the incubator also offers speedy recovery times. The incubator with forced convection boasts high usability thanks to its straightforward controller with timer functions. The units can be stacked on top of one another for an optimum ratio between use and space needed. Reliable decontamination is another advantage afforded by these incubators. The disinfection routine at 100 °C minimizes the risk of contamination, while the premium stainless steel inner chamber does not have any built-in fixtures, allowing for ease of cleaning.
This BINDER incubator with forced convection is energy efficient, so is also extremely economical during operation
Benefits
- Excellent temporal and spatial temperature accuracy
- High process reliability
- 100 °C disinfection routine
Important characteristics
- Temperature range (model 56 | 260): +7 °C above ambient temperature to +100 °C
- Temperature range (model 115): +8 °C above ambient temperature to +100 °C
- High temperature accuracy thanks to APT.line™ technology
- Forced convection
- Controller with LCD display
- Electromechanical control of the exhaust air flap
- Inner door made of tempered safety glass
- 2 chrome-plated racks
- Units up to 115 L are stackable
- 4 stable castors, two with brakes, from 720 liters
- Class 3.1 integrated independent temperature safety device (DIN 12880) with visual alarm
- Ergonomic handle design
- USB port for recording data
Technical Data
|
|
Model BF 56 |
Model BF 115 |
Model BF 260 |
Model BF 720 |
|
Temperature range |
+7 °C above ambient temperature to 100 °C |
+8 °C above ambient temperature to 100 °C |
+7 °C above ambient temperature to 100 °C |
+10 °C above ambient temperature to 100 °C |
|
Temperature uniformity at 37°C |
0.2 ± K |
0.3 ± K |
0.2 ± K |
0.3 ± K |
|
Temperature uniformity at 100°C |
1 ± K |
1.6 ± K |
1.2 ± K |
1.6 ± K |
|
Temperature fluctuation at 37°C |
0.1 ± K |
0.1 ± K |
0.1 ± K |
0.1 ± K |
|
Temperature fluctuation at 100°C |
0.2 ± K |
0.2 ± K |
0.3 ± K |
0.2 ± K |
|
Heating up time to 37°C |
6 min |
8 min |
7 min |
15 min |
|
Heating up time to 100°C |
35 min |
65 min |
30 min |
45 min |
|
Recovery time after door was opened for 30 s at 37°C |
3 min |
3 min |
3 min |
4 min |
|
Permitted load |
70 kg |
150 kg |
270 kg |
315 kg |
|
Load per rack |
30 kg |
30 kg |
40 kg |
45 kg |
|
Net weight of the unit (empty) |
40 kg |
56 kg |
82 kg |
165 kg |
|
Width net |
560 mm |
710 mm |
810 mm |
1165 mm |
|
Height net |
625 mm |
725 mm |
845 mm |
1590 mm |
|
Depth net |
565 mm |
605 mm |
760 mm |
870 mm |
|
Width gross including packing |
640 mm |
790 mm |
900 mm |
1250 mm |
|
Height gross including packing |
840 mm |
950 mm |
1170 mm |
1820 mm |
|
Depth gross inclusive packing |
790 mm |
720 mm |
885 mm |
950 mm |
|
inner space width |
400 mm |
550 mm |
650 mm |
1000 mm |
|
inner space height |
440 mm |
550 mm |
780 mm |
1300 mm |
|
inner space deep |
340 mm |
380 mm |
510 mm |
565 mm |
|
Wall clearance back |
160 mm |
160 mm |
160 mm |
160 mm |
|
Wall clearance sidewise |
100 mm |
100 mm |
100 mm |
100 mm |
|
Power frequency |
50/60 Hz |
50/60 Hz |
50/60 Hz |
50/60 Hz |
|
Nominal power |
0,4 kW |
0,4 kW |
0,9 kW |
1,75 kW |
|
Unit fuse |
6,3 A |
6,3 A |
8,0 A |
|
|
Phase (Nominal voltage) |
1~ |
1~ |
1~ |
1~ |
|
Energy consumption at 37°C |
55 Wh/h |
60 Wh/h |
65 Wh/h |
130 Wh/h |
|
Energy consumption at 100°C |
190 Wh/h |
235 Wh/h |
275 Wh/h |
580 Wh/h |
|
Sound-pressure level |
43 dB(A) |
43 dB(A) |
43 dB(A) |
43 dB(A) |
|
Interior volume |
59 L |
114 L |
257 L |
734 L |
|
Convection type |
Forced convection |
Forced convection |
Forced convection |
Forced convection |
|
Humidity |
no |
no |
no |
no |
-
ManufacturerBINDER GmbH
-
Country of OriginGermany
-
Interior Volume [L]59, 114, 257, 734
-
Internal Dimensions (mm)340 x 440 x 400, 380 x 550 x 550, 510 x 780 x 650, 565 x 1300 x 1000
-
ModelBF056-230V, BF115-230V, BF260-230V, BF720-230V
-
Rated Voltage230 V 1~ 50/60 Hz, 120 V 1~ 60 Hz, 240 V 1~ 60 Hz
-
Temperature Range+7-8 °C above ambient temperature to +100 °C, +8°C above ambient temperature to +100°C, 10°C above ambient temperature to +100°C, +5°C above ambient temperature to +100°C
-
ConvectionForced, Natural
