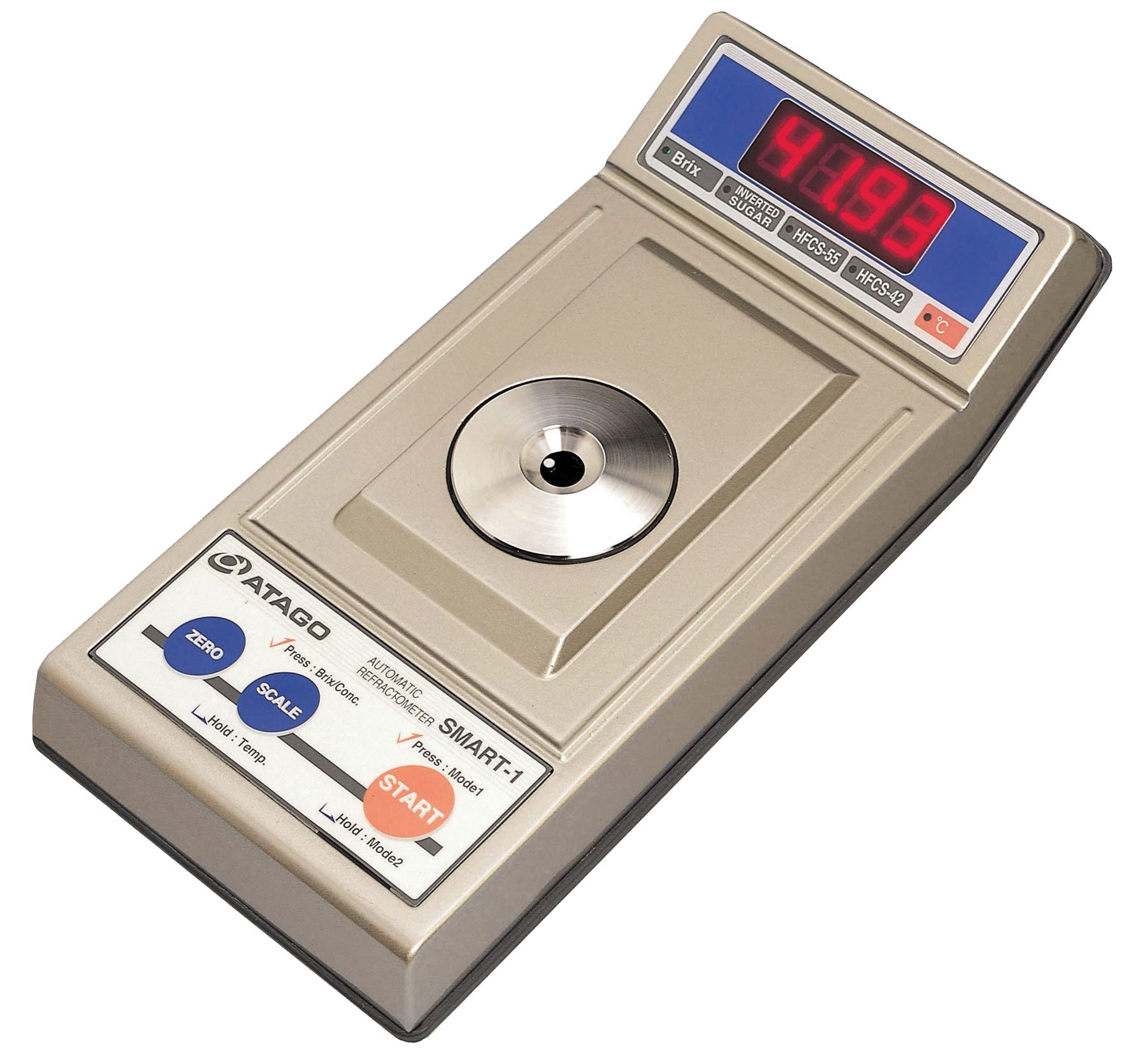

Atago SMART-1 Automatic Digital Bench-Top Refractometer

Score: 5.00 (votes: 1)
No reviews.



The Atago SMART-1 Automatic Digital Bench-Top Refractometer is an advanced, automated refractometer designed for precise and high-accuracy measurements of the refractive index and concentration of various liquids. This model is part of Atago’s SMART series, offering users an intuitive, efficient, and highly accurate method for analyzing liquid samples, commonly used in laboratories and industrial settings.

SKU Measuring System Measurement Range Measurement Accuracy Model Weight (In Grams) Price (excluding VAT) Availability Qty To Purchase
Atago SMART-1 Automatic Digital Bench-Top Refractometer 3150 Optical Refraction Critical Angle Detection System Brix , Inverted Sugar Concentration, HFCS-55, HFCS-42 - 0.00 to 95.00% Brix , Inverted Sugar Concentration, HFCS-55, HFCS-42 - ±0.05% SMART-1 3000 £6000.00 1 + -

The Brix, Inverted sugar or High Fructose Corn Syrup concentration can be measured in a range of 0.00 to 95.00% and with a high accuracy of ± 0.05% !

The SMART-1 has Automatic Temperature Compensation function.

  • Brix
  • Inverted sugar concentration
  • HFCS-55 (High Fructose Corn Syrup)
  • HFCS-42 (High Fructose Corn Syrup)


This product comes standard with a two (2) year limited warranty against manufacturer's defects from the date of the original purchase. This warranty does not cover or apply to the prism. The warranty period can be extended to three (3) years if the product is registered with ATAGO.

Technical Specifications

Model SMART-1
Cat.No. 3150
Scale Brix
Inverted sugar concentration
HFCS-55
HFCS-42
Measurement Range [1] Brix : 0.00 to 95.00 % (ATC)
[2] Inverted sugar concentration : 0.00 to 95.00 % (ATC)
[3] HFCS-55 (High Fructose Corn Syrup) : 0.00 to 95.00 % (ATC)
[4] HFCS-42 (High Fructose Corn Syrup) : 0.00 to 95.00 % (ATC)
*Automatic Temperature Compensation
Resolution [1] Brix : 0.01 %
[2] Inverted sugar concentration : 0.01 %
[3] HFCS-55 (High Fructose Corn Syrup) : 0.01 %
[4] HFCS-42 (High Fructose Corn Syrup) : 0.01 %
Measurement Accuracy [1] Brix : ± 0.05 % (on measurement of sucrose)
[2] Inverted sugar concentration : ± 0.05%
[3] HFCS-55 (High Fructose Corn Syrup) : ± 0.05 %
[4] HFCS-42 (High Fructose Corn Syrup) : ± 0.05 %
Repeatability [1] Brix : 0.01 %
[2] Inverted sugar concentration : 0.01 %
[3] HFCS-55 (High Fructose Corn Syrup) : 0.01 %
[4] HFCS-42 (High Fructose Corn Syrup) : 0.01 %
Temperature Compensation range 5 to 40°C
Power Supply AC100V to 240V, 50/60Hz
International Protection Class IP64 (Excluding AC adapter)
Dust-tight and Protected against splashing water.
Computer Communication Communication system : RS-232C
Dimensions & Weight 12×27×9cm, 2.0kg
(Main Unit only)
Power consumption 15VA
Output terminals (1) Digital Printer DP-63(A) (Optional) is used.
(2) Communication system: RS-232C
Warranty 2 years standard (3 years with product registration) excluding prism


Key Features of Atago SMART-1 Automatic Digital Bench-Top Refractometer:

  1. Automatic Measurement:

    • The SMART-1 offers fully automated measurements, making it ideal for environments where speed and accuracy are essential.
    • It automatically adjusts the measurement settings and processes, eliminating the need for manual intervention. This increases workflow efficiency and minimizes the risk of human error.

  2. High Accuracy and Precision:

    • The Atago SMART-1 provides precise readings with a high degree of accuracy (typically ±0.0001 refractive index or ±0.1 Brix). This is essential in scientific research, quality control, and industrial applications where accuracy is crucial for consistent product quality.
    • The refractometer is ideal for testing a wide variety of liquids, including aqueous solutions, oils, syrups, chemicals, and beverages.

  3. Wide Range of Measurement:

    • It can measure a wide range of concentrations, often from 0 to 100% Brix (sugar concentration) or 0.0000 to 1.6000 refractive index, depending on the application. This versatility allows it to be used in multiple industries, from food and beverage production to chemical analysis.

  4. User-Friendly Touchscreen Interface:

    • The SMART-1 features a large, user-friendly touchscreen interface that makes it easy to set up, operate, and read results. The digital display is clear and intuitive, reducing the learning curve for new users.
    • The touchscreen simplifies navigation, allowing users to switch between measurement modes and access advanced settings with ease.

  5. Automatic Temperature Compensation (ATC):

    • Automatic Temperature Compensation (ATC) ensures that the readings are accurate despite temperature fluctuations in the sample. Since refractive index measurements can be temperature-sensitive, ATC is an essential feature for obtaining reliable results.
    • It adjusts the measurement automatically to account for changes in temperature, providing consistent and reliable readings across a wide range of environmental conditions.

  6. Large Sample Volume Capability:

    • The SMART-1 is designed to accommodate a larger sample volume compared to portable handheld refractometers. This is particularly useful when dealing with high-throughput testing or when larger samples are needed for more accurate results.

  7. Quick Measurement Time:

    • With its automated system, the SMART-1 can provide results in a matter of seconds. This rapid processing time is beneficial for high-volume environments that require fast results without sacrificing accuracy.

  8. Memory Storage and Data Logging:

    • The SMART-1 can store multiple measurement results, which can be accessed later for analysis or record-keeping. This feature is especially useful in laboratories and industrial quality control settings where data traceability is essential.
    • The data can typically be exported to external devices such as a computer or printer for further analysis and reporting.

  9. Advanced Cleaning Function:

    • Some models of the SMART-1 include an automatic cleaning function for the prism area, ensuring that the sample chamber remains free from contamination between tests. This reduces the need for manual cleaning, further enhancing the convenience of the device.

  10. Flexible Connectivity Options:

    • The SMART-1 can often be connected to other devices for data transfer or integration into larger laboratory systems. This connectivity may include USB, LAN, or Bluetooth, enabling seamless data sharing and compatibility with laboratory information management systems (LIMS).

Applications of the Atago SMART-1 Automatic Digital Bench-Top Refractometer:

  1. Food and Beverage Industry:

    • In the food and beverage sector, the SMART-1 is used to measure parameters like Brix in juices, syrups, soft drinks, and alcohol. It helps producers monitor sugar concentrations during production and ensure product consistency and quality.
    • It is also used to measure the concentration of alcohol in beverages such as wine, beer, and spirits, ensuring that they meet the desired specifications.

  2. Chemical Industry:

    • In chemical manufacturing, the SMART-1 can be used to determine the concentration of various chemicals, solvents, or solutions.
    • Accurate refractive index measurements can help in formulating and maintaining the quality of chemicals, resins, and other products.

  3. Pharmaceutical and Laboratory Applications:

    • In pharmaceutical and laboratory environments, this refractometer can be used to analyze the concentration of active ingredients in solutions or to monitor the purity of compounds.
    • It is also ideal for research and development (R&D) in laboratories that require high-precision measurements for testing chemical compositions.

  4. Quality Control and Monitoring:

    • The SMART-1 is commonly used in quality control labs across industries to ensure that the products meet the desired specifications and regulatory requirements.
    • It is suitable for monitoring the consistency of products in large-scale production environments where deviations from standard values must be quickly identified and corrected.

  5. Agriculture and Horticulture:

    • In agriculture, the refractometer can be used to measure the sugar content in crops like fruits, vegetables, and other produce. This can help growers determine the optimal harvesting time and ensure that their products meet quality standards.

How It Works:

The SMART-1 operates on the principle of measuring the refractive index of a liquid sample. The refractive index is a measure of how much light bends as it passes through a substance. The device shines light through the liquid, and the light's angle of refraction is measured to determine the concentration of dissolved substances, such as sugars, salts, or alcohol.

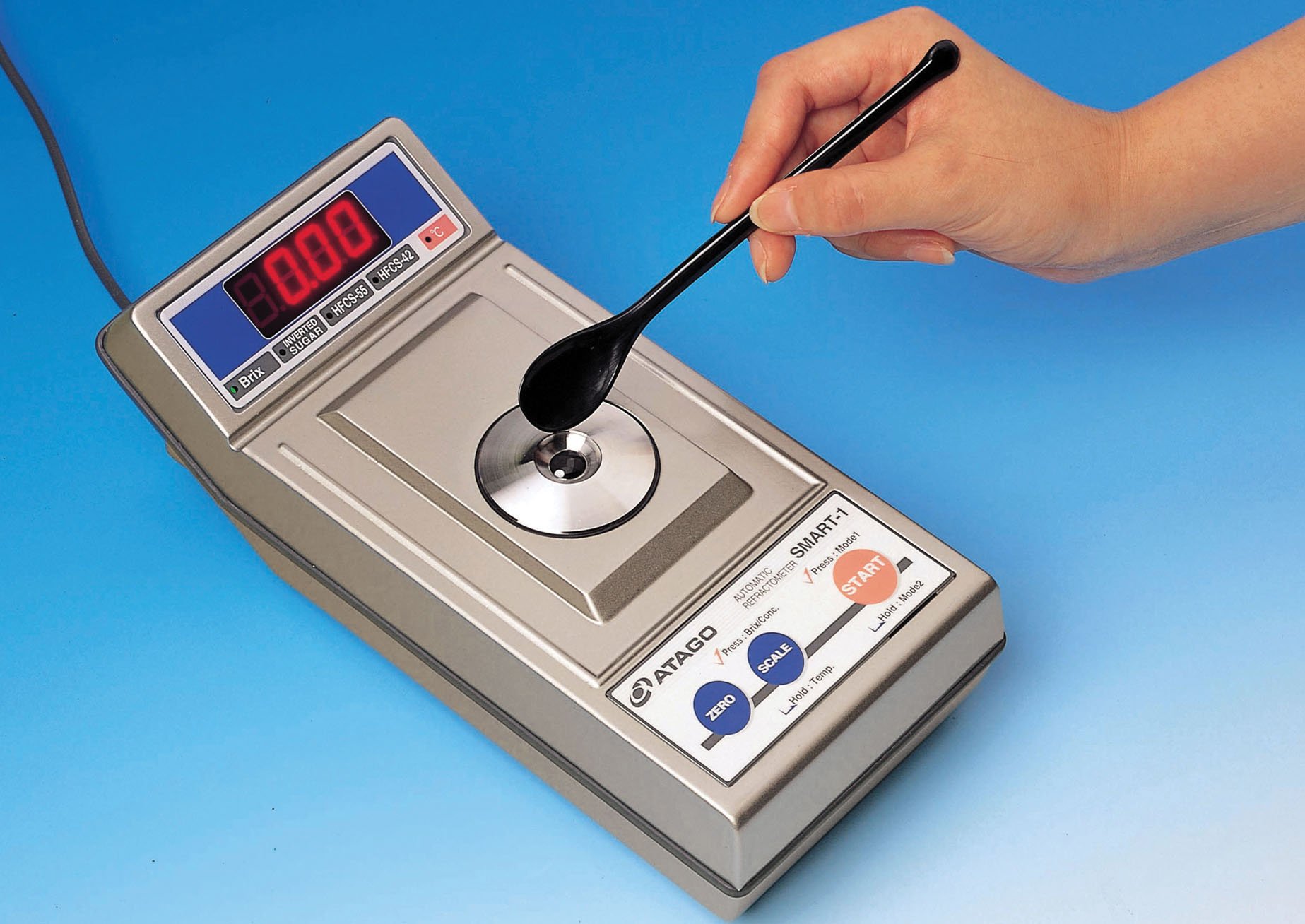

  1. Sample Placement: A few drops of the sample are placed on the prism surface.
  2. Light Interaction: The device shines light through the sample, and the angle of refraction is measured.
  3. Calculation: The refractometer then calculates the concentration of dissolved solids (such as sugar or alcohol) based on the refractive index and displays the results.
  4. Automatic Temperature Compensation: The device compensates for any temperature variation in the sample, ensuring consistent and reliable results.

Benefits of the Atago SMART-1:

  1. High Precision: Ensures accurate measurements for a wide variety of liquids.
  2. Automated System: Saves time and effort by automating the measurement process.
  3. Ease of Use: Simple touchscreen interface allows for intuitive operation.
  4. Efficiency: Fast and accurate readings enhance workflow in laboratories or industrial production.
  5. Versatility: Capable of measuring a wide range of concentrations, from Brix to refractive index.
  6. Long-Term Reliability: Durable and designed for high-throughput use in various industries.


Typical Samples

Fruit juice
Tea drinks
Coffee drinks
Lactic drinks Concentrated fruit juice Puree
Liquid sugar
Glucose
Honey
Marmalade
Condensed milk
Soy sauce
Sauce
Ketchup
Soup
Wort
Vinegar
Pickle(Liquid)
Waste liquid of sugar
Water-soluble cutting oil Quenching oil
Water-soluble detergent Coolant and brine solutions Ethylene glycol
Propylene glycol
Rust Preventive
IPA
PVA
Ethanol
Alkaline solution
Sodium carbonate
Acetic acid
Amino acid
Protein
Gelatin
Salt water

Seawater
Coating solution
Waste liquid of alcohol Sodium hydroxide Sodium glutamate
Citric acid
Glycerin
Cesium chloride
Calcium chloride
Fire extinguishing solution Coating liquid
etc.



Options

  • RS-232C cable For Personal Computer : RE-45302
  • Calibration Certificate

 Parts
  • Printer paper (regular) for Thermal printer : RE-8412
  • Printer paper (long-term storage) for Thermal printer : RE-8414
    • Weight (In Grams)
      3000 g
    • SKU
      3150
    • Commodity Codes
      90275000
  • Manufacturer
    Atago Co Ltd
  • Country of Origin
    Japan
  • Measuring System
    Optical Refraction Critical Angle Detection System, Not Applicable
  • Measurement Range
    Brix , Inverted Sugar Concentration, HFCS-55, HFCS-42 - 0.00 to 95.00%, Not Applicable
  • Measurement Accuracy
    Brix , Inverted Sugar Concentration, HFCS-55, HFCS-42 - ±0.05%, Not Applicable
  • Model
    SMART-1, Not Applicable
