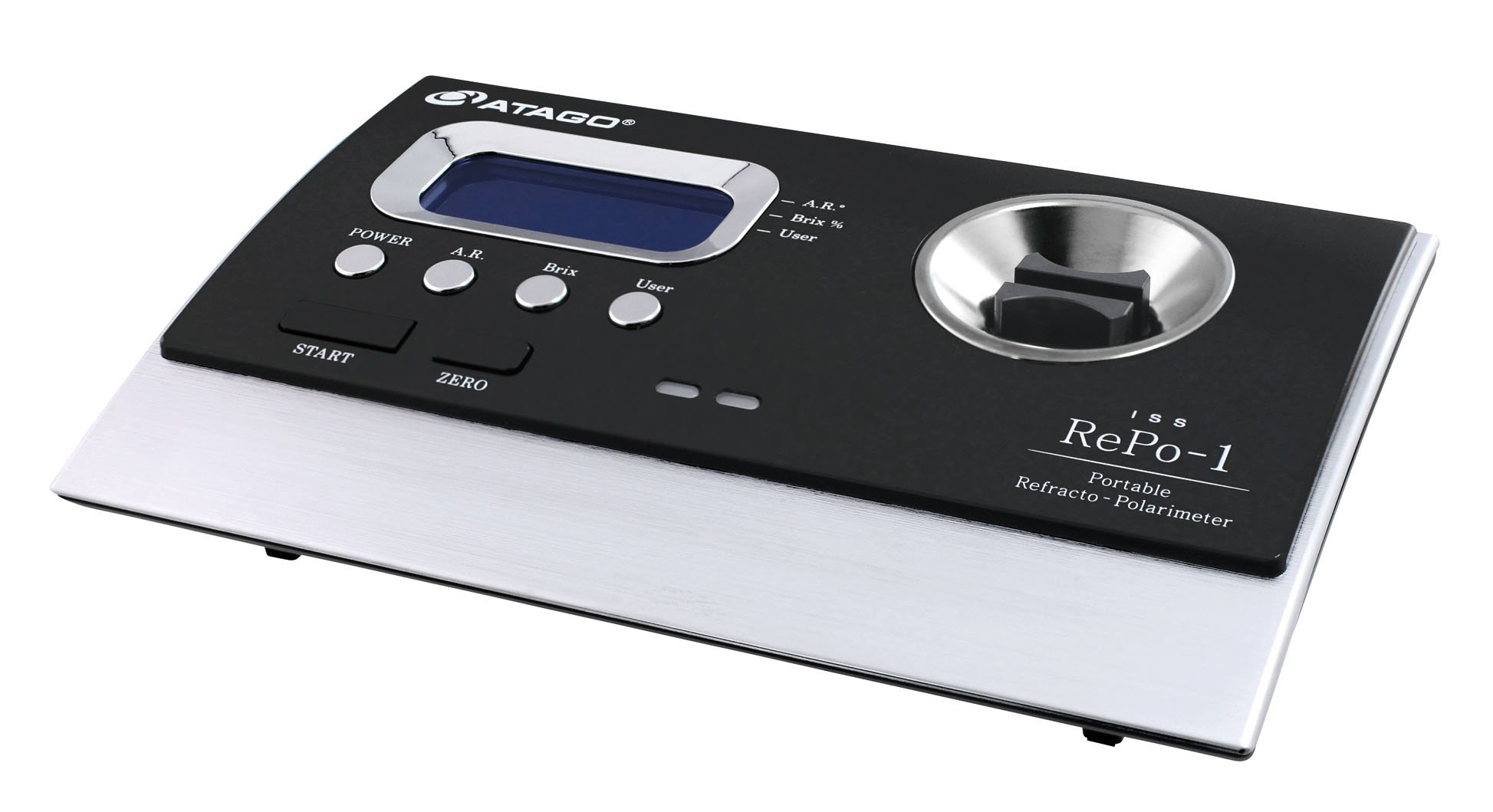

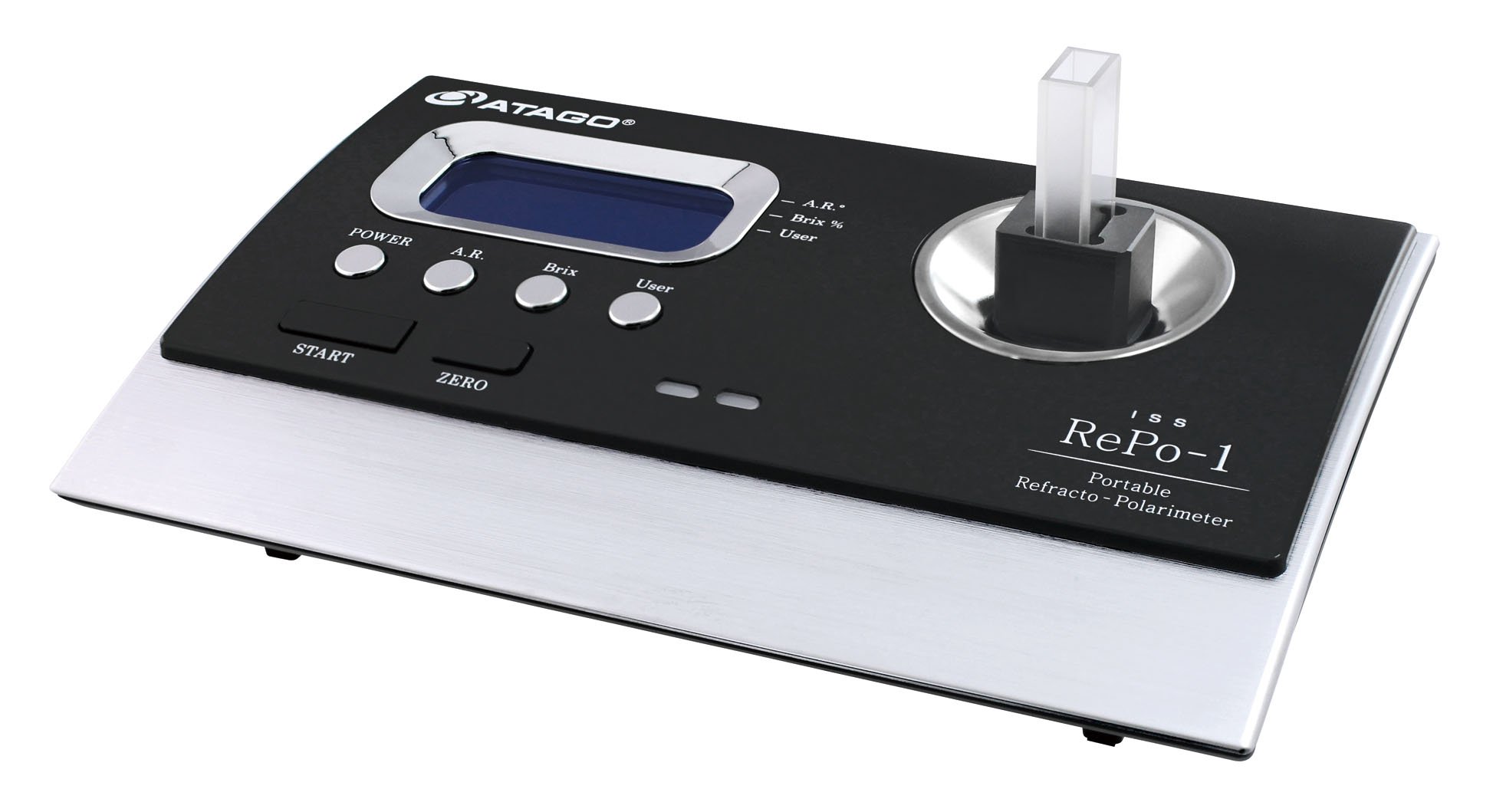

Atago Portable Refracto Polarimeter, RePo Series

	SKU	Measurement Readings	Measurement Range	Model	Price	In Stock	Buy
$Atago Portable Refracto Polarimeter, RePo Series$	5010	Angle of Rotation, Brix, Purity, International Sugar Scale, Specific Rotation	ISS : -130 to +130°Z	RePo-1	£2400.00	Usually Shipped in 2 Weeks	Contact Us for Exact Information
$Atago Portable Refracto Polarimeter, RePo Series$	5012	Fructose (%) in HFCS	Fructose % : 0.0 to 99.9%	RePo-2	£2400.00	Usually Shipped in 2 Weeks	Contact Us for Exact Information
$Atago Portable Refracto Polarimeter, RePo Series$	5013	Invert Sugar (%) converted from Sucrose.	Invert Ratio % : 0.0 to 99.9%	RePo-3	£2400.00	Usually Shipped in 2 Weeks	Contact Us for Exact Information
$Atago Portable Refracto Polarimeter, RePo Series$	5014	Fructose (%) and Honey Moisture (%).	Fructose % : 0.0 to 99.9% and Honey Moisture % : 13.0 to 30.0%	RePo-4	£2400.00	Usually Shipped in 2 Weeks	Contact Us for Exact Information
$Atago Portable Refracto Polarimeter, RePo Series$	5015	Refractive Index(nD)	Refractive Index : 1.3306 to 1.5050	RePo-5	£2400.00	Usually Shipped in 2 Weeks	Contact Us for Exact Information

Technical Specifications and Product Information
ERP Information
Downloads

RePo series Four points

Point 1２ in １

Brix alone can only indicate the overall amount of dissolved solids in a solution. With REPO-1, it is possible to determine if a product has been adulterated by measuring the optical rotation. For example, fructose rotates light to the left while glucose rotates light to the right. If a sample has been adulterated with glucose, it will make the optical rotation readings appear more positive than a pure solution.

Point 2 Compact size

Great portability,
10.1×16.0×3.8cm
and weighs only 325g

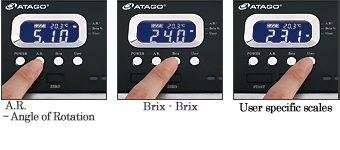

Point 3 Automatically calculated scales

Press "User" to select the desired scale: Purity, International Sugar Scale, Specific Rotation, and Concentration.

Point 4 Measurement evaluation indicator

Measurements are evaluated against pre-set tolerancelimits, and the result is indicated by green or red light.
(Upper and lower tolerance limits must be set in advance to using this function)

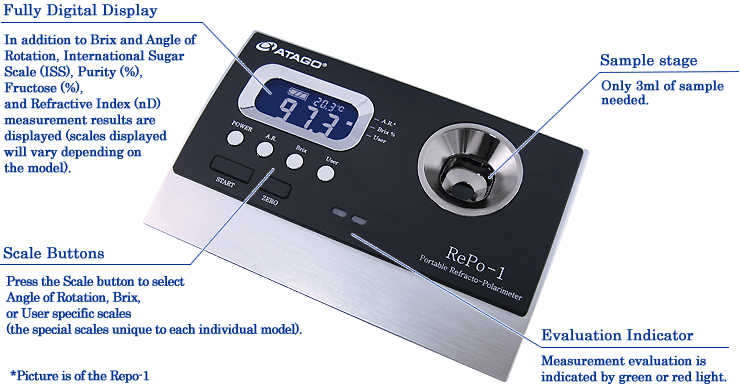

RePo series Features

Features and design that Atago's commitment created

Application Examples

	Sugar industries
Analyzing fragrances
	Analyzing inverted sugar syrups
Honey industries
	Medicine

RePo series Measuring Method

	Fill the sample stage up to the fill line (approx. 3mL).
Press START
	Measurement is displayed.

Specifications

	A fusion of index of refraction and angle of optical rotation making the invisible,visible. Brix can only indicate the overall amount of dissolved solids in a solution. With REPO-1, it is possible to determine if a product has been adulterated by measuring the optical rotation. Announcing an All-in-One, refractometer and polarimeter hybrid unit. As little as 3mL sample, Repo-1 can measure both brix and optical rotation of the sample. With the press of a button, purity, international sugar scale, specific rotation, and concentration can be displayed. Users can also set an upper and lower measurement limit. An indicator light alerts the user if a measurement value is within the limits, allowing for optimal efficiency.“Could a Repo-1 be used in our field?” “How about for my unique application?”We look forward to hearing from you!	Like the RePo-1, the RePo-2 is a two-in-one refractometer and polarimeter hybrid.In addition to angle of rotation and Brix, the RePo-2 also converts and displays the amount of fructose (%) within HFCS. The RePo-2 is ideal for various industries such as food and beverage, or sugar refining.	In addition to angle of rotation and Brix, the RePo-3 also converts and displays the amount of invert sugar (%) derived from sucrose. The RePo-3 is ideal for various industries such as sugar refining.	In addition to angle of rotation and Brix, the RePo-4 also converts and displays the amount of fructose (%) and honey moisture (%). The RePo-4 is ideal for total quality control of honey.	In addition to angle of rotation and Brix, the RePo-5 can also display the refractive index (nD) of a sample. The RePo-5 is ideal for quality control in various industries such as fragrances, cosmetics, or pharmaceutical.RePo-5 satisfies Pharmacopoeia standards.
Model	RePo-1	RePo-2	Repo-3	Repo-4	Repo-4=5
Cat.No.	5010	5012	5013	5014	5015
Measurement Readings	Angle of Rotation International Sugar Scale Purity Specific Rotation Concentration Brix Temperature	Angle of Rotation Brix Fructose % at HFCS Temperature	Angle of Rotation Brix Invert Ratio % at Inverted Sugar Temperature	Angle of Rotation Brix Temperature Fructose% of honey Honey Moisture %	Angle of Rotation Brix Refractive Index Temperature
Range	Angle of Rotation:-5.00 -5.00° Convertible to -25.00°to +25.00°with a 100mm observation tube Convertible to -50.00° to +50.00°with a 200mm observation tube International Sugar Scale: -130 to +130°Z Brix: 0 to 85% Temperature: 15.0 to 40.0℃	Angle of Rotation:-5.00 to +5.00° Convertible to -25.00°to +25.00°with a 100mm observation tube Convertible to -50.00° to +50.00°with a 200mm observation tube Brix : 0.0 to 85.0% Fructose % : 0.0 to 99.9% Temperature: 15 to 40℃	Angle of Rotation:-5.00 to +5.00°() Convertible to -25.00°to +25.00°with a 100mm observation tube *Convertible to -50.00° to +50.00°with a 200mm observation tube Brix:0.0 to 85.0% Invert ratio% of sucrose:0.0 to 99.9% Temperature: 15.0 to 40.0℃	Angle of Rotation:-5.00 to +5.00°() Convertible to -25.00°to +25.00°with a 100mm observation tube *Convertible to -50.00° to +50.00°with a 200mm observation tube Brix: 0.0 to 85.0% Fructose % : 0.0 to 99.9% Honey Moisture % : 13.0 to 30.0% Temperature : 15.0 to 40.0℃	Angle of Rotation:-5.00 to +5.00° Convertible to -25.00°to +25.00°with a 100mm observation tube Convertible to -50.00° to +50.00°with a 200mm observation tube Brix: 0.0 to 85.0% Refractive index:1.3306～1.5050 Temperature: 15.0 to 40.0℃
Resolution	Angle of Rotation: 0.01° Brix: 0.1% International Sugar Scale: 0.1°Z Temperature: 0.1°C	Angle of Rotation : 0.01° Brix : 0.1% Fructose : 0.1% Temperature : 0.1℃	Angle of Rotation : 0.01° Brix : 0.1% Invert ratio : 0.1% Temperature : 0.1℃	Angle of Rotation : 0.01° Brix : 0.1% Fructose % : 0.1% Honey Moisture % : 0.1% Temperature : 0.1℃	Angle of Rotation : 0.01° Brix : 0.1% Refractive index : 0.0001 Temperature : 0.1℃
Accuracy	Angle of Rotation: ±0.1°(20℃） International Sugar Scale:3°Z, Brix: ±0.2% Temperature: ±1℃	Angle of Rotation: +-0.1°(20℃） Brix :+-0.2% Temperature: +-1℃	Angle of Rotation : ±0.1° (20℃) Brix : ±0.2% Temperature : ±1℃	Angle of Rotation : ±0.1° (at 20℃) Brix : ±0.2% Honey Moisture % : ±0.2% Temperature : ±1℃	Angle of Rotation: ±0.1° (20℃) Brix：±0.2% Refractive index:±0.0002 (20℃) Temperature: ±1℃
Temperature compensation	Brix: 15 to 40℃, Purity: 18 to 40℃, International Sugar Scale: 18 to 40℃	Brix:15 to 40℃	Brix ： 15 to 40℃	Brix ：15 to 40℃ Honey Moisture % : 15 to 40℃	Brix ： 15 to 40℃
Sample Volume	3ml	3ml	3ml	3ml	3ml
Measurement Wavelength	589nm (equivalent to the sodium-D line spectrum)	589nm (equivalent to the sodium-D line spectrum)	589nm (equivalent to the sodium-D line spectrum)	589nm (equivalent to the sodium-D line spectrum)	589nm (equivalent to the sodium-D line spectrum)
Light source	LED	LED	LED	LED	LED
Measurement Time	12 seconds	12 seconds	12 seconds	12 seconds	12 seconds
Power Supply	Size AAA alkaline battery x 4	Size AAA alkaline battery x 4	Size AAA alkaline battery x 4	Size AAA alkaline battery x 4	Size AAA alkaline battery x 4
International Protection Class	IP67	IP67	IP67	IP67	IP67
Dimensions and Weight	101×160×38mm, 325g (Main unit only	101×160×38mm, 325g (Main unit only	101×160×38mm, 325g (Main unit only	101×160×38mm, 325g (Main unit only	101×160×38mm, 325g (Main unit only

- SKU
  5010
- Commodity Codes
  90275000
Manufacturer
Atago Co Ltd
Country of Origin
Japan
Measurement Readings
Angle of Rotation, Brix, Purity, International Sugar Scale, Specific Rotation, Fructose (%) in HFCS, Invert Sugar (%) converted from Sucrose., Fructose (%) and Honey Moisture (%)., Refractive Index(nD)
Measurement Range
ISS : -130 to +130°Z, Fructose % : 0.0 to 99.9%, Invert Ratio % : 0.0 to 99.9%, Fructose % : 0.0 to 99.9% and Honey Moisture % : 13.0 to 30.0%, Refractive Index : 1.3306 to 1.5050
Model
RePo-1, RePo-2, RePo-3, RePo-4, RePo-5
