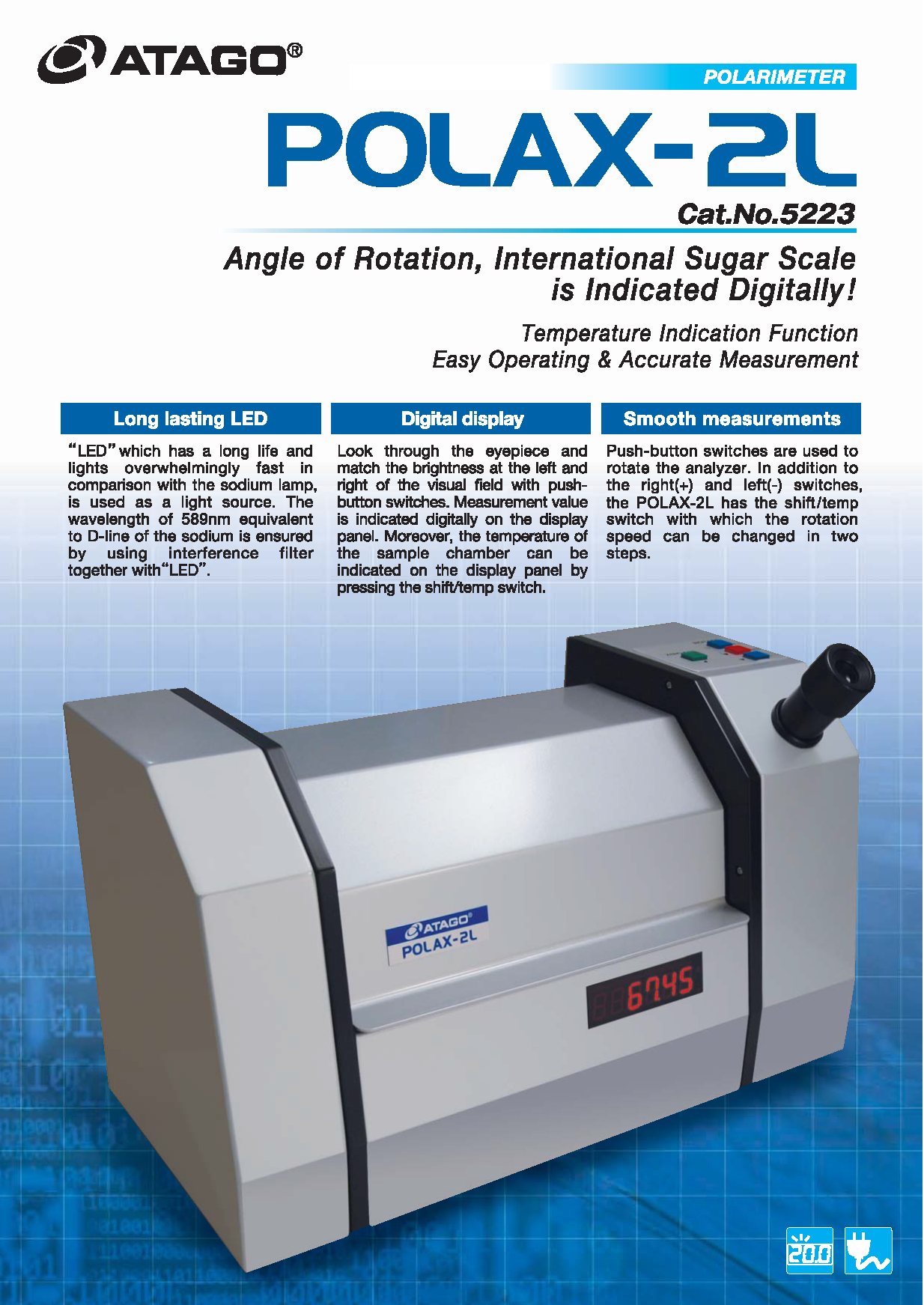

From laboratory to the field, A variety of polarimeters
Helps you anywhere!
Technical Specifications
Model | POLAX-2L |
---|---|
Cat.No. | 5223 |
Measurement Range | Angle of rotation : -179.95° to +180.00° International sugar scale -130.0 °Z to +130.0 °Z |
Minimum Indication | Angle of rotation 0.05° International sugar scale 0.1°Z |
Resolution | Angle of rotation : 0.05° International sugar scale : 0.1°Z |
Measurement Accuracy | Angle of rotation ± 0.10° International sugar scale ±0.3°Z |
Temperature Compensation | 5 to 40°C |
Light Source | LED + With Interference Filter (589nm) |
Measurement Wavelength | 589nm (equivalent to the sodium-D line spectrum) |
Dimensions & Weight | 43×21×29cm, 11.1Kg (Main Unit only) |
Included Accessories | RE-6720 Observation tubes : 100mm tube and 200mm tube / each |
Operation Switches | ![]() ![]() ![]() |
Optional Accessories | • Unjacketed Flow Tube (Glass) 50mm/4.5mL : RE-72051 • Unjacketed Flow Tube (Glass) 100mm/9mL : RE-72052 * Calibration Certificate |
Parts | • Deck glass : RE-6712 • Rubber packing for observation tube : RE-6713 • Ring nut for observation tube : RE-6714 • Rubber packing for small volume tube : RE-6715 • Ring nut for small volume tube : RE-6717 • Midget fuse (1A) : RE-5784 |

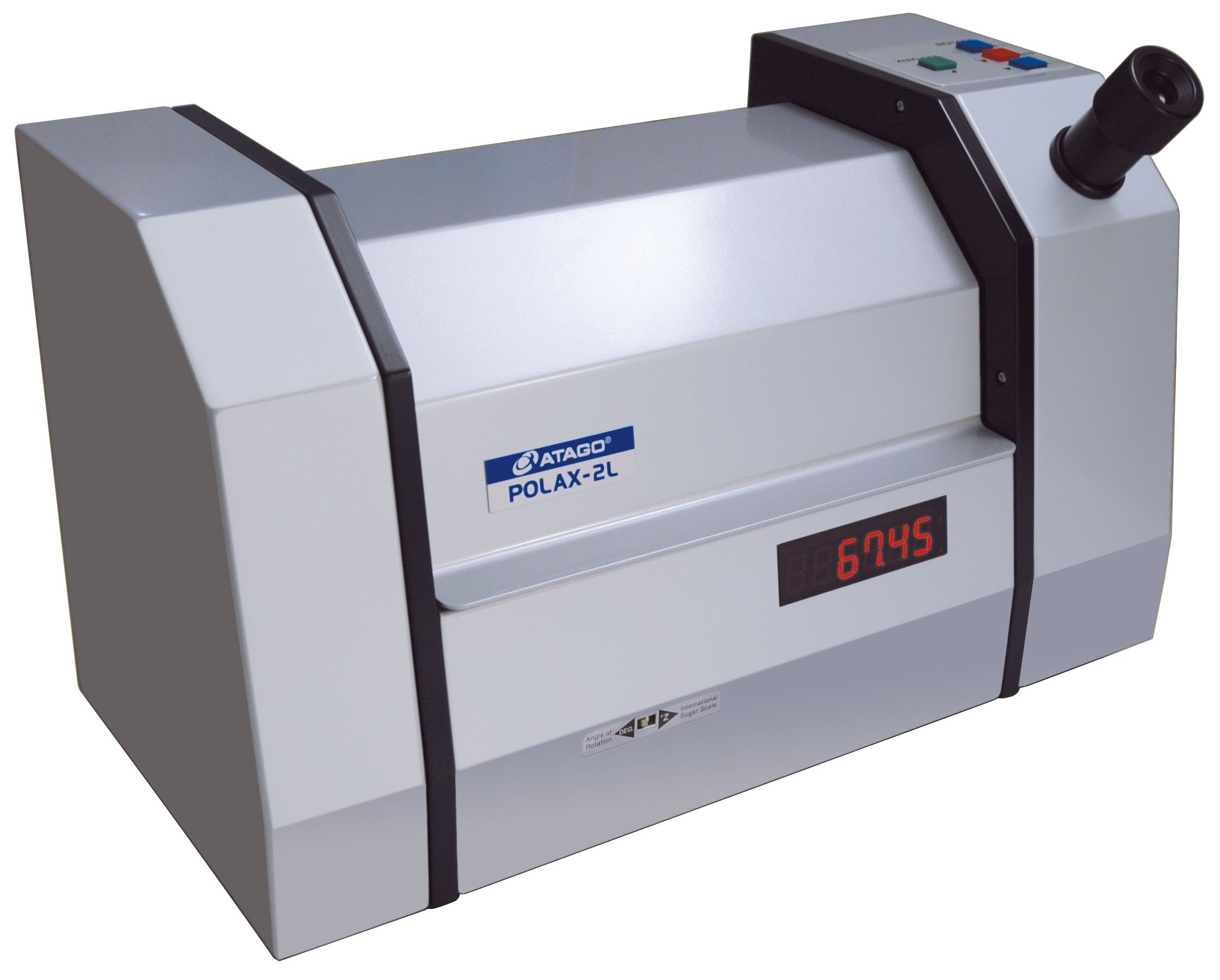

Polarimeter, which is known as an optical rotation meter, is an instrument to measure optical rotation of "optically active matter" such as saccharin, ascorbic acid and sodium glutamate.
Long Lasting LED
"LED" which has a long life and lights overwhelmingly fast in comparison with a sodium lamp is used as a light source. The wavelength of 589nm equivalent to D-line of the sodium is ensured by using interference filter together with "LED".
Digital Display
Look through the eyepiece and match the brightness at the left and right of the visual field with push-button switches. Measurement value is
Smooth Measurements
Push button switches are used to the rotate the analyser. In addition to the right (+) and left (-) switches , the POLAX-2L has the shift/temp switch with which the rotation speed can changed in two steps.
Applications
- International sugar scale (°Z) is used for sugar measurement and polarimeter is essential instruments for this procedure
- Many optically active materials used in food additives , flavouring and perfumes, the polarimetric analysis is widely applied.
- Polarimeter is widely used for educational purposes in the field of "Physics" and "Applied Science" course for understanding polarized light, optical rotation, optical active substances and optical activity.
-
ManufacturerAtago Co Ltd
-
Country of OriginJapan
-
Measurement RangeAngle of Rotation : -179.95° to +180.00° International Sugar Scale -130.0 °Z to +130.0 °Z, Not Applicable
-
ResolutionAngle of Rotation : 0.05° International Sugar Scale : 0.1°Z
-
Measurement AccuracyAngle of Rotation ± 0.10° International Sugar Scale ±0.3°Z, Not Applicable
-
ModelPOLAX-2L, Not Applicable
