Atago PAL Series Brix Digital Pocket Refractometers
 |
 |
Pocket >> Palm >> Perform
IoT Supported
With NFC Technology
Pocket Refractometer
PAL™Series
| Model | PAL-LOOP | PAL-1 or PAL-1 BLT/i | PAL-2 | PAL-3 | PAL-α | PAL-S | PAL-H |
|---|---|---|---|---|---|---|---|
|
Released on ATAGO's 70th Anniversary, the PAL-LOOP is a special model with new Continuous Measurement feature to give you extra method tailored to meet your needs - select either the new continuous and conventional single measurement mode. Since the measurement range of PAL-LOOP is Brix 0.0 - 85.0%, it can be used to measure almost any samples. |

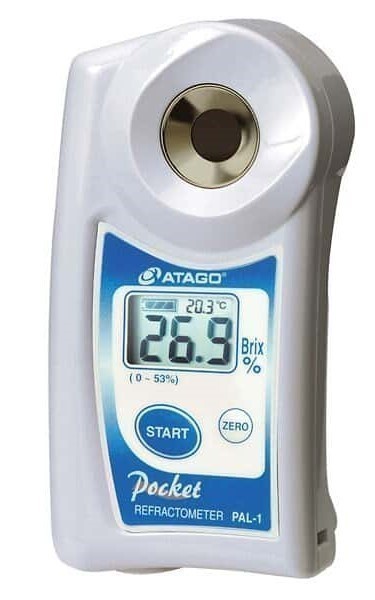

The PAL-1 works perfectly in measuring almost any fruit juice, food, or drink, such as soup, sauce, ketchup, tomato sauce, fruit, low-sugar jam, or marmalade. PAL series comes with Data Transmission Function with NFC（Near Field Communication)technology. Data history can be accessed by bringing PAL-NFC to any Android device or PC-linked USB NFC Reader.
PAL-1 BLT / i is equipped with Bluetooth® and can transfer data to the "dedicated app ATAGO Logger", that can be downloaded for free from the App Store |
Since the measurement range of PAL-2 is Brix 45.0 - 93.0%, it can measure various high concentration samples such as jam, marmalade, jelly, honey and concentrated juice. The International Protection class of PAL-2 is IP65, so it can clean thick samples under running water. When boiling jam or marmalade are measured, the PAL-2 gives steady measurement values as the measurement is repeated for a few times. It is very useful since "zero-setting" (calibration) can be done with water. The feature of PAL-1 are fully covered by NEW PAL-2 |
Designed with a full Range (Brix 0.0 to 93.0%), the PAL-3 works perfectly for measuring almost any samples.This model has been modified to have a high measurement accuracy at +/-0.1% Brix, the highest accuracy model in PAL series. | Released on ATAGO's 65th Anniversary, the PAL-α is a special model with a wide brix range (0-85%) offered at a very reasonable price. PAL-α is useful for measuring most kinds of samples as well as samples that are in the cooking process. Designed with a water resistant feature, the PAL-α can be washed under running water. PAL-α is equipped with the same great features as the other PAL units. | Mode S™ is the solution to fluctuating measurement values.Ideal for fatty and/or dark samples, such as dairy products. |
Mode H™ Technology measure high temperature sample in 2 seconds Samples with high temperature such as ramen soup, tare sauce for beef bowl, syrup, jam, soy milk etc. had to wait 15 to 20 seconds for measurement.The PAL-H is a high temperature sample, and it has Mode H that can perform stable measurements at a high speed of 2 seconds. " |
|
| Cat.No. | 3842 | 3810 and 3810i | 3820 | 3830 | 3840 | 3860 | 3870 |
| Applications | Standard, Agriculture, Food, Restaurant and Industrial | Standard, Agriculture, Food, Restaurant and Industrial | Standard, Agriculture, Food, Restaurant and Industrial | Standard, Food and Industrial | Standard, Food and Industrial | Standard | Standard |
| Scale | Brix Temperature |
Brix Temperature |
Brix Temperature |
Brix Temperature |
Brix Temperature |
Brix Temperature |
Brix Temperature |
| Measurement Range | Brix : 0.0 to 85.0 % | Brix : 0.0 to 53.0 % Temperature: 10.0 to 100°C |
Brix : 45.0 to 93.0 % Temperature : 10.0 to 100ﾟC |
Brix : 0.0 to 93.0 % Temperature : 10.0 to 100ﾟC |
Brix : 0.0 to 85.0 % Temperature : 10.0 to 100ﾟC |
Brix : 0.0 to 93.0 % Temperature : 10.0 to 100ﾟC |
Brix : 0.0 to 93.0%(Automatic temperature compensation) Temperature : 10.0 to 100℃ |
| Resolution | Brix : 0.1% Temperature : 0.1ﾟC |
Brix : 0.1% Temperature: 0.1ﾟC |
Brix : 0.1% Temperature : 0.1ﾟC |
Brix : 0.1% Temperature : 0.1ﾟC |
Brix : 0.1% Temperature : 0.1ﾟC |
Brix : 0.1% Temperature : 0.1ﾟC |
Brix : 0.5% |
| Measurement Accuracy | Brix : ±0.2 % | Brix: ±0.2 % Temperature: ±1ﾟC |
Brix : ±0.2 % Temperature : ±1ﾟC |
Brix : ±0.1 % Temperature : ±1ﾟC |
Brix : ±0.2 % Temperature : ±1ﾟC |
Brix : ±0.2 % Temperature : ±1ﾟC |
Brix : ±0.5% |
| Temperature compensation range | 10 to 100 ﾟC (Automatic Temperature Compensation) |
10 to 100ﾟC (Automatic Temperature Compensation) |
10 to 100 ﾟC (Automatic Temperature Compensation) |
10 to 100 ﾟC (Automatic Temperature Compensation) |
10 to 100ﾟC (Automatic Temperature Compensation) |
10 to 100℃ | |
| Ambient Temperature | 10 to 40ﾟC | 10 to 40ﾟC | 10 to 40ﾟC | 10 to 40ﾟC | 10 to 40ﾟC | 10 to 40ﾟC | 10 to 40℃ |
| Sample Volume | 0.3mL | 0.3mL | 0.3mL | 0.3mL | 0.3mL | 0.3mL | |
| Measurement Time | 1. Single measurement 2. Continuous measurement |
3 seconds | 3 seconds | 3 seconds | 3 seconds | 60 seconds of continuous measurement after 5 to 15 seconds of analysis | 2 seconds |
| Power Supply | 2 x AAA alkaline batteries | 2 x AAA alkaline batteries | 2 x AAA alkaline batteries | 2 x AAA alkaline batteries | 2 x AAA Batteries | 2 x AAA Batteries | 2 x AAA alkaline batteries |
| Battery Life | Approx. 11,000 times measurement (when alkaline batteries are used) |
Approx. 11,000 times measurement (when alkaline batteries are used) |
Approx. 11,000 times measurement (when alkaline batteries are used) |
Approx. 11,000 times measurement (when alkaline batteries are used) |
Approx. 11,000 times measurement (when alkaline batteries are used) | Approx. 1,500 times measurements (when an alkaline batteries are used.) | Approx. 11,000 times measurement (when alkaline batteries are used) |
| International Protection Class | IP65 Dust-tight and Protected against water jets. | IP65 Dust-tight and Protected against water jets. | IP65 Dust-tight and Protected against water jets. | IP65 Dust-tight and Protected against water jets. | IP65 Dust-tight and Protected against water jets. | IP65 Dust-tight and Protected against water jets. | IP65 Dust-tight and Protected against water jets. |
| Dimensions & Weight | 55(W)×31(D)×109(H)mm, 100g (Main Unit only) | 55(W)×31(D)×109(H)mm, 100g (Main Unit only) | 55(W)×31(D)×109(H)mm, 100g (Main Unit only) | 55(W)×31(D)×109(H)mm,100g (Main Unit only) | 55(W)×31(D)×109(H)mm, 100g (Main Unit only) | 55(W) x 31(D) x 109(H)mm, 100g (Main Unit only) | 55(W)×31(D)×109(H)mm,100g (Main Unit only) |
Patent for Invention Registration No. ZL200310103015.2 (China)
Patent for Design Registration No. ZL03303431.1 (China), 089244 (Taiwan)
Patent Granted in countries around the world.
PAL Commitment
A new ergonomic design for comfort and ease of use! In pursuit of an "easy to use" , "easy to operate" and ergonomic architecture of new instruments, ATAGO has achieved a "palm fitting" masterpiece as well as unit that is high in hygienic properties. By reducing the number of unnecessary assembly parts, we have reduced the risks of a germ reproductive environment. Through our efforts to produce a hygienic instrument to be used in any industry, these units are designed to be completely washable. The new PAL series has been approved by the HACCP, and are equipped with the new ELI feature, which ensures accurate measurements - even outdoors. Requests from our customers worldwide are reflected in the development of the new PAL units
ATAGO Releases NFC (Near Field Communication) Equipped Refractometers
In addition to the Bluetooth enabled refractometers, ATAGO ® released refractometers with near-field communication (NFC) technology for the ease of storing and sharing data with phones, tablets, laptops, and other NFC-equipped devices. Simply by tapping NFC-equipped devices, up to 100 measurement data with the date and time are transferred in a matter of seconds. The NFC solution is simpler and prevents typical human errors in data collection and data generation.
With ever evolving movement of profound change in how human interact with machine automation, this upgrade seizes one’s time to write down measurements with a pen or paper.
How to Use NFC Feature on PAL:
Quick and easy three steps
- For cellphones, download NFC reader app or turn on the NFC feature. For computers, connect the NFC reader.
- Place NFC reader to the PAL device.
- Download data.
 |
 |
 |
Measurement Methods In 3 Easy Steps
Other Features
 |
Light & Compact, 100g. Ergonomically designed for one-handed operation. The innovative design makes it easy to pour out and remove a sample, but difficult to spill the sample |  |
Sample size 2-3 drops. |
 |
The speedy performance of the PAL is amazing. Simply put a drop of a sample on the prism surface and press the START key. The Brix value ( sugar content/concentration) will be displayed in just 3 seconds. |  |
High-temperature samples can be measured. |
 |
The protection class of the PAL is IP65. You can rinse off the sample by running water on the sample stage. The design allows the user to easily wipe off the sample. Will float if accidentally dropped in water |  |
Revolutionary new External Light interference (ELI) feature Patented When intense light penetrates the prism of a digital refractometer, the light waves interfere with the sensor, which may lead to inaccurate measurements. To ensure accurate measurement results, the PAL is programmed with the ELI function which displays the [nnn] warning message when intense direct light is detected. Forming a habit of shading the sample stage with your hand and re-pressing the START key (when the warning message from the ELI function is displayed) will ensure accurate measurement results each time |
 |
The sample stage is designed to keep sample solutions from spilling out. |  |
Calibration with water only. |
 |
The Automatic Temperature Compensation function of the PAL enables you to take measurement readings regardless of the ambient temperature. |  |
Convenient Storage case. |
 |
New Digital Hand-Held "Pocket" Meter for PAL-Series Equipped with NFC Data Transmission Function Data history can be accessed by bringing PAL-NFC to any Android devices or PC-linked USB NFC Reader. *The Certification Mark is a trademark or registered trademark of NFC Forum, Inc. in the United States and in other countries. |
  |
Mode S™ - improves the repeatability of samples that cause inconsistent readings. |
Applications
|
Food Seasoning / soy sauce / sauce / soy milk / Sauce / jam / honey / bean paste syrup / oil / fat etc. |
 |
Beverage Fruit drink / soft drink Carbonated drinks |
 |
|
Eating out When stewed To check the end point! Ramen soup / Mentsuyu Sauce / bowl sauce, etc. |
 |
Agriculture Fruit / vegetable / leaf juice Stem juice / root juice |
 |
| Salt Pickling liquid and seawater For concentration check! Saline / seawater / pickle preparation liquid |
 |
Metal Processing Of cutting oil For concentration control! |
 |
|
Chemical Of various solutions For refractive index management! Cleaning solution / antifreeze solution / brine solution Snow melting agent / cosmetics |
 |
Medical Urine / serum |
 |
-
ManufacturerAtago Co Ltd
-
Country of OriginJapan
-
Model NumberPAL-1, PAL-2, PAL-3, PAL-1 BLT / i, PAL-αlpha, PAL-S, PAL-H, PAL-LOOP
-
RangeBrix : 0.0 to 53.0 %, Brix : 45.0 to 93.0 %, Brix : 0.0 to 93.0 %, Brix : 0.0 to 85.0 %
-
ResolutionBrix : 0.1%, Brix : 0.5%
-
Accuracy±0.2 %, ±0.1 %, ±0.5%
-
International Protection ClassIP65, Not Applicable
-
CommunicationNFC, Bluetooth
