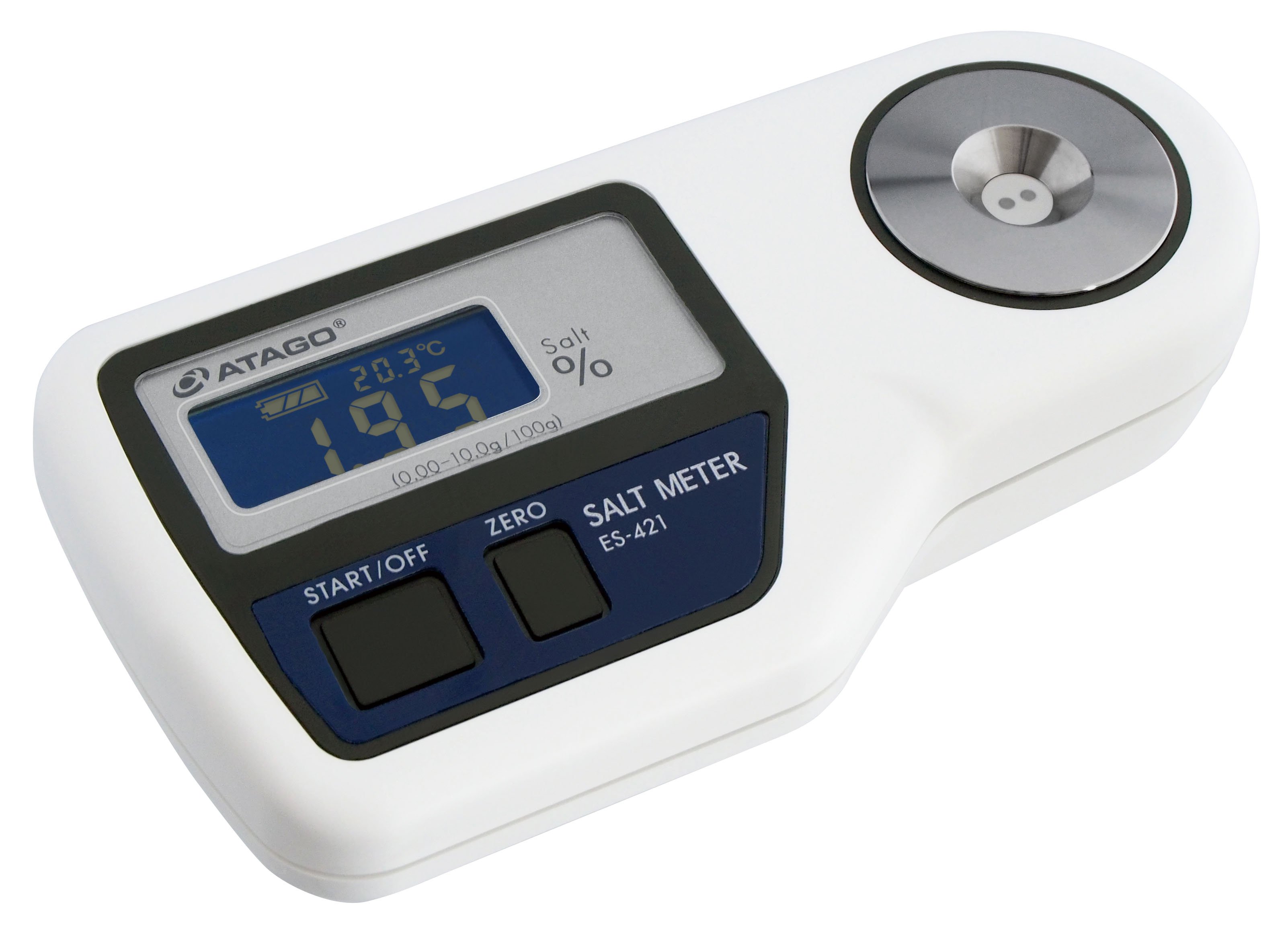

Atago ES-421 Digital Portable Salt Meter, Palette Series
 |
 |
Timeless Quality and Performance IoT Supported With Near Field Communication Technology
The digital salt-meter, ES-421 employs a funnel-shaped sensor which measures the salt % of a sample such as the dilute solution of soy sauce, ketchup,mayonnaise, worcester sauce, squeezed juice of pickles, etc. It only needs 1.0ml of sample.
*Improved durability with titanium electrodes.
*Stage is made out of SUS316L.
*Equipped with a backlight for even brighter, easier to read display.
*Equipped with an “Offset Function.”
*The NaCl solution for calibration is different from the solution used for the former ES-421(Cat.No4210).Its concentration has been changed from 2.84%→2.50%.
Technical Specifications
| Model | ES-421 |
|---|---|
| Cat.No. | 4211 |
| Scale | Salt concentration (g/100g) Temperature |
| Measurement Method | Conductivity method |
| Measurement Range | 0.00 to 10.0% |
| Resolution | 0.01% for salt concentration of 0.00 to 2.99% 0.1% for salt concentration of 3.0 to 10.0% |
| Measurement Accuracy | Displayed value ± 0.05% (for salt concentration of 0.00 to 0.99%) Relative precision ± less than 5% (for salt concentration of 1.00 to 10.0%) |
| Ambient Temperature | 10 to 40°C (Automatic Temperature Compensation) |
| Power Supply | 006P Dry battery (9V) |
| Offset feature | Yes |
| Dimensions & Weight | 17×9×4cm, 220g (Main Unit only) |
Lightweight and ergonomic design - Stable on the table yet compact to carry
Sample stage is made of SUS316L resin which is known for its durability against corrosion. A sample can be measured while the device is in your hand or set on a desk.
Equipped with Offset Feature - Redesigned and upgraded with a convenient, brand new feature.
Newly equipped with a convenient offset feature for measurement. This feature enables the instrument to produce values which are close to those of other measurement principles,such as titration
High accuracy - Cup shaped sample stage
Only requires 0.6mL of sample. High accuracy of ±0.05% for salt concentration under 0.99%.
ES-421 3 easy steps:

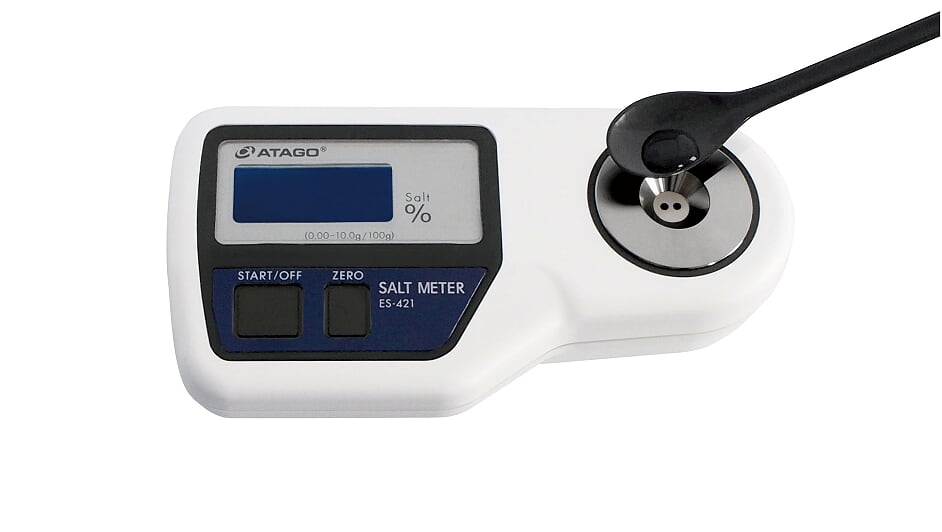

 1. Apply 2-3 drops onto the sensor section. |

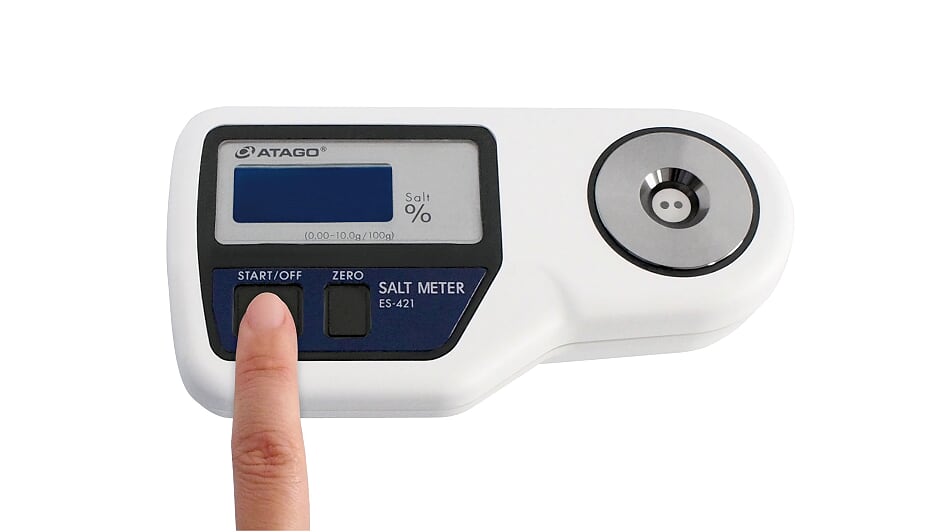

 2. Press the START key. |

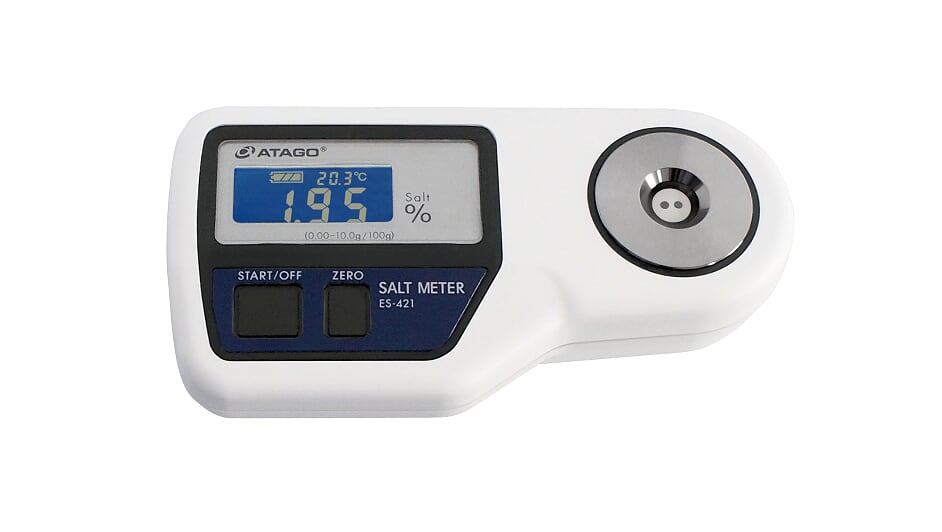

 3. Measurement value is displayed in 3 seconds. |
Why measure salt content?
Adding salt is one of the most critical processes in food manufacturing as it has a significant effect on the colour, taste, and texture of food.
ATAGO salt meters are ideal for quick and easy salinity checks on the production floor.
Recently, in addition to use in the production are, many companies are validating our salt meters as the preferred method in lab setting as well. Food scientists are choosing to limit the use of precipitation titration with harmful sliver nitrate (Mohr's method).
Because ATAGO salt meters are sage, fast, and simple.
Due to the difference in measurement principles, reading from the conductivity salt meters may not match up exactly with the reading by titration for certain samples. However, by creating a conversion table between the two testing methods, correlation between the set of results can be seen.
Unlike titration, no expensive and harmful chemical is involved in the measurement process.
ATAGO delivers the revolutionary salinity measurement solution that is both eco-friendly and cost-effective.
-
ManufacturerAtago Co Ltd
-
Country of OriginJapan
-
Detection MethodElectrical Conductivity Method, Not Applicable
-
Measurement RangeSalt concentration: 0.00 to 10.0% (g/100g) Temperature: 5.0 to 100℃, Not Applicable
-
Resolution0.01% (for salt concentration between 0.00 to 2.99%) 0.1% (for salt concentration between 3.0 to 10.0%) Temperature: 0.1℃, Not Applicable
-
Measurement AccuracyDisplayed value ±0.05% (for salt concentration between 0.00 to 0.99%) Relative precision ±5% (for salt concentration between 1.00 to 10.0%), Not Applicable
-
International Protection ClassIP 64 Water Resistant, Not Applicable
-
ModelES-421, Not Applicable
