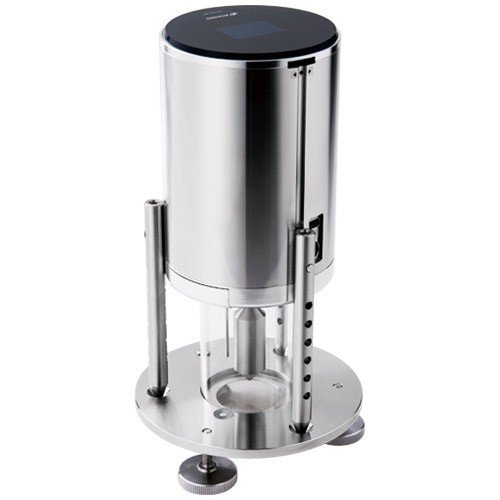

Atago Digital Viscometer VISCO™
ZoomCreated with Sketch.

Atago Digital Viscometer VISCO™

Score: 5.00 (votes: 1)
No reviews.
Atago Co Ltd
SKU Body Material Model Contents Weight (In Grams) Price (excluding VAT) Availability Qty To Purchase
Atago Digital Viscometer VISCO™ 6800 Stainless VISCO™ No Accessories 900 £1800.00 1 + -
Atago Digital Viscometer VISCO™ 6820 Aluminum VISCO™-895 No Accessories 1200 £1800.00 1 + -
Atago Digital Viscometer VISCO™ 6810 Stainless VISCO™ Package A ・VISCO (main unit) + standard accessories ・Cup adapter 　*100 pcs of paper cups are included. 1200 £1900.00 1 + -
Atago Digital Viscometer VISCO™ 6830 Aluminum VISCO™-895 VISCO Package A ・VISCO-895 (main unit) + standard accessories ・Cup adapter 　*100 pcs of paper cups are included. 1200 £1900.00 1 + -
Atago Digital Viscometer VISCO™ 6811 Stainless VISCO™ Package B ・VISCO (main unit) + standard accessories ・Ultra Low Adapter(RE-77120) 1200 £2400.00 1 + -
Atago Digital Viscometer VISCO™ 6831 Aluminum VISCO™-895 Package B ・VISCO-895 (main unit) + standard accessories ・Ultra Low Adapter(RE-77120) 1200 £2400.00 1 + -

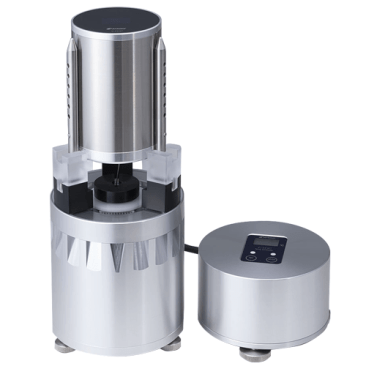

Atago Digital Viscometer VISCO™ 6815 Stainless VISCO™ Package E ・VISCO ・VISCO Temp Controller Complete Constant temp + UL set(VISCO） 1200 £3980.00 1 + -
Atago Digital Viscometer VISCO™ 6835 Aluminum VISCO™-895 Package E ・VISCO-895 ・VISCO Temp Controller Complete Constant temp + UL set(VISCO） 1200 £3980.00 1 + -



Low to High Viscosity Covering Every Samples



Digital Viscometer VISCO™




Technical Specifications

  VISCO is a portable and compact size
Can be powered by battery which makes it possible to measure anywhere anytime.
VISCO is a digital display which makes it possible for anyone to see easily.
Only small volume of sample is required to measure.

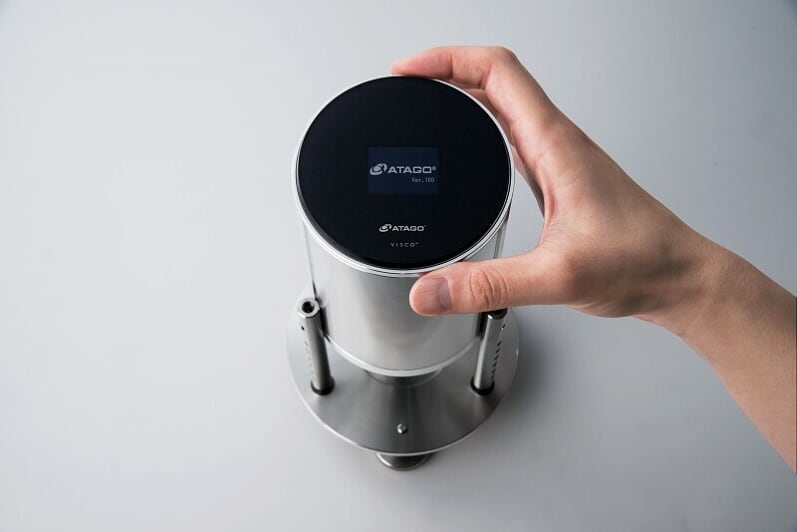

From setting up the VISCO to measurement, it can be done with one hand and only have to deal with one button to operate.
Can be measured using disposable cup.(package A)
For a low viscosity sample, there is a low viscosity sample adapter which make it possible to measure from 1 - 2,000 mPa・S.（package B)		 By changing the material used for body, legs and stand to alminium, unit weight is now 895g as described in the model name. Appearance and all features remain unchanged, while achieving 25% weight reduction compared to existing VISCO™.
Model VISCO VISCO™-895
Cat.No. 6800 6820
Measurement item Viscosity・Temperature・Torque% Viscosity / Kinematic Viscosity・Temperature・Torque%
Measurement Readings Viscosity・Temperature・Torque%・Speed・Spindle and beaker combination
Measurement Range Viscosity：
A1 50 to 200,000mPa・s / 50 to 200,000cP
A2 100 to 600,000mPa・s / 100 to 600,000cP
A3 500 to 2,000,000mPa・s / 500 to 2,000,000cP

Torque：
 0.0 to 100.0％ (recommended torque: 10.0 to 100.0％)

Viscosity / Kinematic Viscosity：

A1 50 to 16,000,000mPa・s / 50 to 16,000,000cP
A2 100 to 37,000,000mPa・s / 100 to 37,000,000cP
A3　500 to 99,999,999mPa・s / 500 to 99,999,999cP
U1　1～2,000mPa・s

Torque：

0.0 to 100.0％ (recommended torque: 10.0 to 100.0％)
Temperature：0.0 to 100.0℃ / 32.0 to 212.0°F
Speed 0.5 to 250rpm
Number of Speeds: 20		 0.01 to 250rpm
Number of Speeds: 28
Resolution Viscosity： lower than 10,000mPa・s 0.1mPa・s
10,000mPa・s or higher 1mPa・s
Torque： 0.1％
Temperature： 0.1℃
Measurement Accuracy Viscosity: ±1% of Maximum Viscosity
(Refer to the "Maximum Measurement Values Guideline Chart," from p.34)
Temperature: ±0.2℃		 Viscosity / Kinematic Viscosity :
±1% of Maximum Viscosity (Refer to the "Maximum Measurement Values Guideline Chart," from p.34)
Temperature: ±0.2℃、±0.4°F
Ambient Temperature 10 to 40℃
Power Supply LR6 / AA alkaline batteries (x4)
AC adapter input: AC100 to 240V. 50/60Hz, 0.3A
output: 9V, 0.5A.		 LR6 / AA alkaline batteries (x4)
AC adapter input: AC100 to 240V. 50/60Hz, 0.3A
output: 9V, 0.5A
Computer Communication Output: USB - PC Output: USB - PC
Dimensions & Weight Main unit： 120(W)ｘ120(D)ｘ200.6(H)mm
1.2kg (excluding batteries, spindles, and temperature sensor)
Stand+screw: 0.5kg
Small volume beaker attachment: 0.1kg		 Main unit：120(W)ｘ120(D)ｘ200.6(H)mm / 0.895kg
Language Japanese / English

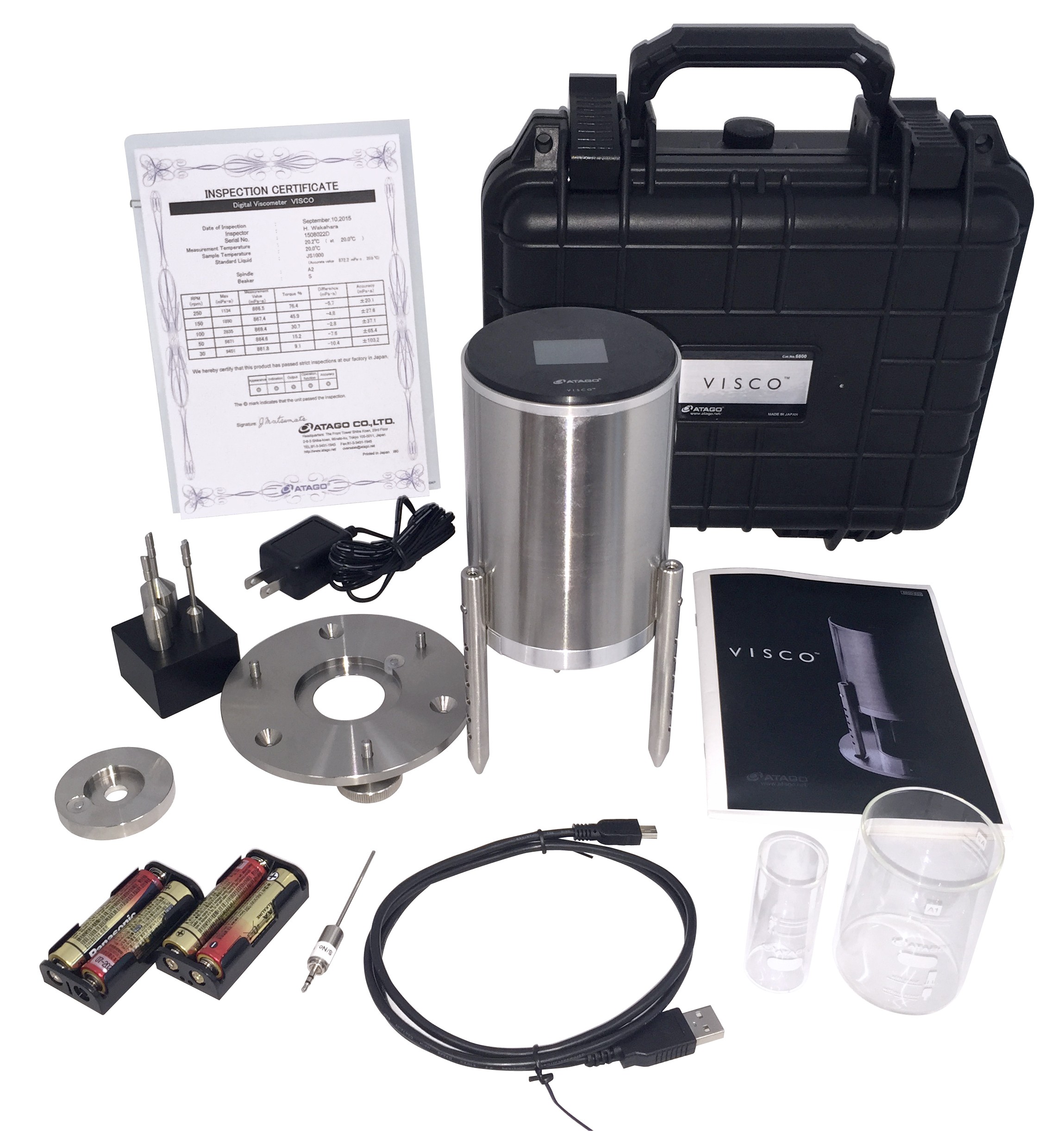

Contents
  • Main unit
  • Stand
  • S Beaker (15mL)
  • L Beaker (100mL) 1
  • AC adapter
  • Spindles (A1, A2 and A3) one each
  • Temperature sensor
  • Small volume beaker attachment
  • USB Mini-B cable (1m)
  • 1.5V AA alkaline batteries 4
  • Instruction manual
  • Inspection certificate
  • Spindle stand
  • Protective cap
  • Carrying case





7 Reasons — Why VISCO™ is Chosen





Easy Operation

The assembly takes 30 seconds. It frees you from the hassle of preparation, cleaning up, and removes hesitation for measurements. Only one button to deal with. From setting up to measurements, you can do it with one hand. The state of the actual assembly is here.

Small Sample Volume



The amount of sample required for measurement is only 15 mL or 100 mL. The time to wash the beaker is greatly reduced, too.

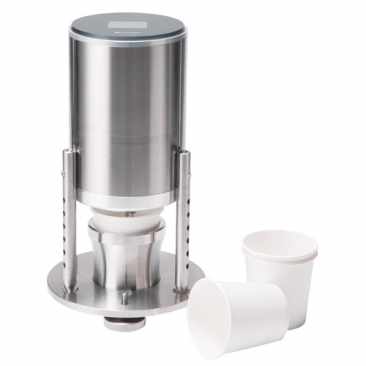

Disposable Containers



VISCO™ can measure using paper cups or plastic cups. It's disposable and does not require you to wash the beakers. It is safe even in the areas where glassware is restricted.

Lab to the Production Site

ATAGO's viscosity meter VISCO™ is very lightweight and compact with a height of 20 cm and a weight of 895 g. Easy to carry from the lab to the production site.

 Battery Powered

VISCO™ is powered by AC power supplies or batteries. The battery life is about seven hours. Easy measurements, any place and in any situation.



Incredible Cost Performance

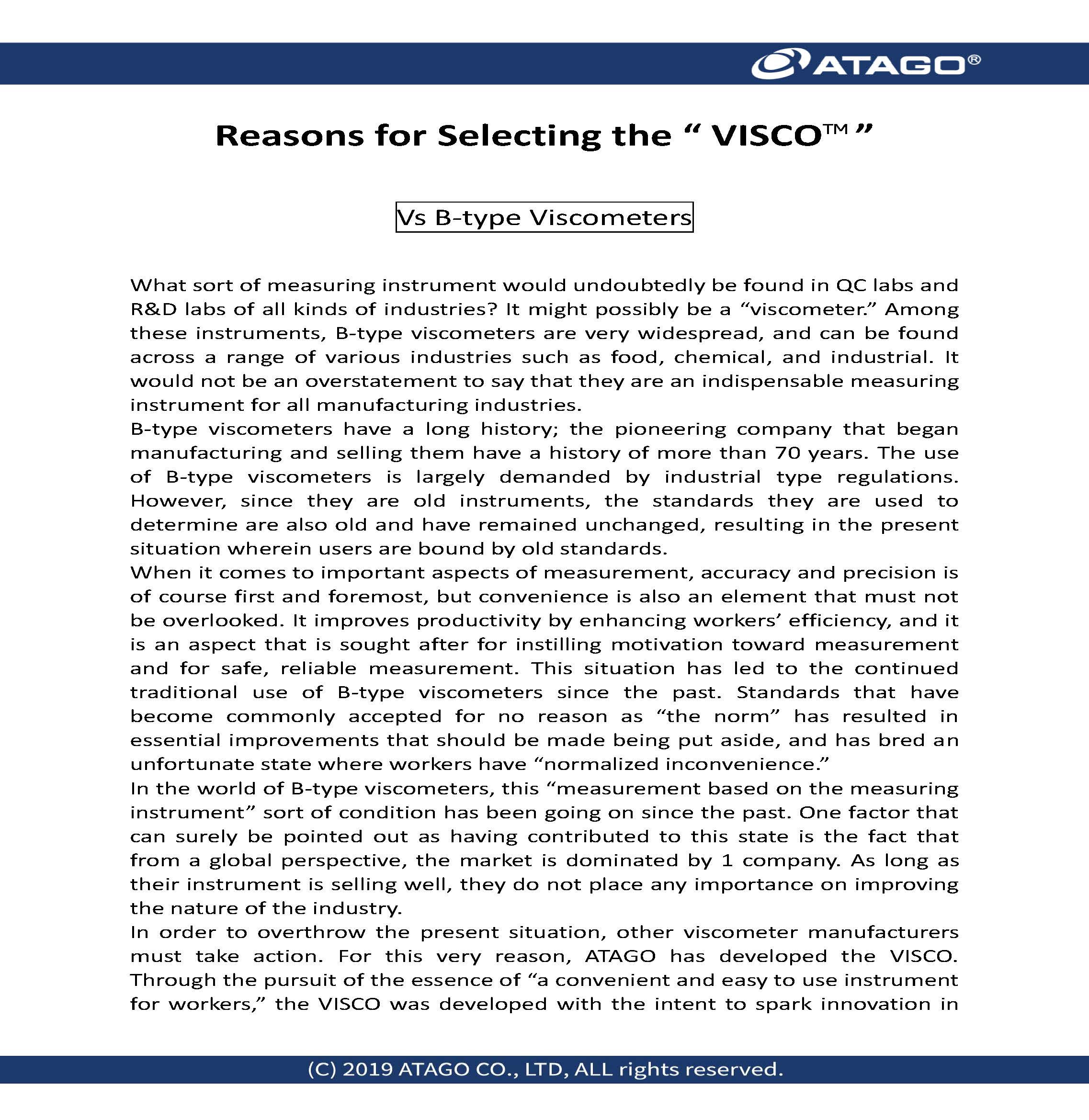

The price of VISCO™ is less than half the price of a B-type viscometer. ATAGO provides high-value, high-quality products at the right price for customers to experience it first-hand and use it a lot.

Good With Low Viscosity

Low viscosity samples can be measured with VISCO™. ATAGO’s VISCO™ has an adapter for low viscosity samples.



Function and Design


 Measurement


    • Weight (In Grams)
      900 g
    • SKU
      6800
    • Commodity Codes
      90275000
  • Manufacturer
    Atago Co Ltd
  • Country of Origin
    Japan
  • Body Material
    Aluminum, Stainless
  • Model
    VISCO™, VISCO™-895, VISCO™ Package A, VISCO™-895 VISCO Package A, VISCO™ Package B, VISCO™-895 Package B, VISCO™ Package E, VISCO™-895 Package E
  • Contents
    No Accessories, ・VISCO (main unit) + standard accessories ・Cup adapter 　*100 pcs of paper cups are included., ・VISCO-895 (main unit) + standard accessories ・Cup adapter 　*100 pcs of paper cups are included., ・VISCO (main unit) + standard accessories ・Ultra Low Adapter(RE-77120), ・VISCO-895 (main unit) + standard accessories ・Ultra Low Adapter(RE-77120), ・VISCO ・VISCO Temp Controller Complete Constant temp + UL set(VISCO）, ・VISCO-895 ・VISCO Temp Controller Complete Constant temp + UL set(VISCO）

Calibration compares the true value and the value measured from the instrument. Calibration is an important task to ensure the reliability of the measurement results. Calibration is recommended when the measurement environment has changed drastically or when the measurement results are out of the norm. If you are considering routine calibration, we recommend that you decide the frequency based on the circumstance in which the instrument is used and past measurement results. ATAGO's viscometer VISCO™ provides the following standard solutions:
The standard solutions are available in various viscosity. It is recommended to calibrate with a standard solution that is close to the viscosity of samples being measured.



●VISCO™ standard solution●

Part number Part name Contents
RE-89030 Viscosity Standard Liquid 2 100mL
RE-89031 Viscosity Standard Liquid 5 100mL
RE-89036 Viscosity Standard Liquid 200 100mL
RE-89037 Viscosity Standard Liquid 500 100mL
RE-89038 Viscosity Standard Liquid 1000 100mL
RE-89039 Viscosity Standard Liquid 2000 100mL
RE-89053 Viscosity Standard Liquid 20 500mL
RE-89054 Viscosity Standard Liquid 50 500mL
RE-89055 Viscosity Standard Liquid 100 500mL
RE-89056 Viscosity Standard Liquid 200 500mL
RE-89057 Viscosity Standard Liquid 500 500mL
RE-89058 Viscosity Standard Liquid 1000 500mL
RE-89059 Viscosity Standard Liquid 2000 500mL



●Standard Solution with JCSS●

If you would like a standard solution with JCSS calibration certificate, please click here.

Part number Part name Contents
RE-89010 Viscosity Standard Liquid JS2.5 500mL
RE-89011 Viscosity Standard Liquid JS５ 500mL
RE-89012 Viscosity Standard Liquid JS10 500mL
RE-89013 Viscosity Standard Liquid JS20 500mL
RE-89014 Viscosity Standard Liquid JS50 500mL
RE-89015 Viscosity Standard Liquid JS100 500mL
RE-89016 Viscosity Standard Liquid JS200 500mL
RE-89017 Viscosity Standard Liquid JS500 500mL
RE-89018 Viscosity Standard Liquid JS1000 500mL
RE-89019 Viscosity Standard Liquid JS2000 500mL
RE-89020 Viscosity Standard Liquid JS14000 500mL
RE-89021 Viscosity Standard Liquid JS52000 500mL
RE-89022 Viscosity Standard Liquid JS160000 500mL

●Container●

Part number Part name
RE-79100 15mL Beaker
RE-79101 100mL Beaker
RE-78141 Cup Adapter (100pcs of paper cups are included)
RE-79102 Paper Cup (90mL, 100pcs）



●Ultra Low Adapter●

Part number Part name
RE-77120 Ultra Low Adapter (ULA)
RE-77107 UL spindle (with hook and hook holder)
RE-77121 Sample cylinder (with cap and o-ring)
RE-77117 UUL spindle 3pcs (with hook and hook holder)



●Temperature sensor●

Part number Part name
RE-75540 Temperature sensor



●Spindle●

Part number Part name
RE-77104 A1 Spindle
RE-77105 A2 Spindle
RE-77106 A3 Spindle



●Set of spindles●

Part number Part name
RE-77114 A1 Spindle Spindle 5pcs
RE-77115 A2 Spindle Spindle 5pcs
RE-77116 A3 Spindle Spindle 5pcsdle 5pcs
RE-77100 Set of spindles (A1,A2,A3)

※Having multiple spindles can eliminate washing after each used for improved efficiency.
