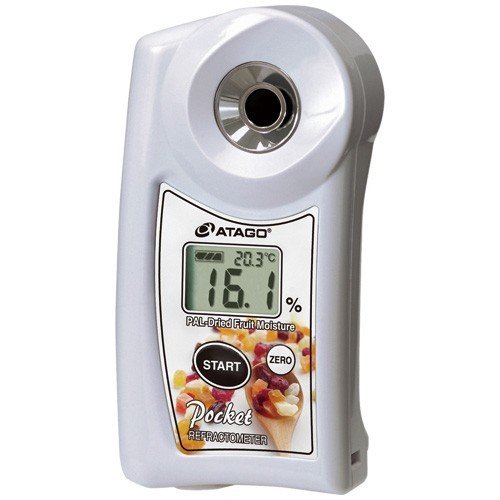

Atago 4574 PAL-Dried Fruit Moisture Digital Hand Held , "Pocket PAL Series" Dried Fruit Refractometer, Moisture : 7.0 to 100 % Measurement Range now with Near Field Communication
A new ergonomic design for comfort and ease of use! In pursuit of an "easy to use" , "easy to operate" and ergonomic architecture of new instruments, ATAGO has achieved a "palm fitting" masterpiece as well as unit that is high in hygienic properties. By reducing the number of unnecessary assembly parts, we have reduced the risks of a germ reproductive environment. Through our efforts to produce a hygienic instrument to be used in any industry, these units are designed to be completely washable. The new PAL series has been approved by the HACCP, and are equipped with the new ELI feature, which ensures accurate measurements - even outdoors. Requests from our customers worldwide are reflected in the development of the new PAL units
|Model||PAL-Dried Fruit Moisture|
|Measurement Range||Moisture : 7.0 to 100 %|
Temperature : 10.0 to 100ﾟC
|Resolution||Moisture : 0.1%|
Temperature : 0.1ﾟC
|Measurement Accuracy||Moisture : ±0.2 % (with honeydew)|
Temperature : ±1ﾟC
|Temperature compensation range||10 to 100 ﾟC|
(Automatic Temperature Compensation)
|Ambient Temperature||10 to 40ﾟC|
|Measurement Time||3 seconds|
|Power Supply||2 x AAA Batteries|
|Battery Life||Approx. 11,000 times measurement (when alkaline batteries are used)|
|International Protection Class||IP65 Dust-tight and Protected against water jets.|
|Dimensions & Weight||55(W) x 31(D) x 109(H)mm, 100g (Main Unit only)|
· PAL-CASE : RE-39409
· PAL Silicone Cover : RE-39413
· STRAP : RE-39410
Patent for Invention Registration No. ZL200310103015.2 (China)
Patent for Design Registration No. ZL03303431.1 (China), 089244 (Taiwan)
Patent Granted in countries around the world.
For approximate water content of dried fruits
This measures in Brix and displays (100-Brix)% for approximate water content.
Halve a piece of dried fruit and place it cut side down. Press it down with the included MAGIC adapter.
Digital Hand-Held "Pocket" Refractometer PAL Series

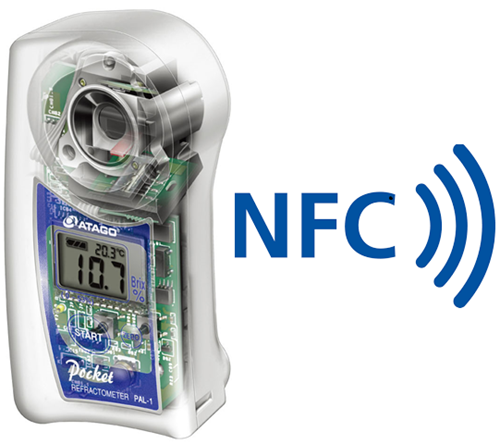

ATAGO Releases NFC (Near Field Communication) Equipped Refractometers
In addition to the Bluetooth enabled refractometers, ATAGO ® released refractometers with near-field communication (NFC) technology for the ease of storing and sharing data with phones, tablets, laptops, and other NFC-equipped devices. Simply by tapping NFC-equipped devices, up to 100 measurement data with the date and time are transferred in a matter of seconds. The NFC solution is simpler and prevents typical human errors in data collection and data generation.
With ever evolving movement of profound change in how human interact with machine automation, this upgrade seizes one’s time to write down measurements with a pen or paper.
How to Use NFC Feature on PAL:
Step 1) For cellphones, download NFC reader app or turn on the NFC feature. For computers, connect the NFC reader.
Step 2) Place NFC reader to the PAL device.
Step 3) Download data.
Quick and easy three steps
Everyone is talking about the new "Pocket" as featured on recent TV programs and Magazines.
The PAL is a completely new and redesigned digital hand-held instrument that will change the traditional conceptions of refractometers. The PAL's surprisingly compact size allows you to easily carry it around and use it indoors as well as outdoors. The size, design, function and performance will surprise you. The PAL will expand your range of measuring possibilities.
|Light & Compact, 100g.|
Ergonomically designed for one-handed operation.
|Sample size 2-3 drops.|
|The speedy performance of the PAL is amazing. Simply put a drop of a sample on the prism surface and press the START key. The Brix value ( sugar content / concentration ) will be displayed in just 3 seconds.||High temperature sample can be measured.|
|Protection class of the PAL is IP65. You can rinse off the sample by running water on the sample stage. The design allows the user to easily wipe off the sample.||Revolutionary new feature ELI*|
*External Light Interference (ELI) - Patent Pending.
|The sample stage is designed to keep sample solutions from spilling out.||Calibration with water only.|
|The Automatic Temperature Compensation function of the PAL enables you to take measurement readings regardless of the ambient temperature.||Convenient Storage case.|
|New Digital Hand-Held "Pocket" Meter for PAL-Series Equipped with NFC Data Transmission Function|
Data history can be accessed by bringing PAL-NFC to any Android devices or PC-linked USB NFC Reader.
*The Certification Mark is a trademark or registered trademark of NFC Forum, Inc. in the United States and in other countries.
EXPLANATION OF ICONS
Icons, for functions, specifications and scales have been added to this catalog
Measurement RangeMoisture : 7.0 to 100 % Temperature : 10.0 to 100ﾟC
ResolutionMoisture : 0.1% Temperature : 0.1ﾟC
Measurement AccuracyMoisture : ±0.2 % (with honeydew) Temperature : ±1ﾟC
Ambient Temperature (°C)10 to 40ﾟC
ManufacturerAtago Co Ltd
Country of OriginJapan
