Atago 4571 Soil Moisture Meter PAL-Soil, Gravimetric soil moisture : 0 to 200%, Volumetric soil moisture : 0 to 100%, now with Near Field Communication

PAL commitment

A new ergonomic design for comfort and ease of use! In pursuit of an "easy to use" , "easy to operate" and ergonomic architecture of new instruments, ATAGO has achieved a "palm fitting" masterpiece as well as unit that is high in hygienic properties. By reducing the number of unnecessary assembly parts, we have reduced the risks of a germ reproductive environment. Through our efforts to produce a hygienic instrument to be used in any industry, these units are designed to be completely washable. The new PAL series has been approved by the HACCP, and are equipped with the new ELI feature, which ensures accurate measurements - even outdoors. Requests from our customers worldwide are reflected in the development of the new PAL units

Specifications

Model	PAL-Soil
Cat.No.	4571
Scale	Gravimetric soil moisture Volumetric soil moisture Temperature
Measurement Range	Gravimetric soil moisture : 0 to 200% Volumetric soil moisture : 0 to 100% Temperature : 10.0 to 40.0°C
Resolution	Gravimetric soil moisture : 1% Volumetric soil moisture : 1% Temperature : 0.1°C
Measurement Accuracy	Gravimetric soil moisture : ±2% (0 to 40%), ±5% (41 to 100%) Volumetric soil moisture (Repeatability) : ±1% (0 to 60%), ±2%(61 to 100%) Temperature : ±1.0°C
Temperature compensation range	10 to 40ﾟC (Automatic Temperature Compensation)
Ambient Temperature	10 to 40ﾟC
Sample Volume	0.3 mL
Measurement Time	3 seconds
Power Supply	2 x AAA Batteries
Battery Life	About 11,000 measurements (when an alkaline battery is used)
International Protection Class	IP65 Dust-tight and Protected against water jets.
Dimensions & Weight	55(W) x 31(D) x 109(H)mm, 100g (Main Unit only)

Options

· PAL-CASE : RE-39409

· PAL Silicone Cover : RE-39413

· STRAP : RE-39410

Patent for Invention Registration No. ZL200310103015.2 (China)
Patent for Design Registration No. ZL03303431.1 (China), 089244 (Taiwan)
Patent Granted in countries around the world.

Technical Specifications and Product Information
ERP Information
Downloads

PAL-Soil has dual scales of Gravimetric soil moisture and Volumetric soil moisture.
Save on time, labor, and material with PAL-Soil. A measurement only takes 10 minutes whether out in the fields or in the lab.

In accordance with ISO 16586:2003 “Soil quality – Determination of soil water content as a volume fraction on the basis of known dry bulk density – Gravimetric.”

Digital Hand-Held "Pocket" Refractometer PAL Series

ATAGO Releases NFC (Near Field Communication) Equipped Refractometers

In addition to the Bluetooth enabled refractometers, ATAGO ® released refractometers with near-field communication (NFC) technology for the ease of storing and sharing data with phones, tablets, laptops, and other NFC-equipped devices. Simply by tapping NFC-equipped devices, up to 100 measurement data with the date and time are transferred in a matter of seconds. The NFC solution is simpler and prevents typical human errors in data collection and data generation.

With ever evolving movement of profound change in how human interact with machine automation, this upgrade seizes one’s time to write down measurements with a pen or paper.

How to Use NFC Feature on PAL:
Step 1) For cellphones, download NFC reader app or turn on the NFC feature. For computers, connect the NFC reader.
Step 2) Place NFC reader to the PAL device.
Step 3) Download data.
Quick and easy three steps

Everyone is talking about the new "Pocket" as featured on recent TV programs and Magazines.

The PAL is a completely new and redesigned digital hand-held instrument that will change the traditional conceptions of refractometers. The PAL's surprisingly compact size allows you to easily carry it around and use it indoors as well as outdoors. The size, design, function and performance will surprise you. The PAL will expand your range of measuring possibilities.

Features

	Light & Compact, 100g. Ergonomically designed for one-handed operation.		Sample size 2-3 drops.

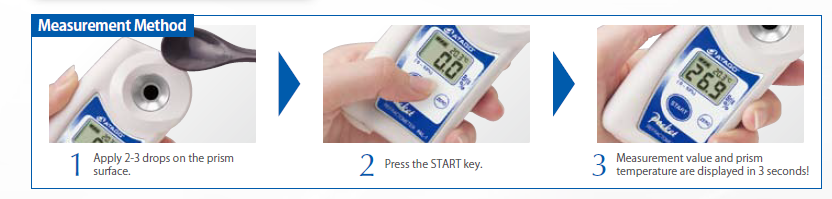

	The speedy performance of the PAL is amazing. Simply put a drop of a sample on the prism surface and press the START key. The Brix value ( sugar content / concentration ) will be displayed in just 3 seconds.		High temperature sample can be measured.
	Protection class of the PAL is IP65. You can rinse off the sample by running water on the sample stage. The design allows the user to easily wipe off the sample.		Revolutionary new feature ELI* *External Light Interference (ELI) - Patent Pending.
	The sample stage is designed to keep sample solutions from spilling out.		Calibration with water only.
	The Automatic Temperature Compensation function of the PAL enables you to take measurement readings regardless of the ambient temperature.		Convenient Storage case.
	New Digital Hand-Held "Pocket" Meter for PAL-Series Equipped with NFC Data Transmission Function Data history can be accessed by bringing PAL-NFC to any Android devices or PC-linked USB NFC Reader. *The Certification Mark is a trademark or registered trademark of NFC Forum, Inc. in the United States and in other countries.

EXPLANATION OF ICONS

Icons, for functions, specifications and scales have been added to this catalog

Function
	Can be connected to a recorder	Measurement at a set temperature
	Can be connected to a printer	Automatic Temperature Compensation
	Alarm output for high- and low-limit values	Can be connected to a circulating
	RS-232C Interface	Continuous measurement
	In-line measurement	High temperature samples
	User scales can be inputted	External Light Interference

Specification		Scale
	Calibration with water	$Clinical refractometers$	Clinical refractometers
	Calibration with exclusive standard liquid	$Refractive index scale$	Refractive index scale
	Compact and easy to carry		Salt concentration scale
	Digital display		Seawater scale
	AC outlet (AC100 to 240V)		Wine scale
	Battery operated
