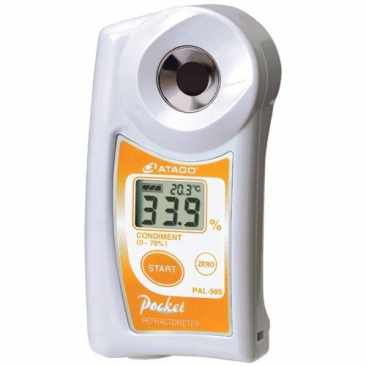

Atago 4498 PAL-98S Digital Hand-Held "Pocket" Condiment Meter, Condiment Concentration : 0.0 to 70.0 %

Not rated yet
Specifications
Model PAL-98S
Cat.No. 4498
Scale Condiment Concentration
Temperature
Measurement Range Condiment Concentration : 0.0 to 70.0 %
Temperature : 10.0 to 100゚C
Resolution Condiment Concentration : 0.1 %
Temperature : 0.1゚C
Measurement Accuracy Condiment Concentration : ±0.2 %
Temperature : ±1゚C
Temperature compensation range 10 to 100゚C
(Automatic Temperature Compensation)
Ambient Temperature 10 to 40゚C
Sample Volume 0.3mL
Measurement Time 3 seconds
Power Supply 2 x AAA Batteries
Battery Life Approx. 11,000 times measurement
(when alkaline batteries are used)
International Protection Class IP65 Dust-tight and Protected against water jets.
Dimensions & Weight 55(W) x 31(D) x 109(H)mm, 100g(Main Unit only)

Options

· PAL-CASE : RE-39409

· PAL Silicone Cover : RE-39413

· STRAP : RE-39410



Patent for Invention Registration No. ZL200310103015.2 (China)
Patent for Design Registration No. ZL03303431.1 (China), 089244 (Taiwan)
Patent Granted in countries around the world.

Price Upon Application Or Discontinued
Compact and easy to carry Calibration with water Battery operated Digital display Automatic Temperature Compensation High temperature samples External Light Interference

Digital Hand-held "Pocket" Condiment Meter PAL-98S is ideal for measuring the concentration of various condiments. Use it to measure soy sauce, ketchup, marinades, curry and many other sauces. Finding the relationship between the actual taste and the measurement value using the PAL-98S will help any chef ensure the best taste every time.



Digital Hand-held "Pocket" Refractometer PAL

Everyone is talking about the new "Pocket" as featured on recent TV programs and Magazines.

The PAL is a completely new and redesigned digital hand-held instrument that will change the traditional conceptions of refractometers. The PAL's surprisingly compact size allows you to easily carry it around and use it indoors as well as outdoors.
The size, design, function and performance will surprise you. The PAL will expand your range of measuring possibilities.

Features

Our products has received several awards !

  • 2003 “Good Design Award”
  • 2004 “Venture Technology Awards (Excellence)”
  • 2005 “Technology for Food Industry Award”
Light & Compact, 100g.
Ergonomically designed for one-handed operation.
Sample size 2-3drops.
The speedy performance of the PAL is amazing. Simply put a drop of a sample on the prism surface and press the START key. The Brix value ( sugar content / concentration ) will be displayed in just 3 seconds. High temperature sample can be measured.
Protection class of the PAL is IP65. You can rinse off the sample by running water on the sample stage. The design allows the user to easily wipe off the sample. Revolutionary new feature ELI*
*External Light Interference (ELI) - Patent Pending.
The sample stage is designed to keep sample solutions from spilling out. Calibration with water only.
The Automatic Temperature Compensation function of the PAL enables you to take measurement readings regardless of the ambient temperature. Convenient Storage case.



EXPLANATION OF ICONS

Icons, for functions, specifications and scales have been added to this catalog

Function
Can be connected to a recorder Can be connected to a recorder Measurement at a set temperature Measurement at a set temperature
Can be connected to a printer Can be connected to a printer Automatic Temperature Compensation Automatic Temperature Compensation
Alarm output for high- and low-limit values Alarm output for high- and low-limit values Can be connected to a circulating Can be connected to a circulating
RS-232C Interface RS-232C Interface Continuous measurement Continuous measurement
In-line measurement In-line measurement High temperature samples High temperature samples
User scales can be inputted User scales can be inputted External Light Interference External Light Interference

Specification Scale
Calibration with water Calibration with water Clinical refractometers Clinical refractometers
Calibration with exclusive standard liquid Calibration with exclusive standard liquid Refractive index scale Refractive index scale
Compact and easy to carry Compact and easy to carry Salt concentration scale Salt concentration scale
Digital display Digital display Seawater scale Seawater scale
AC outlet (AC100 to 240V) AC outlet (AC100 to 240V) Wine scale Wine scale
Battery operated Battery operated
    • SKU
      4498
    • Commodity Codes
      90275000
  • Measurement Range
    Condiment Concentration : 0.0 to 70.0 % Temperature : 10.0 to 100゚C
  • Resolution
    Condiment Concentration : 0.1 % Temperature : 0.1゚C
  • Measurement Accuracy
    Condiment Concentration : ±0.2 % Temperature : ±1゚C
  • Measurement Temperature (°C)
    10 to 40゚C
  • Manufacturer
    Atago Co Ltd
  • Country of Origin
    Japan
