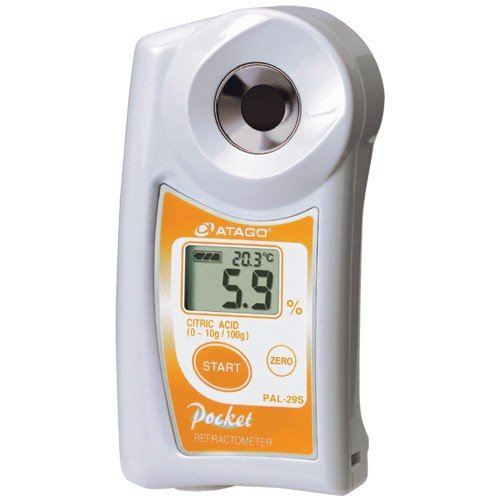

Atago 4429 PAL-29S Digital Hand-Held "Pocket" Citric Acid Refractometer PAL Series, Citric Acid : 0.0 to 10.0% Measurement Range, now with Near Field Communication

Not rated yet

PAL commitment

A new ergonomic design for comfort and ease of use! In pursuit of an "easy to use" , "easy to operate" and ergonomic architecture of new instruments, ATAGO has achieved a "palm fitting" masterpiece as well as unit that is high in hygienic properties. By reducing the number of unnecessary assembly parts, we have reduced the risks of a germ reproductive environment. Through our efforts to produce a hygienic instrument to be used in any industry, these units are designed to be completely washable. The new PAL series has been approved by the HACCP, and are equipped with the new ELI feature, which ensures accurate measurements - even outdoors. Requests from our customers worldwide are reflected in the development of the new PAL units


Specifications
ModelPAL-29S
Cat.No.4429
ScaleCitric acid (g/100g)
Temperature
Measurement RangeCitric acid : 0.0 to 10.0%
Temperature : 10.0 to 40.0゚C
ResolutionCitric acid : 0.1%
Temperature : 0.1゚C
Measurement AccuracyCitric acid : ±0.2%
Temperature : ±1゚C
Temperature compensation range10 to 40゚C
(Automatic Temperature Compensation)
Ambient Temperature10 to 40゚C
Sample Volume0.3 mL
Measurement Time3 seconds
Power Supply2 x AAA Batteries
Battery LifeApprox. 11,000 times measurement
(when alkaline batteries are used)
International Protection ClassIP65 Dust-tight and Protected against water jets.
Dimensions & Weight55(W) x 31(D) x 109(H)mm, 100g (Main Unit only)

Options

· PAL-CASE : RE-39409

· PAL Silicone Cover : RE-39413

· STRAP : RE-39410

Patent for Invention Registration No. ZL200310103015.2 (China)
Patent for Design Registration No. ZL03303431.1 (China), 089244 (Taiwan)
Patent Granted in countries around the world.


Price Upon Application Or Discontinued

PAL-29S is suitable to measure Citric acid/water solution.

Digital Hand-Held "Pocket" Refractometer PAL Series

ATAGO Releases NFC (Near Field Communication) Equipped Refractometers

In addition to the Bluetooth enabled refractometers, ATAGO ® released refractometers with near-field communication (NFC) technology for the ease of storing and sharing data with phones, tablets, laptops, and other NFC-equipped devices. Simply by tapping NFC-equipped devices, up to 100 measurement data with the date and time are transferred in a matter of seconds. The NFC solution is simpler and prevents typical human errors in data collection and data generation.

With ever evolving movement of profound change in how human interact with machine automation, this upgrade seizes one’s time to write down measurements with a pen or paper.

How to Use NFC Feature on PAL:
Step 1) For cellphones, download NFC reader app or turn on the NFC feature. For computers, connect the NFC reader.
Step 2) Place NFC reader to the PAL device.
Step 3) Download data.
Quick and easy three steps

Everyone is talking about the new "Pocket" as featured on recent TV programs and Magazines.

The PAL is a completely new and redesigned digital hand-held instrument that will change the traditional conceptions of refractometers. The PAL's surprisingly compact size allows you to easily carry it around and use it indoors as well as outdoors. The size, design, function and performance will surprise you. The PAL will expand your range of measuring possibilities.

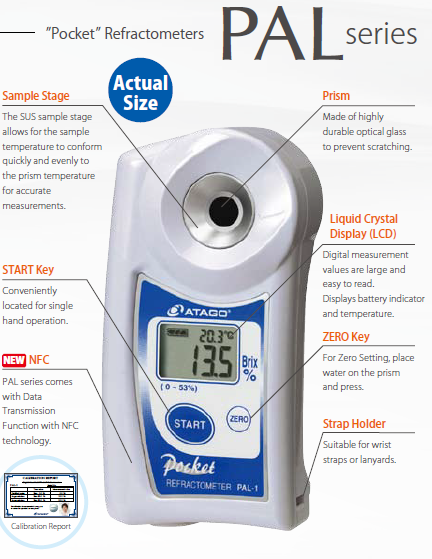

Features

Light & Compact, 100g.
Ergonomically designed for one-handed operation.
Sample size 2-3 drops.
The speedy performance of the PAL is amazing. Simply put a drop of a sample on the prism surface and press the START key. The Brix value ( sugar content / concentration ) will be displayed in just 3 seconds.High temperature sample can be measured.
Protection class of the PAL is IP65. You can rinse off the sample by running water on the sample stage. The design allows the user to easily wipe off the sample.Revolutionary new feature ELI*
*External Light Interference (ELI) - Patent Pending.
The sample stage is designed to keep sample solutions from spilling out.Calibration with water only.
The Automatic Temperature Compensation function of the PAL enables you to take measurement readings regardless of the ambient temperature.Convenient Storage case.
New Digital Hand-Held "Pocket" Meter for PAL-Series Equipped with NFC Data Transmission Function
Data history can be accessed by bringing PAL-NFC to any Android devices or PC-linked USB NFC Reader.
*The Certification Mark is a trademark or registered trademark of NFC Forum, Inc. in the United States and in other countries.




EXPLANATION OF ICONS

Icons, for functions, specifications and scales have been added to this catalog

Function
Can be connected to a recorderCan be connected to a recorderMeasurement at a set temperatureMeasurement at a set temperature
Can be connected to a printerCan be connected to a printerAutomatic Temperature CompensationAutomatic Temperature Compensation
Alarm output for high- and low-limit valuesAlarm output for high- and low-limit valuesCan be connected to a circulating Can be connected to a circulating
RS-232C InterfaceRS-232C InterfaceContinuous measurementContinuous measurement
In-line measurementIn-line measurementHigh temperature samplesHigh temperature samples
User scales can be inputtedUser scales can be inputtedExternal Light InterferenceExternal Light Interference



SpecificationScale
Calibration with waterCalibration with waterClinical refractometersClinical refractometers
Calibration with exclusive standard liquidCalibration with exclusive standard liquidRefractive index scaleRefractive index scale
Compact and easy to carryCompact and easy to carrySalt concentration scaleSalt concentration scale
Digital displayDigital displaySeawater scaleSeawater scale
AC outlet (AC100 to 240V)AC outlet (AC100 to 240V)Wine scaleWine scale
Battery operatedBattery operated
    • SKU
      4429
    • Commodity Codes
      90275000
  • Measurement Range
    Citric Acid : 0.0 to 10.0%
  • Resolution
    Citric acid : 0.1%
  • Measurement Accuracy
    Citric acid : ±0.2%
  • Ambient Temperature (°C)
    10 to 40
  • Manufacturer
    Atago Co Ltd
  • Country of Origin
    Japan
